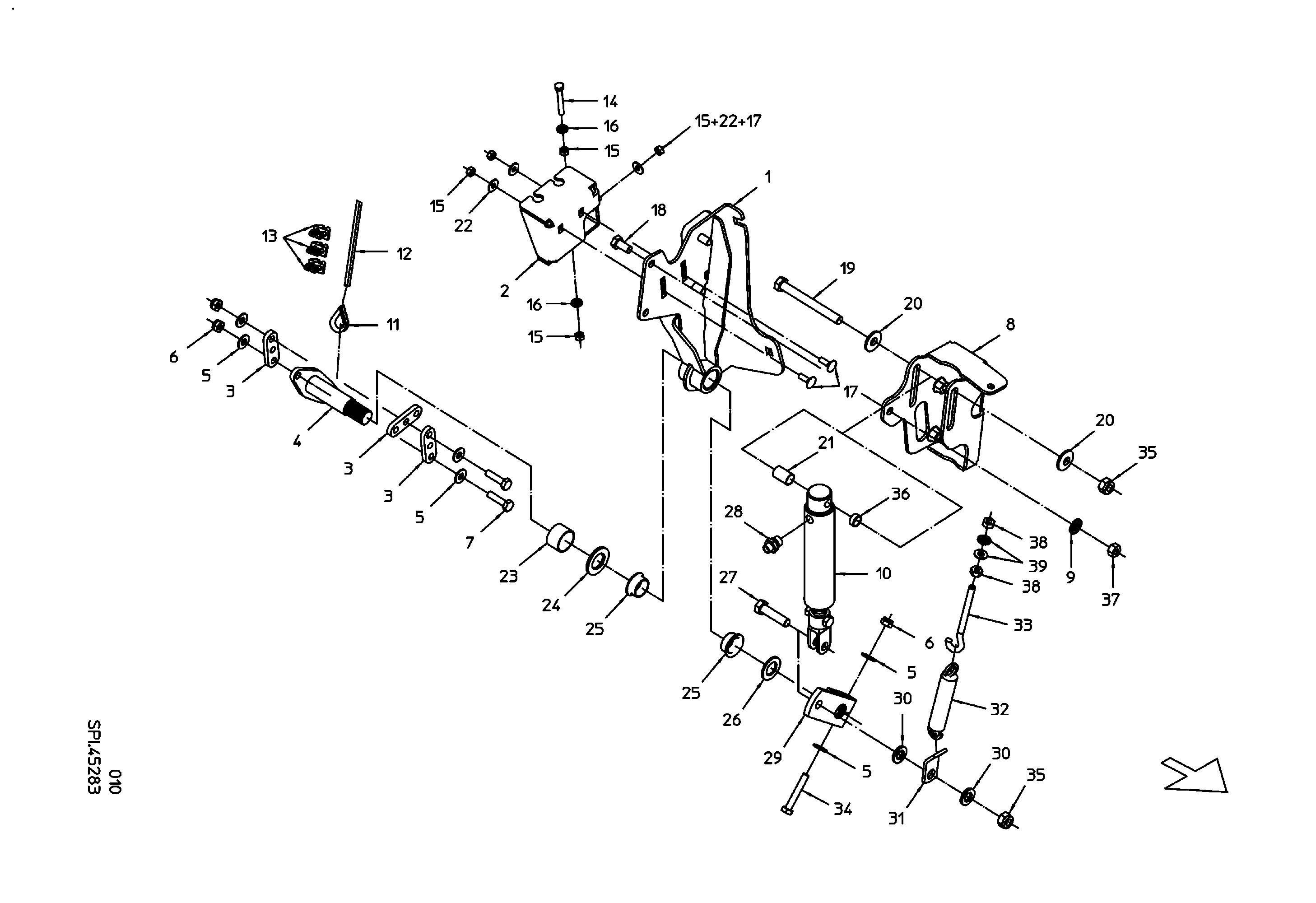

Parts by subassemblies

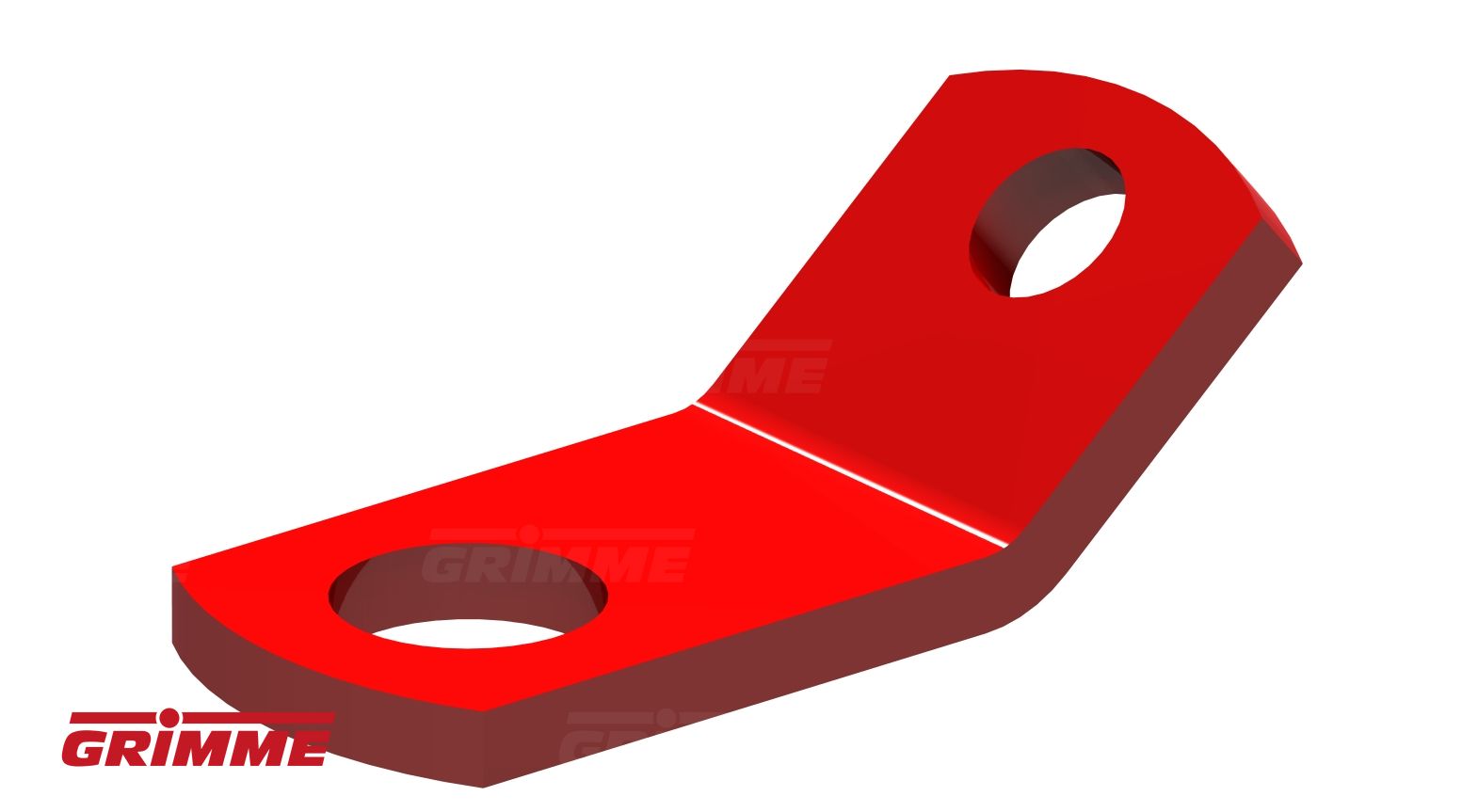

BRACKET

Quantity in assembly group: 1 Piece / Pos. 1

BRACKET ADJUSTMENT

Quantity in assembly group: 1 Piece / Pos. 2

BRACKET

Quantity in assembly group: 3 Piece / Pos. 3

LEVER SHAFT

Quantity in assembly group: 1 Piece / Pos. 4

PLAIN WASHER 11X25X2 GAL

Quantity in assembly group: 6 Piece / Pos. 5

NYLOC NUT DIN985-M10-8-GAL

Quantity in assembly group: 3 Piece / Pos. 6

HEX BOLT M10X40-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 7

BRACKET

Quantity in assembly group: 1 Piece / Pos. 8

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 3 Piece / Pos. 9

CYLINDER

Quantity in assembly group: 1 Piece / Pos. 10

THIMBLE B6 DIN6899 BRIGHT GAL

Quantity in assembly group: 2 Piece / Pos. 11

WIRE STRAND 6mm-GAL 1500LG

Quantity in assembly group: 1 Piece / Pos. 12

CABLE CLAMP 6mm

Quantity in assembly group: 3 Piece / Pos. 13

HHC-SCREW M8X60 DIN933-8.8-GAL

Quantity in assembly group: 1 Piece / Pos. 14

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 5 Piece / Pos. 15

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 2 Piece / Pos. 16

COACH BOLT M8X25-603-8.8-GAL

Quantity in assembly group: 3 Piece / Pos. 17

SET SCREW M12X25-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 18

HHC-SCREW M14X130 931-10.9-flZ

Quantity in assembly group: 1 Piece / Pos. 19

CONTACT WASHER FORM B 14-GAL

Quantity in assembly group: 2 Piece / Pos. 20

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 21

CONTACT DISC SHAPE B8 GAL

Quantity in assembly group: 3 Piece / Pos. 22

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 23

DISC 30 DIN126-GAL

Quantity in assembly group: 1 Piece / Pos. 24

COLLAR BUSH PAF 30160 P10

Quantity in assembly group: 2 Piece / Pos. 25

PLAIN WASHER 25X42X3 GAL

Quantity in assembly group: 1 Piece / Pos. 26

HEX BOLT M14X55-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 27

P-GES 8L/R3/8-WD

Quantity in assembly group: 1 Piece / Pos. 28

BRAKE LEVER

Quantity in assembly group: 1 Piece / Pos. 29

PLAIN WASHER 17X30X4

Quantity in assembly group: 2 Piece / Pos. 30

BRACKET

Quantity in assembly group: 1 Piece / Pos. 31

TENSION SPRING

Quantity in assembly group: 1 Piece / Pos. 32

EYELET SCREW

Quantity in assembly group: 1 Piece / Pos. 33

HEX BOLT M10X65-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 34

HEXAGON NUT DIN985-M14-8-GAL

Quantity in assembly group: 2 Piece / Pos. 35

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 36

HEXAGON NUT M12 934-10.9-flZn

Quantity in assembly group: 3 Piece / Pos. 37

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 38

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 2 Piece / Pos. 39
