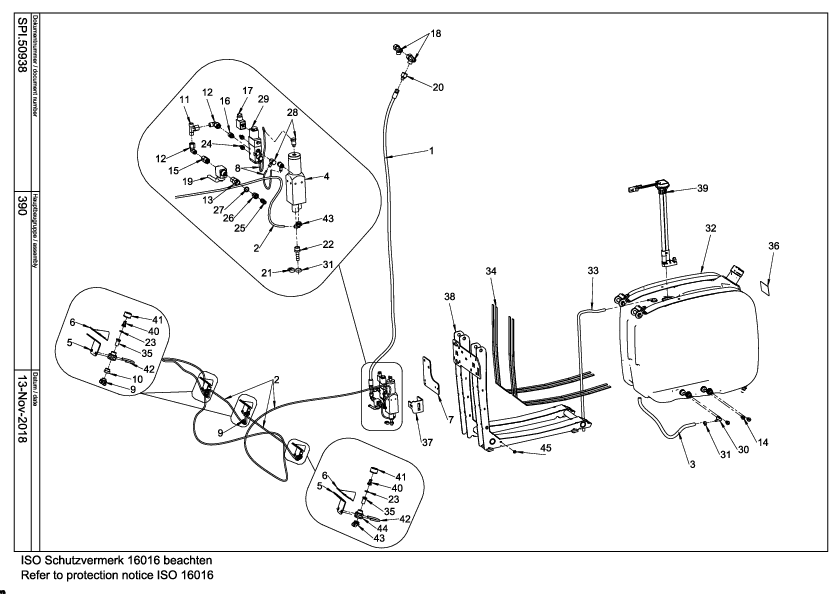

Parts by subassemblies

HYD-HOSE 1800-NW6-450BAR

Quantity in assembly group: 1 Piece / Pos. 1

PRESSURE HOSE DN 4

Quantity in assembly group: 6 Piece / Pos. 2

PROFILED TUBE AdBlue

Quantity in assembly group: 0 Piece / Pos. 3

PUMP FOR DRAIN WATER

Quantity in assembly group: 1 Piece / Pos. 4

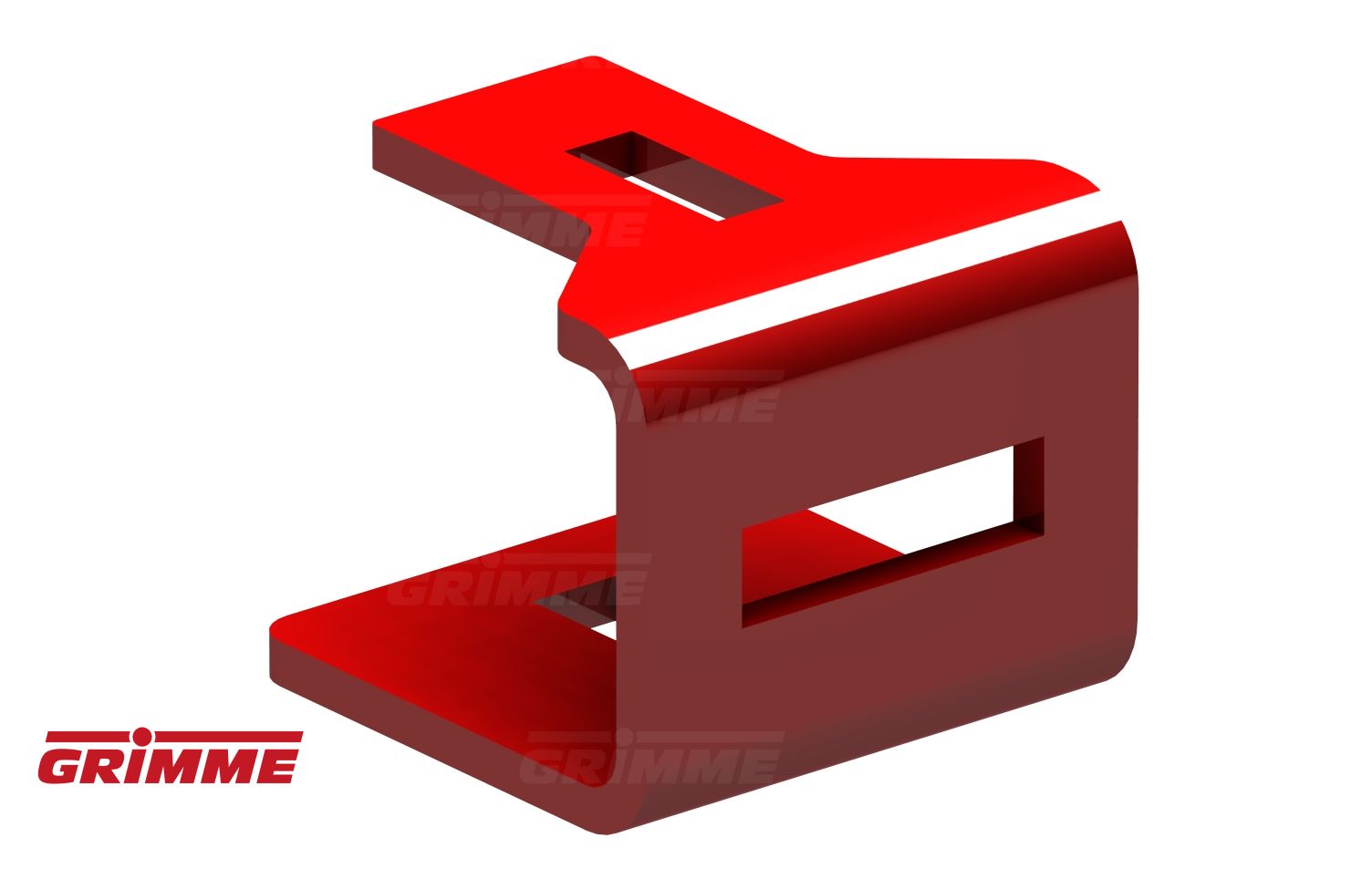

BRACKET

Quantity in assembly group: 3 Piece / Pos. 5

SCRAPER

Quantity in assembly group: 3 Piece / Pos. 6

BRACKET

Quantity in assembly group: 1 Piece / Pos. 7

PLM-TUBE WVN715-R04X0,85+AS2

Quantity in assembly group: 0 Piece / Pos. 8

PLUG CONNECTION DM6 1/4" T

Quantity in assembly group: 2 Piece / Pos. 9

REDUCTION 3/8" AT 1/4"

Quantity in assembly group: 2 Piece / Pos. 10

P-ETS 8L-SV

Quantity in assembly group: 1 Piece / Pos. 11

P-EWS 8L-SV

Quantity in assembly group: 2 Piece / Pos. 12

MAVE08LRCF

Quantity in assembly group: 1 Piece / Pos. 13

VSTI 14X1.5 EDCF

Quantity in assembly group: 3 Piece / Pos. 14

STRAIGHT CONNECTION SNV 8L

Quantity in assembly group: 1 Piece / Pos. 15

GE08LR1/8EDOMDCF

Quantity in assembly group: 1 Piece / Pos. 16

VALVE-PLUG,2POLE+LEI,FO B,DIN

Quantity in assembly group: 1 Piece / Pos. 17

P-ELS 15L-SV

Quantity in assembly group: 2 Piece / Pos. 18

BLOCK UP BALL VALVE BKH-8L DN6

Quantity in assembly group: 1 Piece / Pos. 19

P-REDS 15/8L-SV

Quantity in assembly group: 1 Piece / Pos. 20

WORM-CLAMP SGL10-16/8SKZ

Quantity in assembly group: 1 Piece / Pos. 21

HOSE NIPPLE G3/8A

Quantity in assembly group: 1 Piece / Pos. 22

SEAL RING

Quantity in assembly group: 3 Piece / Pos. 23

SILENCER G 1/8"

Quantity in assembly group: 2 Piece / Pos. 24

CONNECTION 451-006-518-VS

Quantity in assembly group: 1 Piece / Pos. 25

CONNECTION PIECE 406-054 G1/4A

Quantity in assembly group: 1 Piece / Pos. 26

FLAT SEAL RING 508-108 G1/4A

Quantity in assembly group: 1 Piece / Pos. 27

ANGULAR PLATE SWIVEL BOLT

Quantity in assembly group: 4 Piece / Pos. 28

5-PORT/2-WAY VALVE

Quantity in assembly group: 1 Piece / Pos. 29

QUICK CON S NW5/16"-7.3 90

Quantity in assembly group: 1 Piece / Pos. 30

EAR CLAMP 14,5-17mm

Quantity in assembly group: 2 Piece / Pos. 31

AdBlue-TANK 95L

Quantity in assembly group: 1 Piece / Pos. 32

PVC-TUBE TRANSPARENT 8X1,5

Quantity in assembly group: 1 Piece / Pos. 33

RUBBER-PROFILE 226-1503

Quantity in assembly group: 4 Piece / Pos. 34

CHECK VALVE

Quantity in assembly group: 3 Piece / Pos. 35

STICKER

Quantity in assembly group: 1 Piece / Pos. 36

ANGULAR PLATE

Quantity in assembly group: 1 Piece / Pos. 37

BRACKET

Quantity in assembly group: 1 Piece / Pos. 38

QUALITY SENSOR

Quantity in assembly group: 1 Piece / Pos. 39

TONGUE NOZZLE DT 1,0

Quantity in assembly group: 3 Piece / Pos. 40

RETAINING NUT NOZZLE 3/8"

Quantity in assembly group: 3 Piece / Pos. 41

U-BOLT M5 GAL

Quantity in assembly group: 3 Piece / Pos. 42

SWV DM6 3/8" 90°

Quantity in assembly group: 2 Piece / Pos. 43

DNI 3/8" OU-THR/3/8" OU-THR

Quantity in assembly group: 3 Piece / Pos. 44

BINDER SOCKET, BLACK

Quantity in assembly group: 2 Piece / Pos. 45
