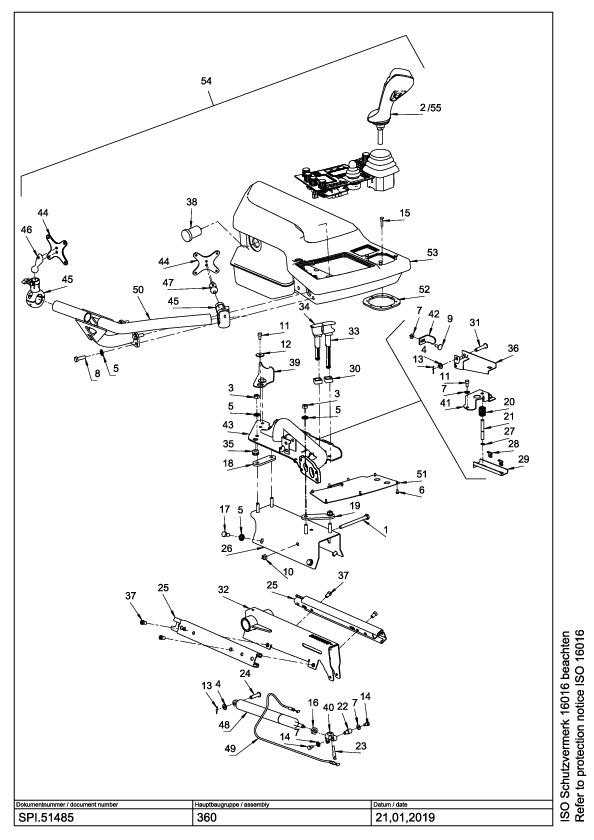

Parts by subassemblies

HEX BOLT M8X100-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 1

JOYSTICK COMPLETE R/H

Quantity in assembly group: 1 Piece / Pos. 2

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 4 Piece / Pos. 3

FLAT WASHER B8,4 DIN125 -GAL

Quantity in assembly group: 2 Piece / Pos. 4

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 12 Piece / Pos. 5

CYL-BOLT M4X8 DIN84-GAL

Quantity in assembly group: 8 Piece / Pos. 6

CONTACT WASHER FORM M 6-GAL

Quantity in assembly group: 5 Piece / Pos. 7

SET SCREW M8X25-DIN933-8.8-G

Quantity in assembly group: 4 Piece / Pos. 8

COACH BOLT M6X16-DIN603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 9

HHC-SCREW M8 DIN980-8-GAL

Quantity in assembly group: 1 Piece / Pos. 10

CYLINDRICAL BOLT DIN912 M6X12

Quantity in assembly group: 4 Piece / Pos. 11

DISC R6,6 DIN440-GALVANIZED

Quantity in assembly group: 2 Piece / Pos. 12

COTTER PIN 1,6X18 DIN94-GAL

Quantity in assembly group: 2 Piece / Pos. 13

SET SCREW M6X10-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 14

CS-SCREW INNER HEX M5X25 7991

Quantity in assembly group: 4 Piece / Pos. 15

HEX-NUT M10X1 DIN936-17H-GAL

Quantity in assembly group: 1 Piece / Pos. 16

SET SCREW M8X16-DIN933-8.8-G

Quantity in assembly group: 4 Piece / Pos. 17

PANEL

Quantity in assembly group: 1 Piece / Pos. 18

PANEL

Quantity in assembly group: 1 Piece / Pos. 19

COMPRESSION SPRING

Quantity in assembly group: 1 Piece / Pos. 20

BOLT

Quantity in assembly group: 1 Piece / Pos. 21

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 22

RELEASE LEVER

Quantity in assembly group: 1 Piece / Pos. 23

BOLT

Quantity in assembly group: 1 Piece / Pos. 24

POSITIONING PLATE

Quantity in assembly group: 2 Piece / Pos. 25

PLATE

Quantity in assembly group: 1 Piece / Pos. 26

SNAP-RING A 8x0,8 471

Quantity in assembly group: 1 Piece / Pos. 27

INSERTION

Quantity in assembly group: 2 Piece / Pos. 28

LOCK

Quantity in assembly group: 1 Piece / Pos. 29

INSERTION

Quantity in assembly group: 2 Piece / Pos. 30

BOLT

Quantity in assembly group: 1 Piece / Pos. 31

PLATE

Quantity in assembly group: 1 Piece / Pos. 32

ADJUSTER LEVER

Quantity in assembly group: 1 Piece / Pos. 33

ADJUSTER LEVER

Quantity in assembly group: 1 Piece / Pos. 34

CABLE RING

Quantity in assembly group: 1 Piece / Pos. 35

LEVER

Quantity in assembly group: 1 Piece / Pos. 36

CYL-BOLT 7984 M8X12 8.8 GAL

Quantity in assembly group: 4 Piece / Pos. 37

SOCKET

Quantity in assembly group: 1 Piece / Pos. 38

COVER

Quantity in assembly group: 1 Piece / Pos. 39

BRACKET MODIFIED

Quantity in assembly group: 1 Piece / Pos. 40

BRACKET

Quantity in assembly group: 1 Piece / Pos. 41

BRACKET

Quantity in assembly group: 1 Piece / Pos. 42

SUPPORT

Quantity in assembly group: 1 Piece / Pos. 43

FIXING PLATE CCI

Quantity in assembly group: 2 Piece / Pos. 44

BRACKET

Quantity in assembly group: 2 Piece / Pos. 45

BRACKET BALL 45°

Quantity in assembly group: 1 Piece / Pos. 46

BRACKET BALL

Quantity in assembly group: 1 Piece / Pos. 47

GAS SPRING STRUT

Quantity in assembly group: 1 Piece / Pos. 48

BOWDEN CABLE

Quantity in assembly group: 1 Piece / Pos. 49

BRACKET

Quantity in assembly group: 1 Piece / Pos. 50

PLATE

Quantity in assembly group: 1 Piece / Pos. 51

PANEL

Quantity in assembly group: 1 Piece / Pos. 52

ARMREST

Quantity in assembly group: 1 Piece / Pos. 53

ARMREST

Quantity in assembly group: 1 Piece / Pos. 54

RK: INSULATING DISC ARC

Quantity in assembly group: 1 Piece / Pos. 55
