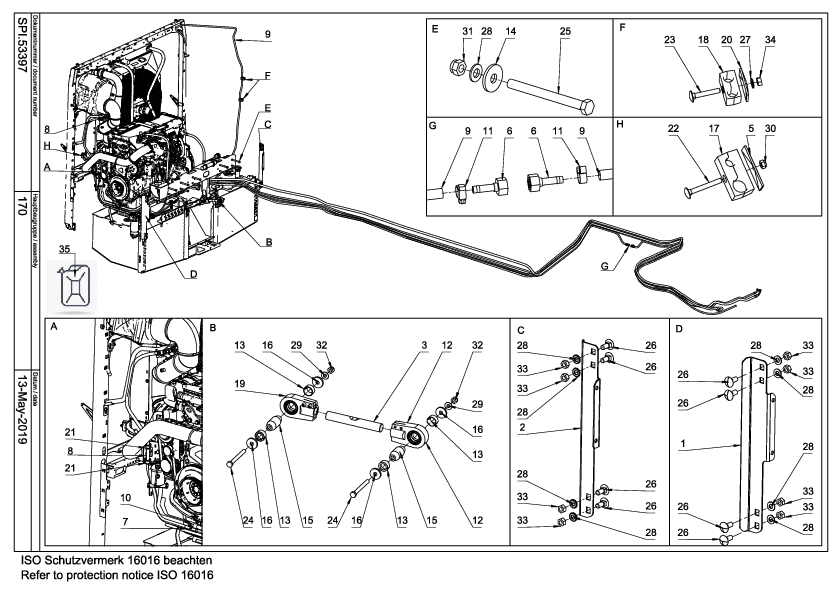

Parts by subassemblies

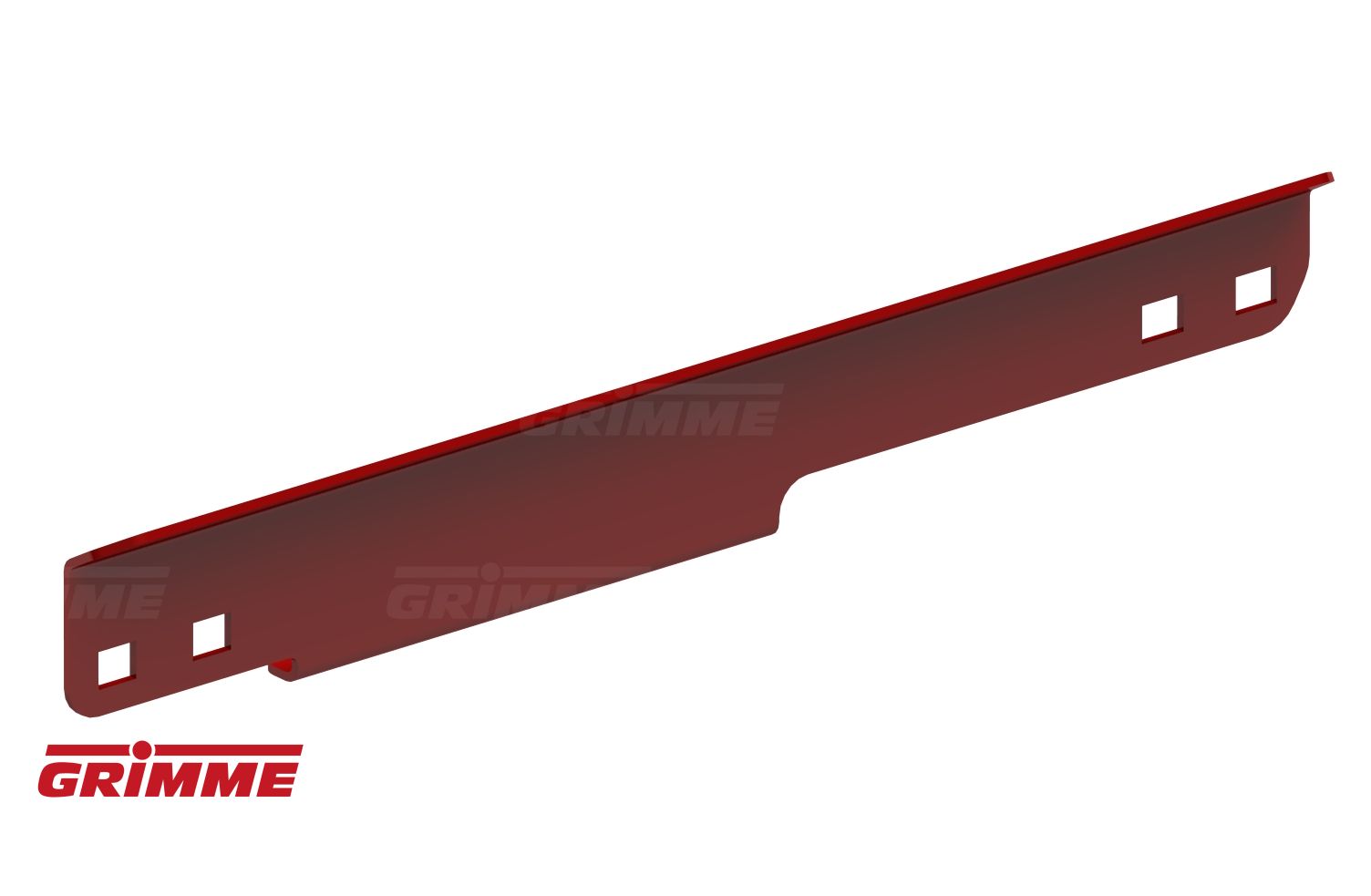

STAY R/H

Quantity in assembly group: 1 Piece / Pos. 1

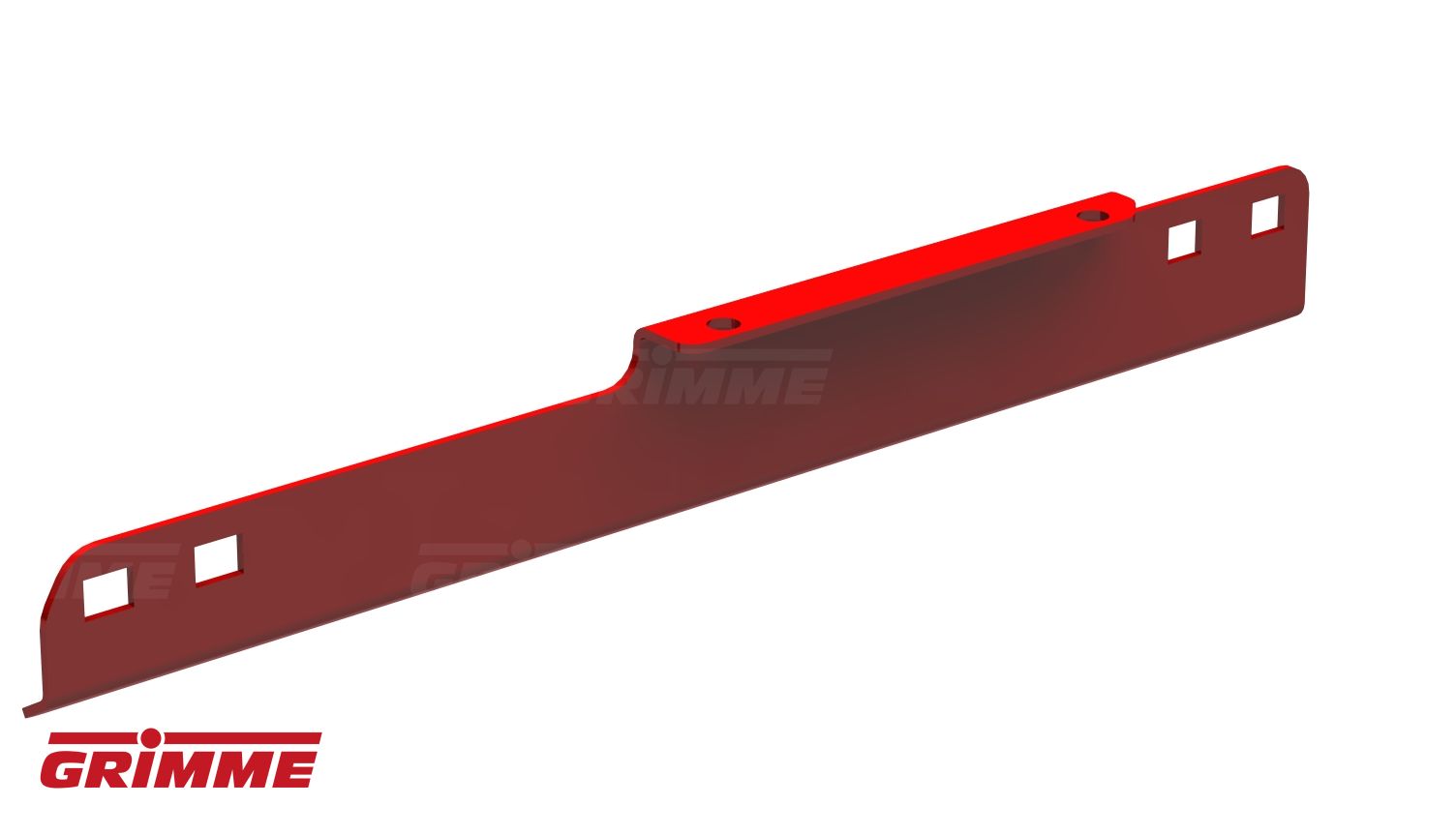

STAY L/H

Quantity in assembly group: 1 Piece / Pos. 2

ROD

Quantity in assembly group: 1 Piece / Pos. 3

DENSO ND8 PAG-OIL 46

Quantity in assembly group: 1 Piece / Pos. 4

COVER PLATE F HYD PIPE CLAMP B

Quantity in assembly group: 1 Piece / Pos. 5

HOSE FITTING

Quantity in assembly group: 2 Piece / Pos. 6

COOLANT TUBE 5/16"

Quantity in assembly group: 1 Piece / Pos. 7

RADIATOR COV DIN73411 15X3,5

Quantity in assembly group: 15 Piece / Pos. 8

HOSE 18X11

Quantity in assembly group: 12 Piece / Pos. 9

COOLANT TUBE 5-8"

Quantity in assembly group: 1 Piece / Pos. 10

HOSE CLIP F S11

Quantity in assembly group: 2 Piece / Pos. 11

ROD ENDS FMAL 35 D-GAS35

Quantity in assembly group: 1 Piece / Pos. 12

TAPER RING

Quantity in assembly group: 4 Piece / Pos. 13

WASHER

Quantity in assembly group: 10 Piece / Pos. 14

CONICAL BOLT

Quantity in assembly group: 2 Piece / Pos. 15

HARDOX DISC

Quantity in assembly group: 4 Piece / Pos. 16

HOSE HOLDER D18-28

Quantity in assembly group: 1 Piece / Pos. 17

HY TUBE HOLDER DM18 GR2 LH SMO

Quantity in assembly group: 2 Piece / Pos. 18

ROD ENDS FMA 35 D-GAS35 GAL

Quantity in assembly group: 1 Piece / Pos. 19

COVER PLATE HYD PIPE CLAMP BG2

Quantity in assembly group: 2 Piece / Pos. 20

PIPE CLAMP RSGU1100 22/25

Quantity in assembly group: 2 Piece / Pos. 21

COACH BOLT M8X65-DIN603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 22

COACH BOLT M8X50-DIN603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 23

HHC-SCREW-M12x120-931-12.9flZn

Quantity in assembly group: 2 Piece / Pos. 24

HHC-SCREW M16X170 931-8.8-GAL

Quantity in assembly group: 10 Piece / Pos. 25

COACH BOLT M16X40-DIN603-8.8-G

Quantity in assembly group: 8 Piece / Pos. 26

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 2 Piece / Pos. 27

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 18 Piece / Pos. 28

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 2 Piece / Pos. 29

NYLOC NUT DIN985-M8-8-GAL

Quantity in assembly group: 1 Piece / Pos. 30

NYLOC NUT DIN985-M16-8-GAL

Quantity in assembly group: 10 Piece / Pos. 31

HEX NUT DIN982-M12-10 flZn

Quantity in assembly group: 2 Piece / Pos. 32

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 8 Piece / Pos. 33

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 34

REFRIGERANT AGENT R134A

Quantity in assembly group: 2 Piece / Pos. 35
