Parts by subassemblies

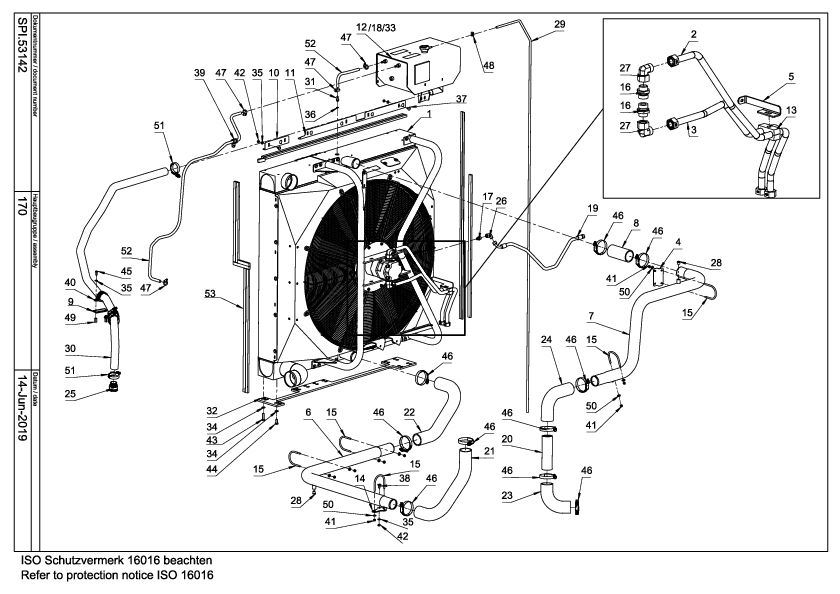

FAN COOLER OM471 OM473

Quantity in assembly group: 1 Piece / Pos. 1

HY-TUBE

Quantity in assembly group: 1 Piece / Pos. 2

HY-TUBE

Quantity in assembly group: 1 Piece / Pos. 3

BRACKET

Quantity in assembly group: 1 Piece / Pos. 4

ANGULAR PLATE

Quantity in assembly group: 1 Piece / Pos. 5

COOLING WATER PIPE COLD

Quantity in assembly group: 1 Piece / Pos. 6

COOLING WATER PIPE

Quantity in assembly group: 1 Piece / Pos. 7

FLEXIBLE TUBE

Quantity in assembly group: 1 Piece / Pos. 8

COVER PLATE LIGHT M8

Quantity in assembly group: 2 Piece / Pos. 9

SCREENING PLATE

Quantity in assembly group: 1 Piece / Pos. 10

SCREENING PLATE B

Quantity in assembly group: 1 Piece / Pos. 11

SURGE TANK

Quantity in assembly group: 1 Piece / Pos. 12

HYD PIPE CLAMP 2HOLE DM22/22 B

Quantity in assembly group: 1 Piece / Pos. 13

BRACKET

Quantity in assembly group: 1 Piece / Pos. 14

U-BOLT M8X77X92 GAL

Quantity in assembly group: 5 Piece / Pos. 15

P-GES 22L/R1"

Quantity in assembly group: 2 Piece / Pos. 16

P-GES 12L/R1/4

Quantity in assembly group: 1 Piece / Pos. 17

ANTIFREEZE FLUID

Quantity in assembly group: 100 Piece / Pos. 18

HYD HOSE-1000-NW10-1X90-250BAR

Quantity in assembly group: 1 Piece / Pos. 19

COOLING WATER PIPE

Quantity in assembly group: 1 Piece / Pos. 20

COOLING WATER HOSE

Quantity in assembly group: 1 Piece / Pos. 21

COOLING WATER HOSE

Quantity in assembly group: 1 Piece / Pos. 22

COOLING WATER HOSE WARM

Quantity in assembly group: 1 Piece / Pos. 23

COOLING WATER HOSE

Quantity in assembly group: 1 Piece / Pos. 24

QUICK CONNECTOR PS3 NW32-40 0°

Quantity in assembly group: 1 Piece / Pos. 25

P-EWS 12L-SV

Quantity in assembly group: 1 Piece / Pos. 26

P-EWS 22L-SV

Quantity in assembly group: 2 Piece / Pos. 27

VSTI 14X1.5 EDCF

Quantity in assembly group: 2 Piece / Pos. 28

PVC-TUBE TRANSPARENT 8X1,5

Quantity in assembly group: 3 Piece / Pos. 29

HOSE DN38 TYPE T-644

Quantity in assembly group: 2 Piece / Pos. 30

HOSE SLEEVE AG 1/8"

Quantity in assembly group: 1 Piece / Pos. 31

SUP COMBI-COOLER

Quantity in assembly group: 1 Piece / Pos. 32

PROBE WATER SHORTAGE ANALOG

Quantity in assembly group: 1 Piece / Pos. 33

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 9 Piece / Pos. 34

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 10 Piece / Pos. 35

COPPER WASHER A10X14X1-DIN7603

Quantity in assembly group: 1 Piece / Pos. 36

COACH BOLT M8X16-DIN603-8.8-G

Quantity in assembly group: 6 Piece / Pos. 37

COACH BOLT M8X20-603-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 38

PIPE CLAMP RSGU1100 17/25

Quantity in assembly group: 1 Piece / Pos. 39

PIPE CLAMP RSGU1100 50/25

Quantity in assembly group: 2 Piece / Pos. 40

NYLOC NUT DIN985-M8-8-GAL

Quantity in assembly group: 10 Piece / Pos. 41

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 8 Piece / Pos. 42

HHC-SCREW M10X40 DIN933-8.8-GA

Quantity in assembly group: 1 Piece / Pos. 43

HHC-SCREW M10X25 933-8.8-GAL

Quantity in assembly group: 8 Piece / Pos. 44

SET SCREW M8X20-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 45

HOSE CLIP CT 350 L

Quantity in assembly group: 10 Piece / Pos. 46

WORM DRIVE HOSE CLIP SGL16-25/

Quantity in assembly group: 4 Piece / Pos. 47

WORM-CLAMP SGL10-16/8SKZ

Quantity in assembly group: 1 Piece / Pos. 48

EXTENSION NUT M8 DIN6334 GAL

Quantity in assembly group: 2 Piece / Pos. 49

PLAIN WASHER 8.4X20X2 GAL

Quantity in assembly group: 11 Piece / Pos. 50

HOSE CLIP CT 250 L

Quantity in assembly group: 4 Piece / Pos. 51

COOLING WATER HOSE

Quantity in assembly group: 2 Piece / Pos. 52

SEALING STRIP BLACK 20X12

Quantity in assembly group: 1 Piece / Pos. 53
