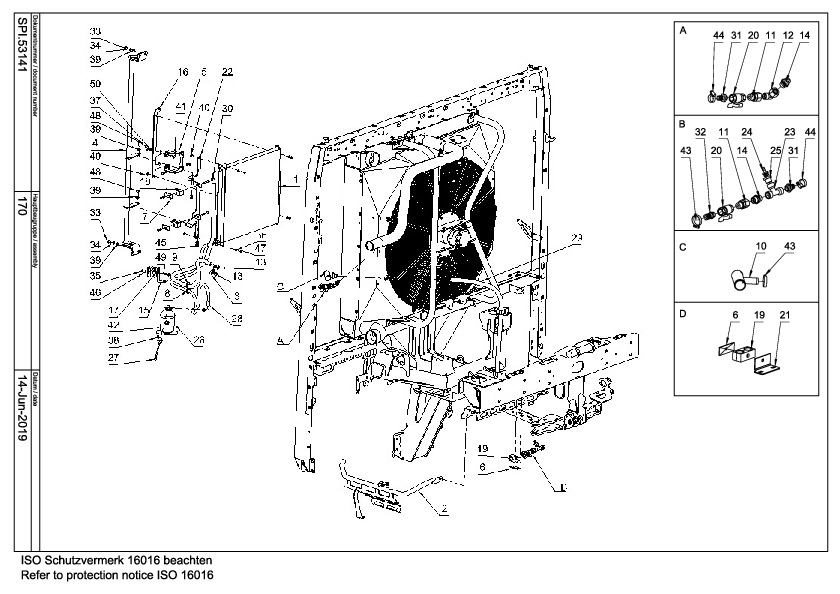

Parts by subassemblies

CONDENSOR

Quantity in assembly group: 1 Piece / Pos. 1

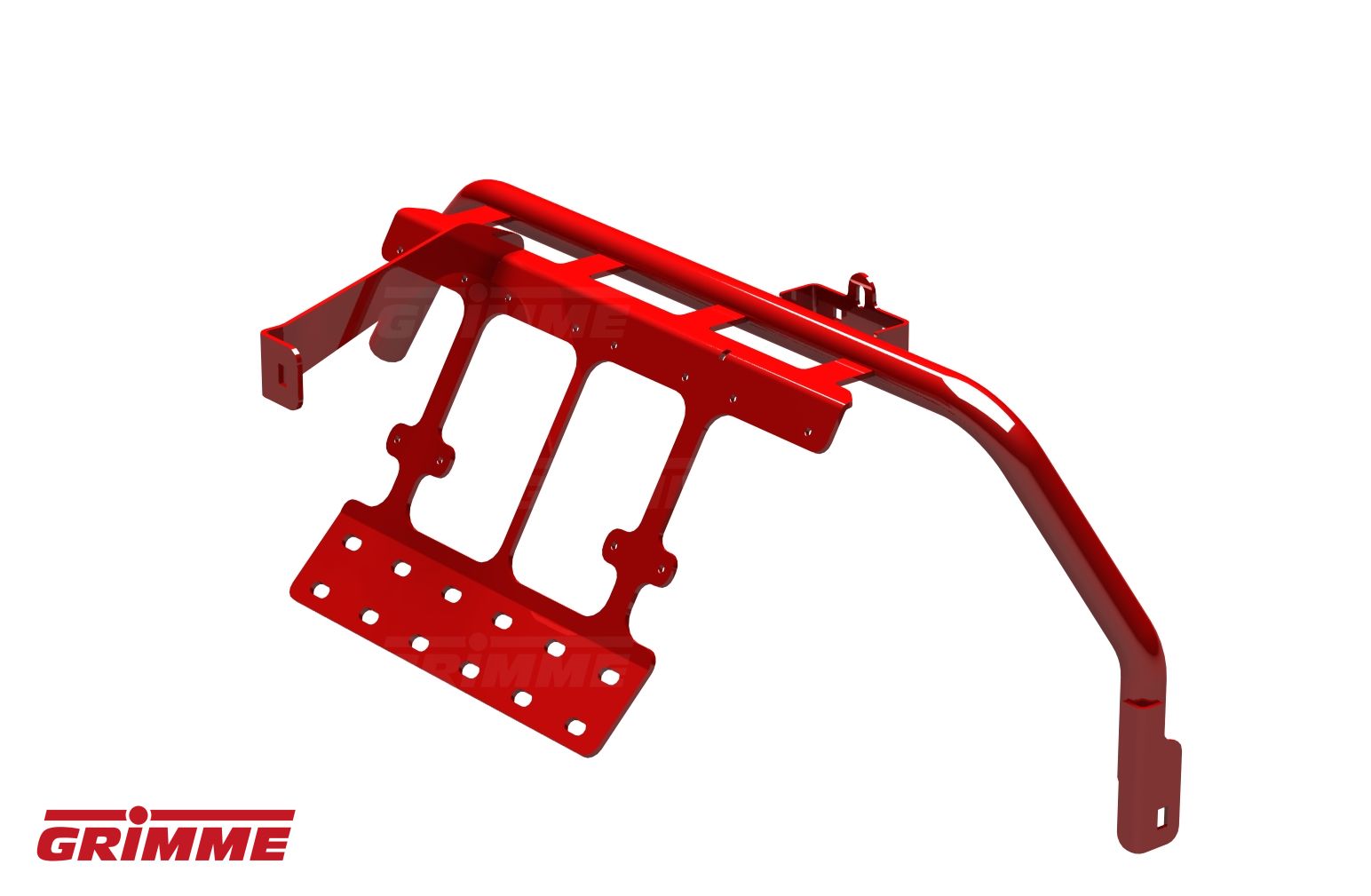

BRACKET

Quantity in assembly group: 1 Piece / Pos. 2

FLANGE PLATE DENSO10S15C

Quantity in assembly group: 1 Piece / Pos. 3

BRACKET CENTRE

Quantity in assembly group: 1 Piece / Pos. 4

STOPPER

Quantity in assembly group: 1 Piece / Pos. 5

COVER PLATE F HYD PIPE CLAMP B

Quantity in assembly group: 3 Piece / Pos. 6

HY-TUBE HOLDER GD3D

Quantity in assembly group: 2 Piece / Pos. 7

RUBBER GROMMET,B=28

Quantity in assembly group: 1 Piece / Pos. 8

LEAD THROUGH BUSH DM=29/37

Quantity in assembly group: 1 Piece / Pos. 9

T-JOINT

Quantity in assembly group: 1 Piece / Pos. 10

EGE15LREDCF

Quantity in assembly group: 2 Piece / Pos. 11

P-EWS 15L-SV

Quantity in assembly group: 1 Piece / Pos. 12

GASKET

Quantity in assembly group: 2 Piece / Pos. 13

GE15LREDOMDCF

Quantity in assembly group: 2 Piece / Pos. 14

BRACKET

Quantity in assembly group: 1 Piece / Pos. 15

BRACKET CONDENSER R/H

Quantity in assembly group: 1 Piece / Pos. 16

HOSE HOLDER DM25-18

Quantity in assembly group: 1 Piece / Pos. 17

HOSE HOLDER D25-25

Quantity in assembly group: 2 Piece / Pos. 18

PIPE CLAMP D28-28

Quantity in assembly group: 3 Piece / Pos. 19

BALL COCK IG - IG ½ Zoll

Quantity in assembly group: 2 Piece / Pos. 20

BRACKET HEATING

Quantity in assembly group: 1 Piece / Pos. 21

BRACKET CONDENSER

Quantity in assembly group: 1 Piece / Pos. 22

T-JOINT 1/2"

Quantity in assembly group: 1 Piece / Pos. 23

HOSE SLEEVE 3/8"

Quantity in assembly group: 1 Piece / Pos. 24

REDUCTION PIECE 1/2"x3/8"

Quantity in assembly group: 1 Piece / Pos. 25

RESERVOIR

Quantity in assembly group: 1 Piece / Pos. 26

PRESSURE SWITCH

Quantity in assembly group: 1 Piece / Pos. 27

COOLANT TUBE 5/16"

Quantity in assembly group: 1 Piece / Pos. 28

RADIATOR TUBE DIN73411 22X3,5

Quantity in assembly group: 1 Piece / Pos. 29

COOLANT TUBE 1-2"

Quantity in assembly group: 1 Piece / Pos. 30

HOSE SLEEVE AG ½ Zoll, 16

Quantity in assembly group: 2 Piece / Pos. 31

HOSE SLEEVE AG 1/2",20

Quantity in assembly group: 1 Piece / Pos. 32

SET SCREW M10X16-DIN933-8.8-G

Quantity in assembly group: 4 Piece / Pos. 33

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 4 Piece / Pos. 34

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 3 Piece / Pos. 35

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 6 Piece / Pos. 36

WING NUT M8 DIN315

Quantity in assembly group: 2 Piece / Pos. 37

COACH BOLT/SS M6X16-603-8.8-G

Quantity in assembly group: 4 Piece / Pos. 38

PLAIN WASHER 11X25X2 GAL

Quantity in assembly group: 8 Piece / Pos. 39

COACH BOLT M8X25-603-8.8-GAL

Quantity in assembly group: 6 Piece / Pos. 40

MH-SCREW M8X30-603-10.9 flZn

Quantity in assembly group: 2 Piece / Pos. 41

CONTACT WASHER FORM M 6-GAL

Quantity in assembly group: 4 Piece / Pos. 42

WORM DRIVE HOSE CLIP 25-40/9

Quantity in assembly group: 2 Piece / Pos. 43

WORM DRIVE HOSE CLIP SGL16-25/

Quantity in assembly group: 2 Piece / Pos. 44

NYLOC NUT DIN985-M10-8-GAL

Quantity in assembly group: 2 Piece / Pos. 45

SET SCREW M10X30-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 48

COACH BOLT M8X60-DIN603-8.8-G

Quantity in assembly group: 3 Piece / Pos. 49

PLAIN WASHER 8.4X20X2 GAL

Quantity in assembly group: 2 Piece / Pos. 50
