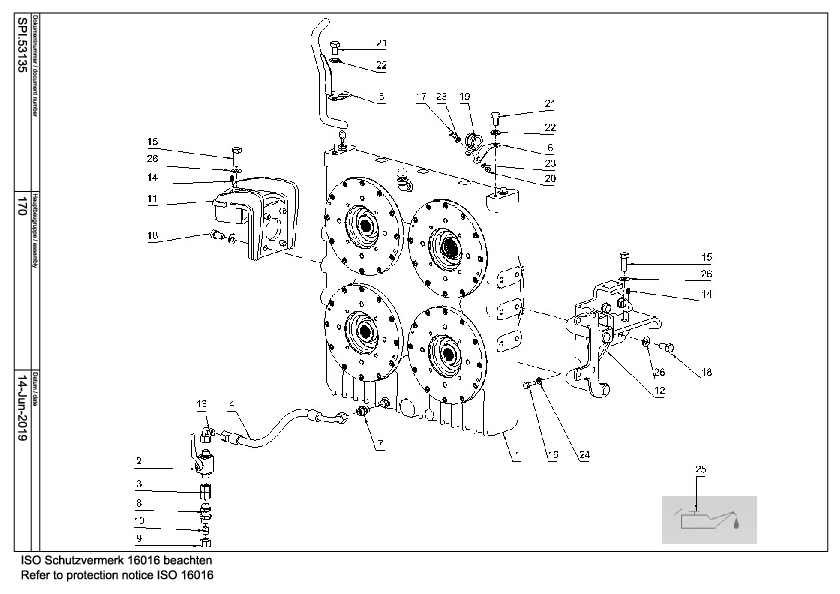

Parts by subassemblies

GEAR BOX FOURFOLD

Quantity in assembly group: 1 Piece / Pos. 1

BLOCK UP BALL VALVE BKH-15L DN

Quantity in assembly group: 1 Piece / Pos. 2

SNV 15L

Quantity in assembly group: 1 Piece / Pos. 3

HOSE-450-NW12-2SC-325BAR

Quantity in assembly group: 1 Piece / Pos. 4

BRACKET

Quantity in assembly group: 1 Piece / Pos. 5

BRACKET

Quantity in assembly group: 1 Piece / Pos. 6

GE15LREDOMDCF

Quantity in assembly group: 1 Piece / Pos. 7

P-GSS 15L

Quantity in assembly group: 1 Piece / Pos. 8

HYD. NUT M15LCFX

Quantity in assembly group: 1 Piece / Pos. 9

HEADER 15 L

Quantity in assembly group: 1 Piece / Pos. 10

BRACKET FRONT

Quantity in assembly group: 1 Piece / Pos. 11

BRACKET

Quantity in assembly group: 1 Piece / Pos. 12

P-EWS 15L-SV

Quantity in assembly group: 1 Piece / Pos. 13

SPRING SLOTTED PIN DIN1481-8X1

Quantity in assembly group: 2 Piece / Pos. 14

SET SCREW M16X45-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 15

SET SCREW M10X35-DIN933-8.8-G

Quantity in assembly group: 12 Piece / Pos. 16

SET SCREW M8X20-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 17

SET SCREW M16X30-DIN933-8.8-G

Quantity in assembly group: 8 Piece / Pos. 18

PIPE CLAMP RSGU1100 30/25

Quantity in assembly group: 1 Piece / Pos. 19

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 1 Piece / Pos. 20

SET SCREW M16X25-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 21

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 2 Piece / Pos. 23

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 12 Piece / Pos. 24

GEB OIL HYP SAE 85 W90 API GL5

Quantity in assembly group: 9 Piece / Pos. 25

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 10 Piece / Pos. 26
