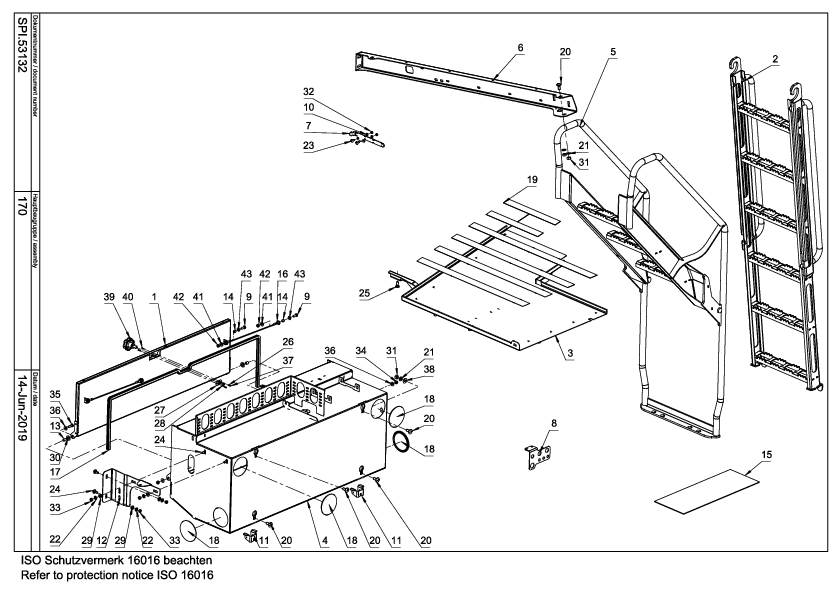

Parts by subassemblies

FLAP BOX FACELIFT

Quantity in assembly group: 1 Piece / Pos. 1

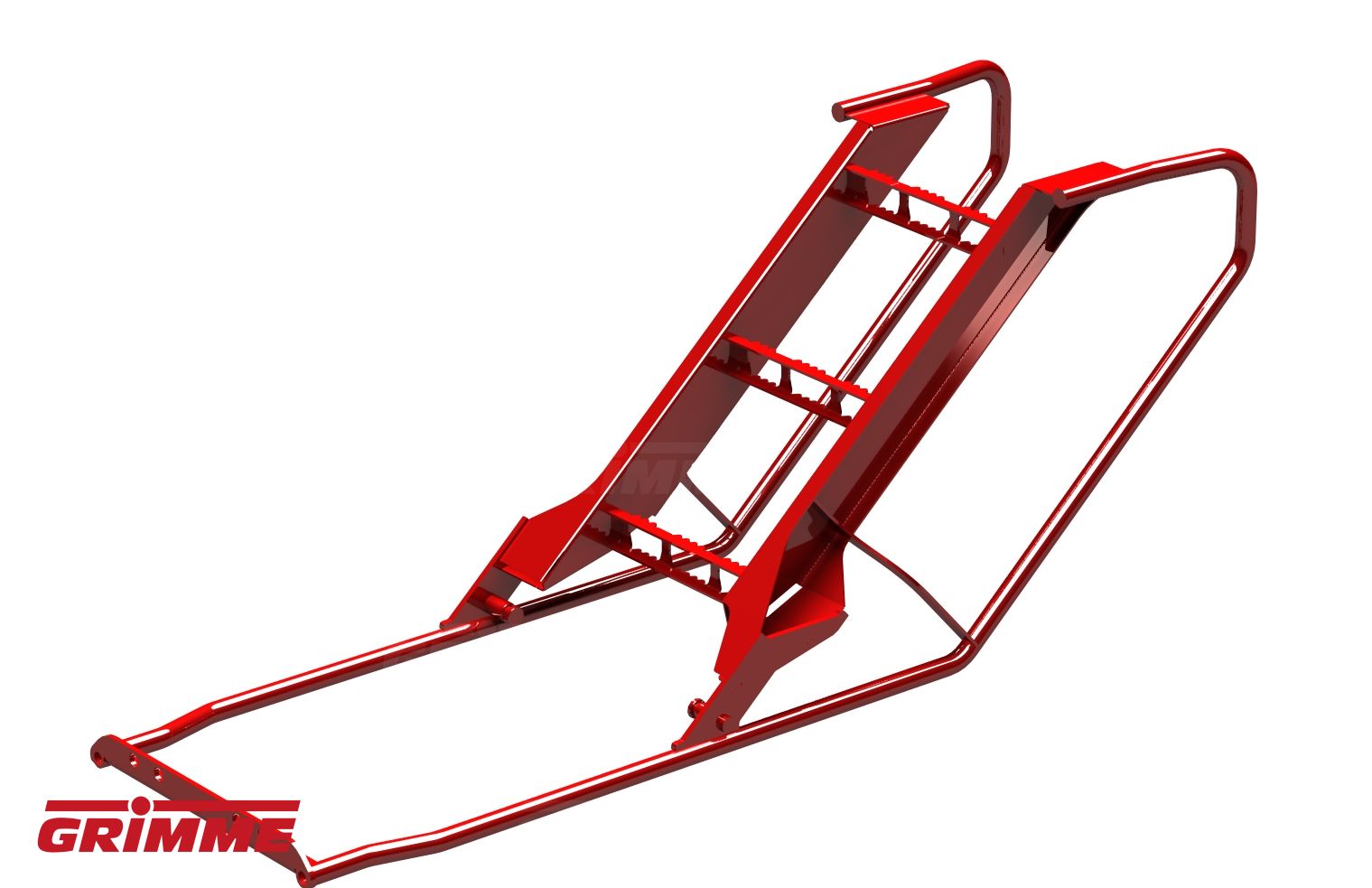

LADDER

Quantity in assembly group: 1 Piece / Pos. 2

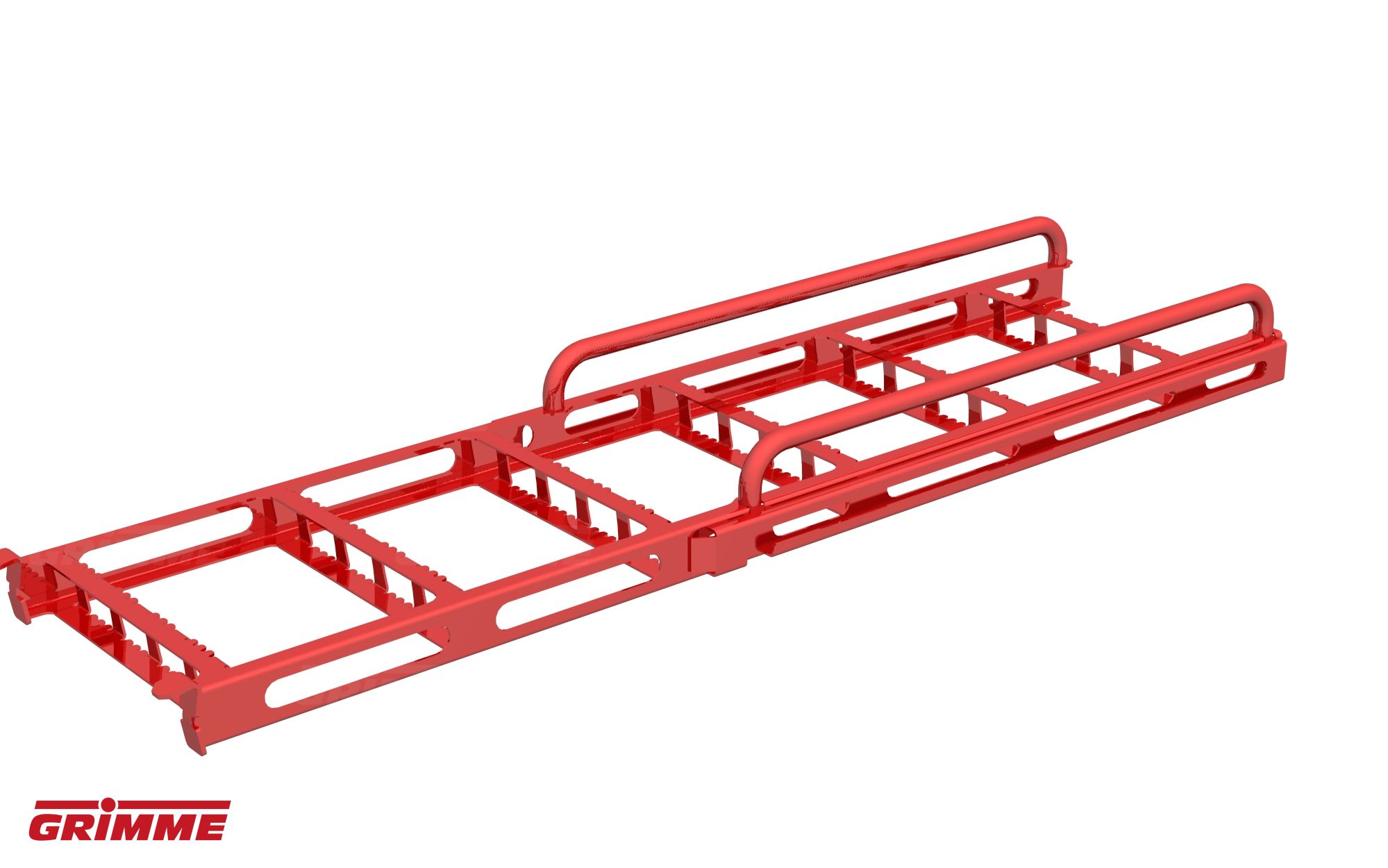

PLATFORM

Quantity in assembly group: 1 Piece / Pos. 3

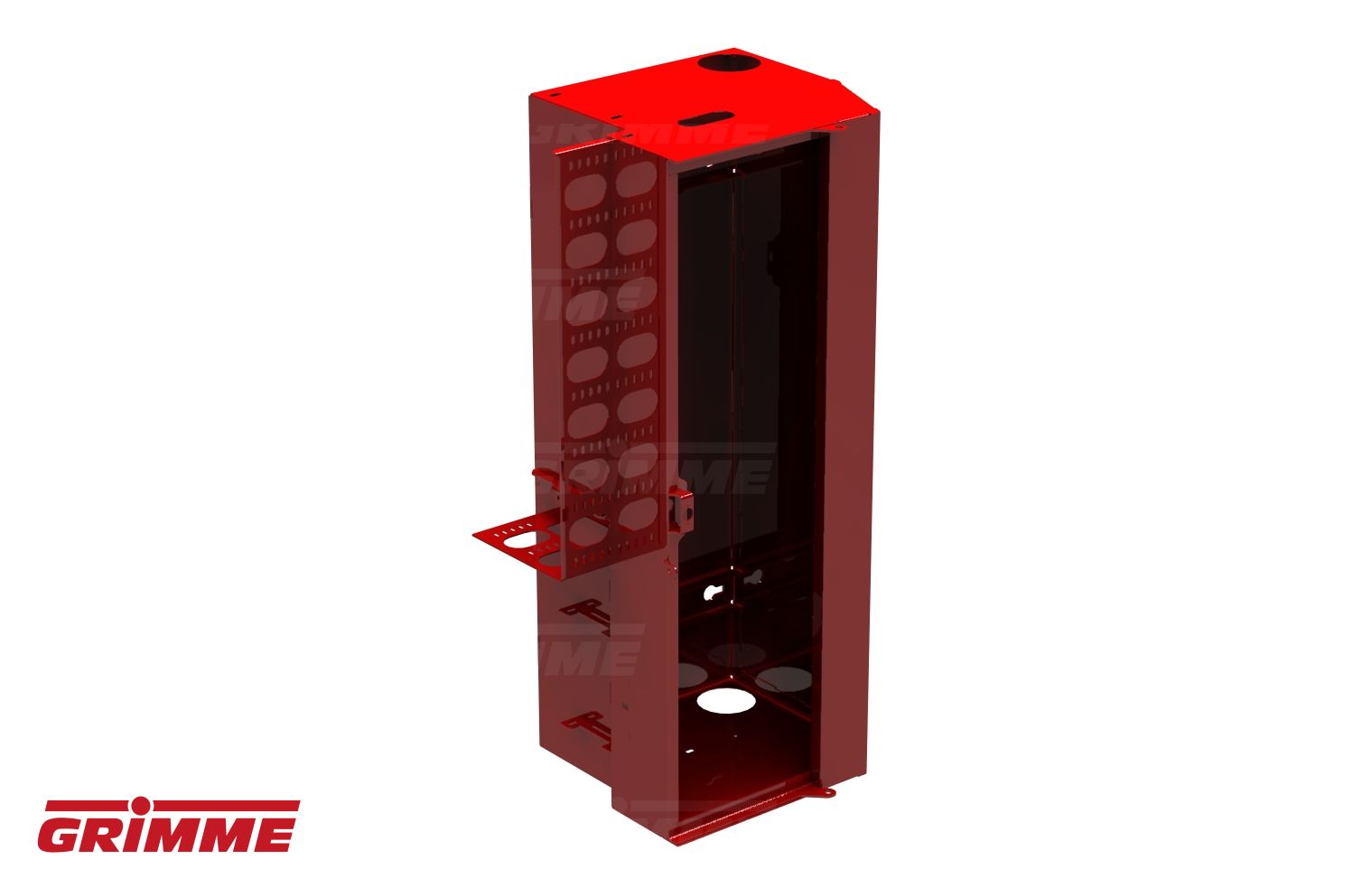

BOX

Quantity in assembly group: 1 Piece / Pos. 4

INCREASE

Quantity in assembly group: 1 Piece / Pos. 5

CROSS BRACE CENTRE

Quantity in assembly group: 1 Piece / Pos. 6

RAIL

Quantity in assembly group: 1 Piece / Pos. 7

FLANGE PLATE

Quantity in assembly group: 1 Piece / Pos. 8

SET SCREW M8X20-DIN933-8.8-G

Quantity in assembly group: 4 Piece / Pos. 9

CONTACT WASHER FORM M 6-GAL

Quantity in assembly group: 2 Piece / Pos. 10

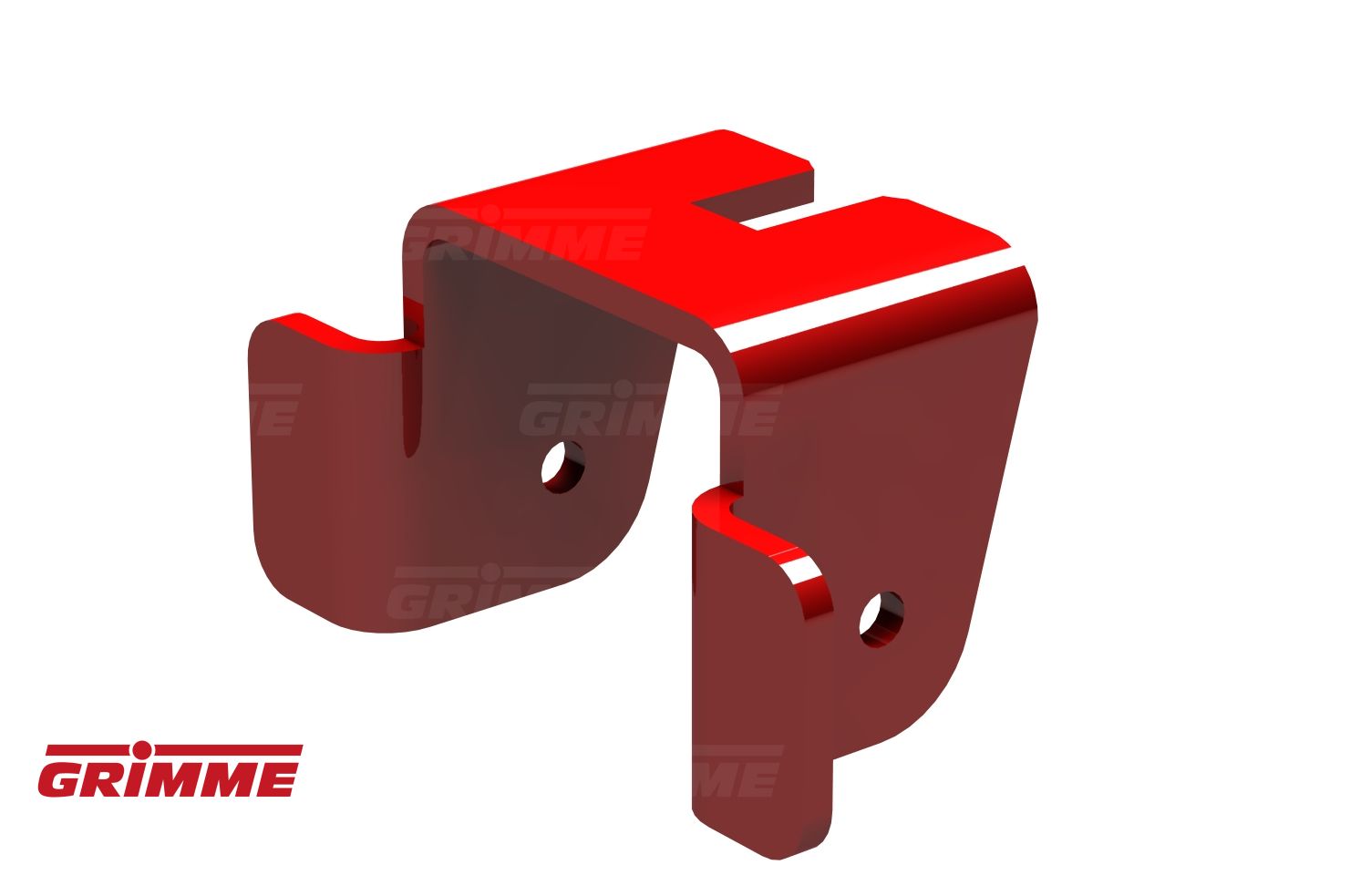

BRACKET SHORT

Quantity in assembly group: 2 Piece / Pos. 11

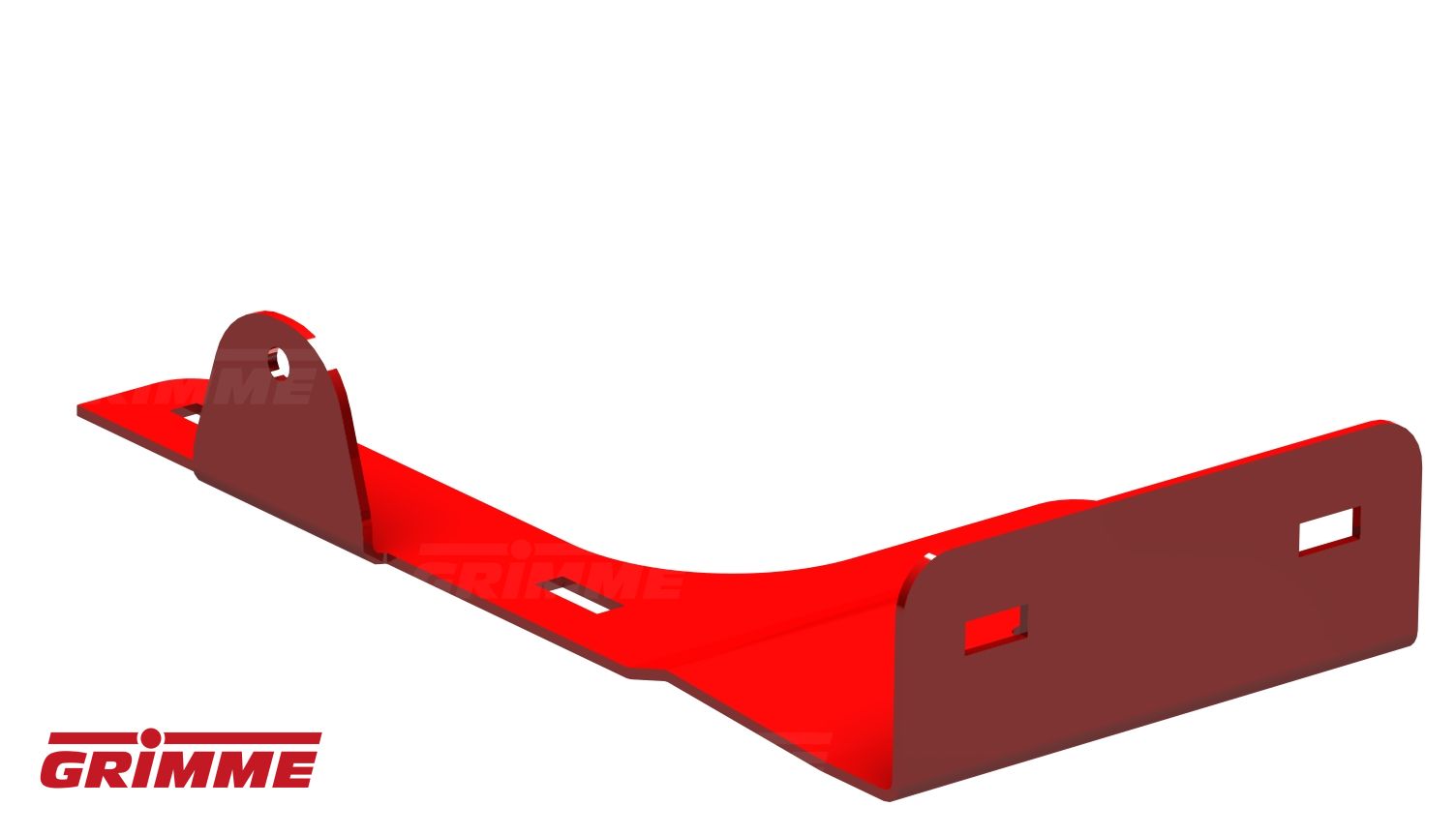

MOUNTING PLATE

Quantity in assembly group: 1 Piece / Pos. 12

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 13

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 14

RUBBER MAT

Quantity in assembly group: 1 Piece / Pos. 15

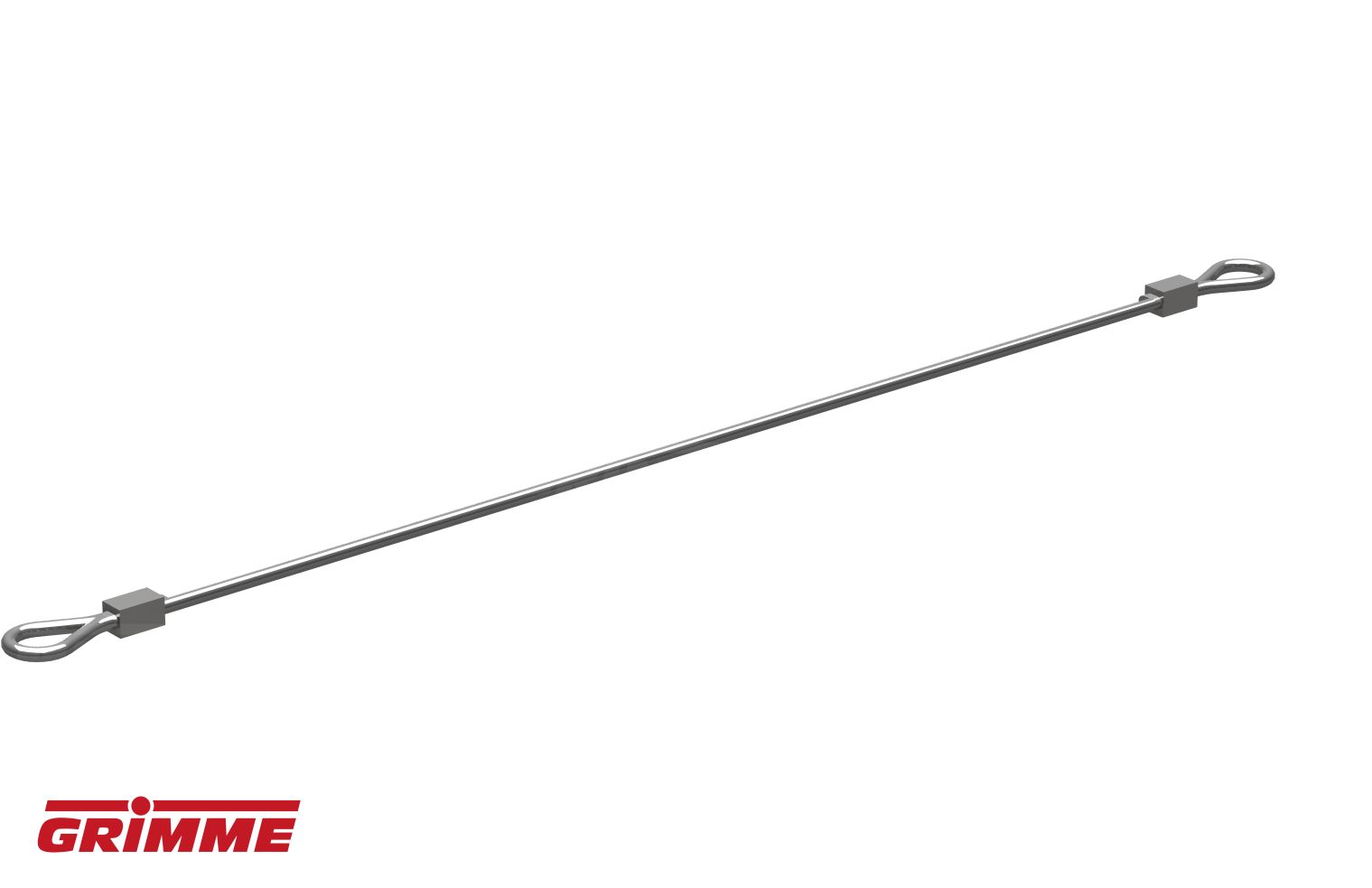

WIRE CABLE 440LONG

Quantity in assembly group: 2 Piece / Pos. 16

GUARD EDGING

Quantity in assembly group: 2 Piece / Pos. 17

GPN910 - LOCKING CAP 4395-BLAC

Quantity in assembly group: 4 Piece / Pos. 18

ANTI-SLIP FOILS

Quantity in assembly group: 4 Piece / Pos. 19

MH-SCREW M10X25-603-8.8-GAL

Quantity in assembly group: 6 Piece / Pos. 20

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 6 Piece / Pos. 21

COACH BOLT M6X16-DIN603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 23

COACH BOLT M8X20-603-8.8-GAL

Quantity in assembly group: 4 Piece / Pos. 24

COACH BOLT M8X25-603-8.8-GAL

Quantity in assembly group: 1 Piece / Pos. 25

SERRATED LOCKWASHER A 3,2 DIN6

Quantity in assembly group: 2 Piece / Pos. 26

MOUNTING CAM 991R2-1AGV

Quantity in assembly group: 1 Piece / Pos. 27

MOUNTING DISC 991W04-1BP

Quantity in assembly group: 1 Piece / Pos. 28

WASHER A10,5 DIN125-VERZ

Quantity in assembly group: 4 Piece / Pos. 29

DISC A13 DIN125-GAL

Quantity in assembly group: 2 Piece / Pos. 30

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 6 Piece / Pos. 31

HEXAGON NUT M6 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 32

NYLOC NUT DIN985-M8-8-GAL

Quantity in assembly group: 2 Piece / Pos. 34

SET SCREW M8X25-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 35

HEX-SCREW M3 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 37

PLAIN WASHER 11X25X2 GAL

Quantity in assembly group: 4 Piece / Pos. 38

BEARING PIVOT 991S04-5-1AF

Quantity in assembly group: 1 Piece / Pos. 39

CYL-SCREW M3X12 DIN84-GAL

Quantity in assembly group: 2 Piece / Pos. 40

PLAIN WASHER 8.4X20X2 GAL

Quantity in assembly group: 4 Piece / Pos. 41

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 4 Piece / Pos. 42

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 4 Piece / Pos. 43
