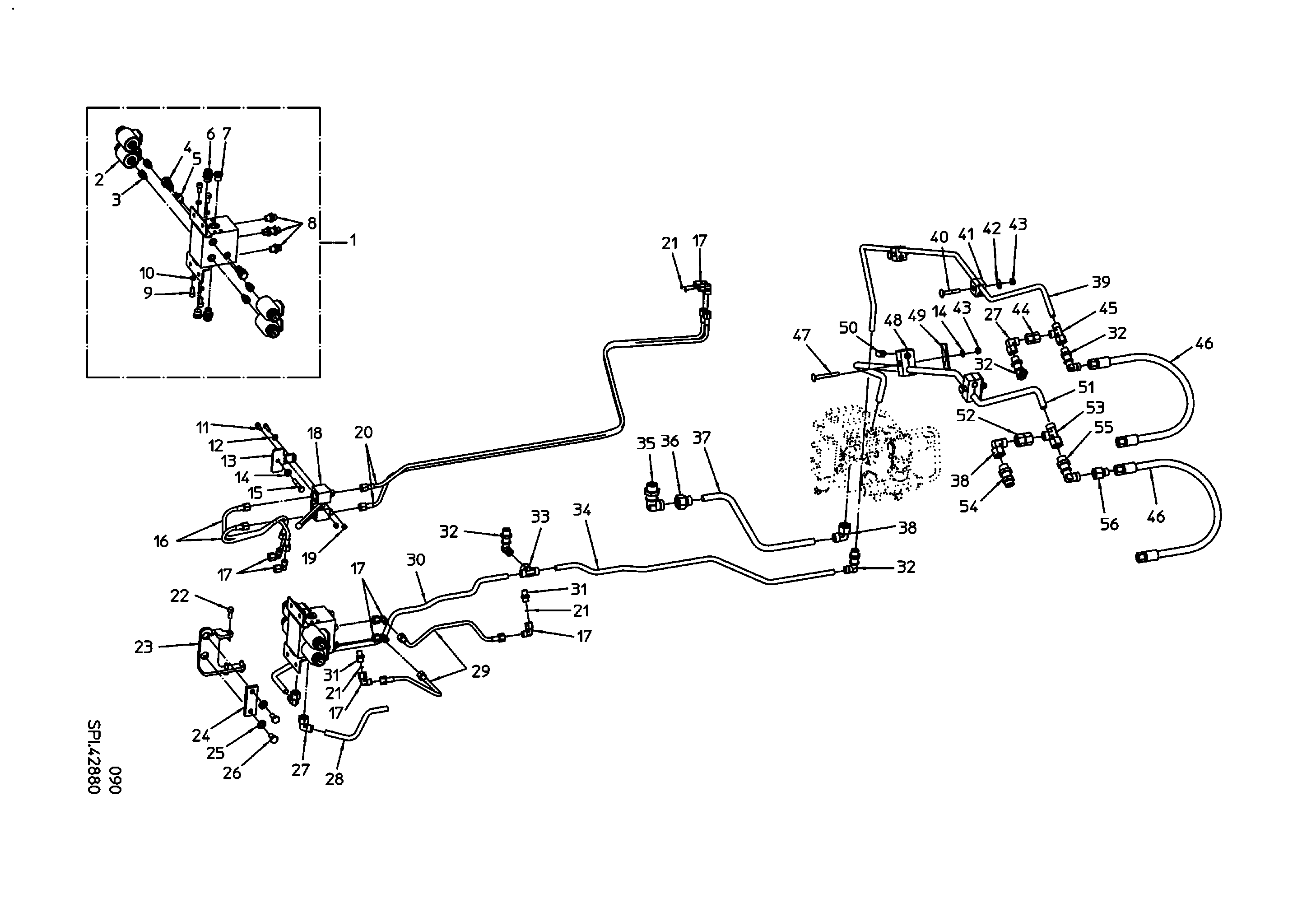

Parts by subassemblies

CONTROL BLOCK

Quantity in assembly group: 1 Piece / Pos. 1

SOLENOID 3 12VDC 60% SPRING

Quantity in assembly group: 4 Piece / Pos. 2

VALVE INSERT NEGATIVE

Quantity in assembly group: 4 Piece / Pos. 3

VALVE CARTRIDGE

Quantity in assembly group: 2 Piece / Pos. 4

PILOT SPOOL6

Quantity in assembly group: 1 Piece / Pos. 5

GEO12LMOMDCF

Quantity in assembly group: 2 Piece / Pos. 6

LOCKING PLUG 16x1.5ORCF O-RING

Quantity in assembly group: 2 Piece / Pos. 7

GEO08LM14X1.50MDCF

Quantity in assembly group: 4 Piece / Pos. 8

CYL BOLT 912 M8X16-8.8-GAL

Quantity in assembly group: 4 Piece / Pos. 9

FEDERRING 8 DIN7980 V2A

Quantity in assembly group: 4 Piece / Pos. 10

SHC-SCREW DIN912 M6X20-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 11

CONTACT WASHER FORM M 6-GAL

Quantity in assembly group: 1 Piece / Pos. 12

BRACKET BALL VALVE

Quantity in assembly group: 1 Piece / Pos. 13

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 3 Piece / Pos. 14

HEX BOLT M8X45-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 15

HOSE-500-NW4-240BAR

Quantity in assembly group: 2 Piece / Pos. 16

P-EWS 8L-SV

Quantity in assembly group: 8 Piece / Pos. 17

VALVE

Quantity in assembly group: 1 Piece / Pos. 18

NYLOC NUT DIN985-M6-8-GAL

Quantity in assembly group: 2 Piece / Pos. 19

HOSE-1500-NW4-240BAR

Quantity in assembly group: 2 Piece / Pos. 20

HYDRAULIC RESTRICTOR 8L-1MM

Quantity in assembly group: 4 Piece / Pos. 21

SHC-SCREW DIN912 M8X20 8.8 GAL

Quantity in assembly group: 3 Piece / Pos. 22

MOUNTING PLATE

Quantity in assembly group: 1 Piece / Pos. 23

COVER PLATE HEAVY

Quantity in assembly group: 1 Piece / Pos. 24

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 2 Piece / Pos. 25

SET SCREW M10X20-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 26

P-EWS 12L-SV

Quantity in assembly group: 3 Piece / Pos. 27

HYD PIPE

Quantity in assembly group: 1 Piece / Pos. 28

HOSE-300-NW4-240BAR

Quantity in assembly group: 2 Piece / Pos. 29

HYD PIPE

Quantity in assembly group: 1 Piece / Pos. 30

GE08LMEDOMDCF

Quantity in assembly group: 2 Piece / Pos. 31

WSV12LOMDCF

Quantity in assembly group: 4 Piece / Pos. 32

P-ETS 12L-SV

Quantity in assembly group: 1 Piece / Pos. 33

HYD PIPE

Quantity in assembly group: 1 Piece / Pos. 34

WSV18LOMDCF

Quantity in assembly group: 1 Piece / Pos. 35

P-REDS 18/15L-SV

Quantity in assembly group: 1 Piece / Pos. 36

HYD PIPE

Quantity in assembly group: 1 Piece / Pos. 37

P-EWS 15L-SV

Quantity in assembly group: 2 Piece / Pos. 38

HYD PIPE

Quantity in assembly group: 1 Piece / Pos. 39

COACH BOLT M8X50-DIN603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 40

HYD PIPE CLAMP 2HOLE DM12/12 B

Quantity in assembly group: 2 Piece / Pos. 41

DISC A 8,4 DIN9021-GAL

Quantity in assembly group: 2 Piece / Pos. 42

NYLOC NUT DIN985-M8-8-GAL

Quantity in assembly group: 4 Piece / Pos. 43

STRAIGHT CONNECTION SNV 12L

Quantity in assembly group: 1 Piece / Pos. 44

P-ELS 12L-SV

Quantity in assembly group: 1 Piece / Pos. 45

HOSE-650-NW10-2SC-330BAR

Quantity in assembly group: 2 Piece / Pos. 46

COACH BOLT M8X70-DIN603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 47

TUBE HOLDER D15-15

Quantity in assembly group: 2 Piece / Pos. 48

HY-TUBE HOLDER GD3D

Quantity in assembly group: 2 Piece / Pos. 49

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 50

HYD PIPE

Quantity in assembly group: 1 Piece / Pos. 51

SNV 15L

Quantity in assembly group: 1 Piece / Pos. 52

P-ELS 15L-SV

Quantity in assembly group: 2 Piece / Pos. 53

P-GSS 15L

Quantity in assembly group: 1 Piece / Pos. 54

P-WSV 15L

Quantity in assembly group: 2 Piece / Pos. 55

P-REDS 15/12L-SV

Quantity in assembly group: 2 Piece / Pos. 56
