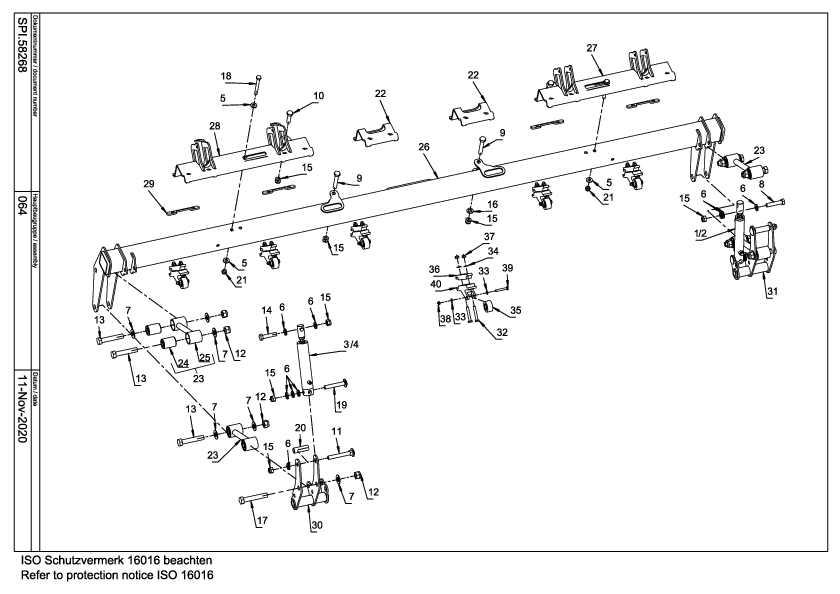

Parts by subassemblies

DAC-DYLINDER (SLAVE)

Quantity in assembly group: 1 Piece / Pos. 1

CYL SEAL SET

Quantity in assembly group: 1 Piece / Pos. 2

DAC-DYLINDER (MASTER)

Quantity in assembly group: 1 Piece / Pos. 3

CYL SEAL SET

Quantity in assembly group: 1 Piece / Pos. 4

PLAIN WASHER 13X28X3-GALV

Quantity in assembly group: 4 Piece / Pos. 5

PLAIN WASHER 17X30X4

Quantity in assembly group: 15 Piece / Pos. 6

PLAIN WASHER 21X42X2,5 GAL (AR

Quantity in assembly group: 12 Piece / Pos. 7

HEX BOLT M16X75-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 8

HEX BOLT M16X90-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 9

SET SCREW M16X55-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 10

COACH BOLT M16X120-DIN603-8.8G

Quantity in assembly group: 2 Piece / Pos. 11

NYLOC NUT DIN985-M20-8-GAL

Quantity in assembly group: 8 Piece / Pos. 12

HHC-SCREW M20X110 931-8.8-GAL

Quantity in assembly group: 6 Piece / Pos. 13

HEX BOLT M16X70-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 14

NYLOC NUT DIN985-M16-8-GAL

Quantity in assembly group: 10 Piece / Pos. 15

DISC B17 DIN125-MS

Quantity in assembly group: 1 Piece / Pos. 16

HHC-SCREW M20X120 931-10.9flZn

Quantity in assembly group: 2 Piece / Pos. 17

HEX BOLT M12X110-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 18

MH-SCREW wSS M16X100 603-8.8

Quantity in assembly group: 2 Piece / Pos. 19

BUSHING

Quantity in assembly group: 2 Piece / Pos. 20

NYLOC NUT DIN985-M12-8-GAL

Quantity in assembly group: 2 Piece / Pos. 21

PANEL

Quantity in assembly group: 2 Piece / Pos. 22

HANDLEBARS

Quantity in assembly group: 4 Piece / Pos. 23

MEGI-BUSH 45X20X62,5

Quantity in assembly group: 2 Piece / Pos. 24

PENDULAR SUPPORT

Quantity in assembly group: 1 Piece / Pos. 25

TOPPER BEAM

Quantity in assembly group: 1 Piece / Pos. 26

SLIDE PIECE L/H

Quantity in assembly group: 1 Piece / Pos. 27

SLIDE PIECE R/H

Quantity in assembly group: 1 Piece / Pos. 28

SPACER PLATE

Quantity in assembly group: 4 Piece / Pos. 29

BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 30

BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 31

HEX BOLT M10X65-DIN931-8.8-G

Quantity in assembly group: 12 Piece / Pos. 32

FLAT WASHER B8,4 DIN125 -GAL

Quantity in assembly group: 12 Piece / Pos. 33

WASHER A10,5 DIN125-VERZ

Quantity in assembly group: 24 Piece / Pos. 34

RUBBER STOP

Quantity in assembly group: 6 Piece / Pos. 35

CLAMPING BOW

Quantity in assembly group: 6 Piece / Pos. 36

NYLOC NUT DIN985-M10-8-GAL

Quantity in assembly group: 12 Piece / Pos. 37

NYLOC NUT DIN985-M8-8-GAL

Quantity in assembly group: 6 Piece / Pos. 38

HEX BOLT M8X55-DIN931-8.8-G

Quantity in assembly group: 6 Piece / Pos. 39

STOPPER

Quantity in assembly group: 6 Piece / Pos. 40
