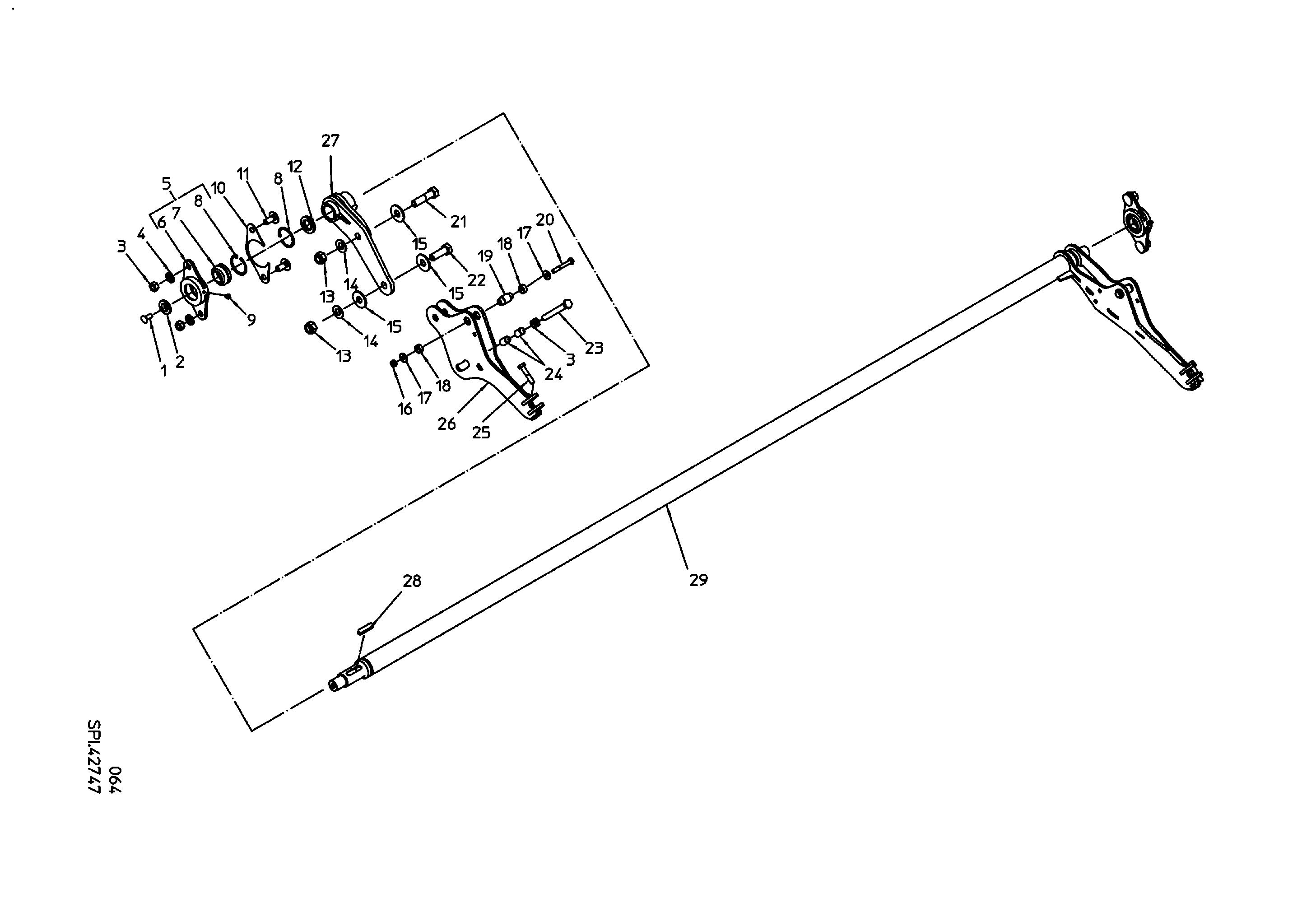

Parts by subassemblies

CSK ALLEN SCREW M12X30-DIN7991

Quantity in assembly group: 2 Piece / Pos. 1

CSK WASHER M12

Quantity in assembly group: 2 Piece / Pos. 2

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 5 Piece / Pos. 3

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 4 Piece / Pos. 4

BALL-AND-SOCKET JOINT

Quantity in assembly group: 2 Piece / Pos. 5

BEARING BRACKET

Quantity in assembly group: 2 Piece / Pos. 6

BEARING GEH 35ES-2RS

Quantity in assembly group: 2 Piece / Pos. 7

RETAINING RING J 62X2 DIN472

Quantity in assembly group: 4 Piece / Pos. 8

GREASE NIPPLE H2/S-M8X1 DIN714

Quantity in assembly group: 2 Piece / Pos. 9

PANEL

Quantity in assembly group: 2 Piece / Pos. 10

MH-SCREW wSS M16X35 DIN603-8.8

Quantity in assembly group: 4 Piece / Pos. 11

DISC

Quantity in assembly group: 1 Piece / Pos. 12

NYLOC NUT DIN985-M20-8-GAL

Quantity in assembly group: 2 Piece / Pos. 13

PLAIN WASHER 21X42X2,5 GAL (AR

Quantity in assembly group: 2 Piece / Pos. 14

WASHER 21X55X4

Quantity in assembly group: 3 Piece / Pos. 15

NYLOC NUT DIN985-M10-8-GAL

Quantity in assembly group: 2 Piece / Pos. 16

HARDOX WASHER

Quantity in assembly group: 4 Piece / Pos. 17

TAPER RING DM25

Quantity in assembly group: 4 Piece / Pos. 18

CONICAL BOLT

Quantity in assembly group: 2 Piece / Pos. 19

HEX BOLT M10X75-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 20

HEX BOLT M20X80-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 21

SET SCREW M20X60-933-10.9-flZn

Quantity in assembly group: 1 Piece / Pos. 22

SET SCREW M16X140-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 23

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 24

HEX BOLT M12X60-DIN931-838-G

Quantity in assembly group: 2 Piece / Pos. 25

ARM

Quantity in assembly group: 1 Piece / Pos. 26

LEVER

Quantity in assembly group: 1 Piece / Pos. 27

FEATHER KEY A 14X9X60 DIN6885

Quantity in assembly group: 1 Piece / Pos. 28

LIFTING SHAFT

Quantity in assembly group: 1 Piece / Pos. 29
