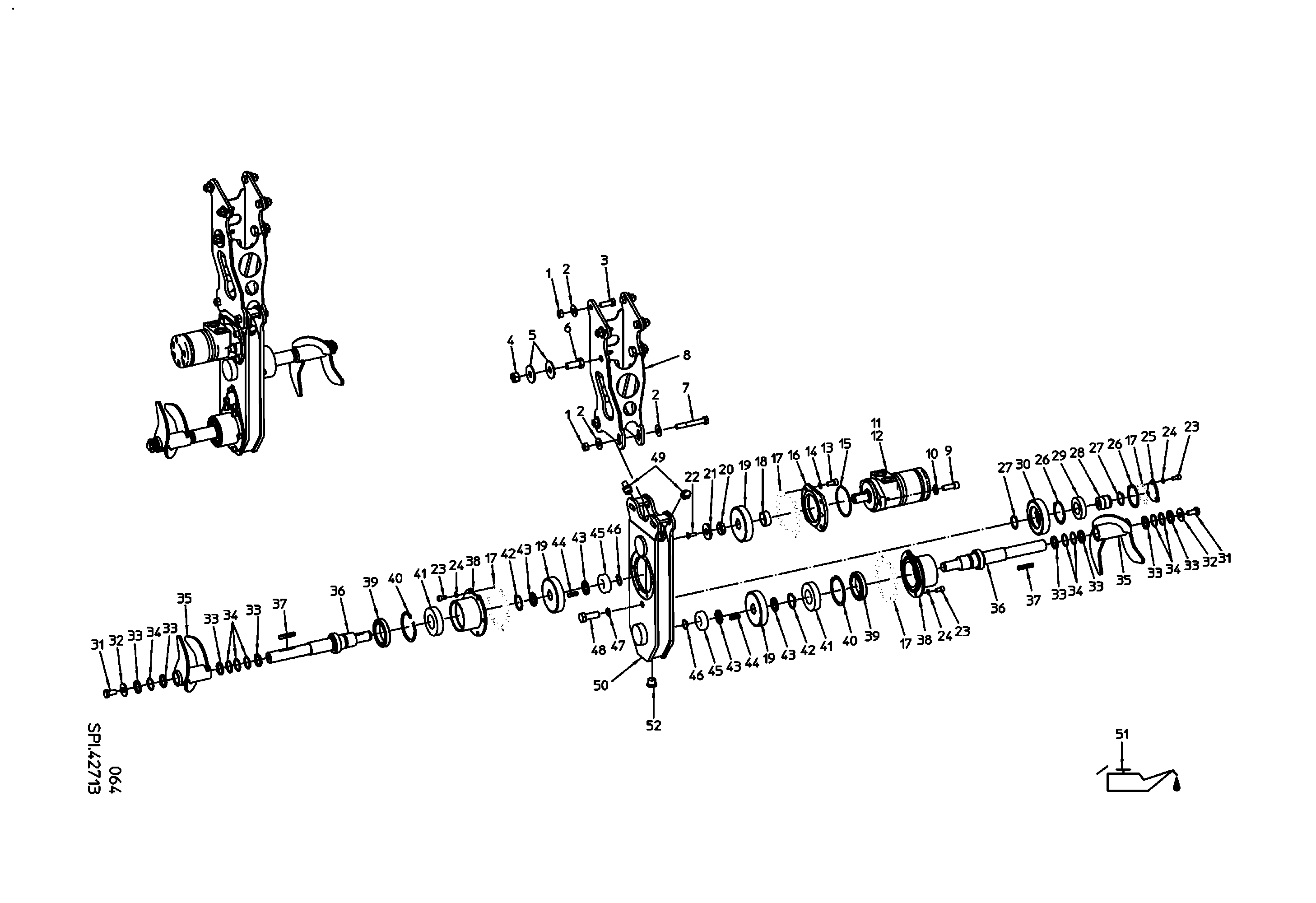

Parts by subassemblies

HEXAGON NUT M12 DIN934-8-GAL

Quantity in assembly group: 12 Piece / Pos. 1

CONTACT WASHER FORM B 12-GAL

Quantity in assembly group: 16 Piece / Pos. 2

SET SCREW M12X35-DIN933-8.8-G

Quantity in assembly group: 8 Piece / Pos. 3

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 4 Piece / Pos. 4

DISC A 17 DIN9021-GAL

Quantity in assembly group: 8 Piece / Pos. 5

SET SCREW M16X40-DIN933-8.8-G

Quantity in assembly group: 4 Piece / Pos. 6

HEX BOLT M12X90-DIN931-8.8-G

Quantity in assembly group: 4 Piece / Pos. 7

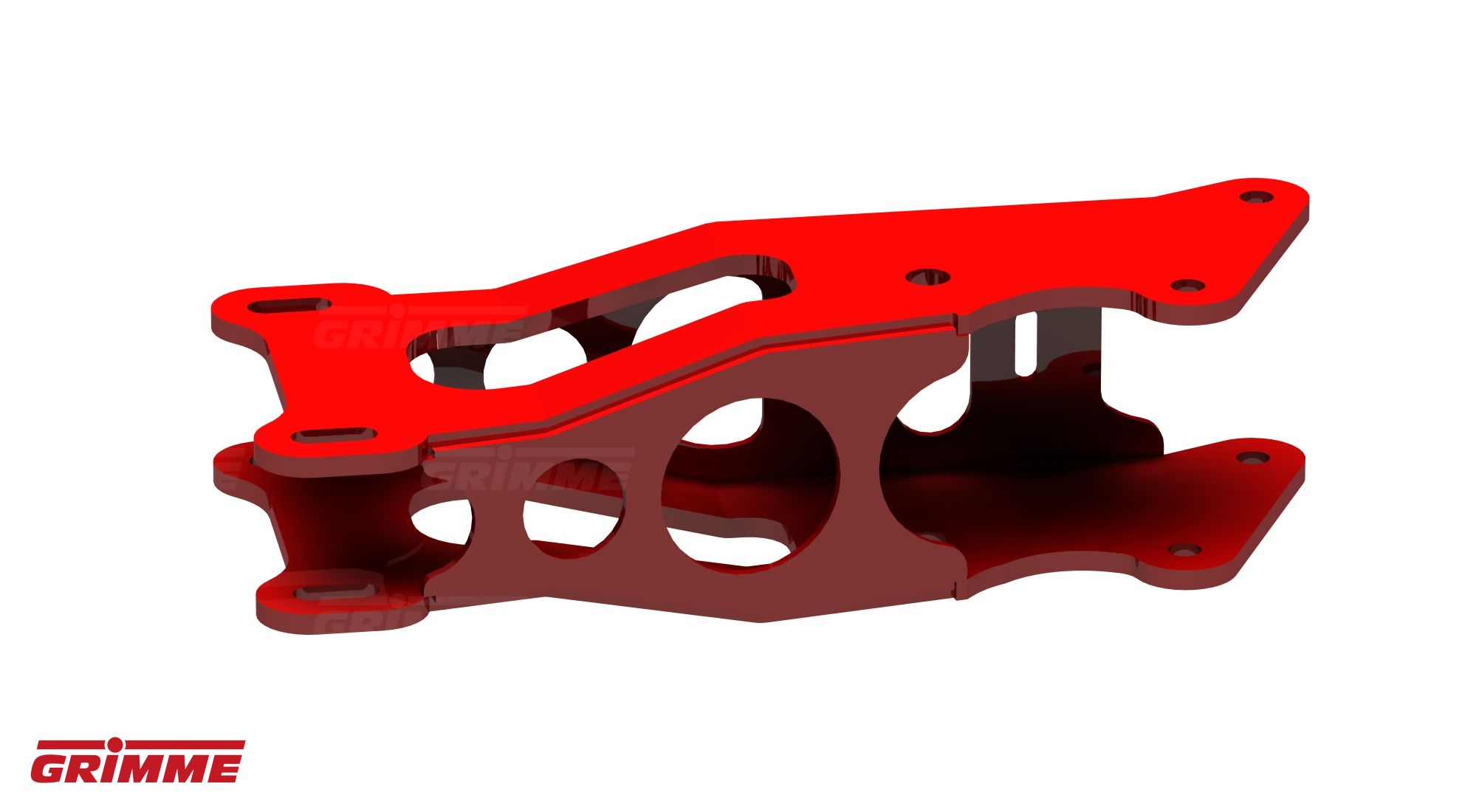

BRACKET

Quantity in assembly group: 2 Piece / Pos. 8

CAP HEADED ALLEN BOLT 12X35

Quantity in assembly group: 4 Piece / Pos. 9

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 4 Piece / Pos. 10

HYD MOTOR MF230 CYL-W

Quantity in assembly group: 2 Piece / Pos. 11

SEAL SET STAND F MF HYD-MOTOR

Quantity in assembly group: 1 Piece / Pos. 12

SHC-SCREW 912 M10X20-8.8-GAL

Quantity in assembly group: 8 Piece / Pos. 13

USIT-RING 11,4-16,3-1,5

Quantity in assembly group: 8 Piece / Pos. 14

'O'-RING SEAL 82,14X3,53 72NBR

Quantity in assembly group: 2 Piece / Pos. 15

COVER-ENGINE

Quantity in assembly group: 2 Piece / Pos. 16

SEALING MATERIAL

Quantity in assembly group: 0 Piece / Pos. 17

SPACER RING

Quantity in assembly group: 2 Piece / Pos. 18

SPUR WHEEL

Quantity in assembly group: 6 Piece / Pos. 19

SPACER RING

Quantity in assembly group: 2 Piece / Pos. 20

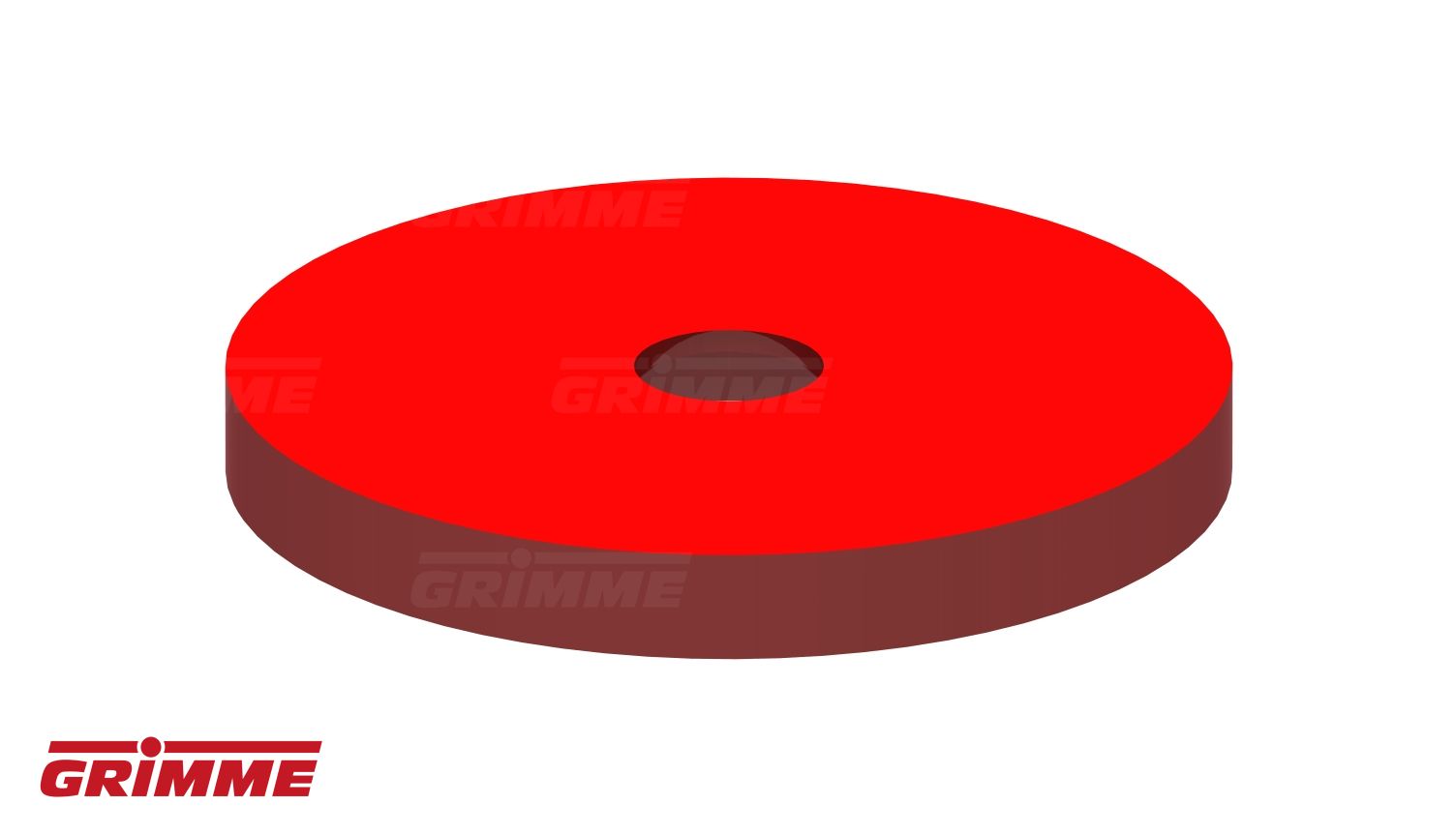

DISC

Quantity in assembly group: 2 Piece / Pos. 21

CSK. ALLEN SCREW M8X25-DIN7991

Quantity in assembly group: 2 Piece / Pos. 22

CYL BOLT 912 M8X16-8.8-GAL

Quantity in assembly group: 30 Piece / Pos. 23

USIT-RING 9,3-14,6-1

Quantity in assembly group: 30 Piece / Pos. 24

COVER

Quantity in assembly group: 2 Piece / Pos. 25

RETAINING RING J 62X2 DIN472

Quantity in assembly group: 4 Piece / Pos. 26

RETAINING RING A 35X1,5 DIN471

Quantity in assembly group: 4 Piece / Pos. 27

BUSHING

Quantity in assembly group: 2 Piece / Pos. 28

BALL BEARING 6007-2RS

Quantity in assembly group: 2 Piece / Pos. 29

SPUR WHEEL 23T

Quantity in assembly group: 2 Piece / Pos. 30

SET SCREW M12X25-DIN933-8.8-G

Quantity in assembly group: 4 Piece / Pos. 31

DISC A 13 DIN9021-GAL

Quantity in assembly group: 4 Piece / Pos. 32

SPACER RING

Quantity in assembly group: 16 Piece / Pos. 33

COMPENSATING RING

Quantity in assembly group: 16 Piece / Pos. 34

SCRAPER

Quantity in assembly group: 4 Piece / Pos. 35

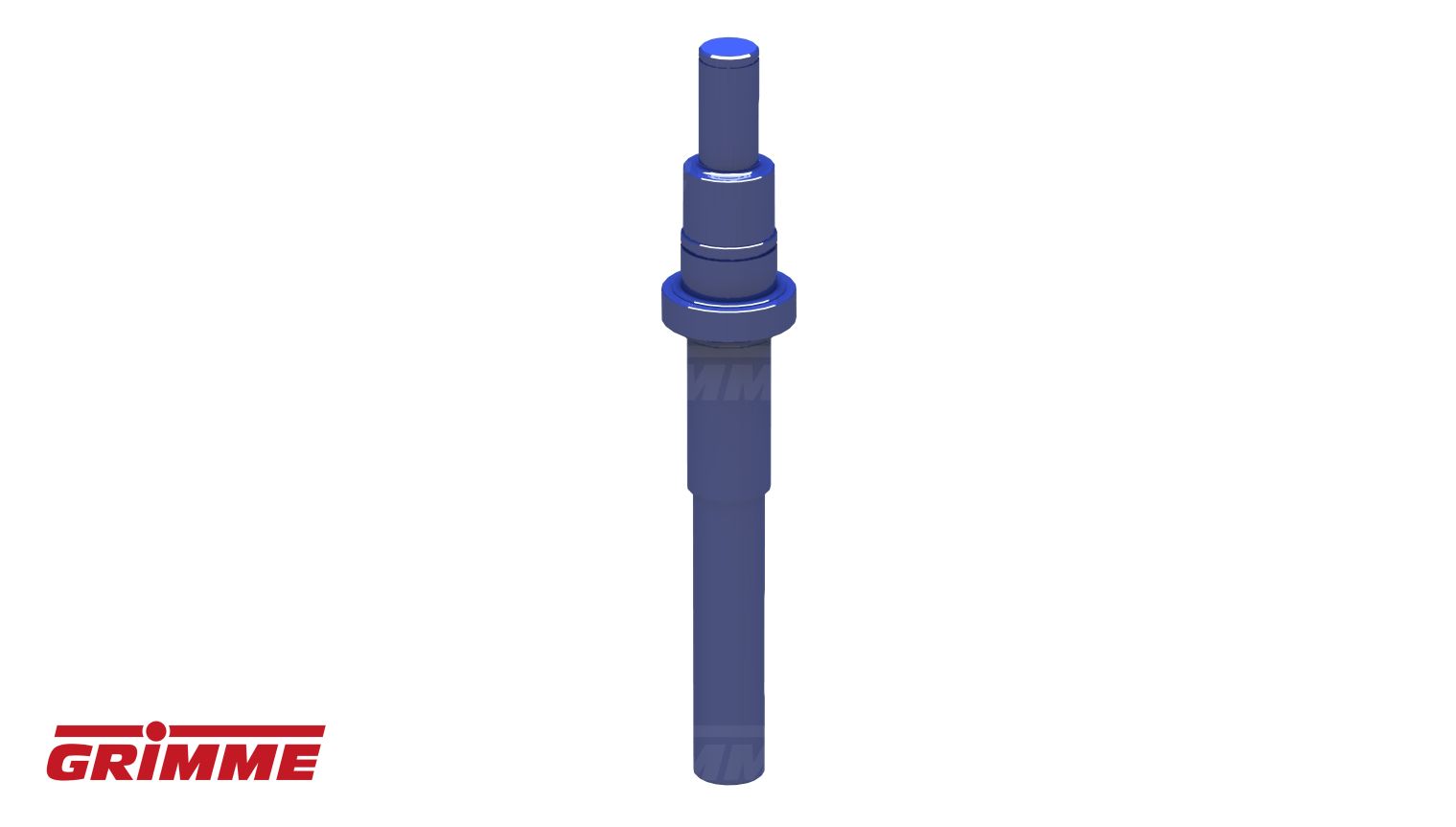

SHAFT

Quantity in assembly group: 4 Piece / Pos. 36

FEATHER KEY A 8X7X50 DIN6885

Quantity in assembly group: 2 Piece / Pos. 37

BEARING COVER LONG

Quantity in assembly group: 4 Piece / Pos. 38

SEALING RING 56X80X13/45,5

Quantity in assembly group: 4 Piece / Pos. 39

RETAINING RING J 80X2,5 DIN472

Quantity in assembly group: 4 Piece / Pos. 40

BALL BEARING 6208

Quantity in assembly group: 4 Piece / Pos. 41

RETAINING RING A 40X1,75 DIN47

Quantity in assembly group: 4 Piece / Pos. 42

SPACER RING

Quantity in assembly group: 8 Piece / Pos. 43

FEATHER KEY A 8X7X30 DIN6885

Quantity in assembly group: 4 Piece / Pos. 44

BALL BEARING 6205

Quantity in assembly group: 4 Piece / Pos. 45

RETAINING RING A 25X1,2 DIN471

Quantity in assembly group: 4 Piece / Pos. 46

SEALING RING DIN7603 A16X22-Cu

Quantity in assembly group: 2 Piece / Pos. 47

SET SCREW M16X45-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 48

BREATHER (RS GEARBOX)

Quantity in assembly group: 4 Piece / Pos. 49

BODY

Quantity in assembly group: 2 Piece / Pos. 50

GEB OIL HYP SAE 85 W90 API GL5

Quantity in assembly group: 2 Piece / Pos. 51

VSTI20X1.5EDCF

Quantity in assembly group: 2 Piece / Pos. 52
