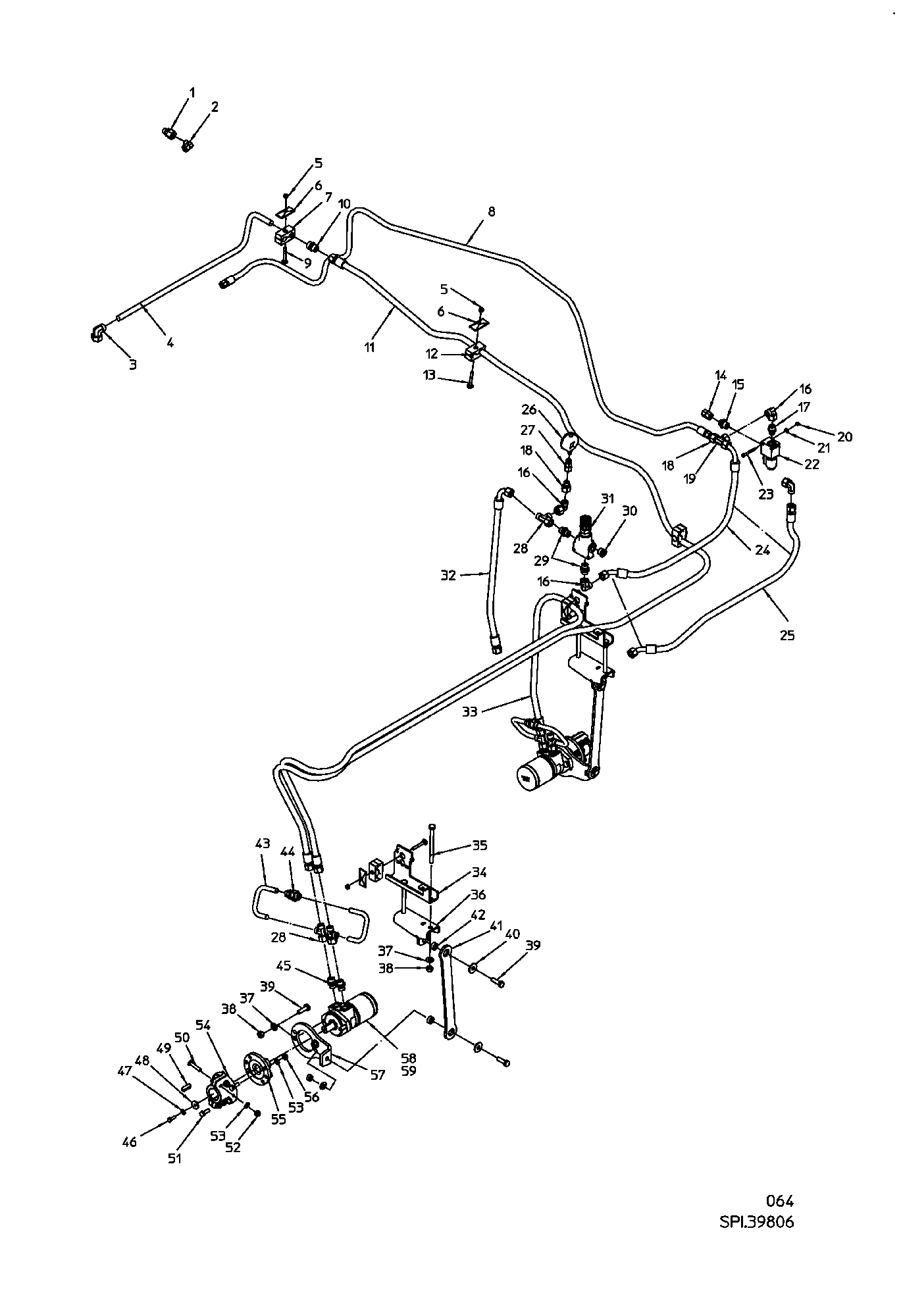

Parts by subassemblies

P-EGES 15LM-WD-SV

Quantity in assembly group: 1 Piece / Pos. 1

P-EWS 12L-SV

Quantity in assembly group: 1 Piece / Pos. 2

P-EWS 18L-SV

Quantity in assembly group: 1 Piece / Pos. 3

HYD PIPE

Quantity in assembly group: 1 Piece / Pos. 4

NYLOC NUT DIN985-M8-8-GAL

Quantity in assembly group: 5 Piece / Pos. 5

HY-TUBE HOLDER GD3D

Quantity in assembly group: 5 Piece / Pos. 6

TUBE HOLDER D18-18

Quantity in assembly group: 1 Piece / Pos. 7

HOSE-3000-NW10-2SC-375BAR

Quantity in assembly group: 1 Piece / Pos. 8

COACH BOLT M8X60-DIN603-8.8-G

Quantity in assembly group: 4 Piece / Pos. 9

GE18LMEDOMDCF

Quantity in assembly group: 1 Piece / Pos. 10

HYD HOSE-4800-NW12-250BAR

Quantity in assembly group: 1 Piece / Pos. 11

HOSE HOLDER D20-20

Quantity in assembly group: 4 Piece / Pos. 12

COACH BOLT M8X65-DIN603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 13

STRAIGHT CONNECTION SNV 12L

Quantity in assembly group: 1 Piece / Pos. 14

P-GES 12L/R1/2

Quantity in assembly group: 1 Piece / Pos. 15

P-EWS 15L-SV

Quantity in assembly group: 4 Piece / Pos. 16

P-GES 15L/R3/8

Quantity in assembly group: 1 Piece / Pos. 17

P-REDS 15/12L-SV

Quantity in assembly group: 2 Piece / Pos. 18

P-ETS 15L-SV

Quantity in assembly group: 1 Piece / Pos. 19

HEXAGON NUT M6 DIN934-8-GAL

Quantity in assembly group: 1 Piece / Pos. 20

CONTACT WASHER FORM M 6-GAL

Quantity in assembly group: 1 Piece / Pos. 21

2/2 SEAT VALVE F PIPE

Quantity in assembly group: 1 Piece / Pos. 22

HEX BOLT M6X60-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 23

HOSE-900-NW12-2SC-310BAR

Quantity in assembly group: 1 Piece / Pos. 24

HOSE-1150-NW12-2SC-325BAR

Quantity in assembly group: 1 Piece / Pos. 25

GLYCERIN-MANOMETER O-250BAR

Quantity in assembly group: 1 Piece / Pos. 26

MAVE12LRCF

Quantity in assembly group: 1 Piece / Pos. 27

P-ELS 15L-SV

Quantity in assembly group: 5 Piece / Pos. 28

GE15LM22X1.5EDOMDCF

Quantity in assembly group: 2 Piece / Pos. 29

VSTI22X1.5EDCF

Quantity in assembly group: 1 Piece / Pos. 30

COST FLOW DIVIDER MTKA1VB-MO6

Quantity in assembly group: 1 Piece / Pos. 31

HOSE-650-NW12-2SC-310BAR

Quantity in assembly group: 1 Piece / Pos. 32

HOSE-2800-NW12-2SC-280BAR

Quantity in assembly group: 1 Piece / Pos. 33

CLIP

Quantity in assembly group: 2 Piece / Pos. 34

HEX BOLT M12X150-DIN931-8.8-G

Quantity in assembly group: 4 Piece / Pos. 35

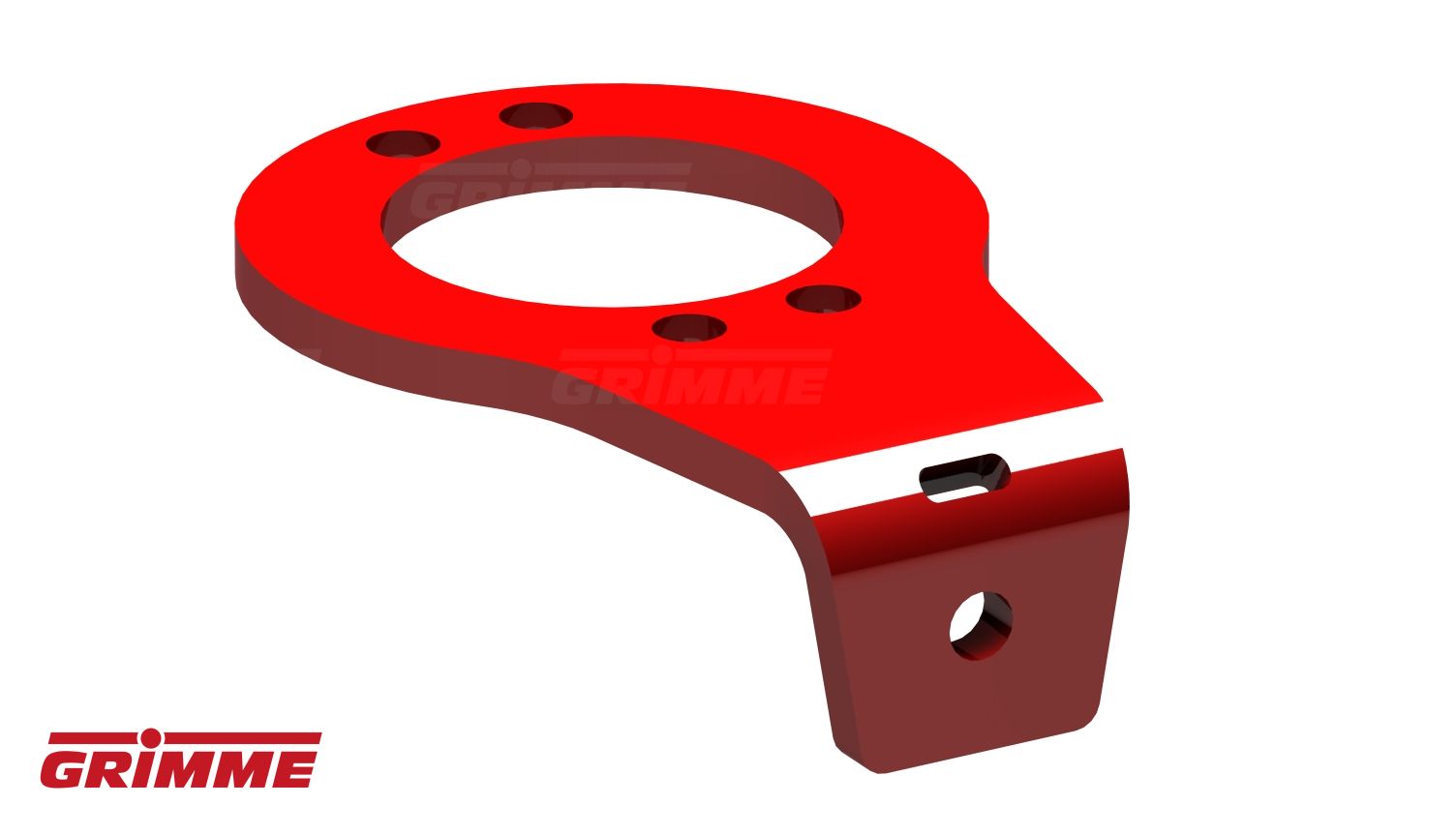

BRACKET

Quantity in assembly group: 2 Piece / Pos. 36

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 12 Piece / Pos. 37

HEXAGON NUT M12 DIN934-8-GAL

Quantity in assembly group: 12 Piece / Pos. 38

SET SCREW M12X40-DIN933-8.8-G

Quantity in assembly group: 8 Piece / Pos. 39

DISC A 13 DIN9021-GAL

Quantity in assembly group: 4 Piece / Pos. 40

BRACKET

Quantity in assembly group: 2 Piece / Pos. 41

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 42

HYD PIPE

Quantity in assembly group: 4 Piece / Pos. 43

RHD15LOMDCF

Quantity in assembly group: 2 Piece / Pos. 44

GE15LREDOMDCF

Quantity in assembly group: 4 Piece / Pos. 45

SET SCREW M8X25-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 46

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 2 Piece / Pos. 47

END DISC

Quantity in assembly group: 2 Piece / Pos. 48

FEATHER KEY A 12X8X40 DIN6885

Quantity in assembly group: 2 Piece / Pos. 49

HEX BOLT M10X45-DIN931-8.8-G

Quantity in assembly group: 8 Piece / Pos. 50

SET SCREW M10X30-DIN933-8.8-G

Quantity in assembly group: 13 Piece / Pos. 51

NYLOC NUT DIN985-M10-8-GAL

Quantity in assembly group: 8 Piece / Pos. 52

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 20 Piece / Pos. 53

SPLIT ROLLER HUB D45

Quantity in assembly group: 2 Piece / Pos. 54

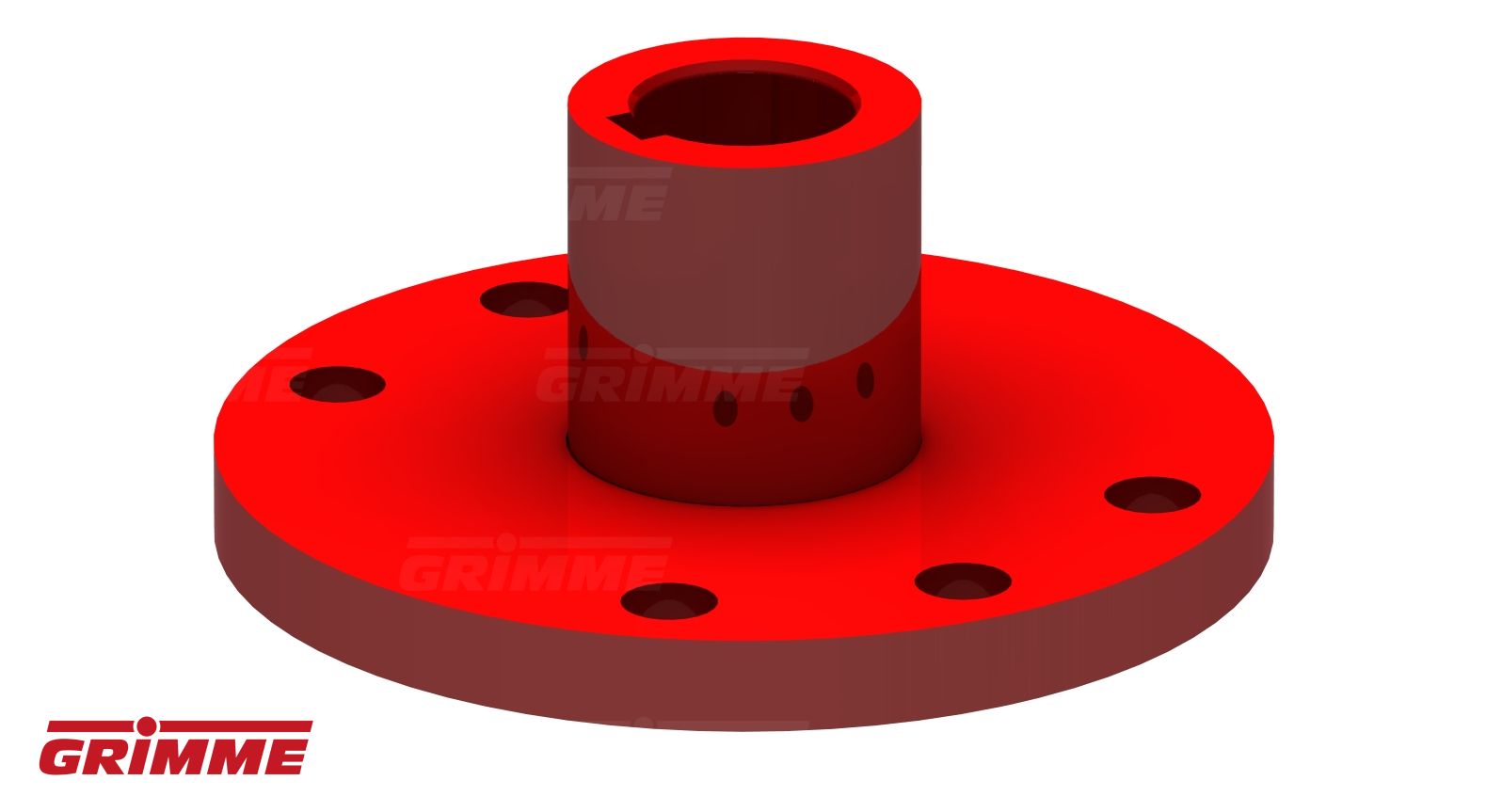

HUB

Quantity in assembly group: 2 Piece / Pos. 55

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 13 Piece / Pos. 56

BRACKET

Quantity in assembly group: 2 Piece / Pos. 57

HYD MOTOR MF260 CLY-SHAFT

Quantity in assembly group: 2 Piece / Pos. 58

SEAL SET STAND F MF HYD-MOTOR

Quantity in assembly group: 1 Piece / Pos. 59
