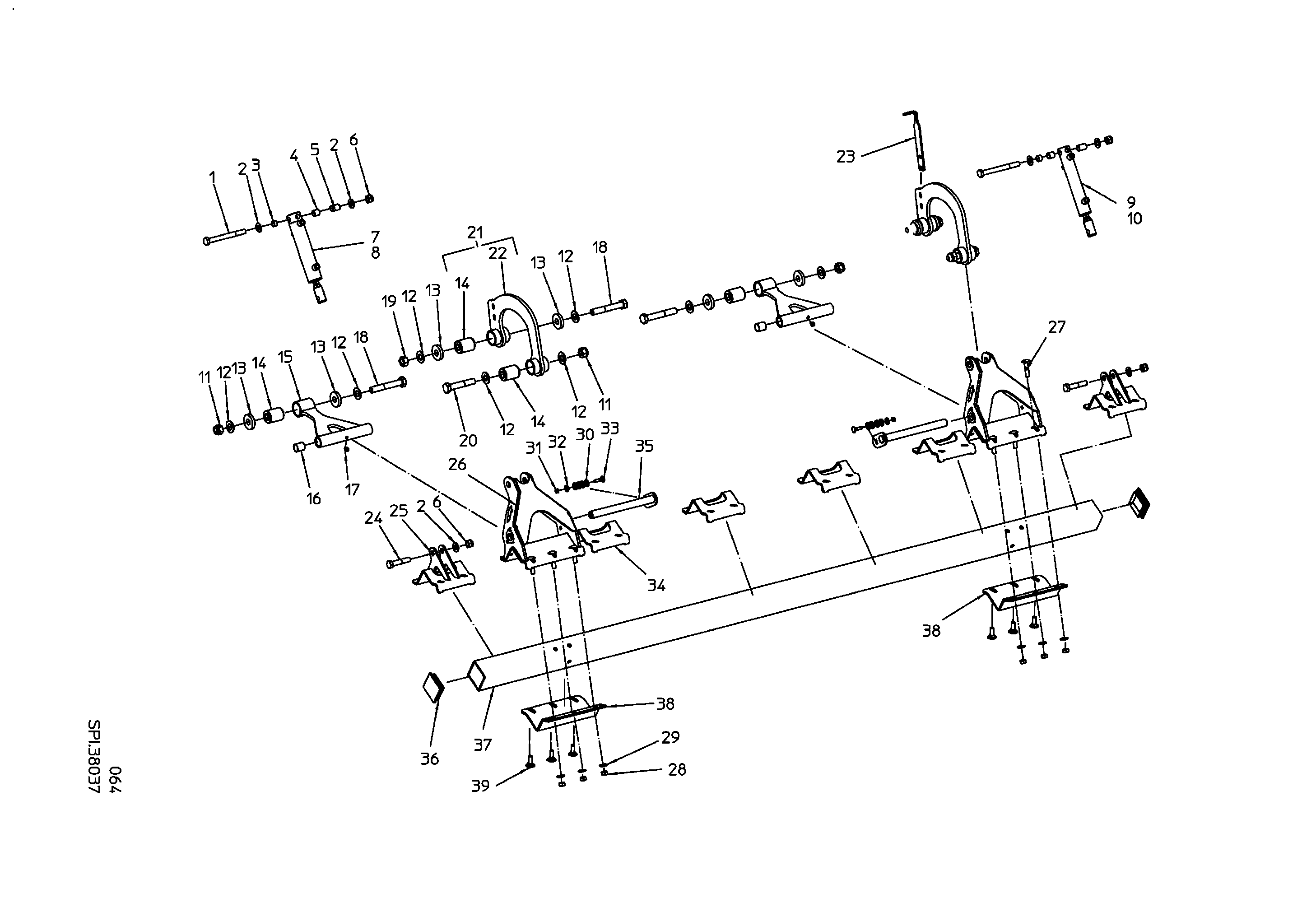

Parts by subassemblies

HHC-SCREW M16X160 931-10.9flZn

Quantity in assembly group: 2 Piece / Pos. 1

FLAT WASHER M16

Quantity in assembly group: 6 Piece / Pos. 2

BUSH

Quantity in assembly group: 2 Piece / Pos. 3

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 4

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 5

NYLOC NUT DIN985-M16-8-GAL

Quantity in assembly group: 4 Piece / Pos. 6

DAC-DYLINDER (MASTER)

Quantity in assembly group: 1 Piece / Pos. 7

CYL SEAL SET

Quantity in assembly group: 2 Piece / Pos. 8

DAC-DYLINDER (SLAVE)

Quantity in assembly group: 1 Piece / Pos. 9

CYL SEAL SET

Quantity in assembly group: 2 Piece / Pos. 10

NYLOC NUT DIN985-M20-8-GAL

Quantity in assembly group: 4 Piece / Pos. 11

PLAIN WASHER 21X42X2,5 GAL (AR

Quantity in assembly group: 12 Piece / Pos. 12

SPACER DISC

Quantity in assembly group: 8 Piece / Pos. 13

MEGI-BUSH 45X20X62,5

Quantity in assembly group: 6 Piece / Pos. 14

ROCKER-ARM

Quantity in assembly group: 2 Piece / Pos. 15

PLAIN BEARING BUSH 252830

Quantity in assembly group: 4 Piece / Pos. 16

GREASE NIPPLE H2/S-M8X1 DIN714

Quantity in assembly group: 2 Piece / Pos. 17

HEX BOLT M20X130-DIN931-8.8-G

Quantity in assembly group: 4 Piece / Pos. 18

HEXAGON NUT M20 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 19

HHC-SCREW M20X110 931-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 20

ROCKER-ARM UPPER

Quantity in assembly group: 2 Piece / Pos. 21

ROCKER-ARM

Quantity in assembly group: 2 Piece / Pos. 22

CURSOR

Quantity in assembly group: 1 Piece / Pos. 23

HEX BOLT M16X80-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 24

CLIP

Quantity in assembly group: 2 Piece / Pos. 25

SLIDE PIECE

Quantity in assembly group: 2 Piece / Pos. 26

MH-SCREW w SHO SQ M12X55 603-8

Quantity in assembly group: 6 Piece / Pos. 27

HEXAGON NUT M12 934-10.9-flZn

Quantity in assembly group: 12 Piece / Pos. 28

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 12 Piece / Pos. 29

DISC A13 DIN125-GAL

Quantity in assembly group: 8 Piece / Pos. 30

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 31

CONTACT DISC SHAPE B8 GAL

Quantity in assembly group: 2 Piece / Pos. 32

MH-SCREW M8X35-603-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 33

PANEL

Quantity in assembly group: 4 Piece / Pos. 34

BOLT

Quantity in assembly group: 2 Piece / Pos. 35

SQUARE PLUG 80X80

Quantity in assembly group: 2 Piece / Pos. 36

SQUARE PIPE

Quantity in assembly group: 1 Piece / Pos. 37

CLAMPING PLATE

Quantity in assembly group: 2 Piece / Pos. 38

COACH BOLT M12X35-DIN603-8.8-G

Quantity in assembly group: 6 Piece / Pos. 39
