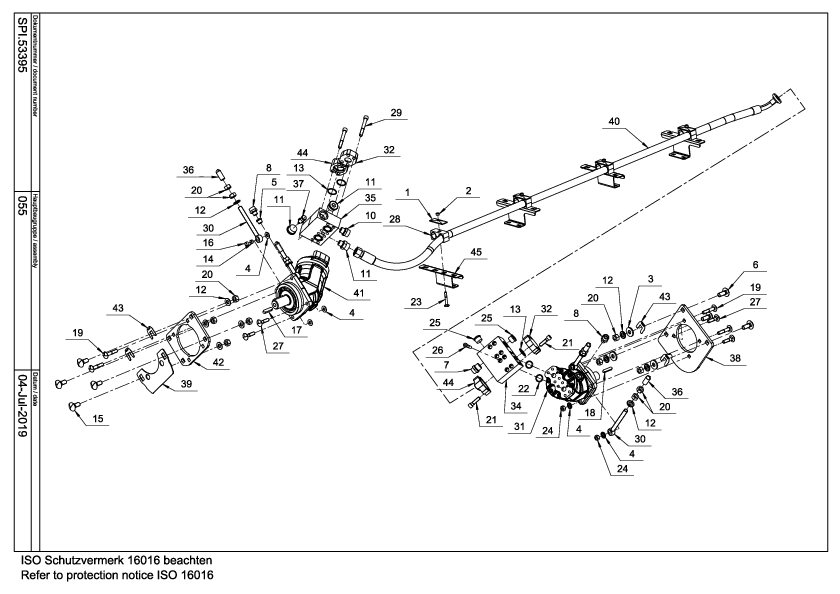

Parts by subassemblies

COVER PLATE F HYD PIPE CLAMP B

Quantity in assembly group: 4 Piece / Pos. 1

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 4 Piece / Pos. 2

DISC 16,5X40X5

Quantity in assembly group: 3 Piece / Pos. 3

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 8 Piece / Pos. 4

SCREW PLUG VS-M18X1,5 WD

Quantity in assembly group: 1 Piece / Pos. 5

COACH BOLT/SS M16X40-603-8.8-G

Quantity in assembly group: 3 Piece / Pos. 6

GE18LR3/4EDOMDCF

Quantity in assembly group: 1 Piece / Pos. 7

P-GES 18L/M18X1,5

Quantity in assembly group: 2 Piece / Pos. 8

P-GES 20S/M22X1,5

Quantity in assembly group: 1 Piece / Pos. 9

P-GES 22L/M22X1,5

Quantity in assembly group: 1 Piece / Pos. 10

BLANKING PLUG 1"

Quantity in assembly group: 2 Piece / Pos. 11

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 11 Piece / Pos. 12

O-RING FOR SAE-FLANGE 1"

Quantity in assembly group: 5 Piece / Pos. 13

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 14

COACH BOLT M16X40-DIN603-8.8-G

Quantity in assembly group: 4 Piece / Pos. 15

SPACER

Quantity in assembly group: 1 Piece / Pos. 16

FEATHER KEY A 12X8X50 DIN6885

Quantity in assembly group: 1 Piece / Pos. 17

FEATHER KEY A 10X8X50 DIN6885

Quantity in assembly group: 1 Piece / Pos. 18

COACH BOLT/SS M12X65-603-8.8-G

Quantity in assembly group: 4 Piece / Pos. 19

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 15 Piece / Pos. 20

SHC-SCREW 912 M12X45-12.9 flZn

Quantity in assembly group: 2 Piece / Pos. 21

O-RING FOR SAE-FLANGE 3/4"

Quantity in assembly group: 2 Piece / Pos. 22

COACH BOLT M8X60-DIN603-8.8-G

Quantity in assembly group: 4 Piece / Pos. 23

HEXAGON NUT M12 DIN934-8-GAL

Quantity in assembly group: 4 Piece / Pos. 24

VSTI3/4EDCF

Quantity in assembly group: 2 Piece / Pos. 25

SHC-SCREW 912 M10X65-10.9 flZn

Quantity in assembly group: 1 Piece / Pos. 26

MH-SCREW M12X50 DIN603-8.8

Quantity in assembly group: 4 Piece / Pos. 27

PIPE CLAMP D28-28

Quantity in assembly group: 4 Piece / Pos. 28

SHC-SCREW 912 M12X90-12.9 flZn

Quantity in assembly group: 2 Piece / Pos. 29

EB LB M16X160 DIN444-4.6-GAL

Quantity in assembly group: 4 Piece / Pos. 30

HYDRAULIC MOTOR A2FM

Quantity in assembly group: 1 Piece / Pos. 31

SAE-LOCKING FLANGE 1"

Quantity in assembly group: 2 Piece / Pos. 32

RELIEF VALVE

Quantity in assembly group: 1 Piece / Pos. 33

ENGINE CON BLOCK A2FM 56ccm

Quantity in assembly group: 1 Piece / Pos. 34

ENGINE CONNECTION BLOCK

Quantity in assembly group: 1 Piece / Pos. 35

GPN255-PROTEKTIVE CAP 16

Quantity in assembly group: 4 Piece / Pos. 36

VALVE INSERT CPTE NW16 1,0

Quantity in assembly group: 1 Piece / Pos. 37

PANEL 56ccm

Quantity in assembly group: 1 Piece / Pos. 38

COVER

Quantity in assembly group: 1 Piece / Pos. 39

HOSE-2500-NW16-R15-420BAR

Quantity in assembly group: 1 Piece / Pos. 40

FIXED MOTOR A2FM 90/61

Quantity in assembly group: 1 Piece / Pos. 41

FLANGE PLATE

Quantity in assembly group: 1 Piece / Pos. 42

DISTANCE PLATE

Quantity in assembly group: 4 Piece / Pos. 43

FH6003

Quantity in assembly group: 4 Piece / Pos. 44

HYDRAULIC BRACKET

Quantity in assembly group: 4 Piece / Pos. 45
