Parts by subassemblies

RETAINER COMB

Quantity in assembly group: 1 Piece / Pos. 1

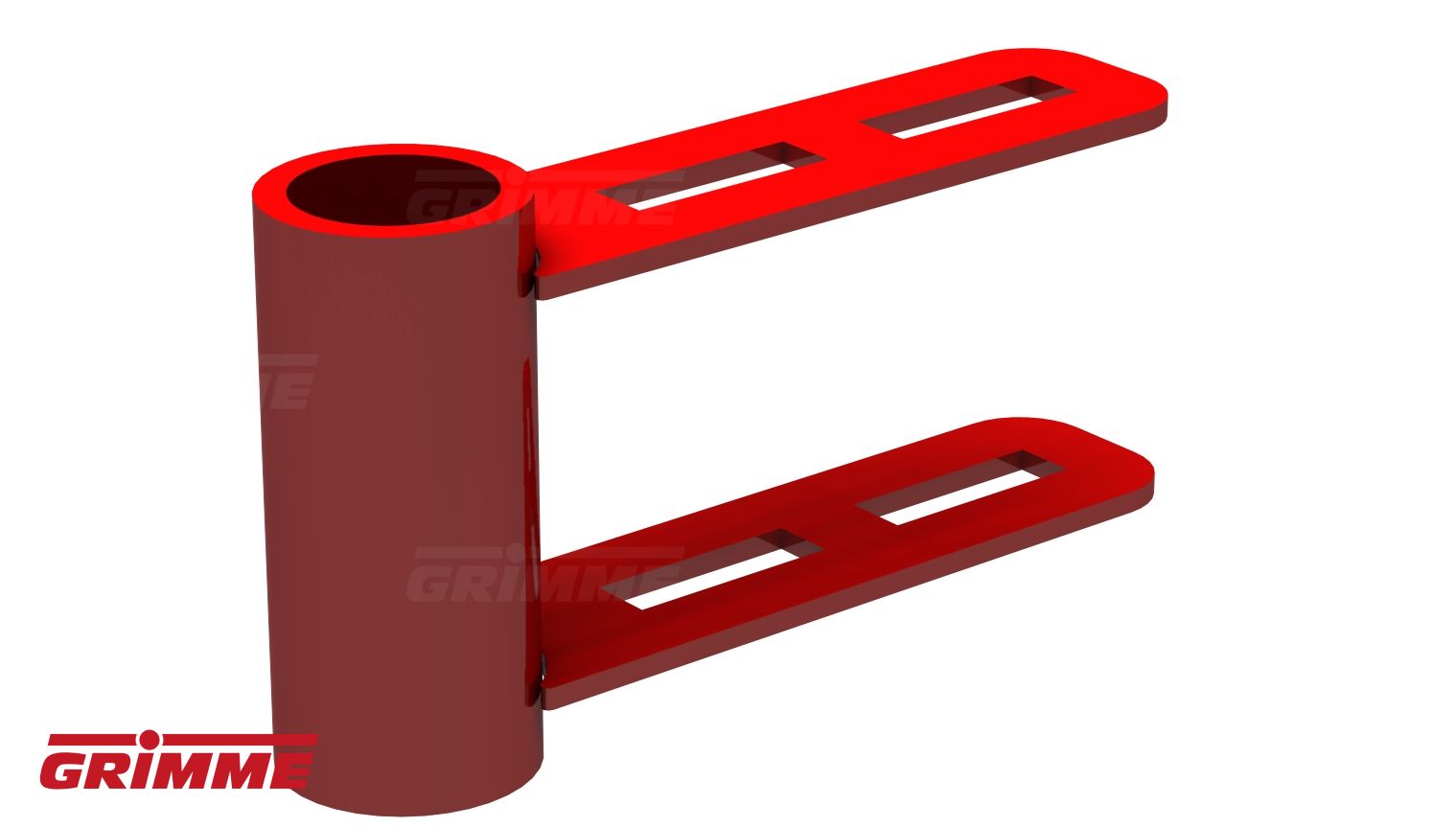

BRACKET

Quantity in assembly group: 5 Piece / Pos. 2

BRACKET

Quantity in assembly group: 1 Piece / Pos. 3

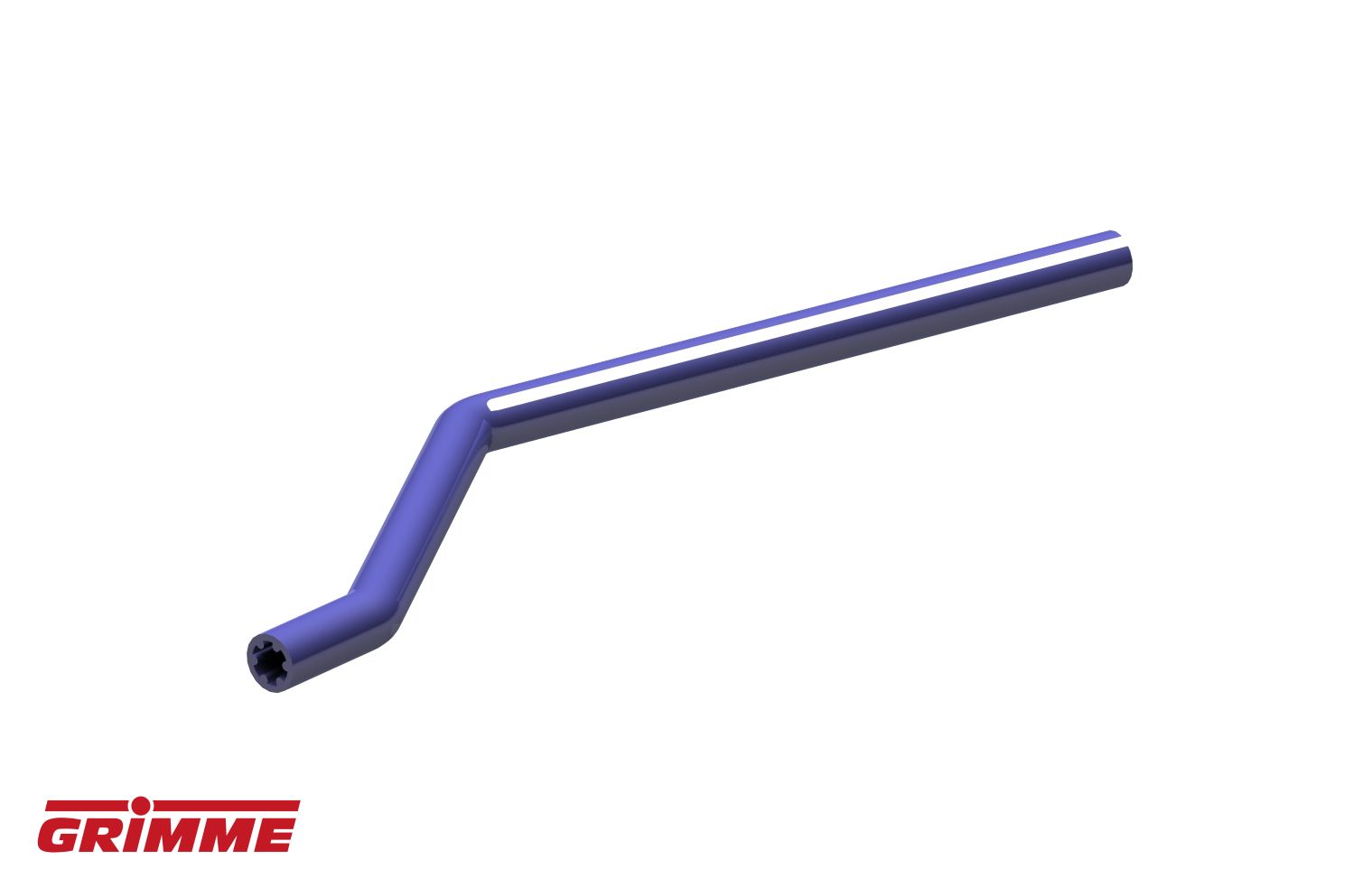

ROD

Quantity in assembly group: 1 Piece / Pos. 4

ROD

Quantity in assembly group: 1 Piece / Pos. 5

SHAFT

Quantity in assembly group: 1 Piece / Pos. 6

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 7

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 8

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 9

SPACER TUBE

Quantity in assembly group: 3 Piece / Pos. 10

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 11

SPACER RING

Quantity in assembly group: 2 Piece / Pos. 12

SPACER TUBE

Quantity in assembly group: 3 Piece / Pos. 13

BAR COVER 610LONG

Quantity in assembly group: 1 Piece / Pos. 16

TENSION SPRING

Quantity in assembly group: 14 Piece / Pos. 17

BRACKET MIDDLE

Quantity in assembly group: 1 Piece / Pos. 18

CHARGE LEVER

Quantity in assembly group: 2 Piece / Pos. 19

GUIDE

Quantity in assembly group: 10 Piece / Pos. 20

GUIDE

Quantity in assembly group: 1 Piece / Pos. 21

GUIDE

Quantity in assembly group: 1 Piece / Pos. 22

BRACKET

Quantity in assembly group: 2 Piece / Pos. 23

SET SCREW M8X30-DIN933-8.8-G

Quantity in assembly group: 14 Piece / Pos. 24

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 28 Piece / Pos. 25

FEATHER KEY A 8X8X30 DIN6885

Quantity in assembly group: 2 Piece / Pos. 26

ROLL PIN 7X45-DIN1481

Quantity in assembly group: 2 Piece / Pos. 27

ROLL PIN 7X40-DIN1481

Quantity in assembly group: 5 Piece / Pos. 28

COTTER PIN 4X20 DIN94-GAL

Quantity in assembly group: 6 Piece / Pos. 29

WORM DRIVE HOSE CLIP SGL16-25/

Quantity in assembly group: 12 Piece / Pos. 30
