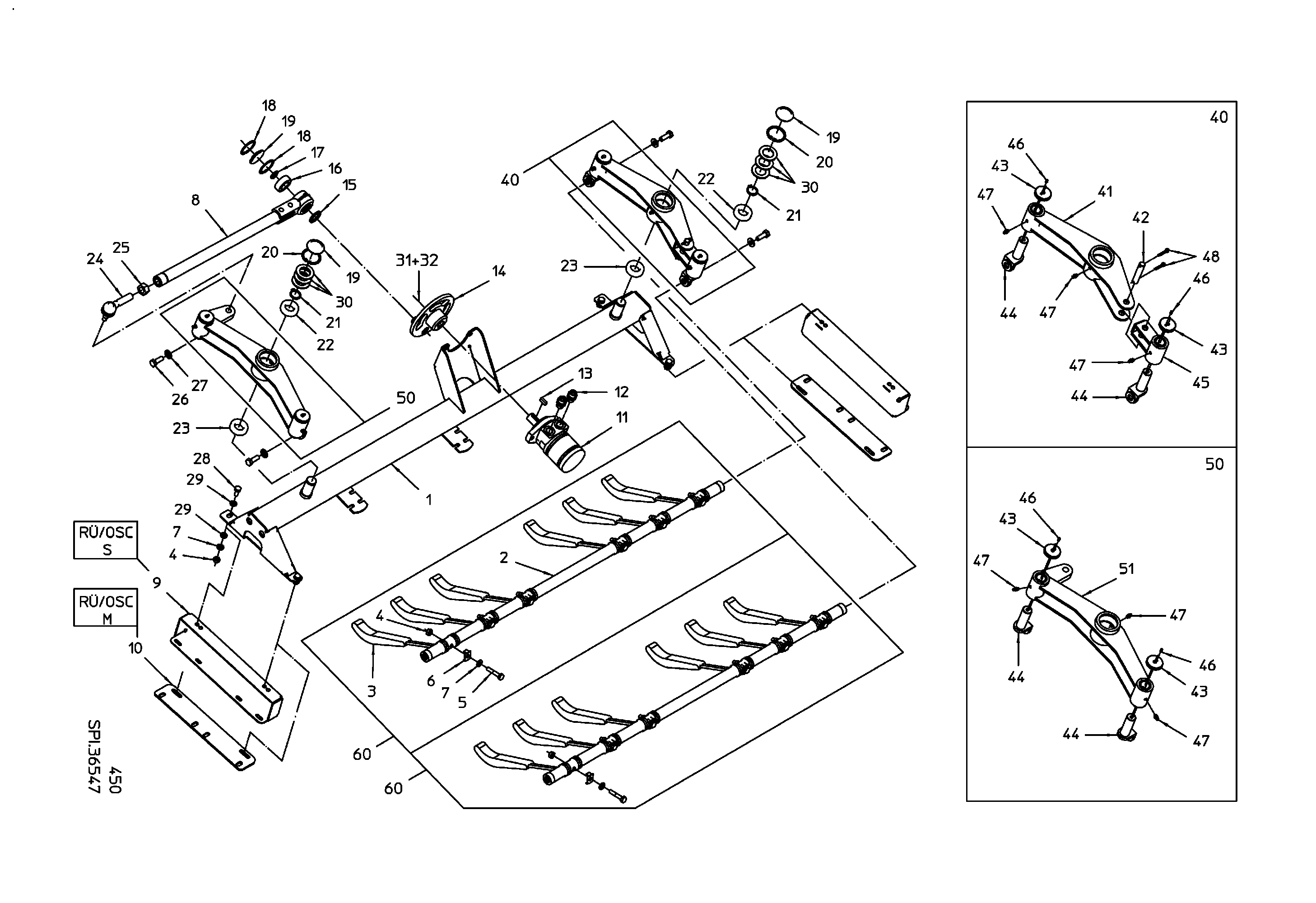

Parts by subassemblies

CROSS MEMBER

Quantity in assembly group: 1 Piece / Pos. 1

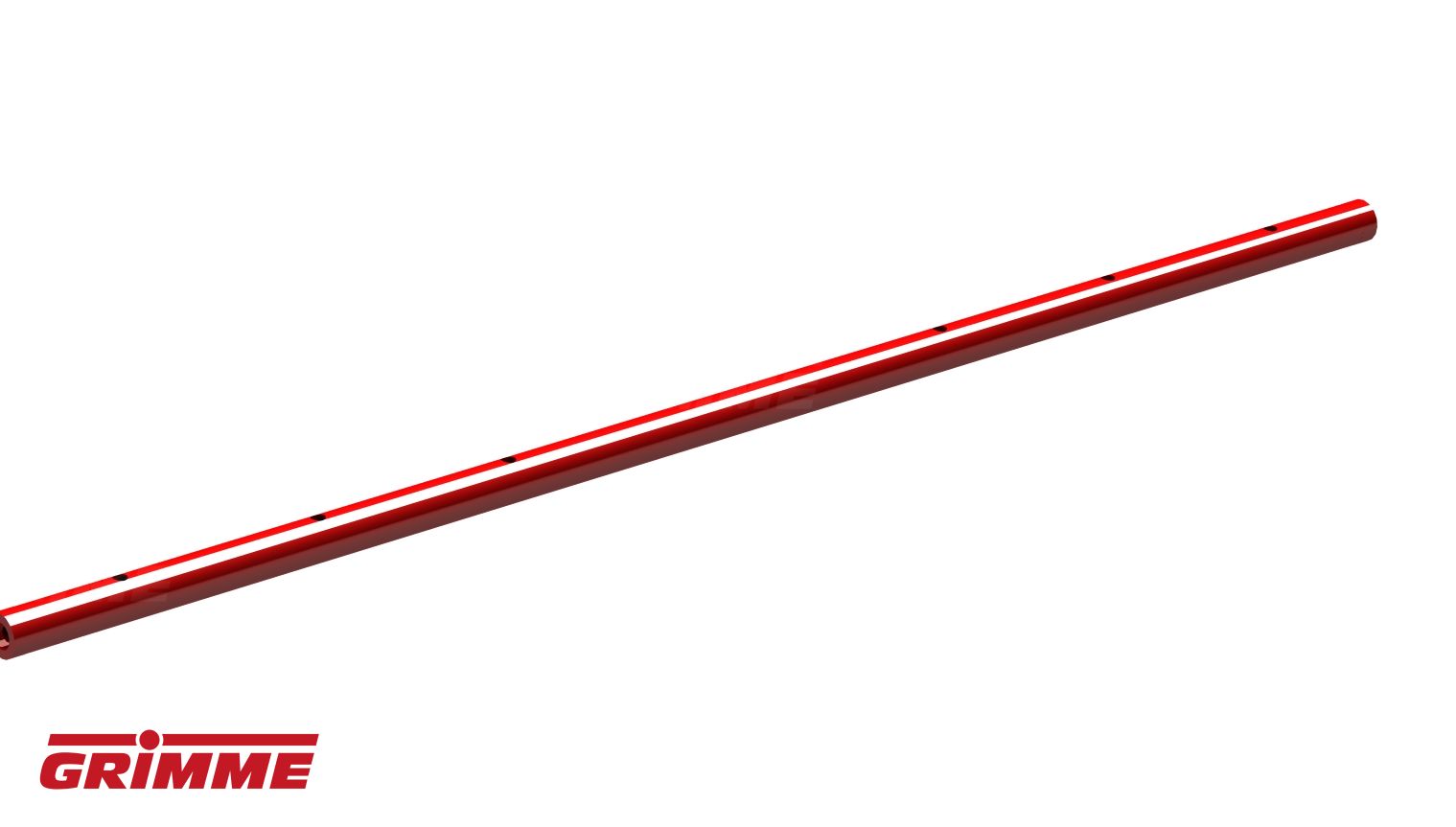

TINE FRAME TUBE

Quantity in assembly group: 2 Piece / Pos. 2

OSCILLATOR TIN -VULC-

Quantity in assembly group: 12 Piece / Pos. 3

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 16 Piece / Pos. 4

HEX BOLT M10X55-DIN931-8.8-G

Quantity in assembly group: 12 Piece / Pos. 5

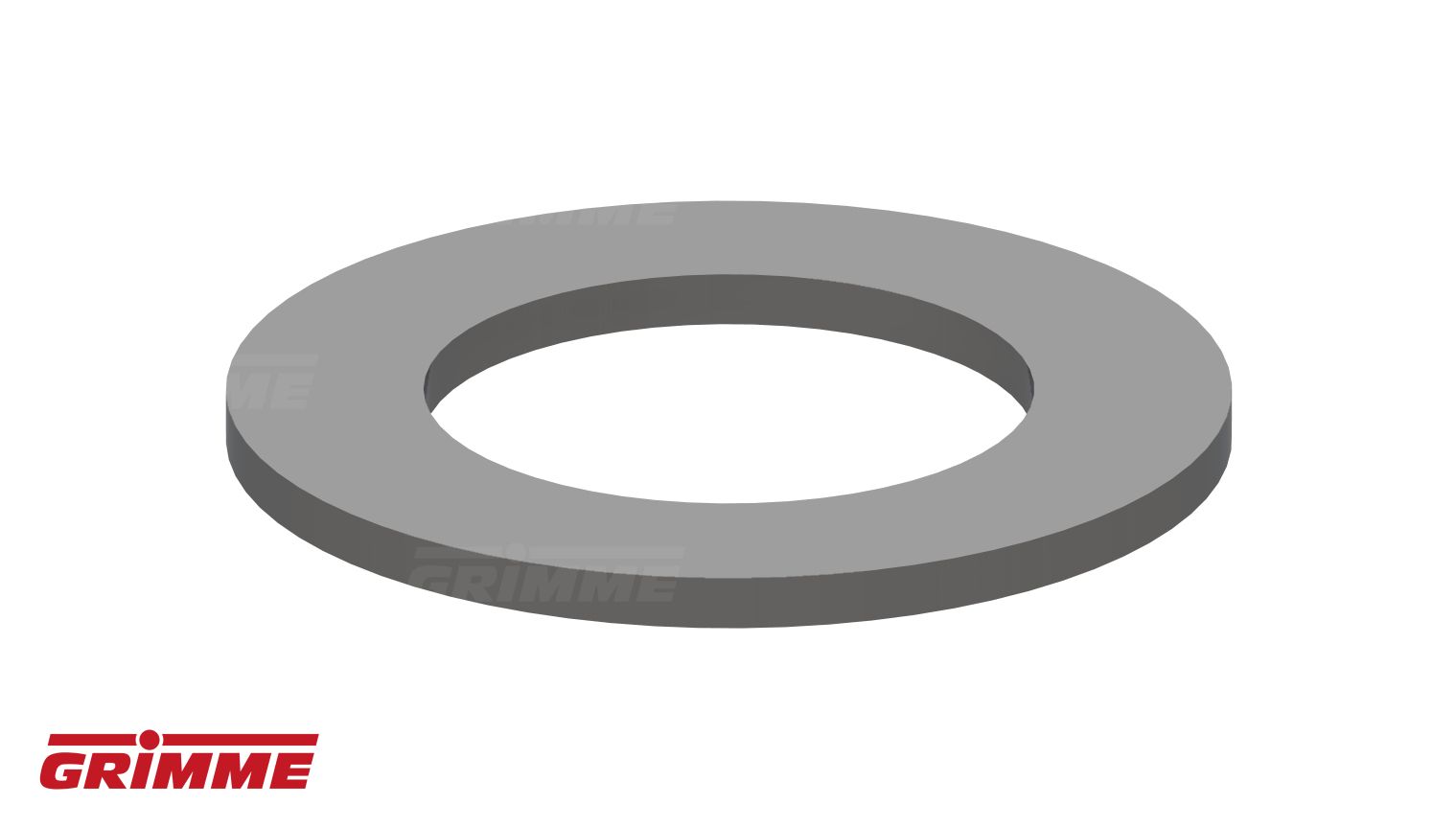

DISC 13

Quantity in assembly group: 12 Piece / Pos. 6

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 16 Piece / Pos. 7

ROD

Quantity in assembly group: 1 Piece / Pos. 8

BRACKET

Quantity in assembly group: 2 Piece / Pos. 9

PANEL

Quantity in assembly group: 2 Piece / Pos. 10

HYD MOTOR MF165 CYL-SHAFT

Quantity in assembly group: 1 Piece / Pos. 11

GE15LREDOMDCF

Quantity in assembly group: 2 Piece / Pos. 12

FEATHER KEY A 8X8X25 DIN6885

Quantity in assembly group: 1 Piece / Pos. 13

ECCENTRIC DISC

Quantity in assembly group: 1 Piece / Pos. 14

SEALING RING 43-33-4

Quantity in assembly group: 1 Piece / Pos. 15

SELF-ALIGNING BEARING 22205

Quantity in assembly group: 1 Piece / Pos. 16

RETAINING RING A 25X2 DIN471

Quantity in assembly group: 1 Piece / Pos. 17

RETAINING RING J 52X2 DIN472

Quantity in assembly group: 2 Piece / Pos. 18

SEALING CAP 55-3

Quantity in assembly group: 3 Piece / Pos. 19

RETAINING RING J 55X2 DIN472

Quantity in assembly group: 2 Piece / Pos. 20

RETAINING RING AS 30X2 DIN471

Quantity in assembly group: 2 Piece / Pos. 21

BALL BEARING 6006-2RS

Quantity in assembly group: 2 Piece / Pos. 22

BALL BEARING 6006

Quantity in assembly group: 2 Piece / Pos. 23

BALL JOINT

Quantity in assembly group: 1 Piece / Pos. 24

HEXAGON NUT M20X1,5 DIN934-8-G

Quantity in assembly group: 1 Piece / Pos. 25

SET SCREW M12X35-DIN933-8.8-G

Quantity in assembly group: 4 Piece / Pos. 26

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 4 Piece / Pos. 27

HHC-SCREW M10X25 933-8.8-GAL

Quantity in assembly group: 4 Piece / Pos. 28

WASHER A10,5 DIN125-VERZ

Quantity in assembly group: 8 Piece / Pos. 29

SEALING RING 56-34-3

Quantity in assembly group: 6 Piece / Pos. 30

PLAIN WASHER 9X40X2,5

Quantity in assembly group: 1 Piece / Pos. 31

DHSS HSH 7380-2M8X20-10.9flZn

Quantity in assembly group: 1 Piece / Pos. 32

OSCILLATOR ARM R/H

Quantity in assembly group: 1 Piece / Pos. 40

OSCILLATOR ARM R/H

Quantity in assembly group: 1 Piece / Pos. 41

BOLT

Quantity in assembly group: 1 Piece / Pos. 42

COVER DISC

Quantity in assembly group: 4 Piece / Pos. 43

HINGE BOLT

Quantity in assembly group: 4 Piece / Pos. 44

HINGE PIECE

Quantity in assembly group: 1 Piece / Pos. 45

GROOVED PIN DIN1473-5X10-ST

Quantity in assembly group: 4 Piece / Pos. 46

GREASE NIPPLE H1/S-M8X1 DIN714

Quantity in assembly group: 6 Piece / Pos. 47

COTTER PIN 5X25 DIN94-GAL

Quantity in assembly group: 2 Piece / Pos. 48

OSCILLATOR ARM L/H

Quantity in assembly group: 1 Piece / Pos. 50

OSCILLATOR ARM L/H

Quantity in assembly group: 1 Piece / Pos. 51

TINE FRAME TUBE

Quantity in assembly group: 2 Piece / Pos. 60
