Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

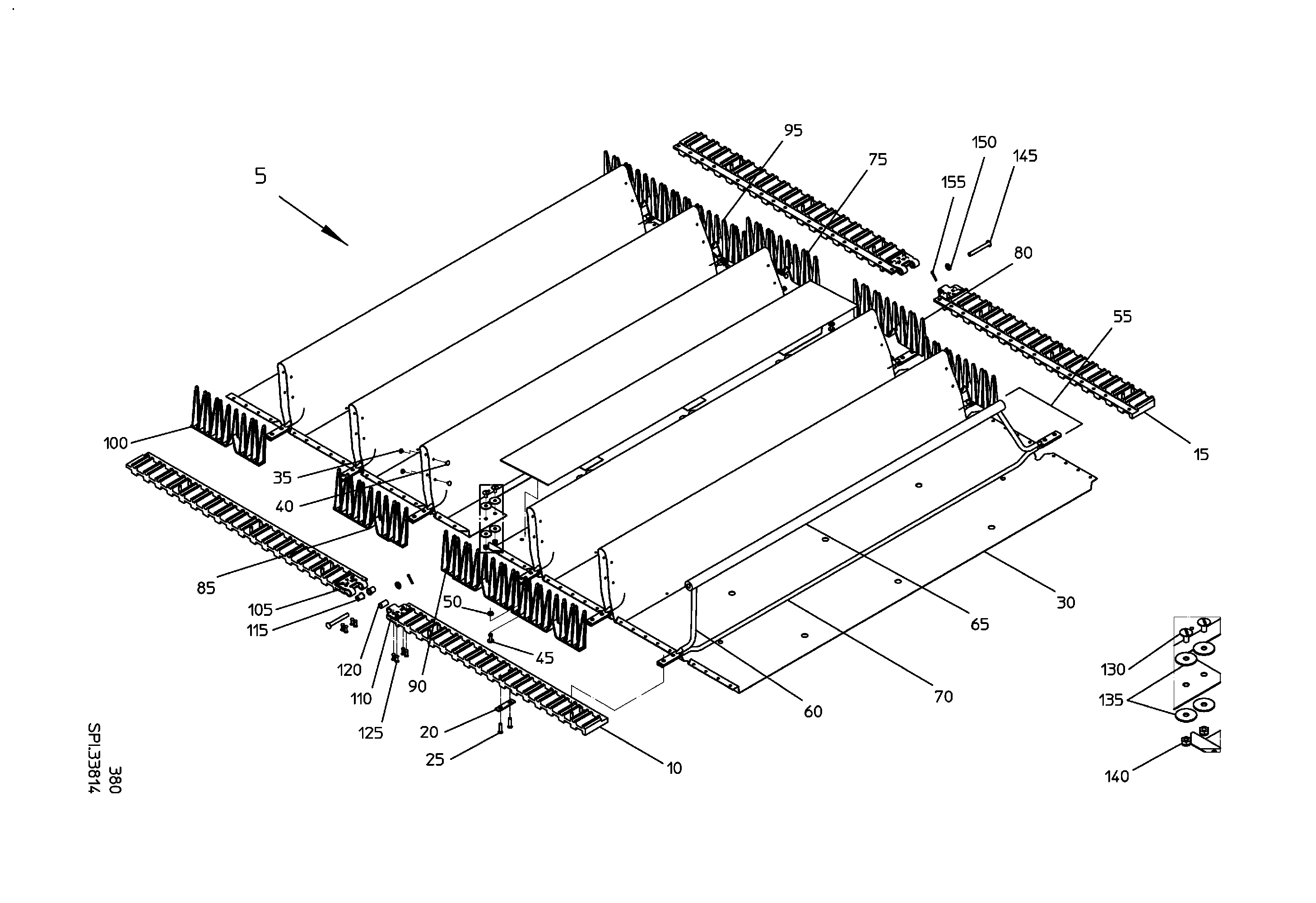

Subassembly drawing

Selected assembly group:

Subassembly parts

All items Equipment ex work ()
CONVEYOR 40/1340/16239
Quantity in assembly group: 1 Piece / Pos. 5
OB L/H 407DCA-ONO-75/40
Quantity in assembly group: 1 Piece / Pos. 10
OB R/H 407DCA-ONO-75/40
Quantity in assembly group: 1 Piece / Pos. 15
RIVET PLATE 32/6
Quantity in assembly group: 1 Piece / Pos. 20
COUNTER-SUNK RIVET 6X24
Quantity in assembly group: 1 Piece / Pos. 25
SHEET WITH LOOPS
Quantity in assembly group: 1 Piece / Pos. 30
RIVET HEAD 3,6X10,4X5,2
Quantity in assembly group: 272 Piece / Pos. 35
RIVET 3X10,4X8,8
Quantity in assembly group: 272 Piece / Pos. 40
POP-BLIND-RIVET 4,8X18
Quantity in assembly group: 680 Piece / Pos. 45
U-DISC 13X5X2 GAL
Quantity in assembly group: 680 Piece / Pos. 50
BAR 11X1337 CRA 137 WITH FTU
Quantity in assembly group: 68 Piece / Pos. 55
BAR 11X1337 CRA 137
Quantity in assembly group: 1 Piece / Pos. 60
COVER TUBE 24X10X1056
Quantity in assembly group: 1 Piece / Pos. 65
BAR 10X1337 CRA 15
Quantity in assembly group: 68 Piece / Pos. 70
SIPA P40 108X232 R/H FRO
Quantity in assembly group: 1 Piece / Pos. 75
SIPA P40 108X232 R/H RR
Quantity in assembly group: 1 Piece / Pos. 80
SIPA P40 108X232 L/H FRO
Quantity in assembly group: 1 Piece / Pos. 85
SIPA P40 108X232 L/H RR
Quantity in assembly group: 1 Piece / Pos. 90
SIPA P40 108X232 R/H
Quantity in assembly group: 66 Piece / Pos. 95
SIPA P40 108x232 L/H
Quantity in assembly group: 66 Piece / Pos. 100
BT-BIN TYPE2 P40 DBH32 OU
Quantity in assembly group: 2 Piece / Pos. 105
BT-BIN TYPE2 P40 DBH32 IN
Quantity in assembly group: 2 Piece / Pos. 110
THREADED BUSH 12X8,2X16,5
Quantity in assembly group: 4 Piece / Pos. 115
BUSHING 12X8,2X21
Quantity in assembly group: 2 Piece / Pos. 120
COUNTER-SUNK RIVET 5X20
Quantity in assembly group: 16 Piece / Pos. 125
SLOTTED C/BOLT M6X12-603-8.8-G
Quantity in assembly group: 8 Piece / Pos. 130
FLAT WASHER 6,4X25X1,5
Quantity in assembly group: 16 Piece / Pos. 135
NYLOC NUT DIN985-M6-8-GAL
Quantity in assembly group: 8 Piece / Pos. 140
COLLAR STUD 7,8X66
Quantity in assembly group: 2 Piece / Pos. 145
FLAT WASHER B8,4 DIN125 -GAL
Quantity in assembly group: 2 Piece / Pos. 150
COTTER PIN 3,2X14 DIN94-GAL
Quantity in assembly group: 2 Piece / Pos. 155
