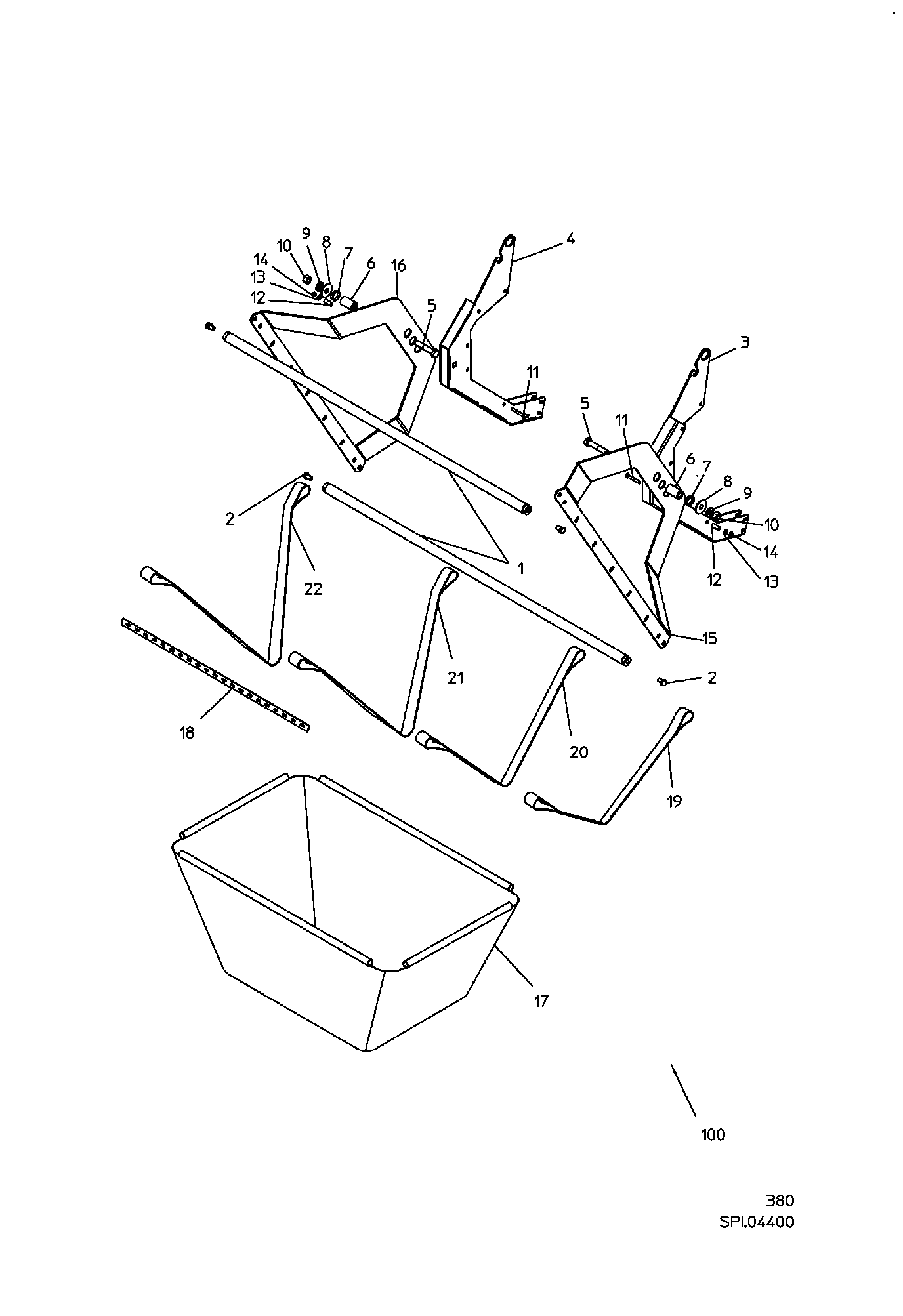

Parts by subassemblies

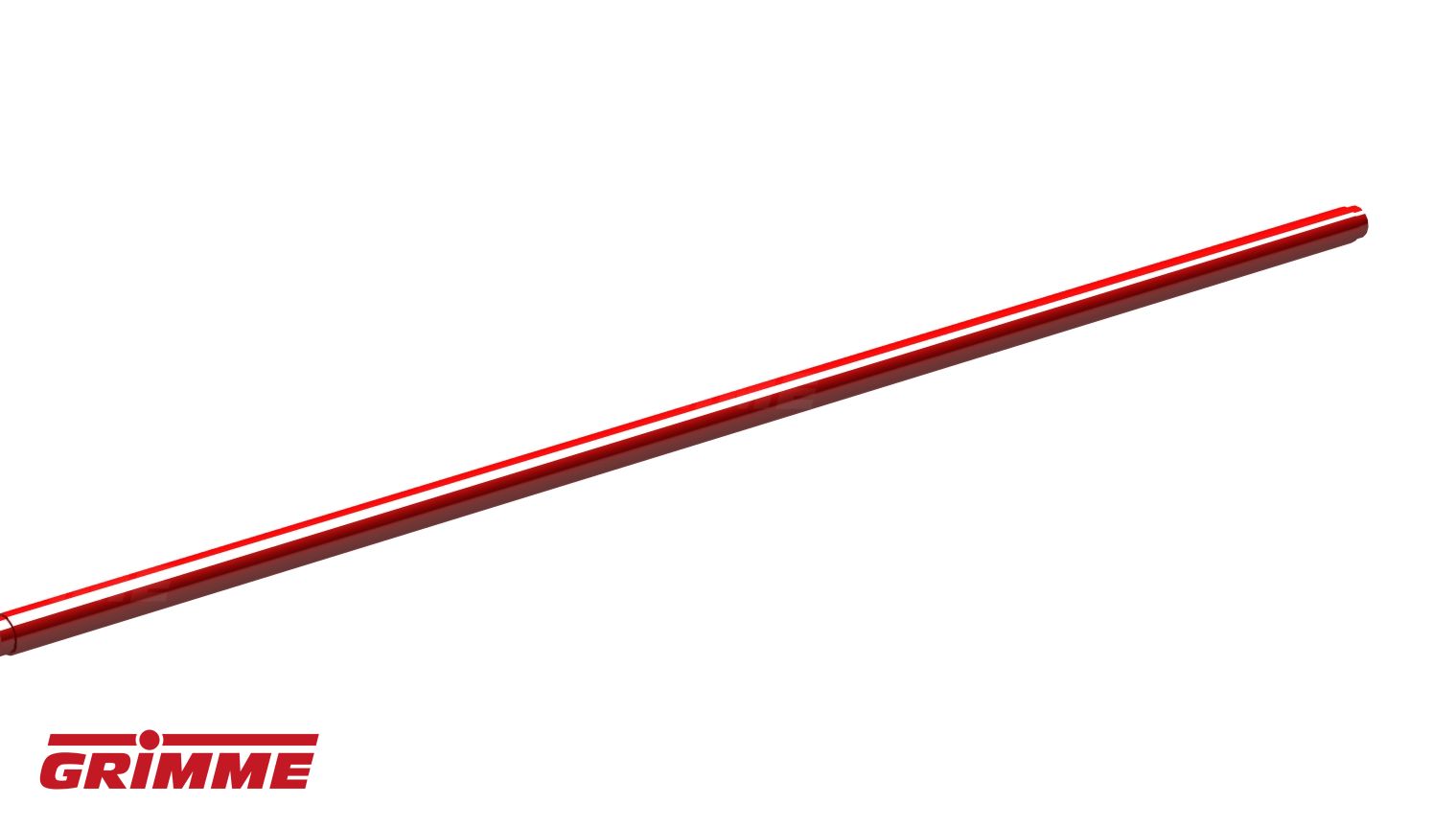

TUBE

Quantity in assembly group: 2 Piece / Pos. 1

SET SCREW M12X20-DIN933-8.8-G

Quantity in assembly group: 4 Piece / Pos. 2

MOUNTING PLATE FRONT

Quantity in assembly group: 1 Piece / Pos. 3

MOUNTING PLATE REAR

Quantity in assembly group: 1 Piece / Pos. 4

HEX BOLT M16X85-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 5

BUSH

Quantity in assembly group: 2 Piece / Pos. 6

SPACER RING

Quantity in assembly group: 2 Piece / Pos. 7

DISC A 17 DIN9021-GAL

Quantity in assembly group: 2 Piece / Pos. 8

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 2 Piece / Pos. 9

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 10

HEX BOLT M8X55-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 11

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 12

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 2 Piece / Pos. 13

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 14

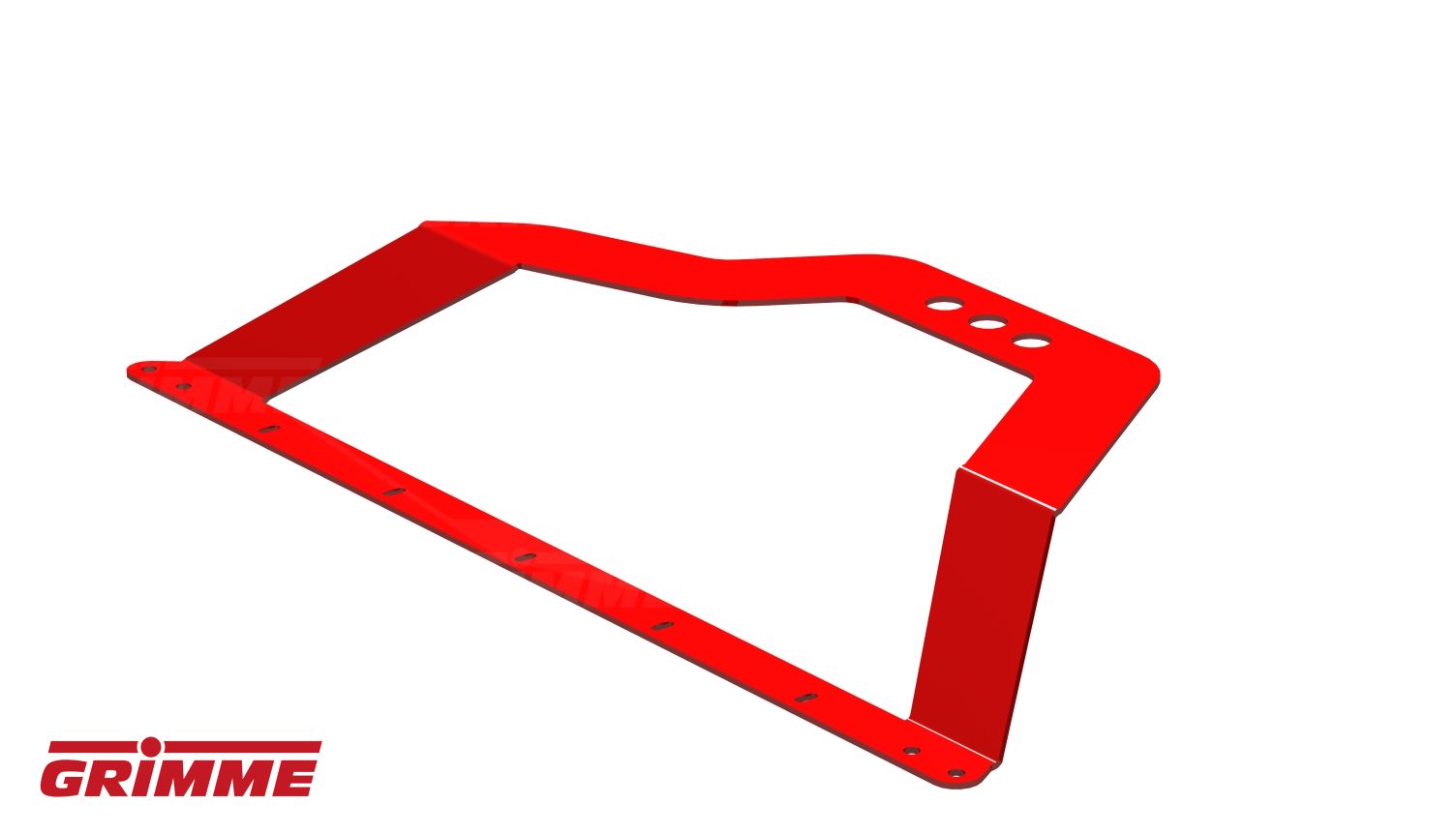

BRACKET FRONT

Quantity in assembly group: 1 Piece / Pos. 15

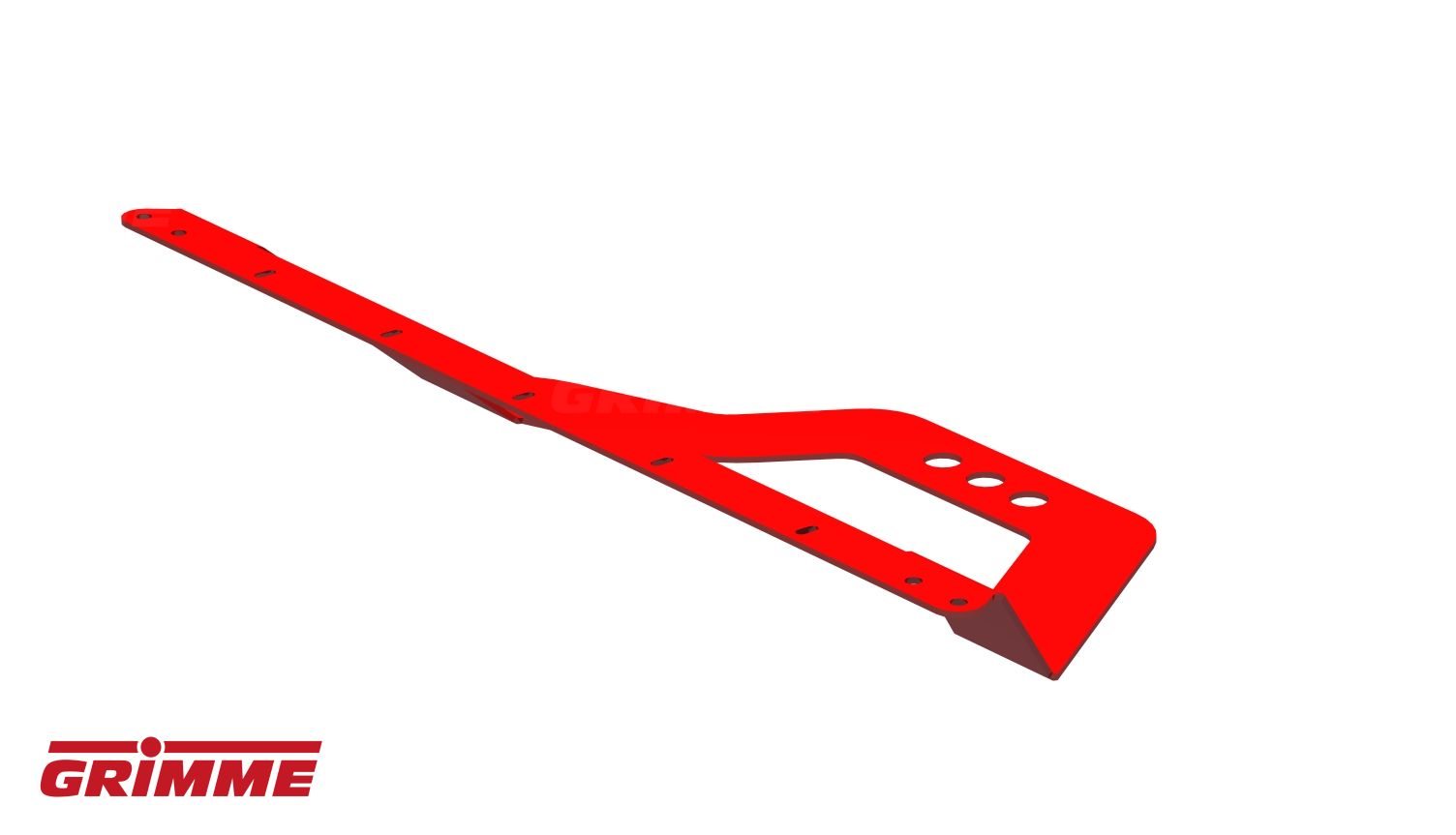

BRACKET REAR

Quantity in assembly group: 1 Piece / Pos. 16

BLACK CHUTE - BOX FILLER

Quantity in assembly group: 1 Piece / Pos. 17

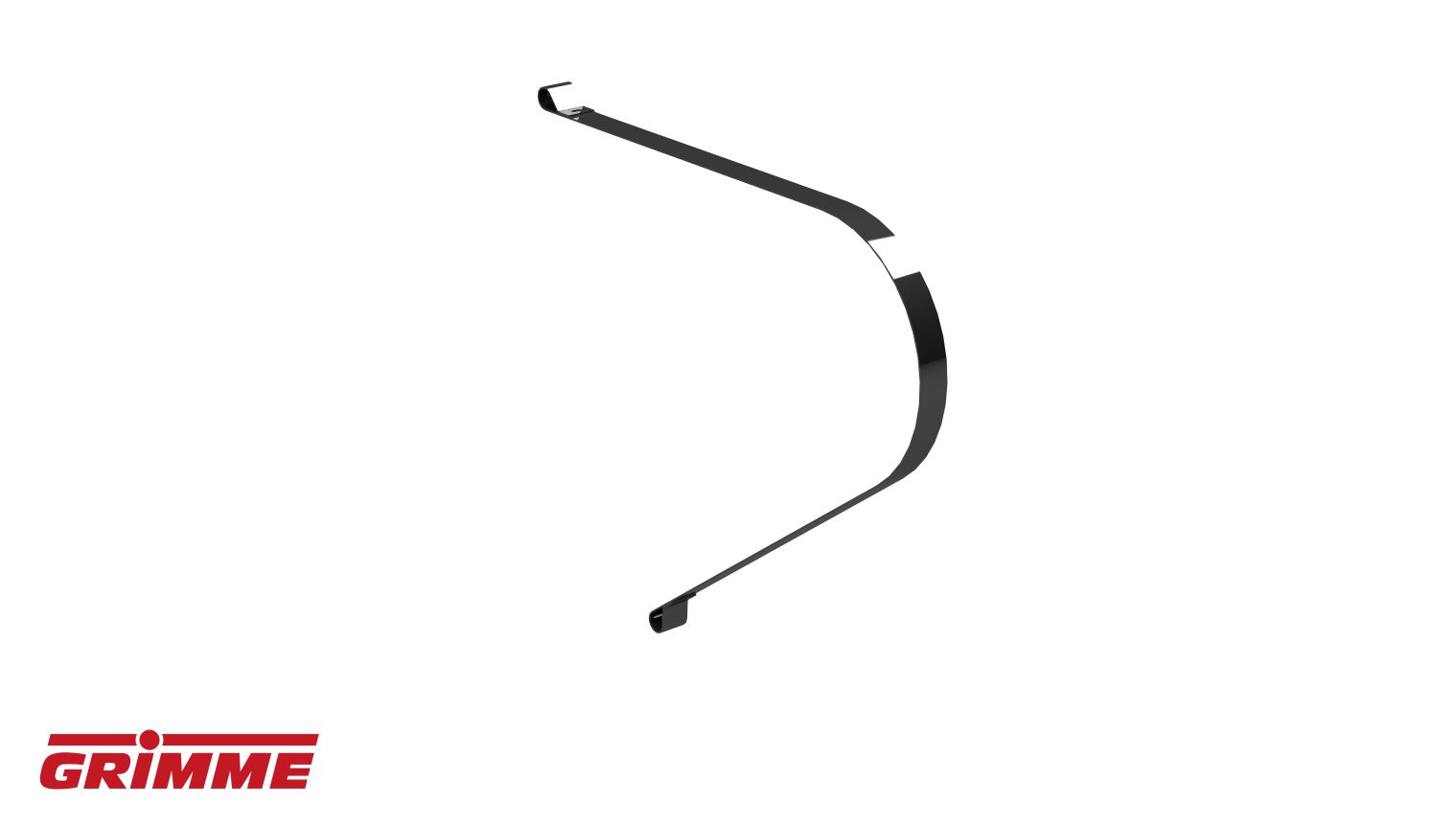

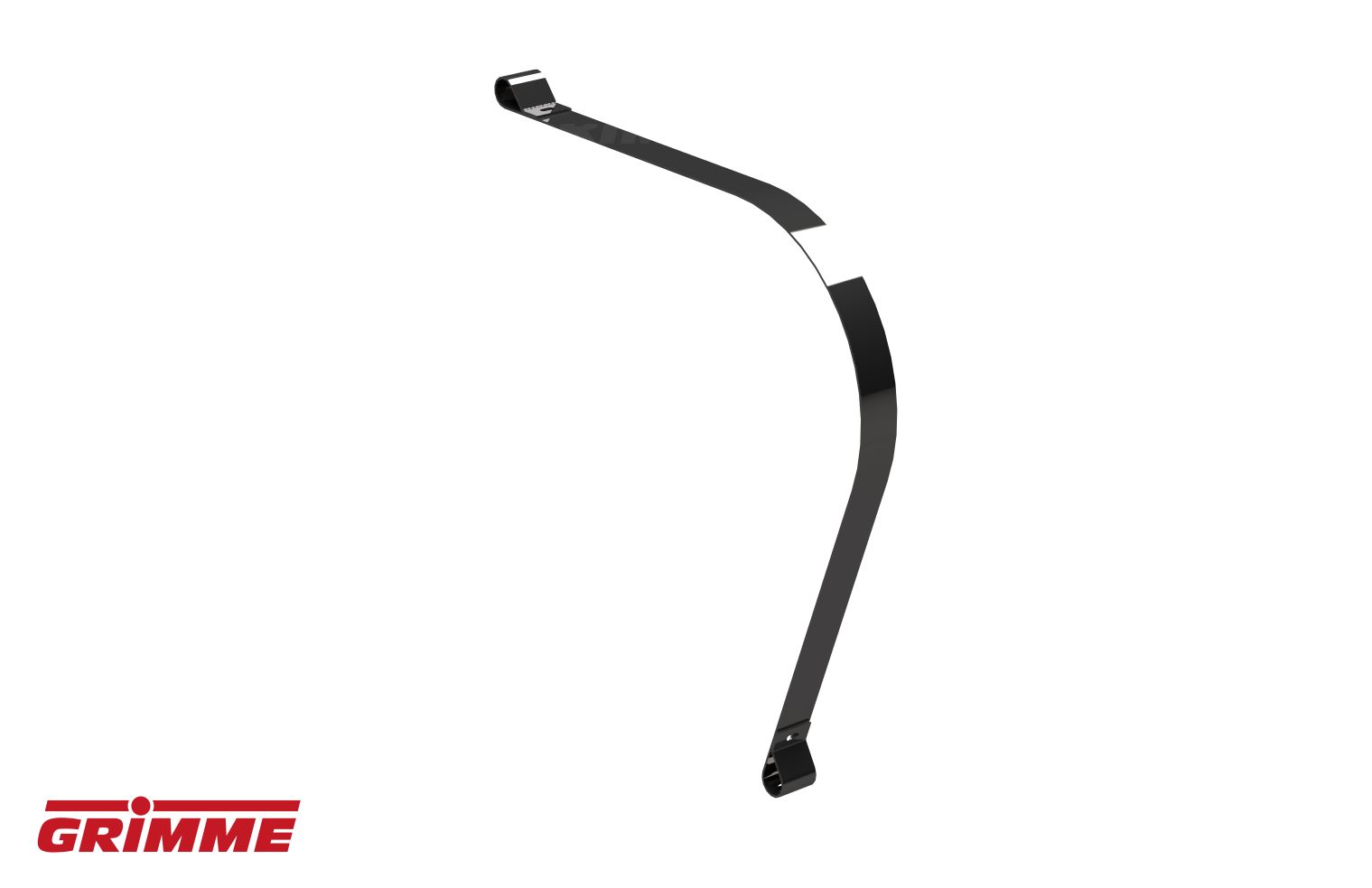

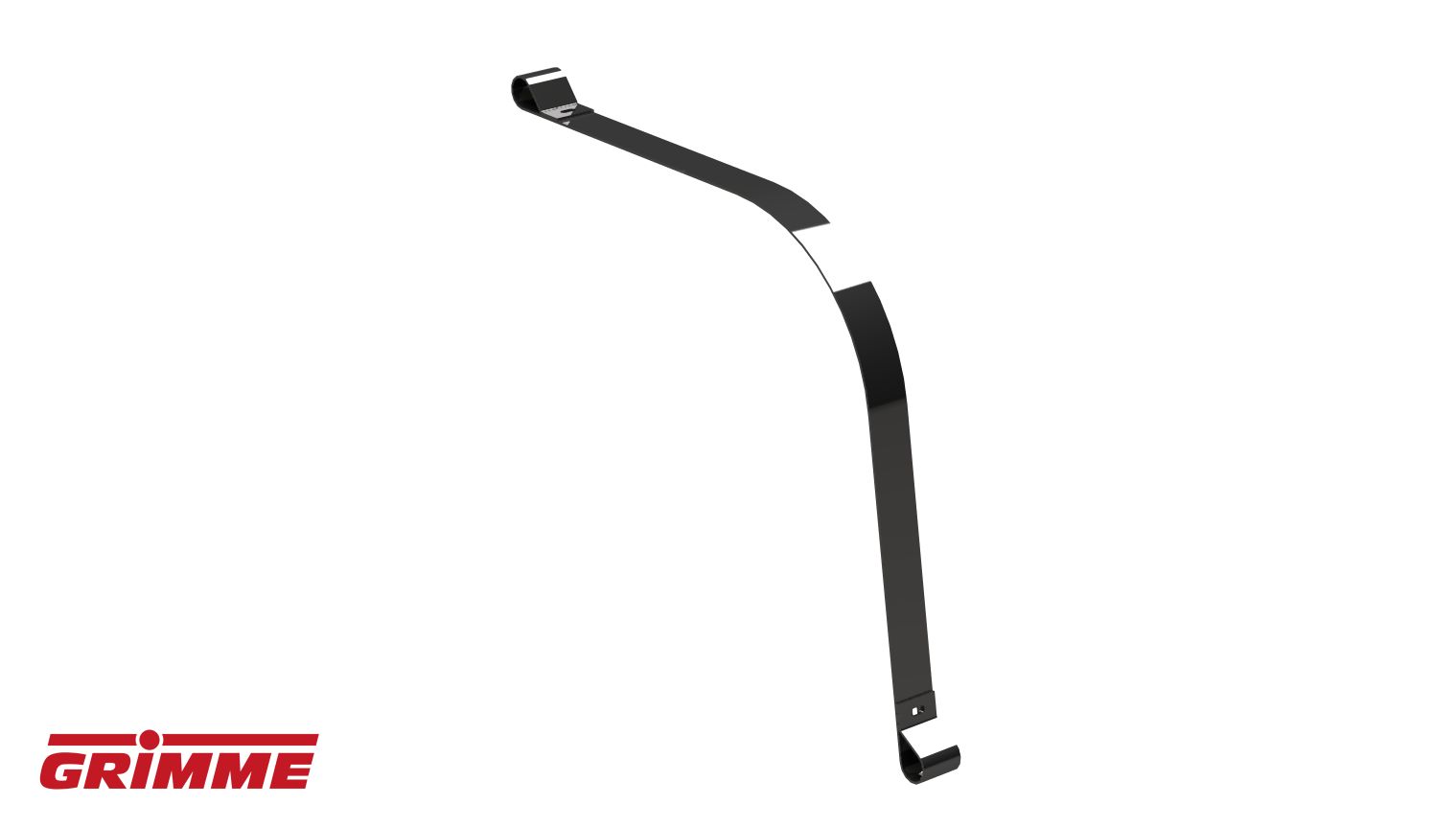

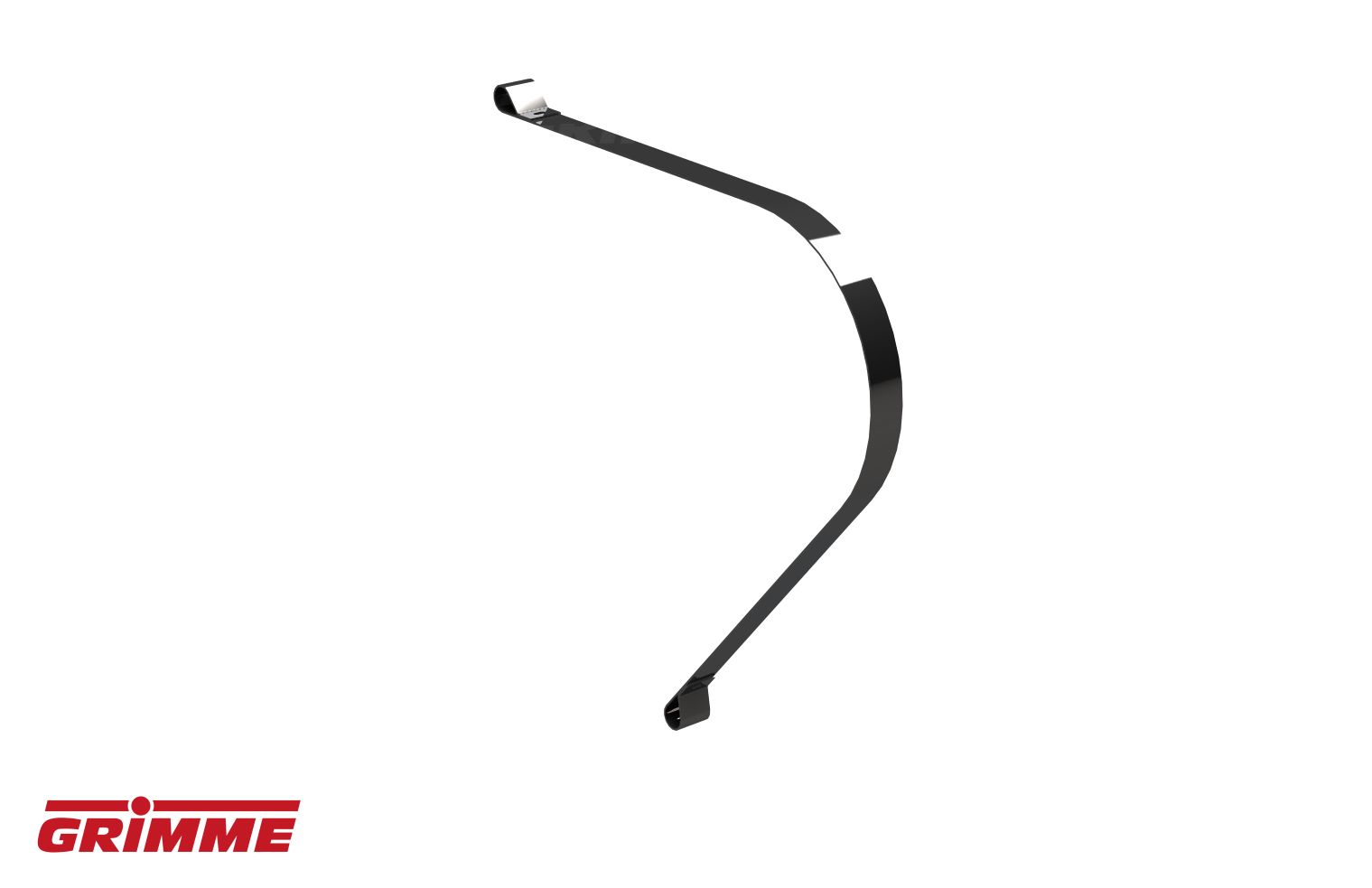

CLAMPING STRIP

Quantity in assembly group: 2 Piece / Pos. 18

IMPACT RUBBER 1360LG

Quantity in assembly group: 6 Piece / Pos. 19

IMPACT RUBBER 1580LG

Quantity in assembly group: 6 Piece / Pos. 20

IMPACT RUBBER 1880LG

Quantity in assembly group: 4 Piece / Pos. 21

IMPACT RUBBER 2220LG

Quantity in assembly group: 3 Piece / Pos. 22

BOX FILLING CHUTE GT170

Quantity in assembly group: 1 Piece / Pos. 100
