Parts by subassemblies
Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

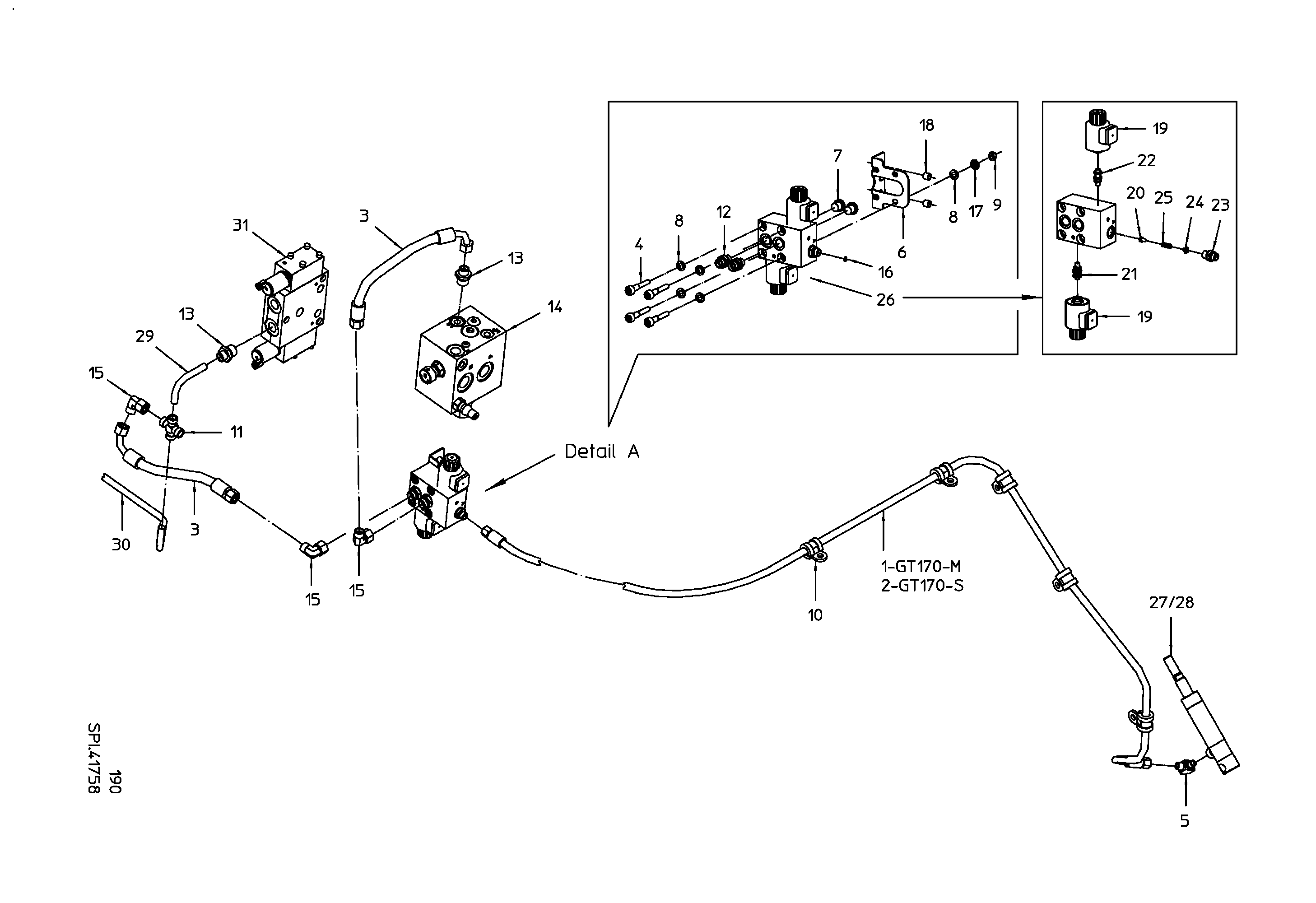

Subassembly drawing
▸ Selected assembly group:
CONNECTION BOLT M8X57
GEO12LMOMDCF
P-GES 12L/R1/2
INLET VALVE LV
P-EWS 12L-SV
HYDRAULIC RESTRICTOR 8L-0.7mm
SPACER
SOLENOID 3 12VDC 60% SPRING
NON-RETURN VALVE
VALVE INSERT NEGATIVE
VALVE INSERT
GEO08LM14X1.50MDCF
SPRING CENTERING
COMPRESSION SPRING
3/3 WAY-VALVE CL02
HYD PIPE
HYD PIPE
6/3 WEV 25/40 L/MIN
Selected subassembly
Subassembly parts
HOSE-3900-NW6-2SC-450BAR
Quantity in assembly group:
1 Piece / Pos. 1
HYD. HOSE
Quantity in assembly group:
1 Piece / Pos. 2
HYD HOSE 320-NW10-1X90-250BAR
Quantity in assembly group:
2 Piece / Pos. 3
CONNECTION BOLT M8X57
Quantity in assembly group:
4 Piece / Pos. 4
WHK08LMCSOMDCF
Quantity in assembly group:
1 Piece / Pos. 5
ANGULAR PLATE
Quantity in assembly group:
1 Piece / Pos. 6
BLANKING PLUG M16X1.5
Quantity in assembly group:
2 Piece / Pos. 7
DISC 10,5 DIN433-VERZ
Quantity in assembly group:
8 Piece / Pos. 8
HEXAGON NUT M8 DIN934-8-GAL
Quantity in assembly group:
4 Piece / Pos. 9
PIPE CLAMP RSGU1100 15/25
Quantity in assembly group:
5 Piece / Pos. 10
K12LCFX
Quantity in assembly group:
1 Piece / Pos. 11
GEO12LMOMDCF
Quantity in assembly group:
2 Piece / Pos. 12
P-GES 12L/R1/2
Quantity in assembly group:
2 Piece / Pos. 13
INLET VALVE LV
Quantity in assembly group:
1 Piece / Pos. 14
P-EWS 12L-SV
Quantity in assembly group:
3 Piece / Pos. 15
HYDRAULIC RESTRICTOR 8L-0.7mm
Quantity in assembly group:
1 Piece / Pos. 16
CONTACT WASHER FORM M 8-GAL
Quantity in assembly group:
4 Piece / Pos. 17
SPACER
Quantity in assembly group:
2 Piece / Pos. 18
SOLENOID 3 12VDC 60% SPRING
Quantity in assembly group:
2 Piece / Pos. 19
NON-RETURN VALVE
Quantity in assembly group:
1 Piece / Pos. 20
VALVE INSERT NEGATIVE
Quantity in assembly group:
1 Piece / Pos. 21
VALVE INSERT
Quantity in assembly group:
1 Piece / Pos. 22
GEO08LM14X1.50MDCF
Quantity in assembly group:
1 Piece / Pos. 23
SPRING CENTERING
Quantity in assembly group:
1 Piece / Pos. 24
COMPRESSION SPRING
Quantity in assembly group:
1 Piece / Pos. 25
3/3 WAY-VALVE CL02
Quantity in assembly group:
1 Piece / Pos. 26
PRESSURE CYLINDER
Quantity in assembly group:
1 Piece / Pos. 27
CYL-SEAL SET
Quantity in assembly group:
1 Piece / Pos. 28
HYD PIPE
Quantity in assembly group:
1 Piece / Pos. 29
HYD PIPE
Quantity in assembly group:
1 Piece / Pos. 30
6/3 WEV 25/40 L/MIN
Quantity in assembly group:
1 Piece / Pos. 31
