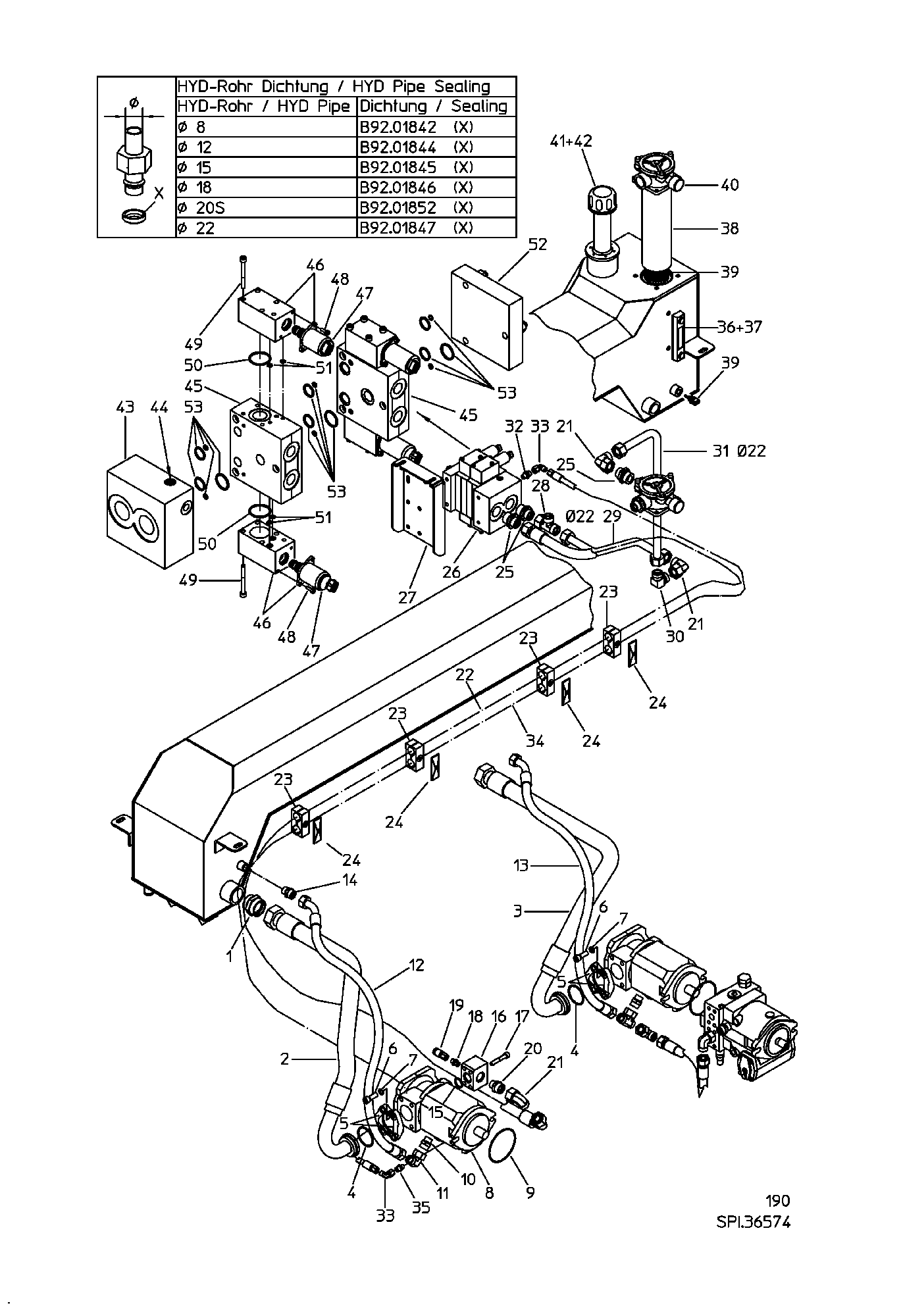

Parts by subassemblies

GE42LREDOMDCF

Quantity in assembly group: 1 Piece / Pos. 1

SUCTION TUBE-930-DN40-17A-10

Quantity in assembly group: 1 Piece / Pos. 2

HYD HOSE-830-DN40-17A-10BAR

Quantity in assembly group: 1 Piece / Pos. 3

O-RING 56,74X3,53 SAE2" NBR90

Quantity in assembly group: 1 Piece / Pos. 4

FLANGE VALVES 2" 3000 P.S.I

Quantity in assembly group: 2 Piece / Pos. 5

CAP HEADED ALLEN BOLT 12X35

Quantity in assembly group: 4 Piece / Pos. 6

BLOCKING DISC SKZ 12-GAL

Quantity in assembly group: 4 Piece / Pos. 7

VARIABLE DISPLACEMENT PUMP

Quantity in assembly group: 1 Piece / Pos. 8

O-RING 100X3 DIN3771 NBR70

Quantity in assembly group: 1 Piece / Pos. 9

P-GES 18L 7/8-14UNF

Quantity in assembly group: 1 Piece / Pos. 10

P-EWS 18L-SV

Quantity in assembly group: 1 Piece / Pos. 11

HOSE-1200-NW16-2SC-300BAR

Quantity in assembly group: 1 Piece / Pos. 12

HOSE-1000-NW16-2SC-300BAR

Quantity in assembly group: 1 Piece / Pos. 13

GE18LREDOMDCF

Quantity in assembly group: 1 Piece / Pos. 14

O-RING FOR SAE-FLANGE 3/4"

Quantity in assembly group: 1 Piece / Pos. 15

PUMP FLANGE 3/4" L

Quantity in assembly group: 1 Piece / Pos. 16

SHC-SCREW 912 M10X60-8.8 GAL

Quantity in assembly group: 4 Piece / Pos. 17

GE08LMEDOMDCF

Quantity in assembly group: 1 Piece / Pos. 18

COUPLING SMK 20-8L-PK

Quantity in assembly group: 1 Piece / Pos. 19

P-GES 22L/M22X1,5

Quantity in assembly group: 1 Piece / Pos. 20

P-EWS 22L-SV

Quantity in assembly group: 3 Piece / Pos. 21

HYD HOSE-3800-NW20-1X90-280BAR

Quantity in assembly group: 1 Piece / Pos. 22

TUBE HOLDER D28-28

Quantity in assembly group: 4 Piece / Pos. 23

COVER PLATE F HYD PIPE CLAMP B

Quantity in assembly group: 4 Piece / Pos. 24

P-GES 22L/R1"

Quantity in assembly group: 2 Piece / Pos. 25

CONTROL BLOCK LVS 12

Quantity in assembly group: 1 Piece / Pos. 26

PLATE

Quantity in assembly group: 1 Piece / Pos. 27

P-ELS 22L-SV

Quantity in assembly group: 1 Piece / Pos. 28

HYD PIPE

Quantity in assembly group: 1 Piece / Pos. 29

P-WS 22L

Quantity in assembly group: 1 Piece / Pos. 30

HYD PIPE

Quantity in assembly group: 1 Piece / Pos. 31

GE08LREDOMDCF

Quantity in assembly group: 1 Piece / Pos. 32

P-EWS 8L-SV

Quantity in assembly group: 2 Piece / Pos. 33

HYD HOSE-4200-NW6-450BAR

Quantity in assembly group: 1 Piece / Pos. 34

P-GES 8L 7/16-20UNF

Quantity in assembly group: 1 Piece / Pos. 35

OIL LEVEL GAUGE

Quantity in assembly group: 1 Piece / Pos. 36

SEAL KIT FOR B92.03446

Quantity in assembly group: 1 Piece / Pos. 37

FILTER ASSY FK 1128

Quantity in assembly group: 1 Piece / Pos. 38

FILTER ELEMENT - FK1128 350mm

Quantity in assembly group: 1 Piece / Pos. 39

FOULING INDICATOR

Quantity in assembly group: 1 Piece / Pos. 40

VENTILATING FILTER T-1080-C-15

Quantity in assembly group: 1 Piece / Pos. 41

SEAL SET F. FILTER

Quantity in assembly group: 1 Piece / Pos. 42

INLET VALVE LVS P=250BAR

Quantity in assembly group: 1 Piece / Pos. 43

LS-PCV LV

Quantity in assembly group: 1 Piece / Pos. 44

4/3 WEV 100/100 l/min

Quantity in assembly group: 2 Piece / Pos. 45

NRS PROP 3/2 ON 6/3 4SCREW

Quantity in assembly group: 4 Piece / Pos. 46

PROPORTIONAL CONTROL VALVE

Quantity in assembly group: 4 Piece / Pos. 47

SHC-SCREW DIN912 M4X12-8.8 GAL

Quantity in assembly group: 8 Piece / Pos. 48

CYL-BOLT DIN912 M6X55 12.9 flZ

Quantity in assembly group: 16 Piece / Pos. 49

O-RING 35X2,5 NBR 70

Quantity in assembly group: 4 Piece / Pos. 50

'O'-RING SEAL 6,00X1,50 DIN377

Quantity in assembly group: 8 Piece / Pos. 51

COVER PLATE

Quantity in assembly group: 1 Piece / Pos. 52

O-RING SET

Quantity in assembly group: 3 Piece / Pos. 53
