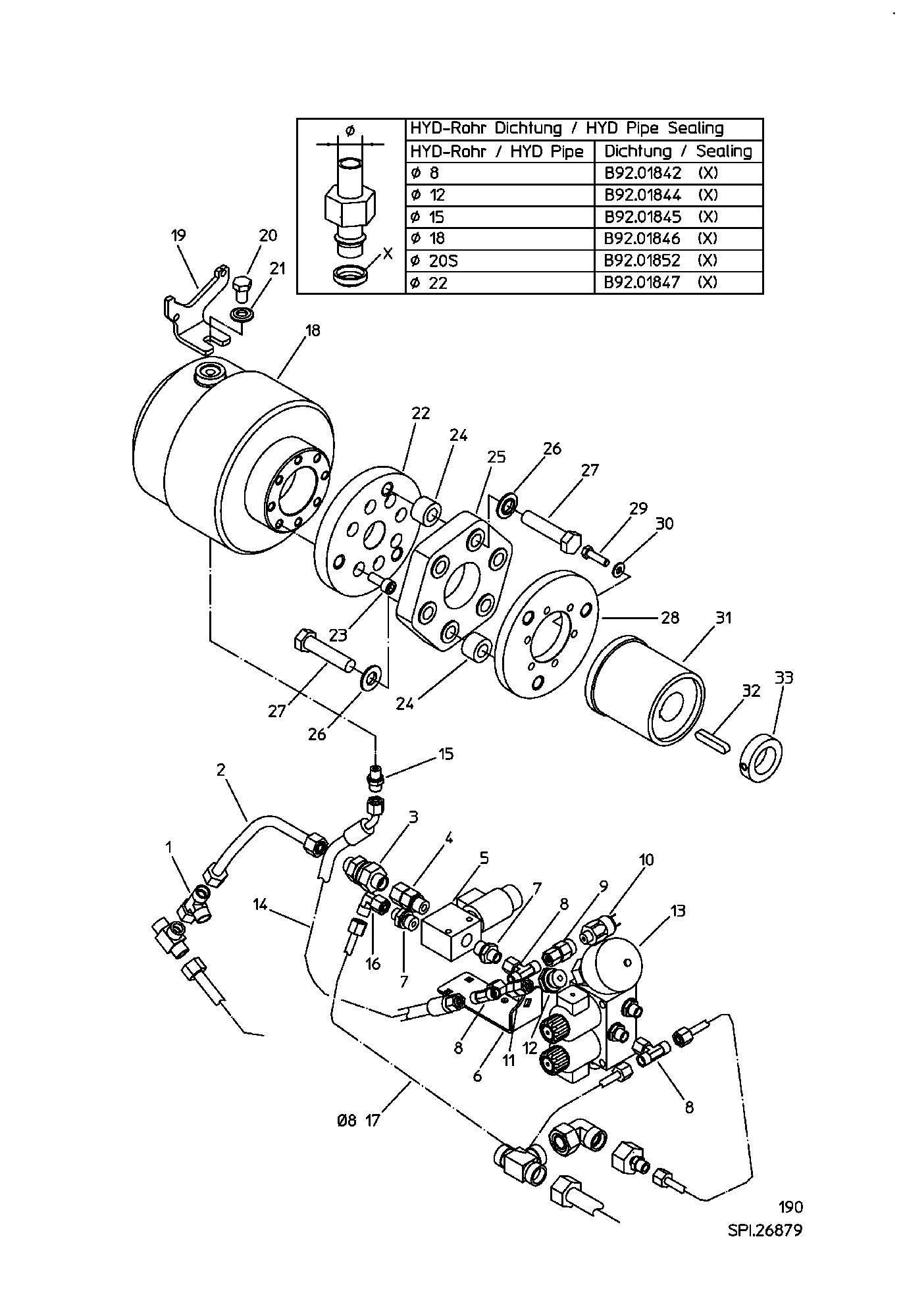

Parts by subassemblies

P-ELS 12L-SV

Quantity in assembly group: 1 Piece / Pos. 1

HYD PIPE

Quantity in assembly group: 1 Piece / Pos. 2

RHD12LOMDCF

Quantity in assembly group: 1 Piece / Pos. 3

EGE12LREDCF

Quantity in assembly group: 1 Piece / Pos. 4

3/2 CHECK VALVE ELEC

Quantity in assembly group: 1 Piece / Pos. 5

BRACKET

Quantity in assembly group: 1 Piece / Pos. 6

P-GES 8L/R3/8-WD

Quantity in assembly group: 2 Piece / Pos. 7

P-ETS 8L-SV

Quantity in assembly group: 3 Piece / Pos. 8

MAVE08LRCF

Quantity in assembly group: 1 Piece / Pos. 9

PRESSURE SWITCH 95 BAR

Quantity in assembly group: 1 Piece / Pos. 10

STRAIGHT CONNECTION SNV 8L

Quantity in assembly group: 1 Piece / Pos. 11

P-GES 8L/R1/2

Quantity in assembly group: 1 Piece / Pos. 12

ACCUMULATOR 0,075L-250 GAV=72B

Quantity in assembly group: 1 Piece / Pos. 13

HOSE-400-NW6-2SC-450BAR

Quantity in assembly group: 1 Piece / Pos. 14

GE08LMEDOMDCF

Quantity in assembly group: 1 Piece / Pos. 15

P-EWS 8L-SV

Quantity in assembly group: 1 Piece / Pos. 16

HYD PIPE

Quantity in assembly group: 1 Piece / Pos. 17

HYDRAULIC COUPLING CHRF-5

Quantity in assembly group: 1 Piece / Pos. 18

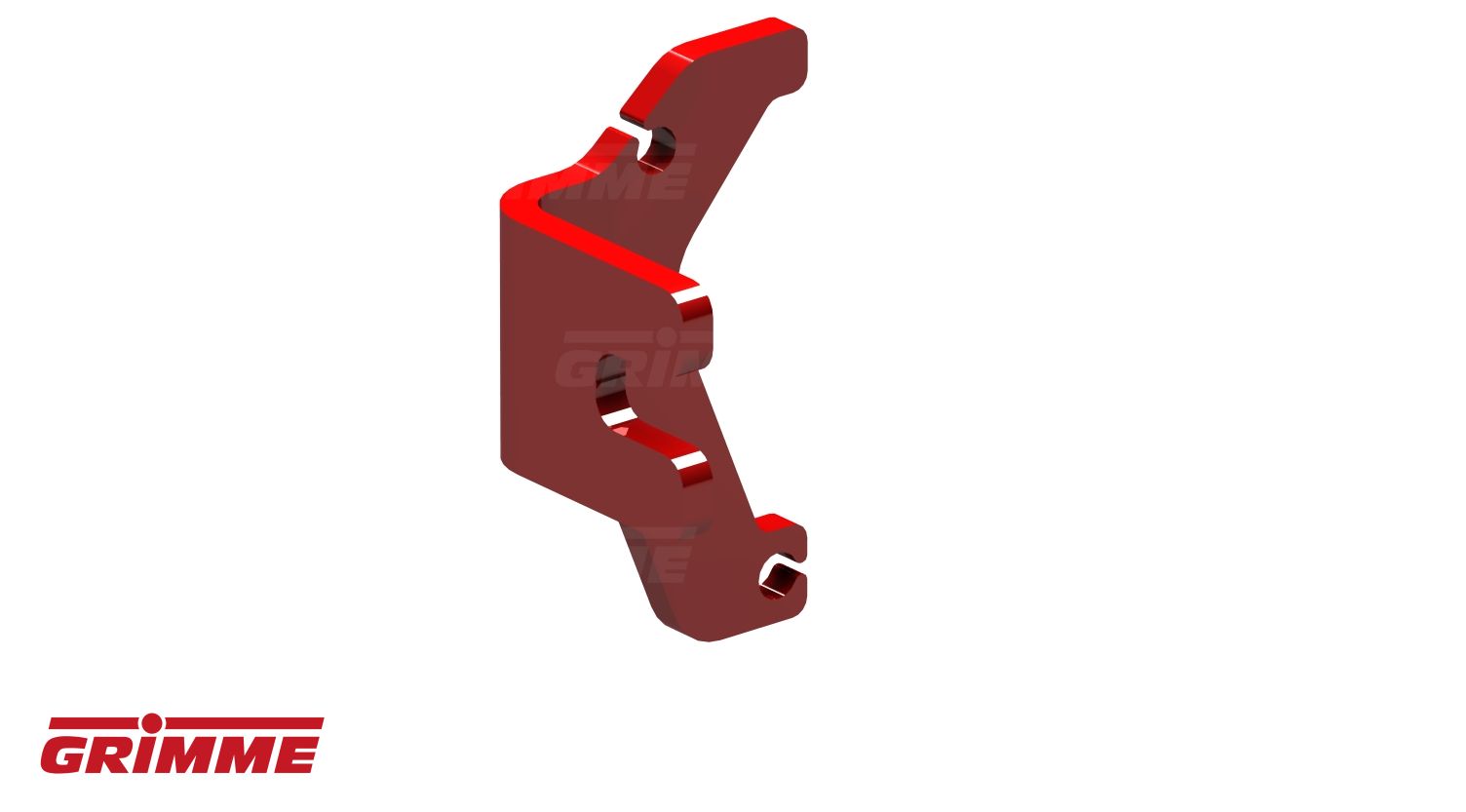

SUPPORT

Quantity in assembly group: 1 Piece / Pos. 19

SET SCREW M12X20-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 20

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 1 Piece / Pos. 21

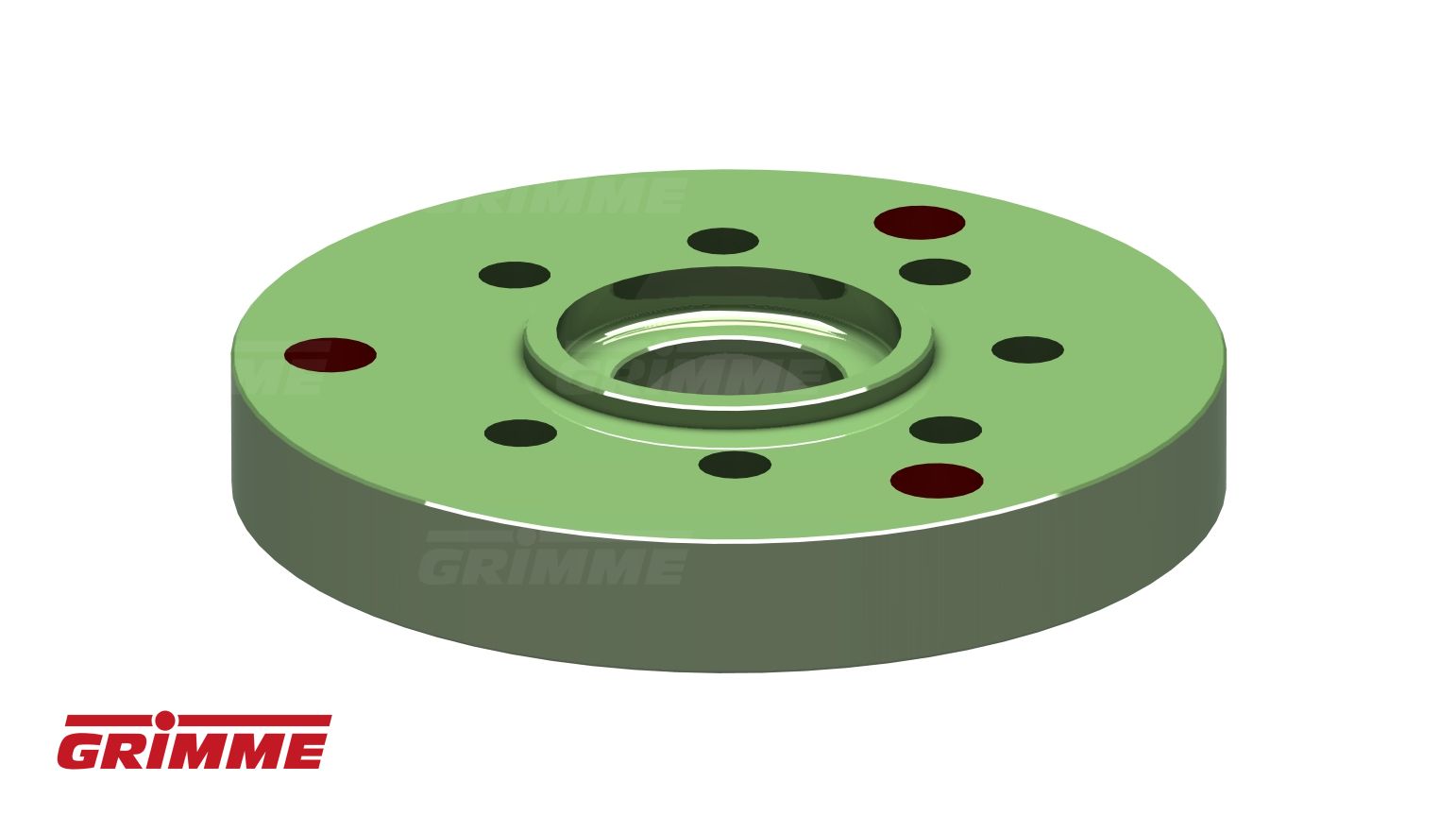

FLANGE

Quantity in assembly group: 1 Piece / Pos. 22

SHC-SCREW 912 M10X25-8.8 GAL

Quantity in assembly group: 6 Piece / Pos. 23

SPACER 20MM

Quantity in assembly group: 6 Piece / Pos. 24

JOINT DISC

Quantity in assembly group: 1 Piece / Pos. 25

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 6 Piece / Pos. 26

SET SCREW M16X70-DIN933-8.8-G

Quantity in assembly group: 6 Piece / Pos. 27

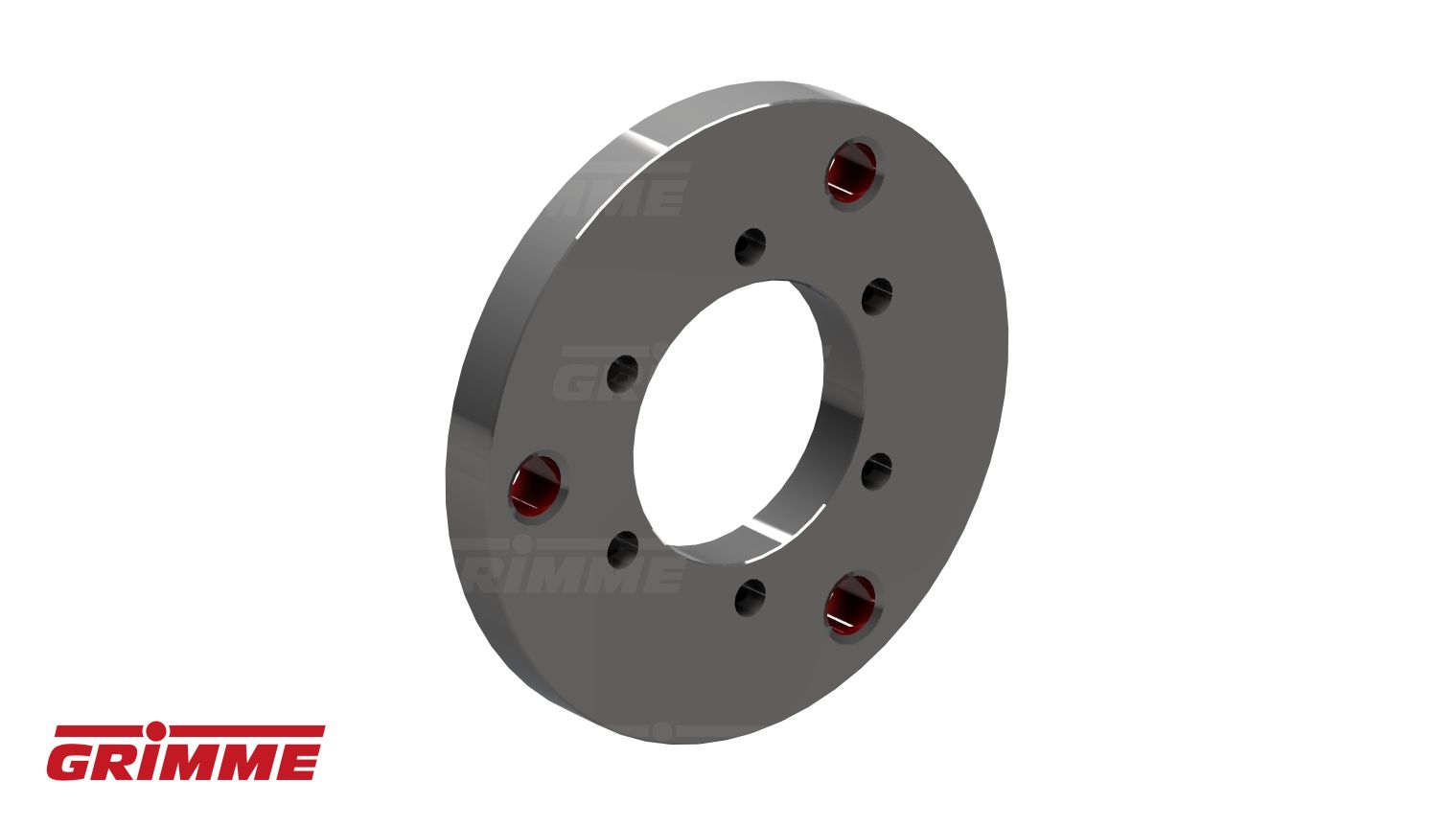

FLANGE

Quantity in assembly group: 1 Piece / Pos. 28

SET SCREW M8X25-DIN933-8.8-G

Quantity in assembly group: 6 Piece / Pos. 29

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 6 Piece / Pos. 30

SLIPCLUTCH EK34B-1100

Quantity in assembly group: 1 Piece / Pos. 31

FEATHER KEY A 10X8X50 DIN6885

Quantity in assembly group: 1 Piece / Pos. 32

SET COLLAR A35 DIN705

Quantity in assembly group: 1 Piece / Pos. 33
