Parts by subassemblies

Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

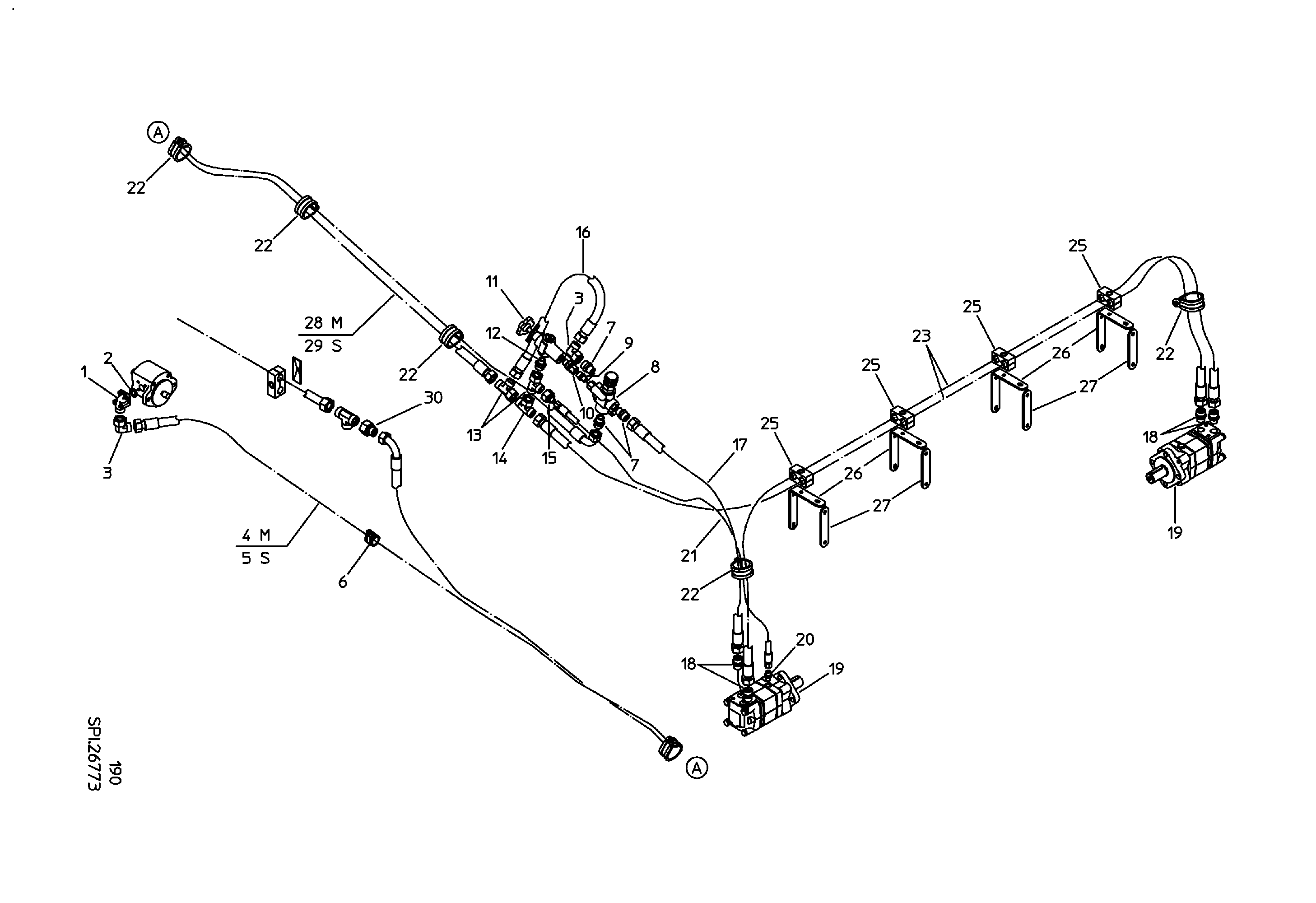

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
HY DISC COULTER INTAKE OU SH (31 Parts)
▸

Subassembly parts

All items Equipment ex work ()
TURNING KNOB MTKK,MTQ,MTCA
Quantity in assembly group: 1 Piece / Pos. 0
SEAL SET OMS HYD-MOTOR
Quantity in assembly group: 1 Piece / Pos. 0
PUMP FLANGE 90°
Quantity in assembly group: 1 Piece / Pos. 1
O-RING 20X2,5 DIN3771-NBR70
Quantity in assembly group: 1 Piece / Pos. 2
P-EWS 18L-SV
Quantity in assembly group: 2 Piece / Pos. 3
HOSE-3300-NW16-2SN-300BAR
Quantity in assembly group: 1 Piece / Pos. 4
HYD HOSE-4100-NW16-2SC-300BAR
Quantity in assembly group: 1 Piece / Pos. 5
PIPE CLAMP RSGU1100 25/20
Quantity in assembly group: 1 Piece / Pos. 6
GE18LMEDOMDCF
Quantity in assembly group: 3 Piece / Pos. 7
SPEED CONTROL
Quantity in assembly group: 1 Piece / Pos. 8
GE12LM14X1.5EDOMDCF
Quantity in assembly group: 1 Piece / Pos. 9
P-EGES 12L/M18X1,5-WD-SV
Quantity in assembly group: 1 Piece / Pos. 10
PCV
Quantity in assembly group: 1 Piece / Pos. 11
P-GES 18L/M18X1,5
Quantity in assembly group: 1 Piece / Pos. 12
P-ELS 18L-SV
Quantity in assembly group: 2 Piece / Pos. 13
P-ETS 18L-SV
Quantity in assembly group: 1 Piece / Pos. 14
P-REDS 18/8L-SV
Quantity in assembly group: 1 Piece / Pos. 15
HYD. HOSE
Quantity in assembly group: 1 Piece / Pos. 16
HOSE-1200-NW16-2SC-300BAR
Quantity in assembly group: 1 Piece / Pos. 17
GE18LREDOMDCF
Quantity in assembly group: 4 Piece / Pos. 18
HYD MOTOR OMS 315
Quantity in assembly group: 1 Piece / Pos. 19
GE08LREDOMDCF
Quantity in assembly group: 1 Piece / Pos. 20
HOSE-1300-NW6-2SC-480BAR
Quantity in assembly group: 1 Piece / Pos. 21
PIPE CLAMP RSGU1100 50/25
Quantity in assembly group: 5 Piece / Pos. 22
HOSE-3200-NW16-2SC-300BAR
Quantity in assembly group: 2 Piece / Pos. 23
HYD PIPE CLAMP 2HOLE D25/25 BG
Quantity in assembly group: 4 Piece / Pos. 24
ANGULAR PLATE
Quantity in assembly group: 4 Piece / Pos. 25
SHACKLE
Quantity in assembly group: 4 Piece / Pos. 26
HOSE-2150-NW20-2SC-280BAR
Quantity in assembly group: 1 Piece / Pos. 27
HOSSE-3400-NW16-2SC-300BAR
Quantity in assembly group: 1 Piece / Pos. 28
P-REDS 22/18L-SV
Quantity in assembly group: 1 Piece / Pos. 29
