Parts by subassemblies
Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

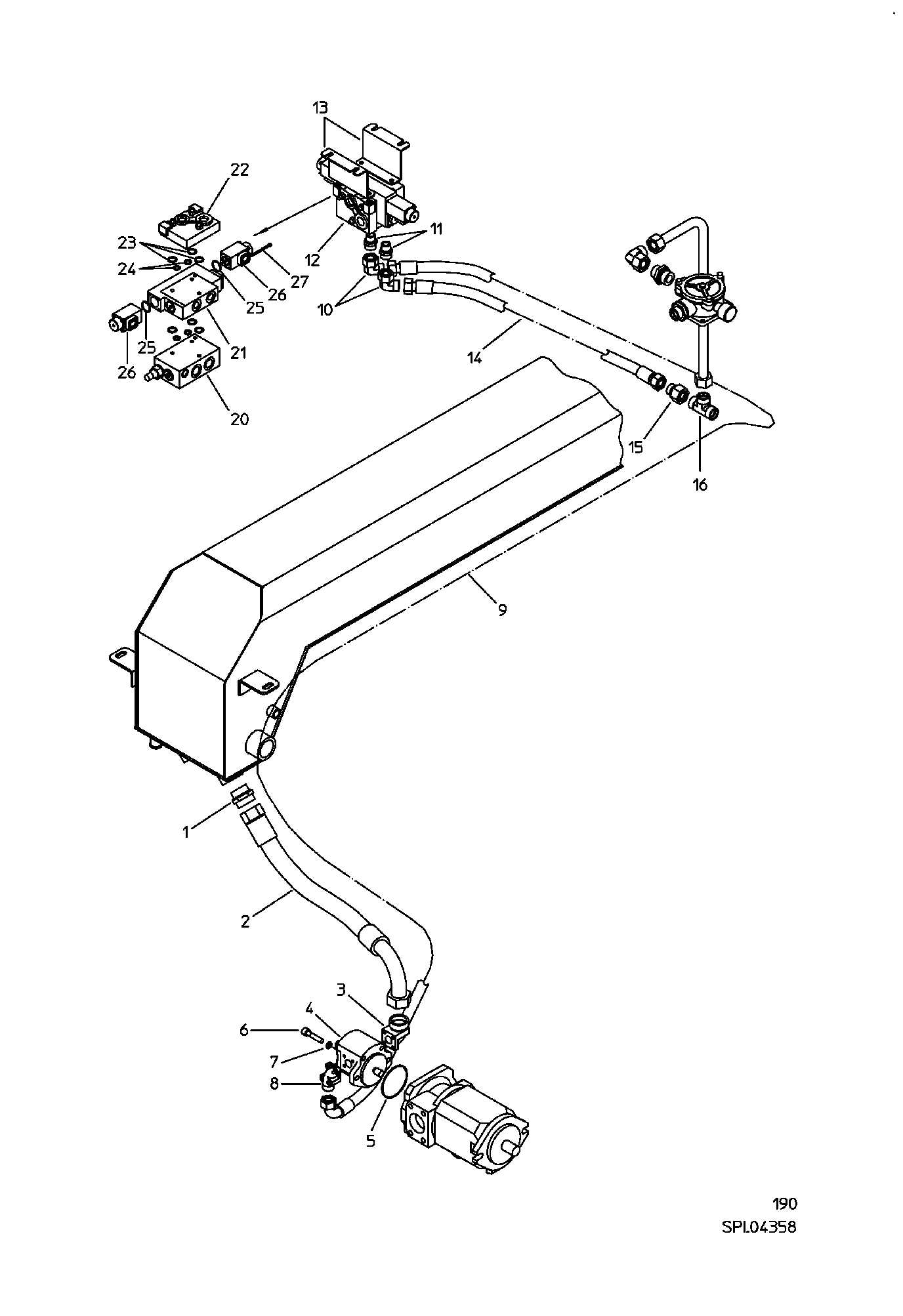

Subassembly drawing
▸ Selected assembly group:
GE35LREDOMDCF
PUMP FLANGE 90°
O-RING 80,0X2,5 DIN3771 NBR70
PUMP FLANGE 90°
P-EWS 18L-SV
GE18LMEDOMDCF
P-REDS 22/18L-SV
P-TS 22L
Selected subassembly
Subassembly parts
GE35LREDOMDCF
Quantity in assembly group:
1 Piece / Pos. 1
HOSE-700-DN32-R4-14BAR
Quantity in assembly group:
1 Piece / Pos. 2
PUMP FLANGE 90°
Quantity in assembly group:
1 Piece / Pos. 3
GEAR PUMP AZPF
Quantity in assembly group:
1 Piece / Pos. 4
O-RING 80,0X2,5 DIN3771 NBR70
Quantity in assembly group:
1 Piece / Pos. 5
SHC-SCREW 912 UNC 3/8-1 GAL
Quantity in assembly group:
2 Piece / Pos. 6
BLOCKING DISC SKZ 10-GAL
Quantity in assembly group:
2 Piece / Pos. 7
PUMP FLANGE 90°
Quantity in assembly group:
1 Piece / Pos. 8
HOSE-4400-MW16-2SC-300BAR
Quantity in assembly group:
1 Piece / Pos. 9
P-EWS 18L-SV
Quantity in assembly group:
2 Piece / Pos. 10
GE18LMEDOMDCF
Quantity in assembly group:
2 Piece / Pos. 11
CONTROL BLOCK MAGN L.8S
Quantity in assembly group:
1 Piece / Pos. 12
BRACKET
Quantity in assembly group:
2 Piece / Pos. 13
HYD HOSE-800-NW16-300BAR
Quantity in assembly group:
1 Piece / Pos. 14
P-REDS 22/18L-SV
Quantity in assembly group:
1 Piece / Pos. 15
P-TS 22L
Quantity in assembly group:
1 Piece / Pos. 16
INLET VALVE 200BAR
Quantity in assembly group:
1 Piece / Pos. 20
4/3 VALVE 63/63
Quantity in assembly group:
1 Piece / Pos. 21
END PLATE
Quantity in assembly group:
1 Piece / Pos. 22
RSR 16,56X1,78 DIN3770-NB70
Quantity in assembly group:
6 Piece / Pos. 23
O-RING SEAL 12X2 DIN3770-NB7
Quantity in assembly group:
4 Piece / Pos. 24
O-RING SEAL 19X1,8 DIN3770-N
Quantity in assembly group:
2 Piece / Pos. 25
SI ACTING SOLENOID L.08
Quantity in assembly group:
2 Piece / Pos. 26
CHEESE-HEAD DIN912 M4X65-8.8
Quantity in assembly group:
8 Piece / Pos. 27
