Parts by subassemblies
Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

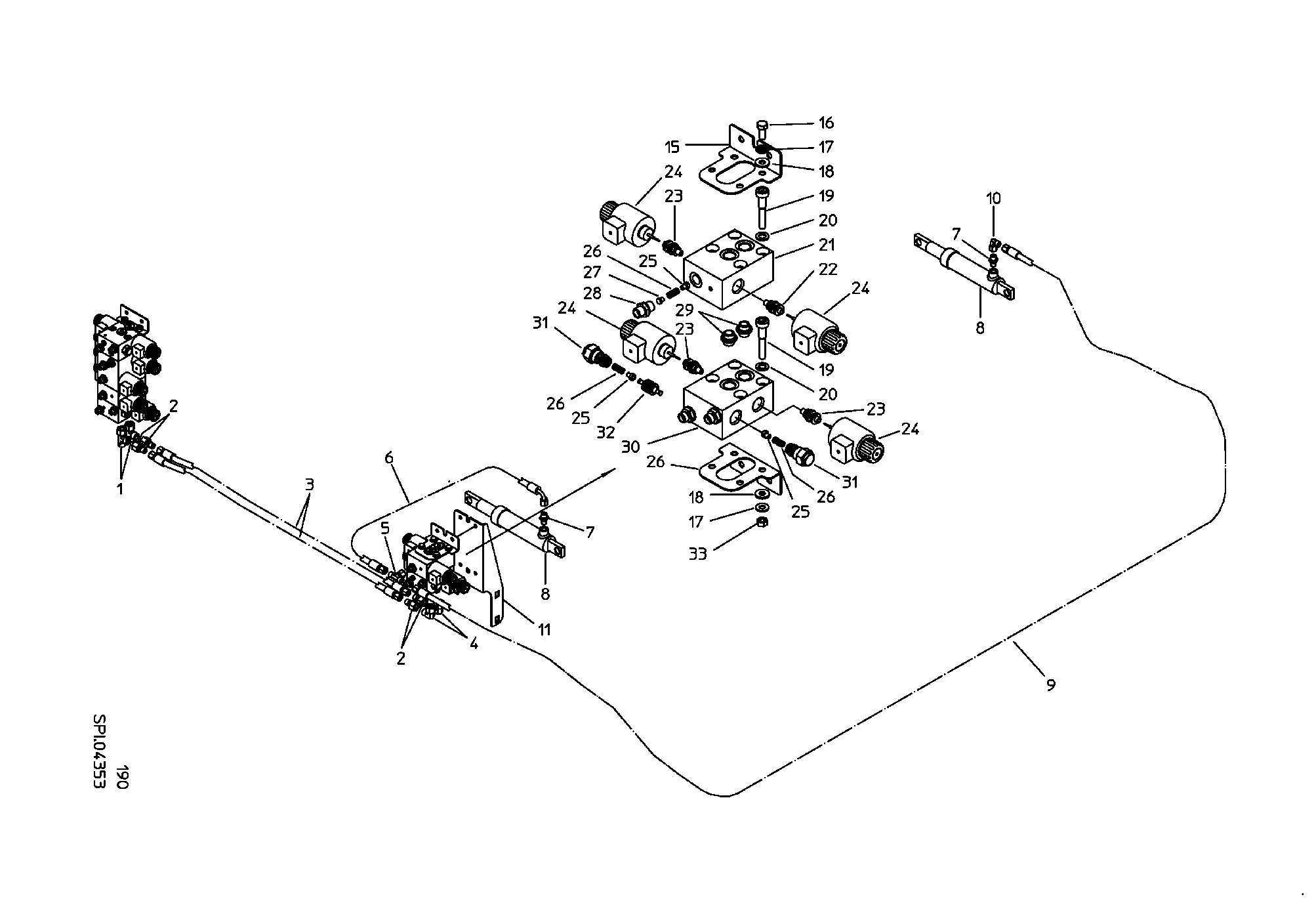

Subassembly drawing
▸ Selected assembly group:
P-ELS 12L-SV
P-REDS 12/8L-SV
P-EWS 12L-SV
P-ETS 8L-SV
GE08LMEDOMDCF
HYDRAULIC RAM
CYL-SEAL SET
P-EWS 8L-SV
CONNECTION BOLT M8X57
3/3 WAY-VALVE CL02
VALVE INSERT
SOLENOID 3 12VDC 60% SPRING
NON-RETURN VALVE
COMPRESSION SPRING
SPRING CENTERING
GEO08LM14X1.50MDCF
CONNECTOR
4/3 WAY-VALVE CL02
VALVE CARTRIDGE
PILOT SPOOL6
Selected subassembly
Subassembly parts
HYD HOSE-4000-NW6-2SC-450BAR
Quantity in assembly group:
1 Piece / Pos. 0
P-ELS 12L-SV
Quantity in assembly group:
2 Piece / Pos. 1
P-REDS 12/8L-SV
Quantity in assembly group:
4 Piece / Pos. 2
HOSE-1800-NW6-2SC-450BAR
Quantity in assembly group:
2 Piece / Pos. 3
P-EWS 12L-SV
Quantity in assembly group:
2 Piece / Pos. 4
P-ETS 8L-SV
Quantity in assembly group:
1 Piece / Pos. 5
HOSE-650-NW6-2SC-450BAR
Quantity in assembly group:
1 Piece / Pos. 6
GE08LMEDOMDCF
Quantity in assembly group:
2 Piece / Pos. 7
HYDRAULIC RAM
Quantity in assembly group:
2 Piece / Pos. 8
CYL-SEAL SET
Quantity in assembly group:
1 Piece / Pos. 9
P-EWS 8L-SV
Quantity in assembly group:
1 Piece / Pos. 10
BRACKET
Quantity in assembly group:
1 Piece / Pos. 11

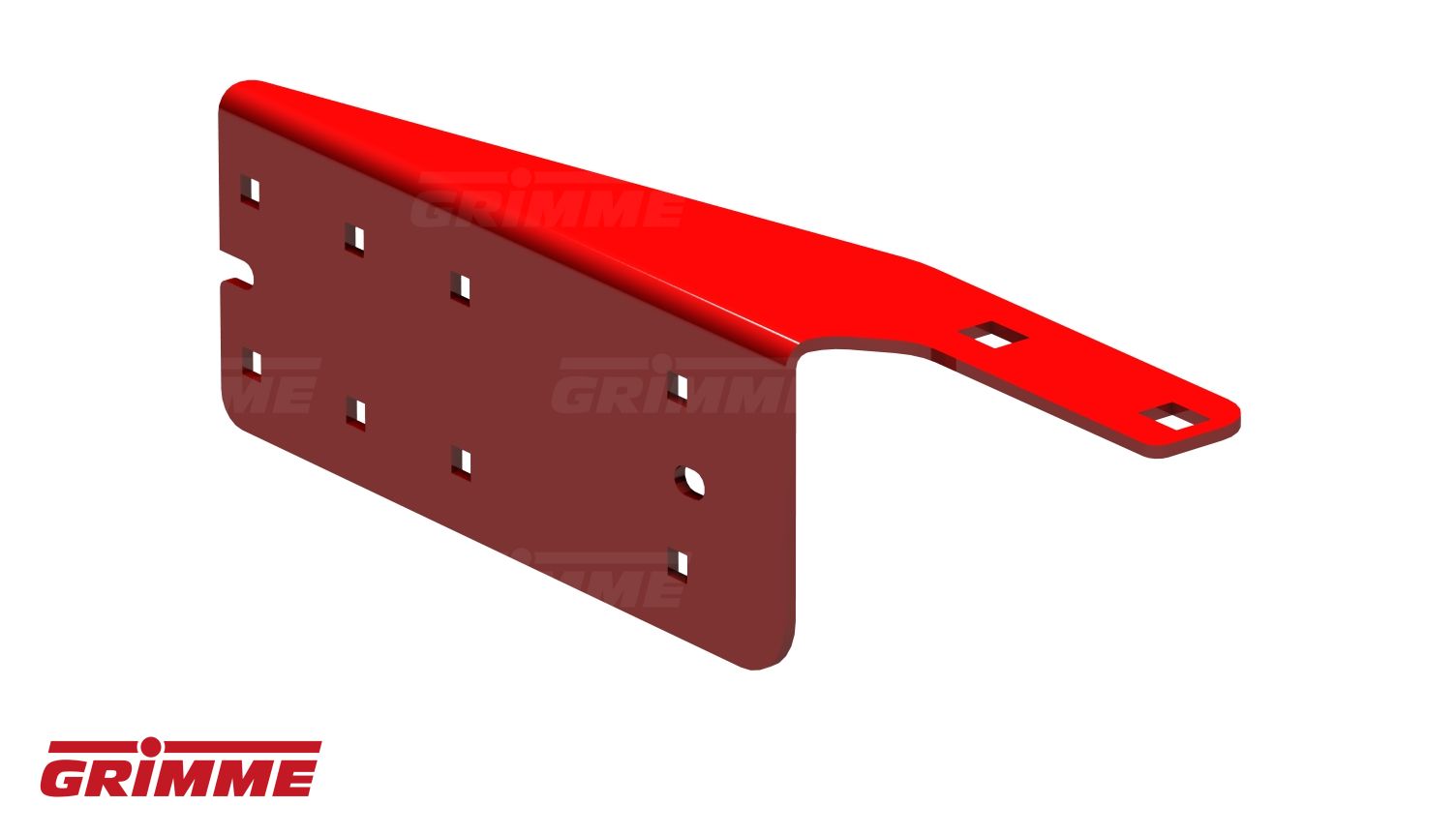

ANGULAR PLATE
Quantity in assembly group:
2 Piece / Pos. 15
SET SCREW M8X16-DIN933-8.8-G
Quantity in assembly group:
4 Piece / Pos. 16
CONTACT WASHER FORM M 8-GAL
Quantity in assembly group:
8 Piece / Pos. 17
PLAIN WASHER 8.4X20X2 GAL
Quantity in assembly group:
8 Piece / Pos. 18
CONNECTION BOLT M8X57
Quantity in assembly group:
8 Piece / Pos. 19
DISC 10,5 DIN433-VERZ
Quantity in assembly group:
8 Piece / Pos. 20
3/3 WAY-VALVE CL02
Quantity in assembly group:
1 Piece / Pos. 21
VALVE INSERT
Quantity in assembly group:
1 Piece / Pos. 22
VALVE INSERT
Quantity in assembly group:
3 Piece / Pos. 23
SOLENOID 3 12VDC 60% SPRING
Quantity in assembly group:
4 Piece / Pos. 24
NON-RETURN VALVE
Quantity in assembly group:
3 Piece / Pos. 25
COMPRESSION SPRING
Quantity in assembly group:
3 Piece / Pos. 26
SPRING CENTERING
Quantity in assembly group:
1 Piece / Pos. 27
GEO08LM14X1.50MDCF
Quantity in assembly group:
1 Piece / Pos. 28
CONNECTOR
Quantity in assembly group:
2 Piece / Pos. 29
4/3 WAY-VALVE CL02
Quantity in assembly group:
1 Piece / Pos. 30
VALVE CARTRIDGE
Quantity in assembly group:
2 Piece / Pos. 31
PILOT SPOOL6
Quantity in assembly group:
1 Piece / Pos. 32
HEXAGON NUT M8 DIN934-8-GAL
Quantity in assembly group:
4 Piece / Pos. 33
