Parts by subassemblies

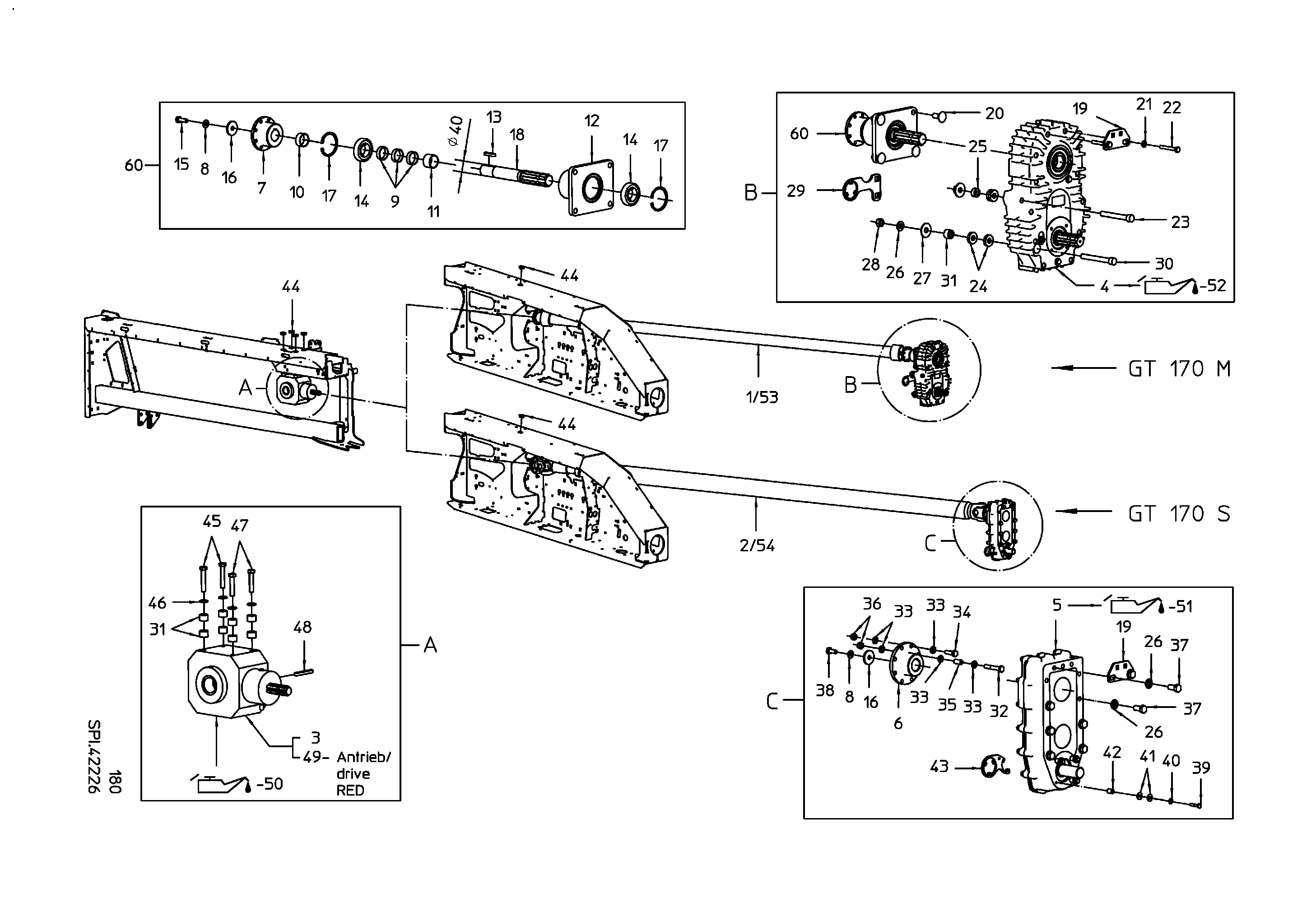

MAIN DRIVE SHAFT GT170M

Quantity in assembly group: 1 Piece / Pos. 1

PROP SHAFT

Quantity in assembly group: 1 Piece / Pos. 2

GEARBOX GTR-51H-3,18:1 DM45

Quantity in assembly group: 1 Piece / Pos. 3

GEARBOX 1,89:1

Quantity in assembly group: 1 Piece / Pos. 4

GEARBOX 1,937:1

Quantity in assembly group: 1 Piece / Pos. 5

FLANGE

Quantity in assembly group: 1 Piece / Pos. 6

COUPLING FLANGE

Quantity in assembly group: 1 Piece / Pos. 7

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 2 Piece / Pos. 8

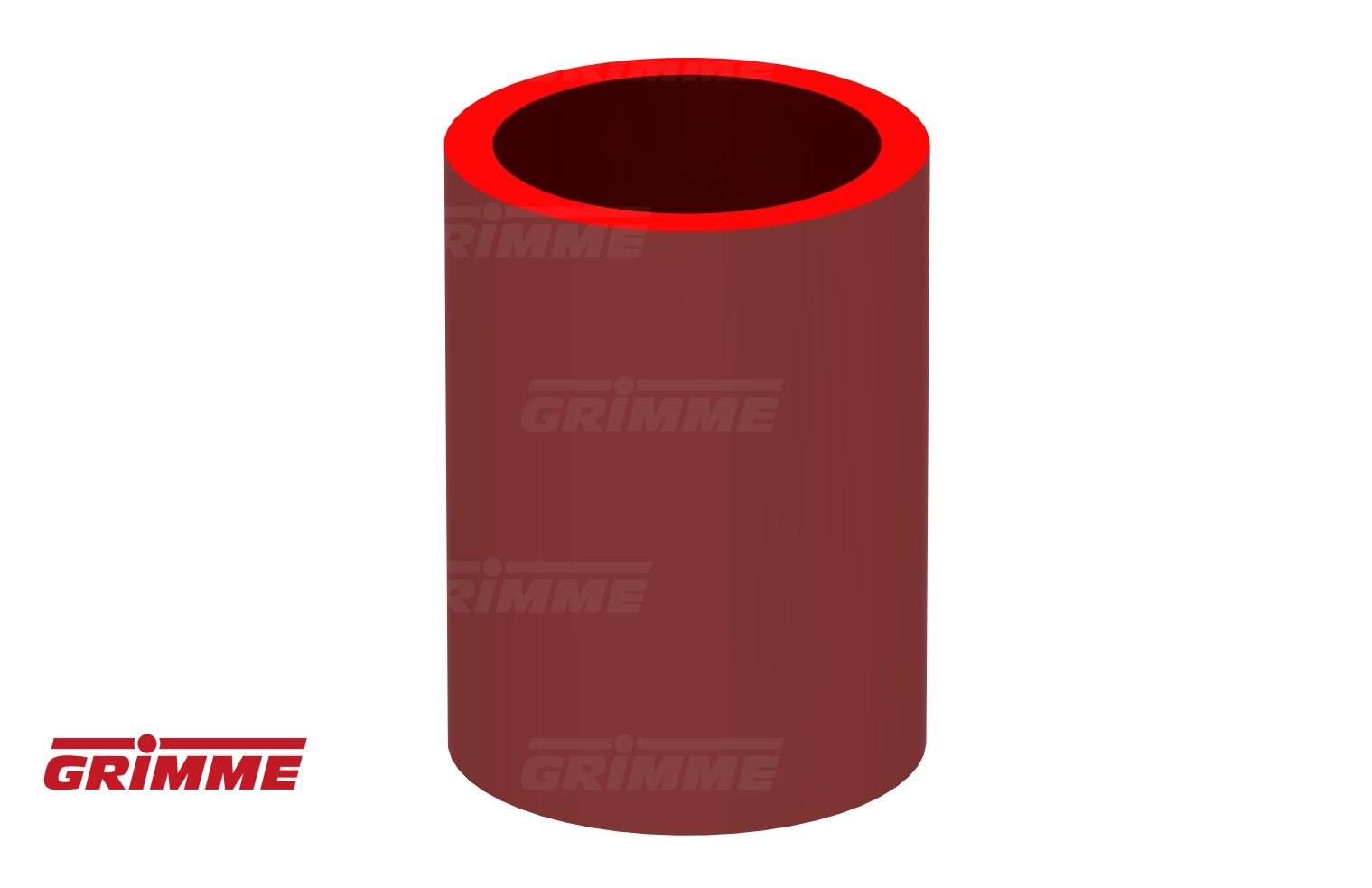

SPACER TUBE

Quantity in assembly group: 3 Piece / Pos. 9

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 10

DISTANZROHR

Quantity in assembly group: 1 Piece / Pos. 11

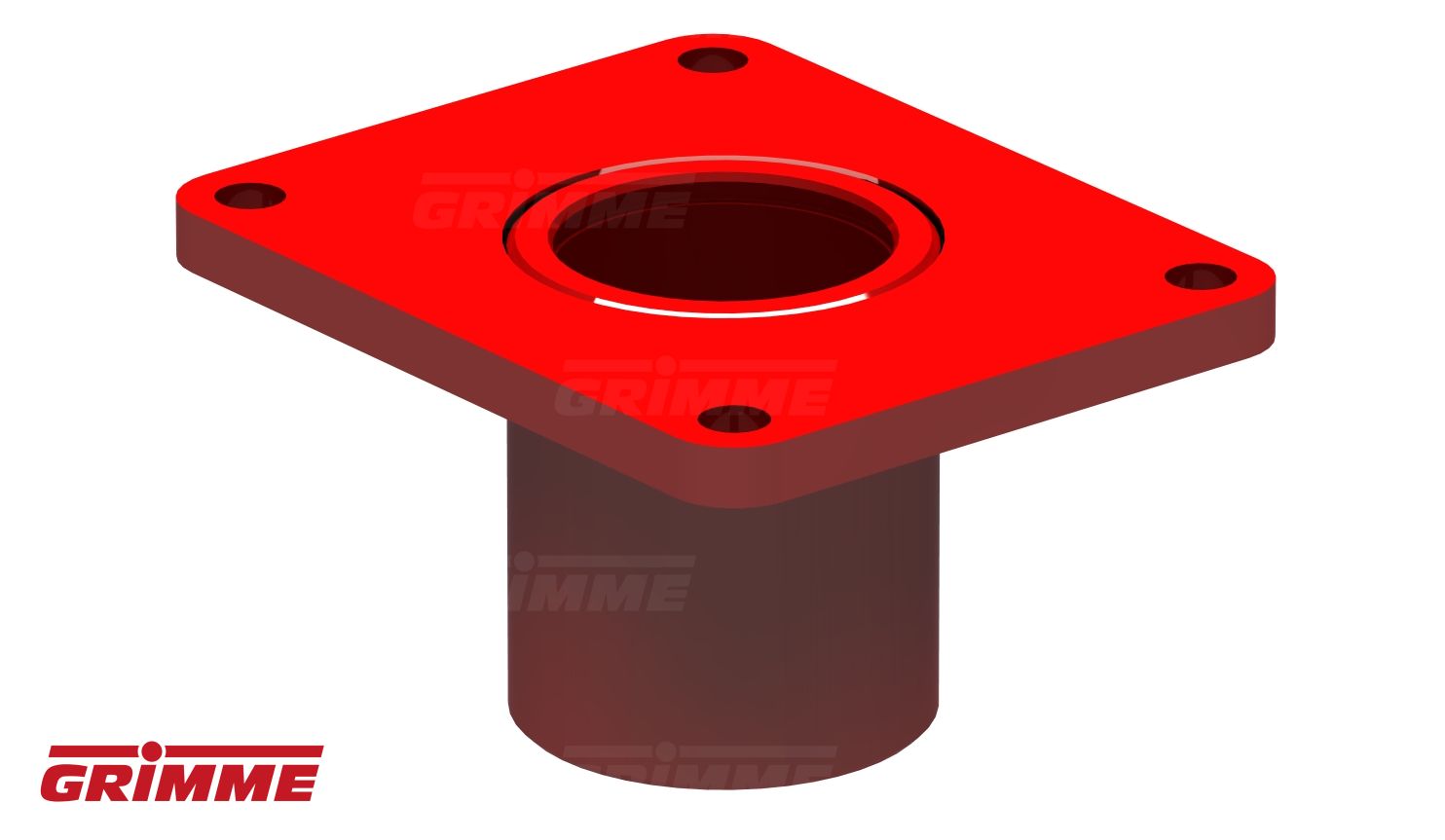

BEARING BLOCK

Quantity in assembly group: 1 Piece / Pos. 12

FEATHER KEY A 12X8X50 DIN6885

Quantity in assembly group: 1 Piece / Pos. 13

BALL BEARING 6208-2RS/C3

Quantity in assembly group: 2 Piece / Pos. 14

SET SCREW M12X35-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 15

RETAINING WASHER

Quantity in assembly group: 2 Piece / Pos. 16

RETAINING RING J 80X2,5 DIN472

Quantity in assembly group: 2 Piece / Pos. 17

DRIVE SHAFT

Quantity in assembly group: 1 Piece / Pos. 18

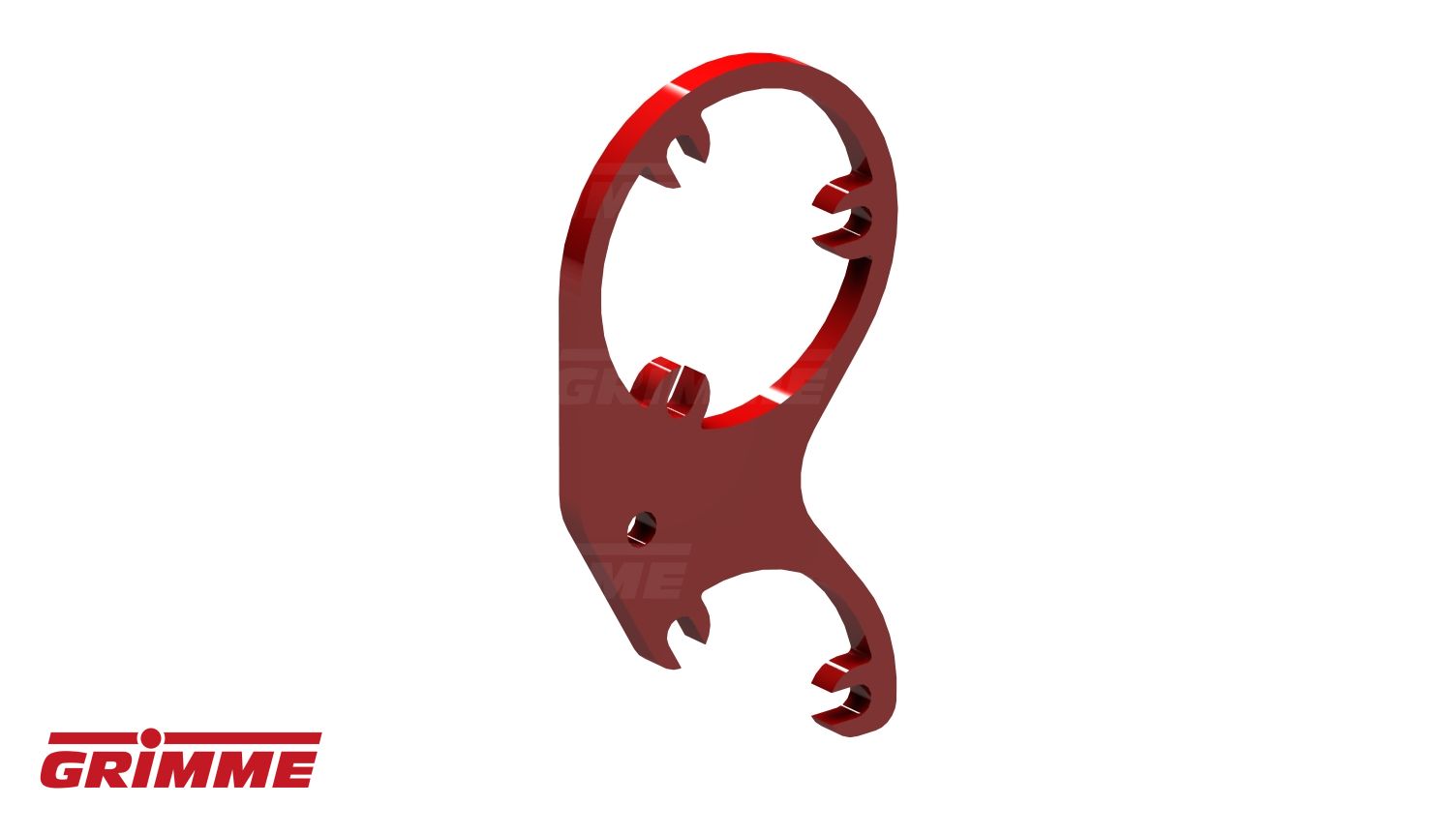

BRACKET

Quantity in assembly group: 2 Piece / Pos. 19

COACH BOLT M16X40-DIN603-8.8-G

Quantity in assembly group: 4 Piece / Pos. 20

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 2 Piece / Pos. 21

HEX BOLT M10X80-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 22

SHC-SCREW M16X130 12.9 flZn

Quantity in assembly group: 2 Piece / Pos. 23

BUSH

Quantity in assembly group: 8 Piece / Pos. 24

SPACER

Quantity in assembly group: 2 Piece / Pos. 25

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 14 Piece / Pos. 26

DISC A 17 DIN9021-GAL

Quantity in assembly group: 4 Piece / Pos. 27

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 4 Piece / Pos. 28

BRACKET

Quantity in assembly group: 1 Piece / Pos. 29

SHC-SCREW M16X140 12.9 flZn

Quantity in assembly group: 2 Piece / Pos. 30

SPACER 20MM

Quantity in assembly group: 2 Piece / Pos. 31

HEX BOLT M12X75-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 32

DISC A13 DIN125-GAL

Quantity in assembly group: 17 Piece / Pos. 33

SET SCREW M12X40-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 34

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 35

NYLOC NUT DIN985-M12-8-GAL

Quantity in assembly group: 8 Piece / Pos. 36

SET SCREW M16X35-DIN933-8.8-G

Quantity in assembly group: 8 Piece / Pos. 37

SET SCREW M12X30-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 38

HEX BOLT M8X40-DIN931-8.8-G

Quantity in assembly group: 4 Piece / Pos. 39

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 4 Piece / Pos. 40

DISC A 8,4 DIN9021-GAL

Quantity in assembly group: 8 Piece / Pos. 41

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 42

BRACKET

Quantity in assembly group: 1 Piece / Pos. 43

GPN300-LOCKING PLUG F30

Quantity in assembly group: 6 Piece / Pos. 44

HEX-SCREW M14X80 931-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 45

CONTACT WASHER FORM M 14-GAL

Quantity in assembly group: 4 Piece / Pos. 46

HEX BOLT M14X70-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 47

FEATHER KEY A 14X9X90 DIN6885

Quantity in assembly group: 1 Piece / Pos. 48

GEARBOX GTR-51 3,91:1

Quantity in assembly group: 1 Piece / Pos. 49

GEB OIL HYP SAE 85 W90 API GL5

Quantity in assembly group: 1 Piece / Pos. 51

OIL HYPOID SYNTH SAE75W-90 GL5

Quantity in assembly group: 1 Piece / Pos. 52

CROSS JOINT 34,90X106,4 (RED)

Quantity in assembly group: 1 Piece / Pos. 53

CROSS JOINT 47,64X135,17

Quantity in assembly group: 1 Piece / Pos. 54

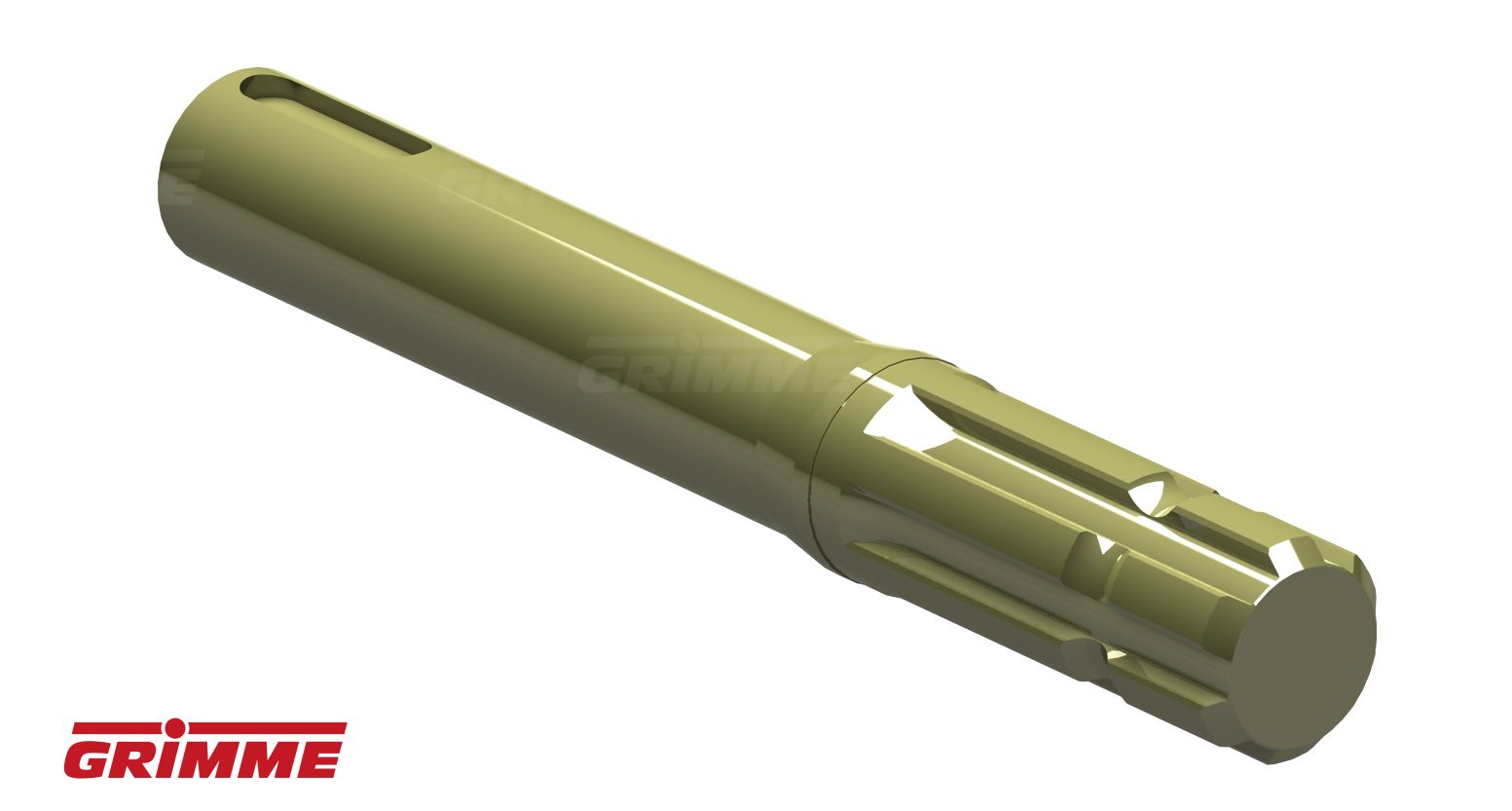

SPLINED INPUT SHAFT ASSY.

Quantity in assembly group: 1 Piece / Pos. 60
