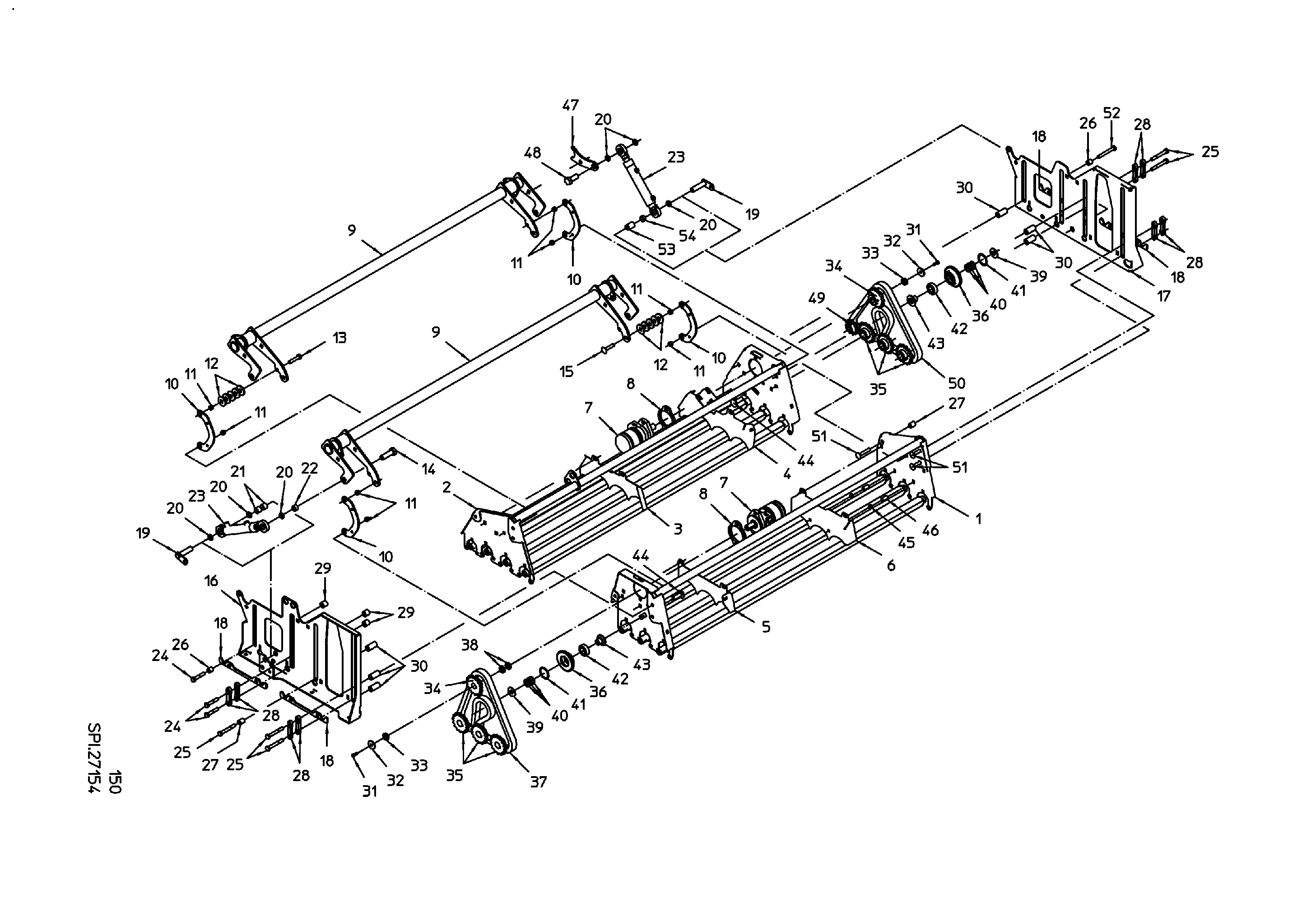

Parts by subassemblies

CYL-SEAL SET

Quantity in assembly group: 1 Piece / Pos. 0

FRAME FRONT

Quantity in assembly group: 1 Piece / Pos. 1

FRAME REAR

Quantity in assembly group: 1 Piece / Pos. 2

CHANNEL PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 3

CHANNEL PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 4

CHANNEL PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 5

CHANNEL PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 6

HYD MOTOR MF130

Quantity in assembly group: 2 Piece / Pos. 7

SPACER DISC

Quantity in assembly group: 2 Piece / Pos. 8

TUBULAIRE

Quantity in assembly group: 2 Piece / Pos. 9

BRACKET

Quantity in assembly group: 4 Piece / Pos. 10

SPACER TUBE

Quantity in assembly group: 8 Piece / Pos. 11

REINFORCING DISC

Quantity in assembly group: 10 Piece / Pos. 12

SET SCREW M12X60-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 13

HEX BOLT M20X65-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 14

COACH BOLT M12X60-DIN603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 15

PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 16

PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 17

STOPPER

Quantity in assembly group: 4 Piece / Pos. 18

BOLT

Quantity in assembly group: 2 Piece / Pos. 19

SPACER TUBE

Quantity in assembly group: 6 Piece / Pos. 20

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 21

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 22

PRESSURE CYLINDER

Quantity in assembly group: 2 Piece / Pos. 23

HEX BOLT M12X65-DIN931-8.8-G

Quantity in assembly group: 3 Piece / Pos. 24

HEX BOLT M12X90-DIN931-8.8-G

Quantity in assembly group: 5 Piece / Pos. 25

SPACER SLEEVE GALVANIZED

Quantity in assembly group: 2 Piece / Pos. 26

TUBE

Quantity in assembly group: 2 Piece / Pos. 27

BLOCK

Quantity in assembly group: 8 Piece / Pos. 28

SPACER TUBE 24X3,5X23

Quantity in assembly group: 6 Piece / Pos. 29

SPACER TUBE

Quantity in assembly group: 6 Piece / Pos. 30

SET SCREW M8X20-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 31

SPLIT WASHER 9X40X4

Quantity in assembly group: 2 Piece / Pos. 32

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 33

SPROCKET ASA60-1 T15

Quantity in assembly group: 2 Piece / Pos. 34

SPROCKET ASA60-1 T15

Quantity in assembly group: 6 Piece / Pos. 35

SPROCKET 3/4"-T15

Quantity in assembly group: 2 Piece / Pos. 36

CHAIN 3/4"X1/2"-ASA60-79R

Quantity in assembly group: 1 Piece / Pos. 37

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 38

WASHER 17X44X3

Quantity in assembly group: 2 Piece / Pos. 39

SHIM WASHER PS 25X36X1 DIN988

Quantity in assembly group: 6 Piece / Pos. 40

RETAINING RING J 52X2 DIN472

Quantity in assembly group: 2 Piece / Pos. 41

BALL BEARING 6205-2RS

Quantity in assembly group: 2 Piece / Pos. 42

BEARING NECK

Quantity in assembly group: 2 Piece / Pos. 43

COACH BOLT/SS M16X50-603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 44

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 45

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 46

BRACKET

Quantity in assembly group: 1 Piece / Pos. 47

SET SCREW M20X50-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 48

SPROCKET 3/4"-T11

Quantity in assembly group: 1 Piece / Pos. 49

CHAIN 3/4"X1/2"-ASA60-81R

Quantity in assembly group: 1 Piece / Pos. 50

COACH BOLT M12X70-603-8.8-G

Quantity in assembly group: 3 Piece / Pos. 51

HEX BOLT M12X95-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 52

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 53

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 54
