Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

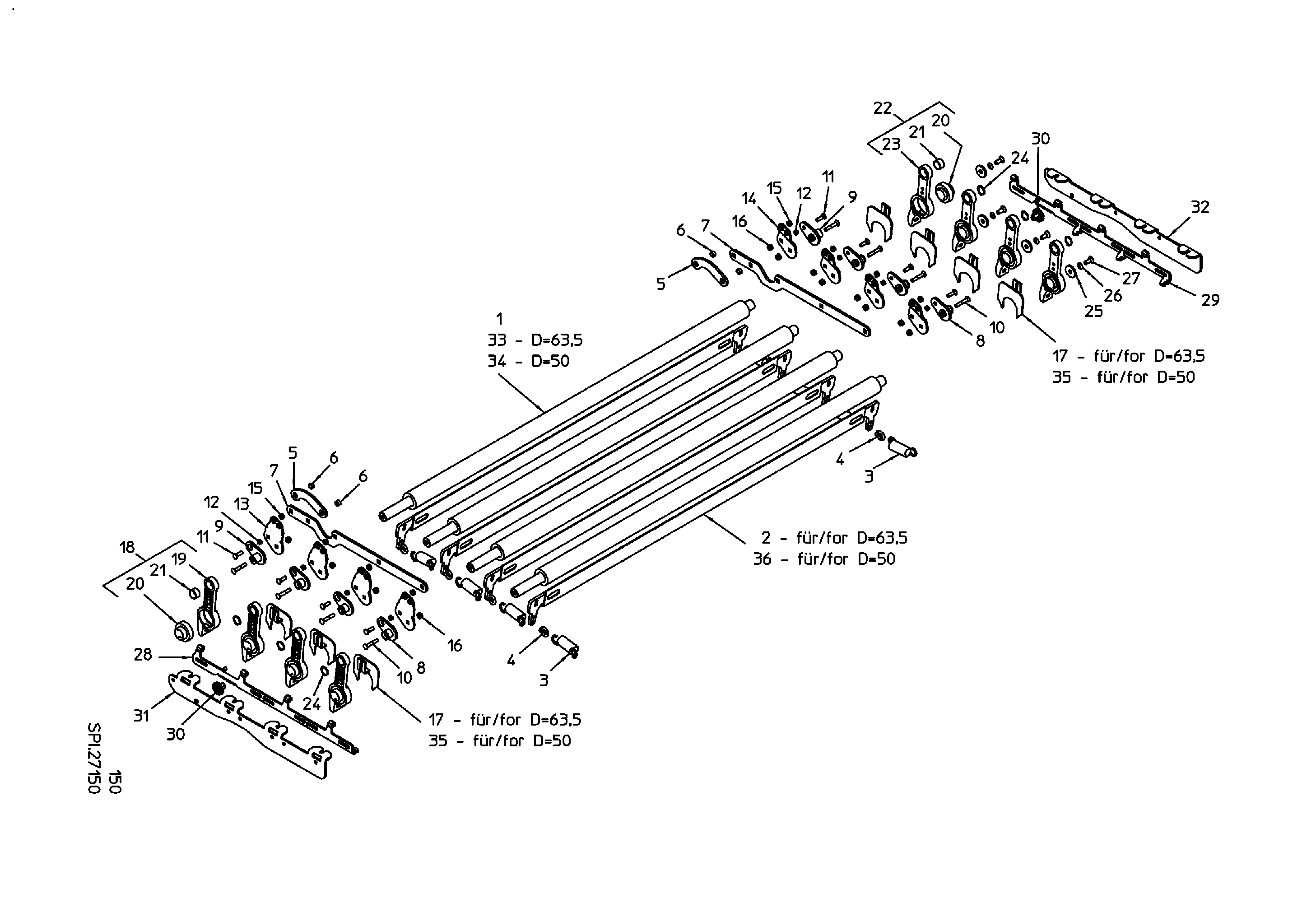

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
CLOD ROLLER UNIT (36 Parts)
▸

Subassembly parts

All items Equipment ex work ()
RUBBER CLOD ROLLER
Quantity in assembly group: 4 Piece / Pos. 1

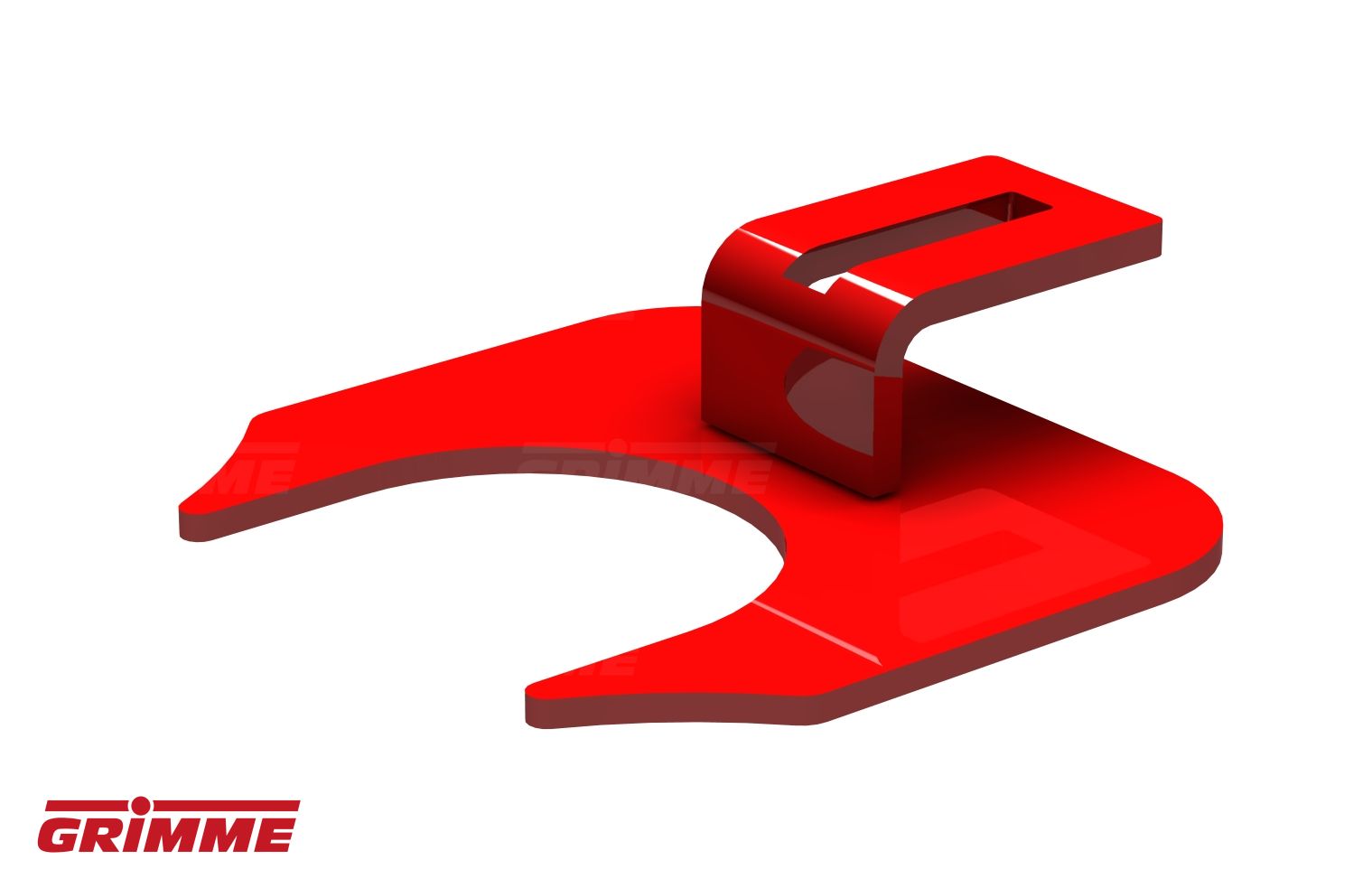

SCRAPER
Quantity in assembly group: 4 Piece / Pos. 2
SPRING
Quantity in assembly group: 8 Piece / Pos. 3
RING NUT M8
Quantity in assembly group: 8 Piece / Pos. 4
BRACKET
Quantity in assembly group: 2 Piece / Pos. 5
SPACER TUBE
Quantity in assembly group: 4 Piece / Pos. 6

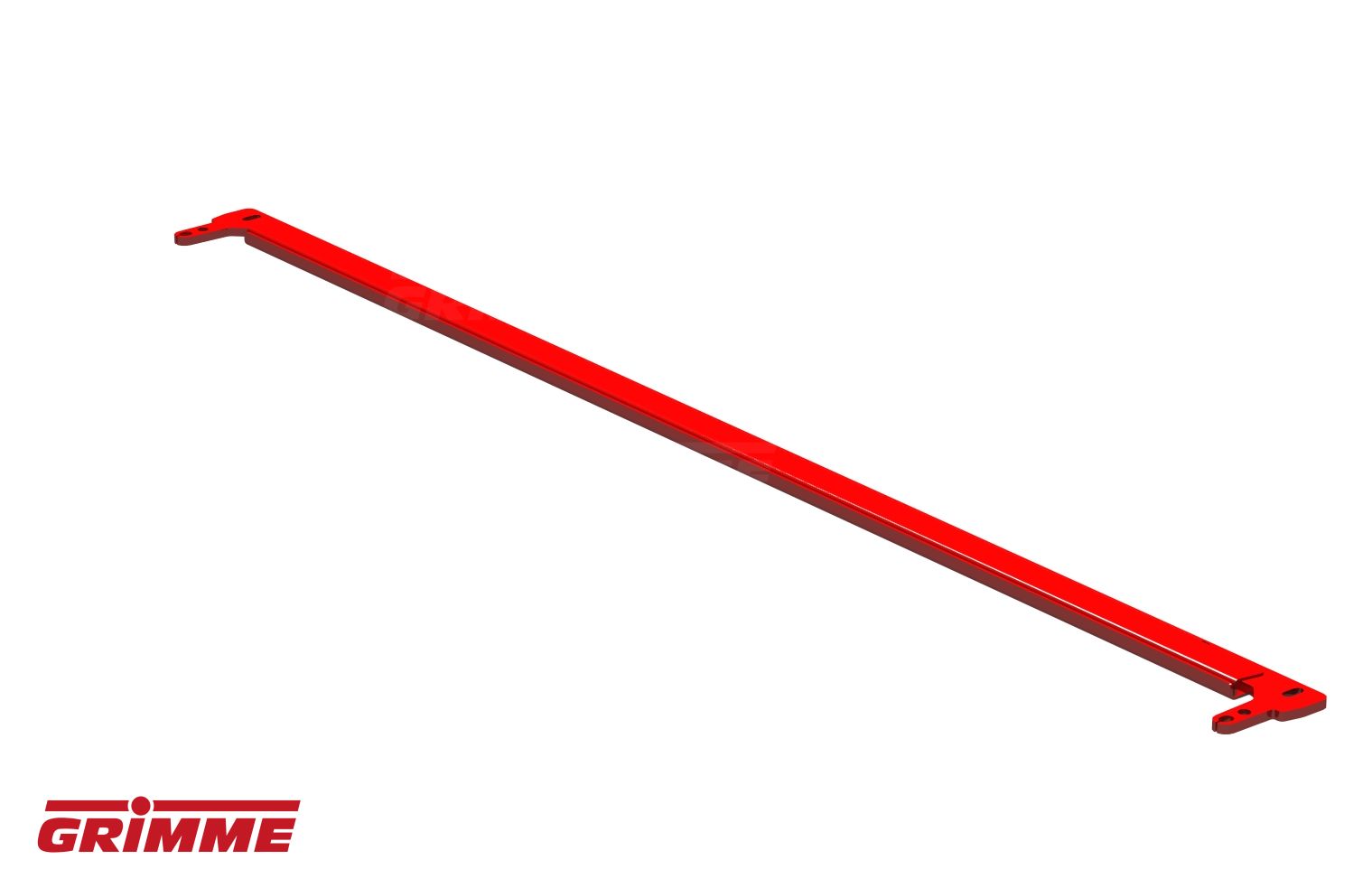

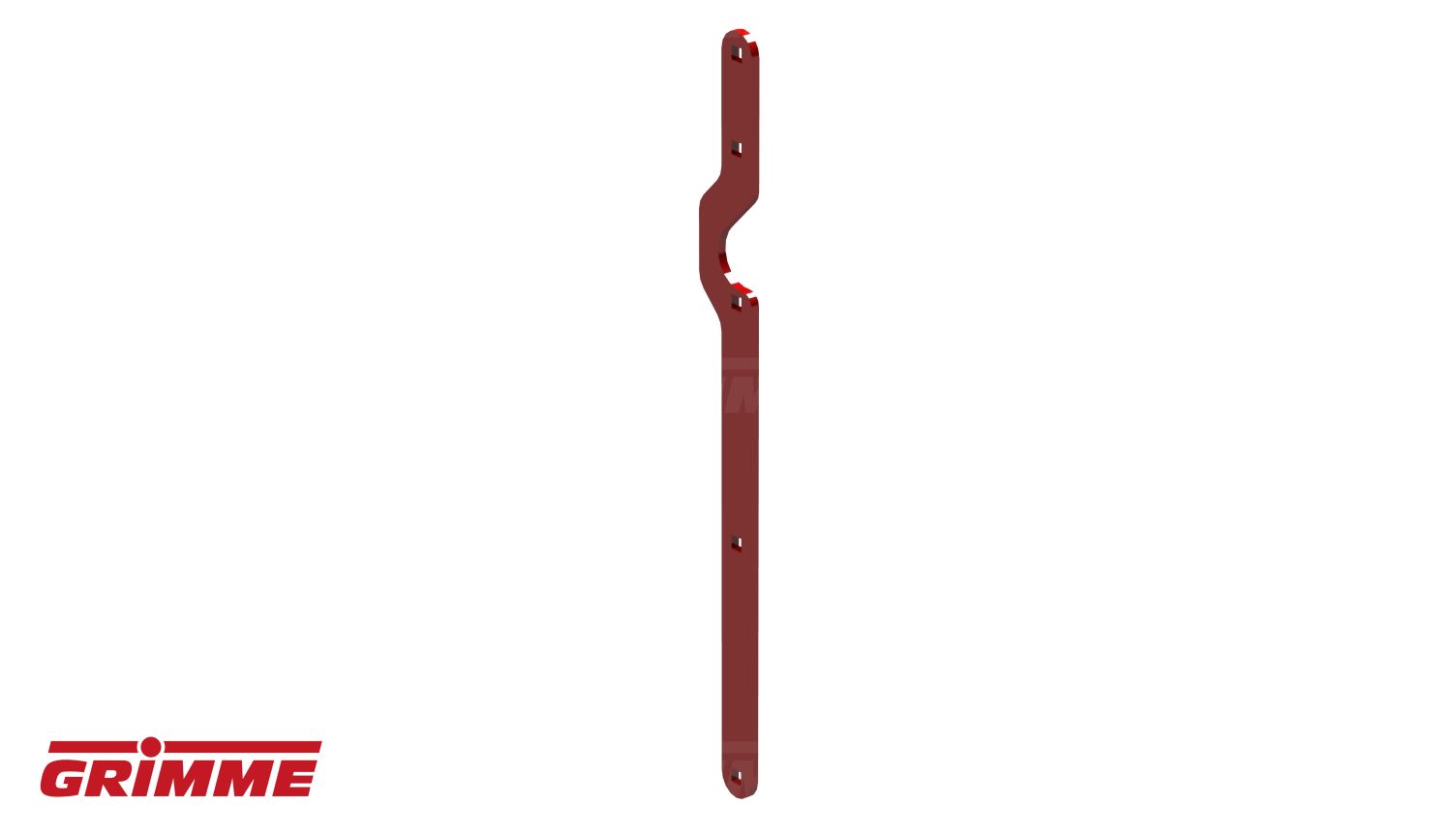

STAY
Quantity in assembly group: 2 Piece / Pos. 7

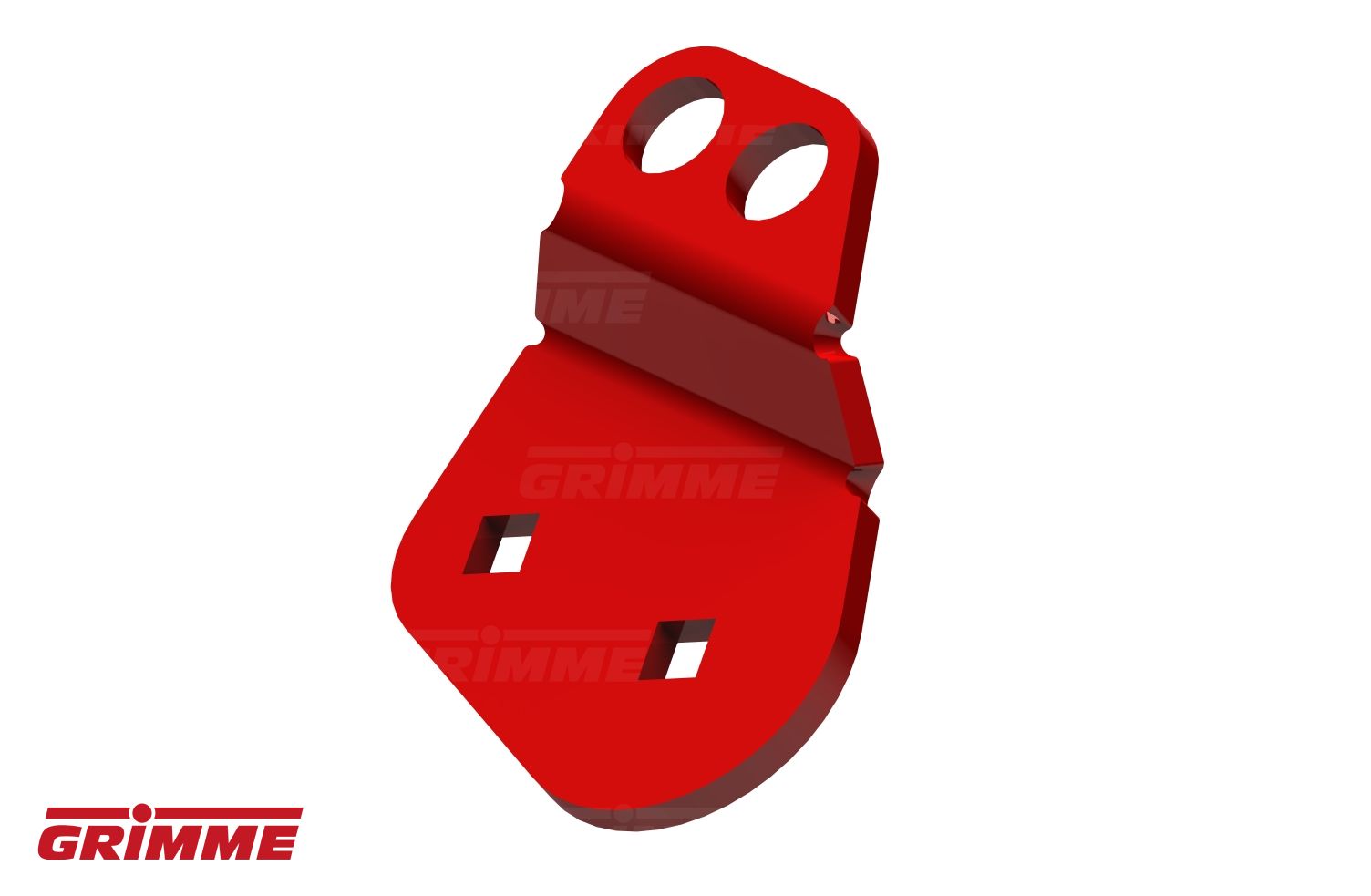

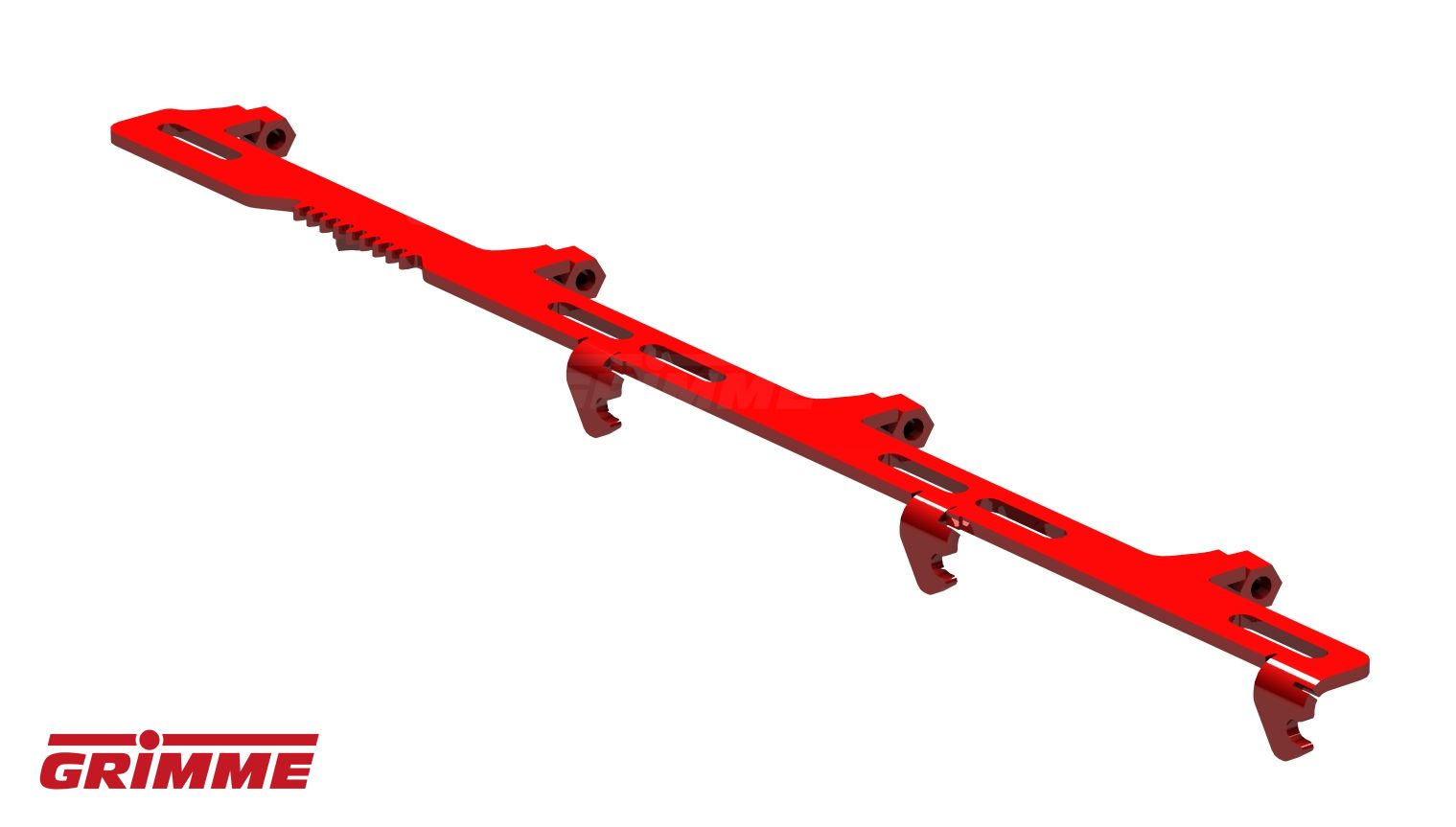

ADJUSTER PLATE
Quantity in assembly group: 6 Piece / Pos. 8

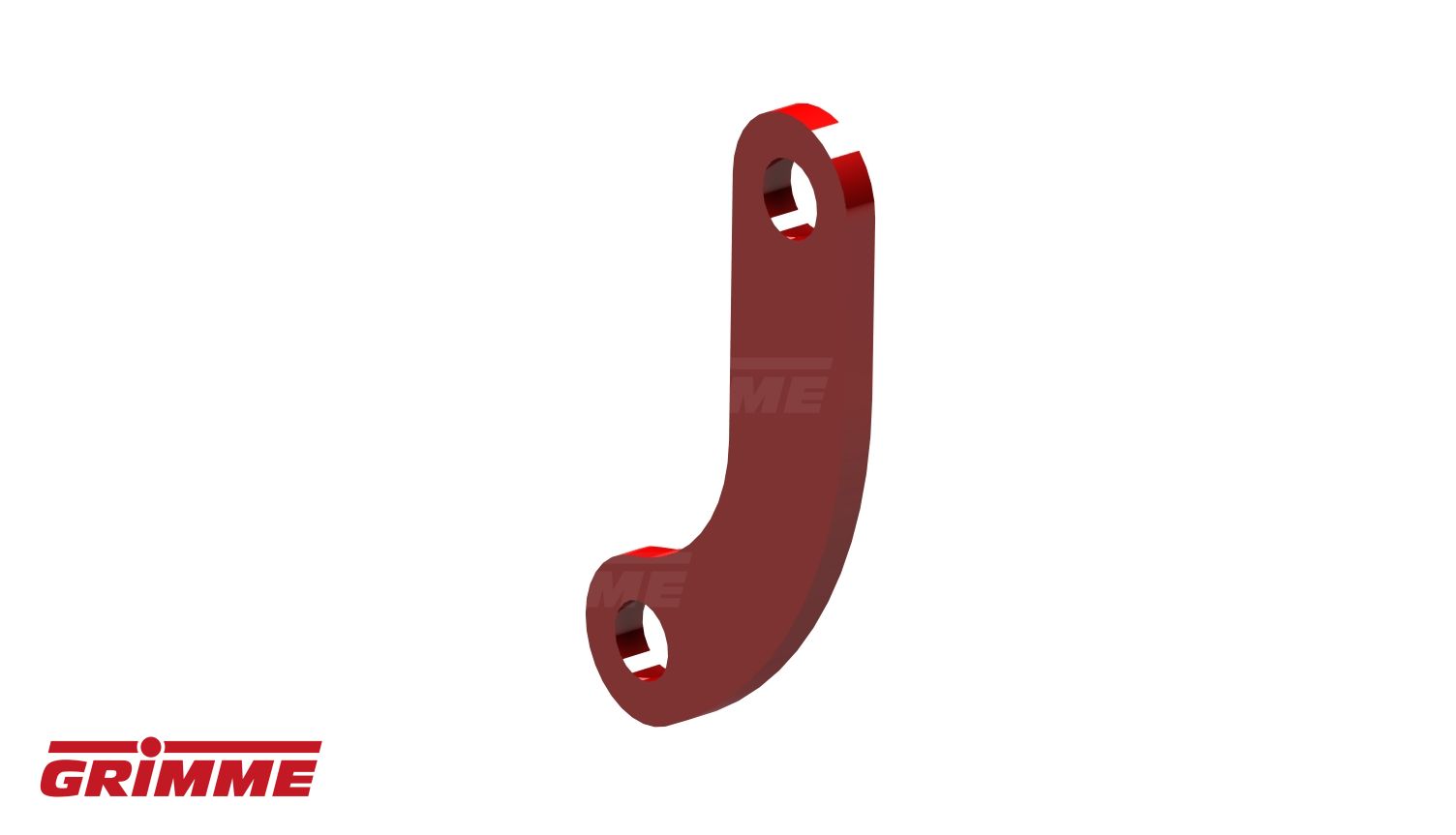

CONTROL LEVER
Quantity in assembly group: 2 Piece / Pos. 9
CSK. ALLEN SCREW M10X60-DIN791
Quantity in assembly group: 8 Piece / Pos. 10
CSK. ALLEN SCREW M10X35-DIN791
Quantity in assembly group: 8 Piece / Pos. 11
SPACER TUBE
Quantity in assembly group: 8 Piece / Pos. 12

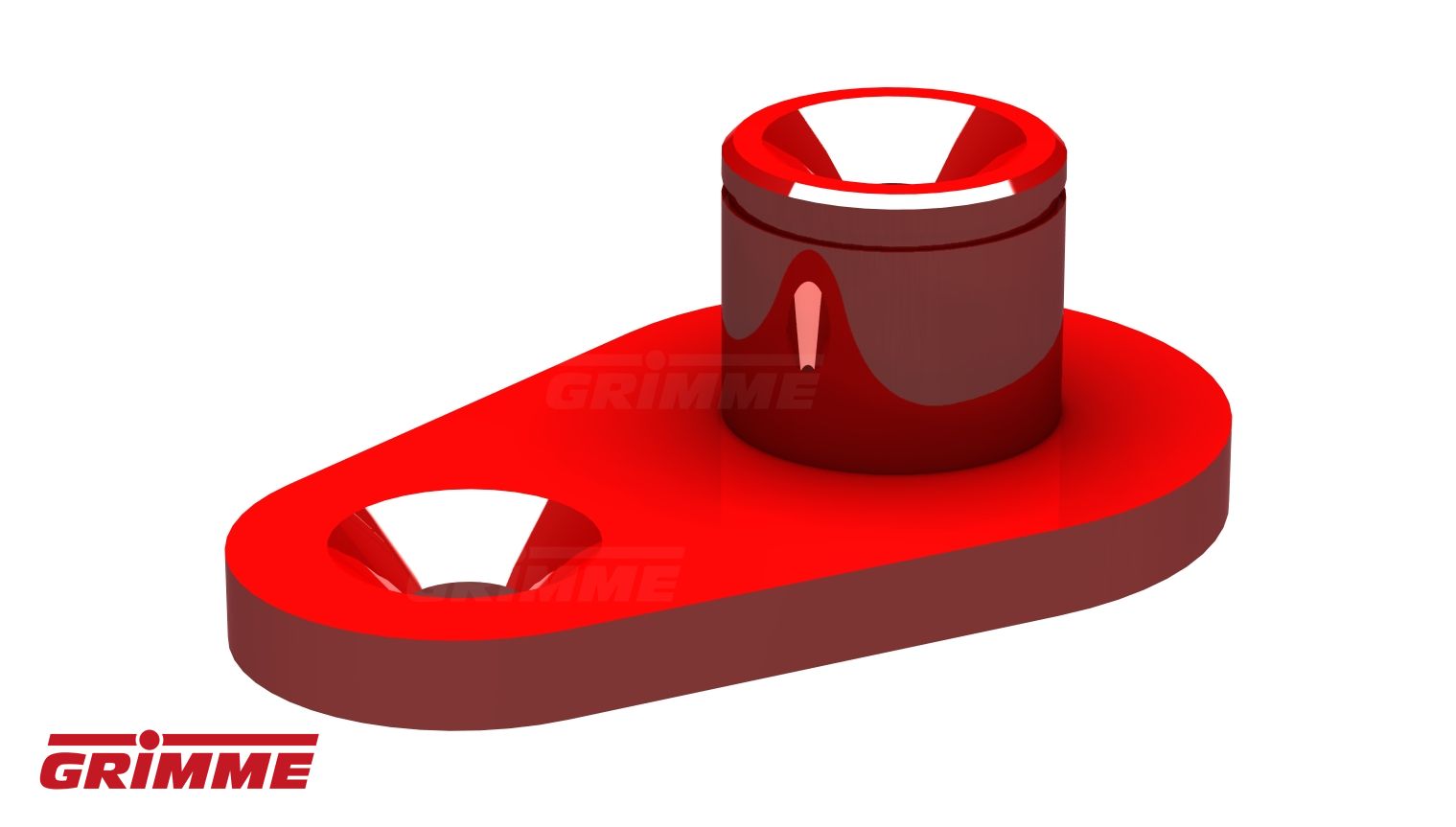

BRACKET R/H
Quantity in assembly group: 4 Piece / Pos. 13

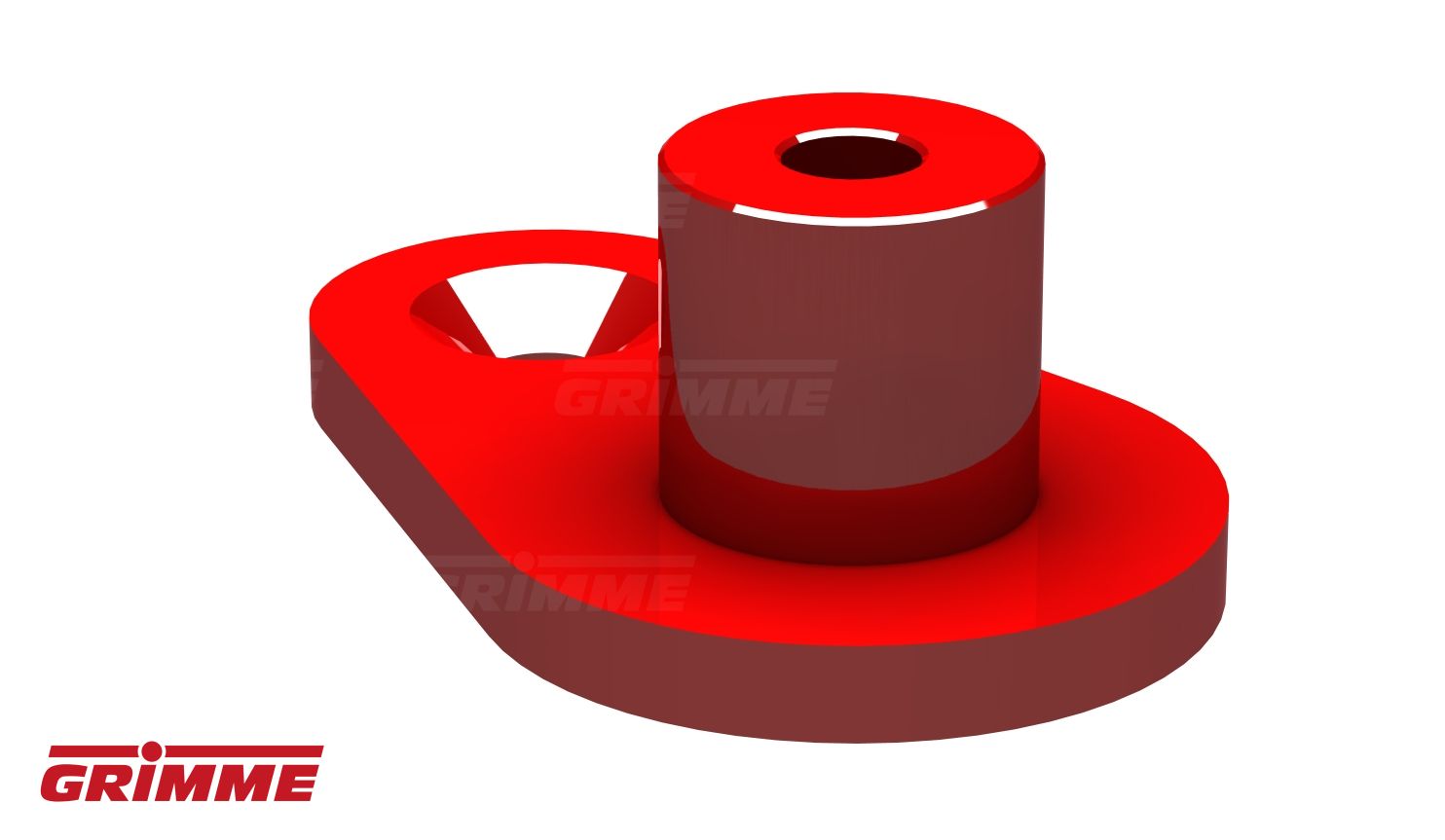

BRACKET L/H
Quantity in assembly group: 4 Piece / Pos. 14
BUSHING
Quantity in assembly group: 8 Piece / Pos. 15
NYLOC NUT DIN985-M10-8-GAL
Quantity in assembly group: 16 Piece / Pos. 16
PANEL
Quantity in assembly group: 8 Piece / Pos. 17
BEARING HOUSING UC207
Quantity in assembly group: 4 Piece / Pos. 18
BEARING HOUSING R/H
Quantity in assembly group: 4 Piece / Pos. 19
BEARING YAR 207-2RF/UC207
Quantity in assembly group: 8 Piece / Pos. 20
PLAIN BEARING BUSH 303420
Quantity in assembly group: 8 Piece / Pos. 21
BEARING HOUSING UC207
Quantity in assembly group: 4 Piece / Pos. 22
BEARING HOUSING L/H
Quantity in assembly group: 4 Piece / Pos. 23
RETAINING RING A 30X1,5 DIN471
Quantity in assembly group: 6 Piece / Pos. 24
CSK WASHER M12
Quantity in assembly group: 4 Piece / Pos. 25
SERRATED LOCK WASHER DIN6798-G
Quantity in assembly group: 4 Piece / Pos. 26
CSK ALLEN SCREW M12X30-DIN7991
Quantity in assembly group: 4 Piece / Pos. 27
BRACKET R/H
Quantity in assembly group: 1 Piece / Pos. 28
BRACKET L/H
Quantity in assembly group: 1 Piece / Pos. 29

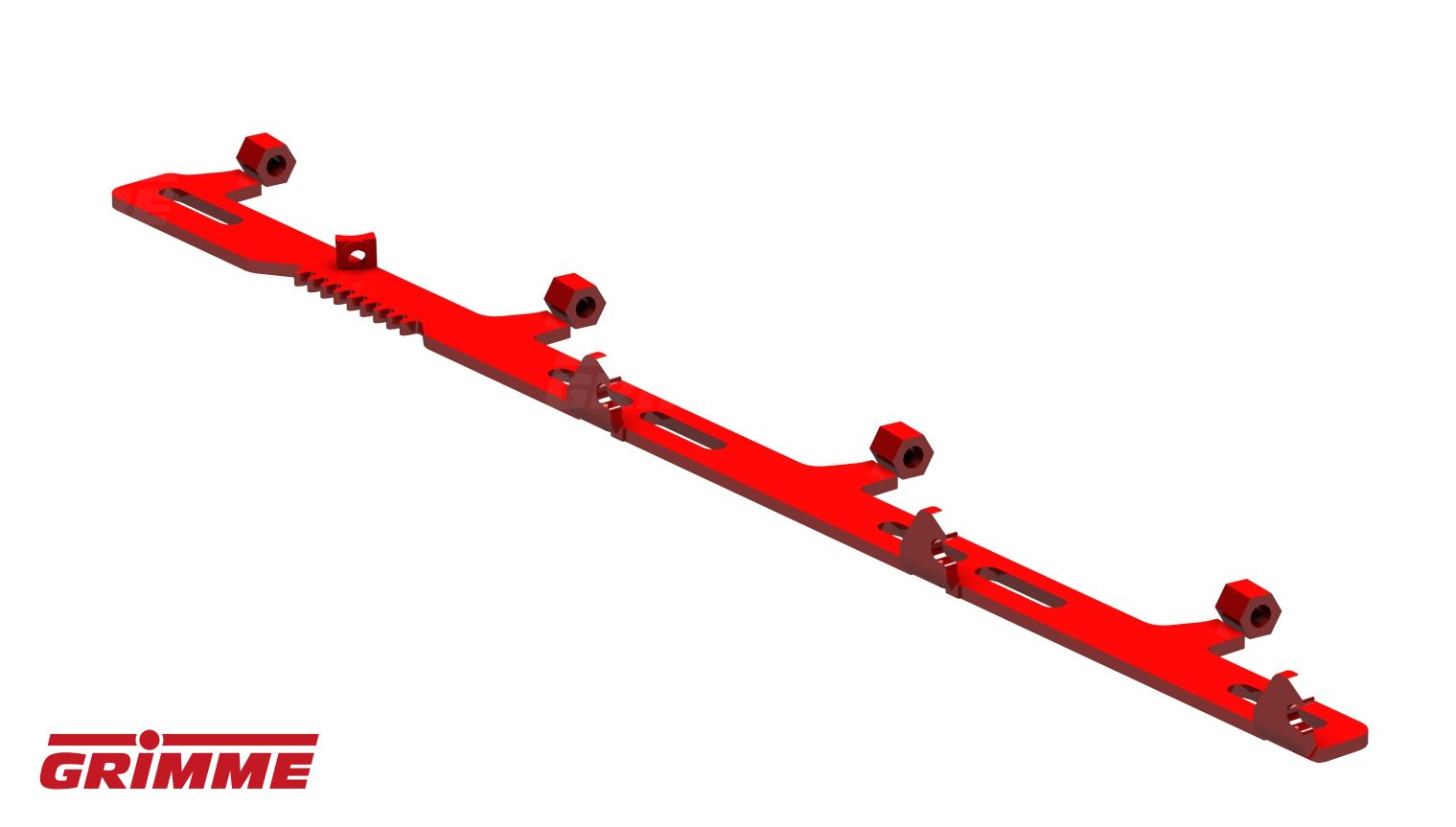

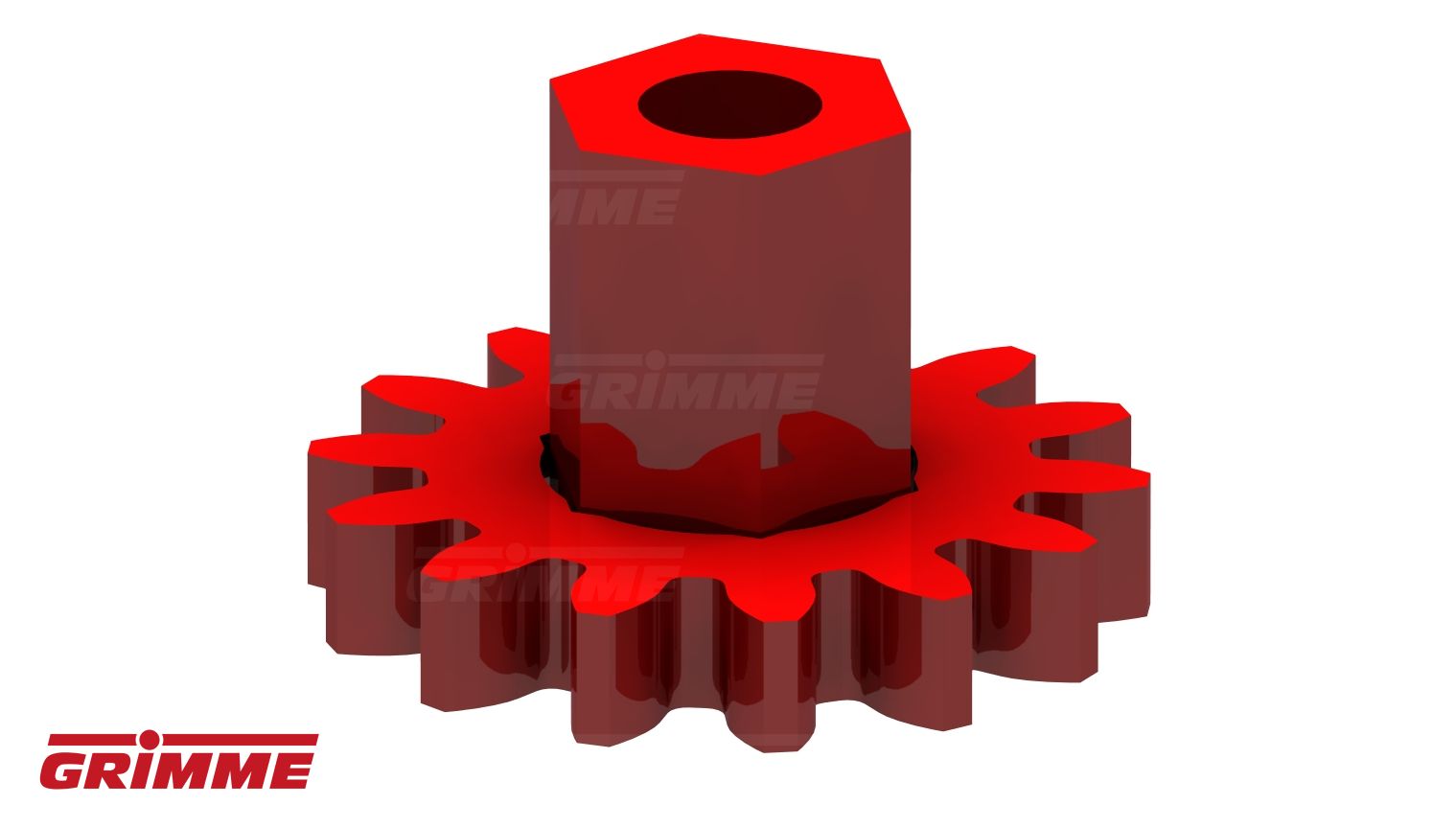

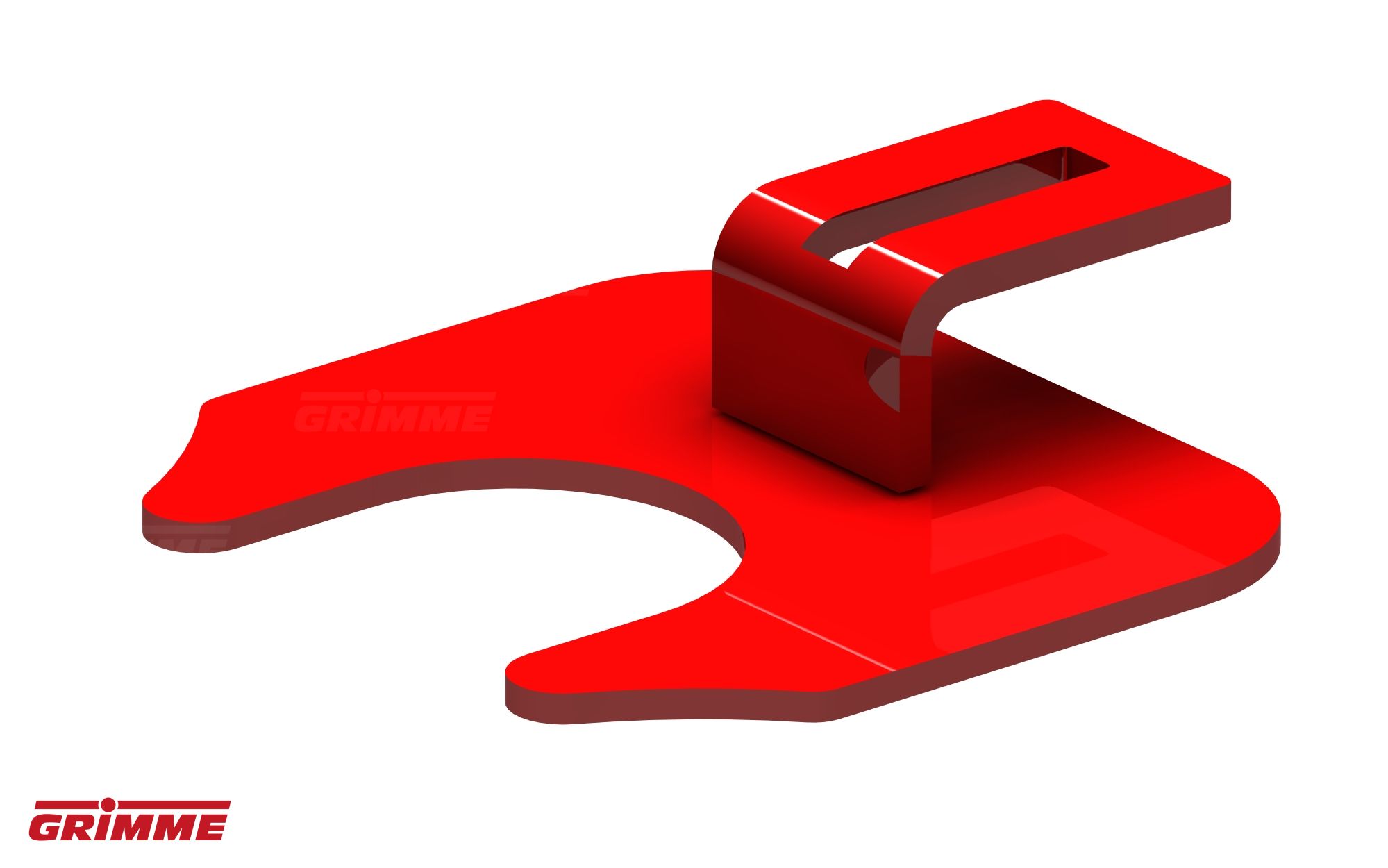

LOCKING GEAR
Quantity in assembly group: 2 Piece / Pos. 30

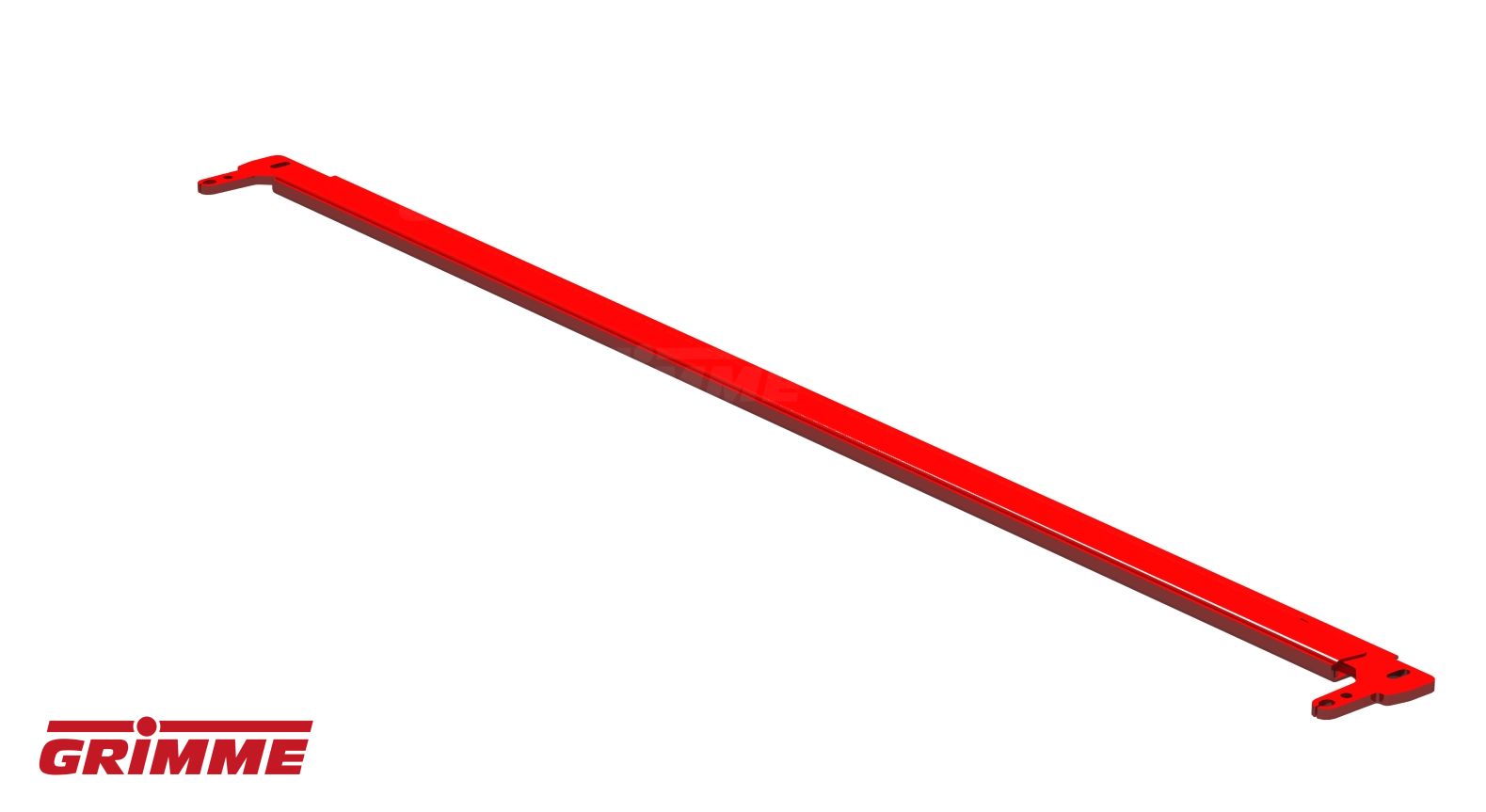

ANGLE R/H
Quantity in assembly group: 1 Piece / Pos. 31
ANGLE L/H
Quantity in assembly group: 1 Piece / Pos. 32
STEEL CLOD ROLLER
Quantity in assembly group: 4 Piece / Pos. 33

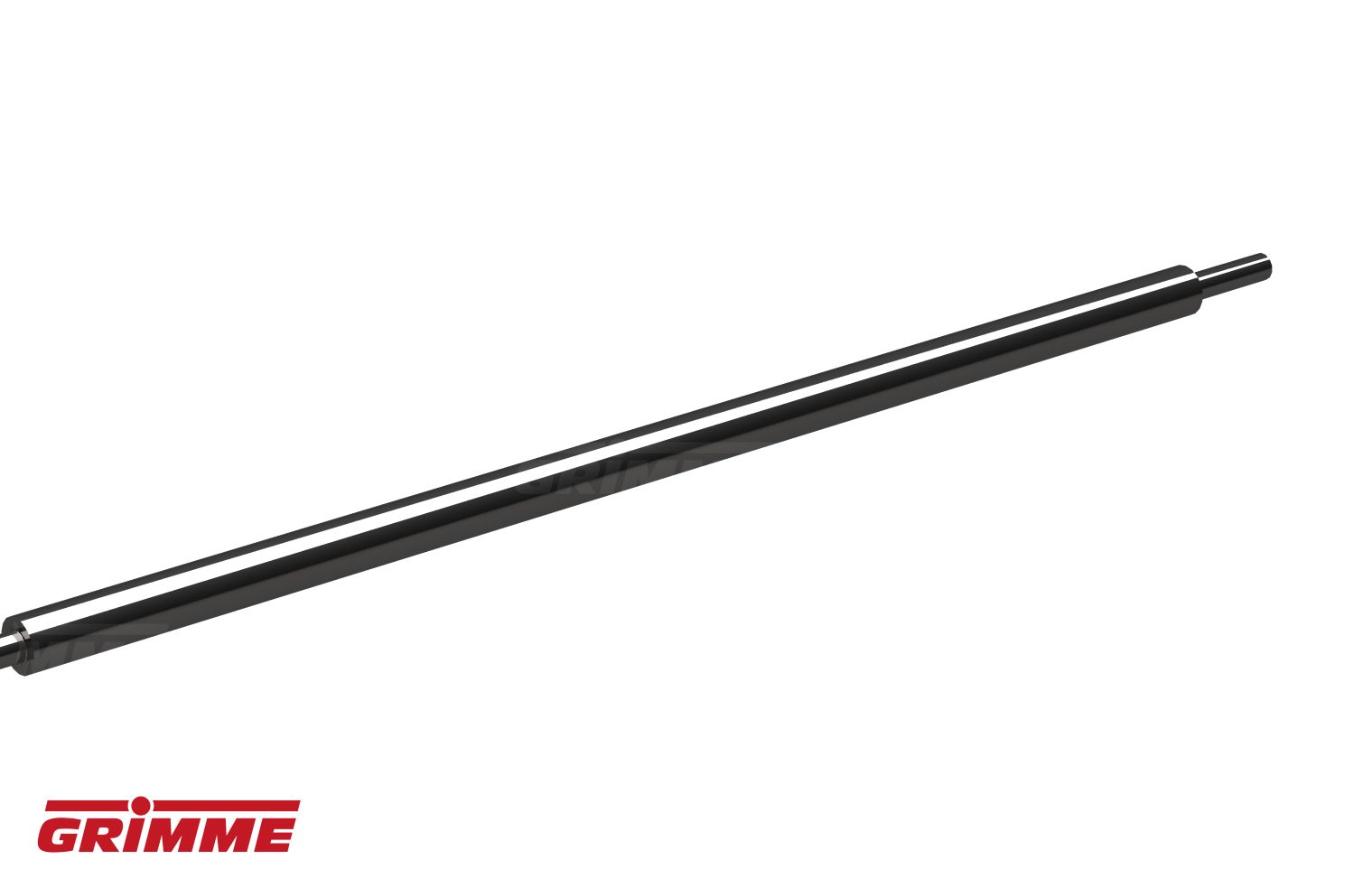

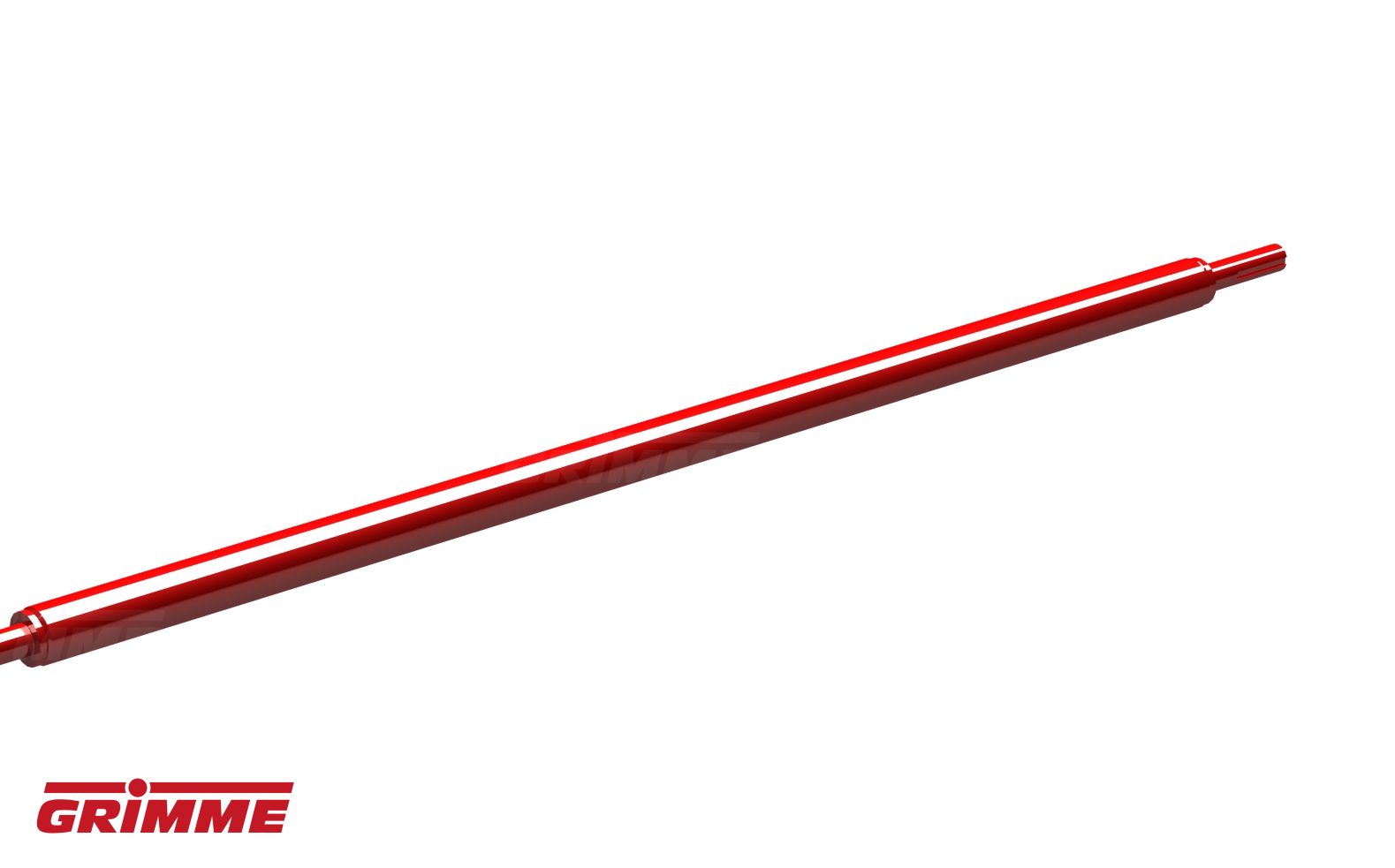

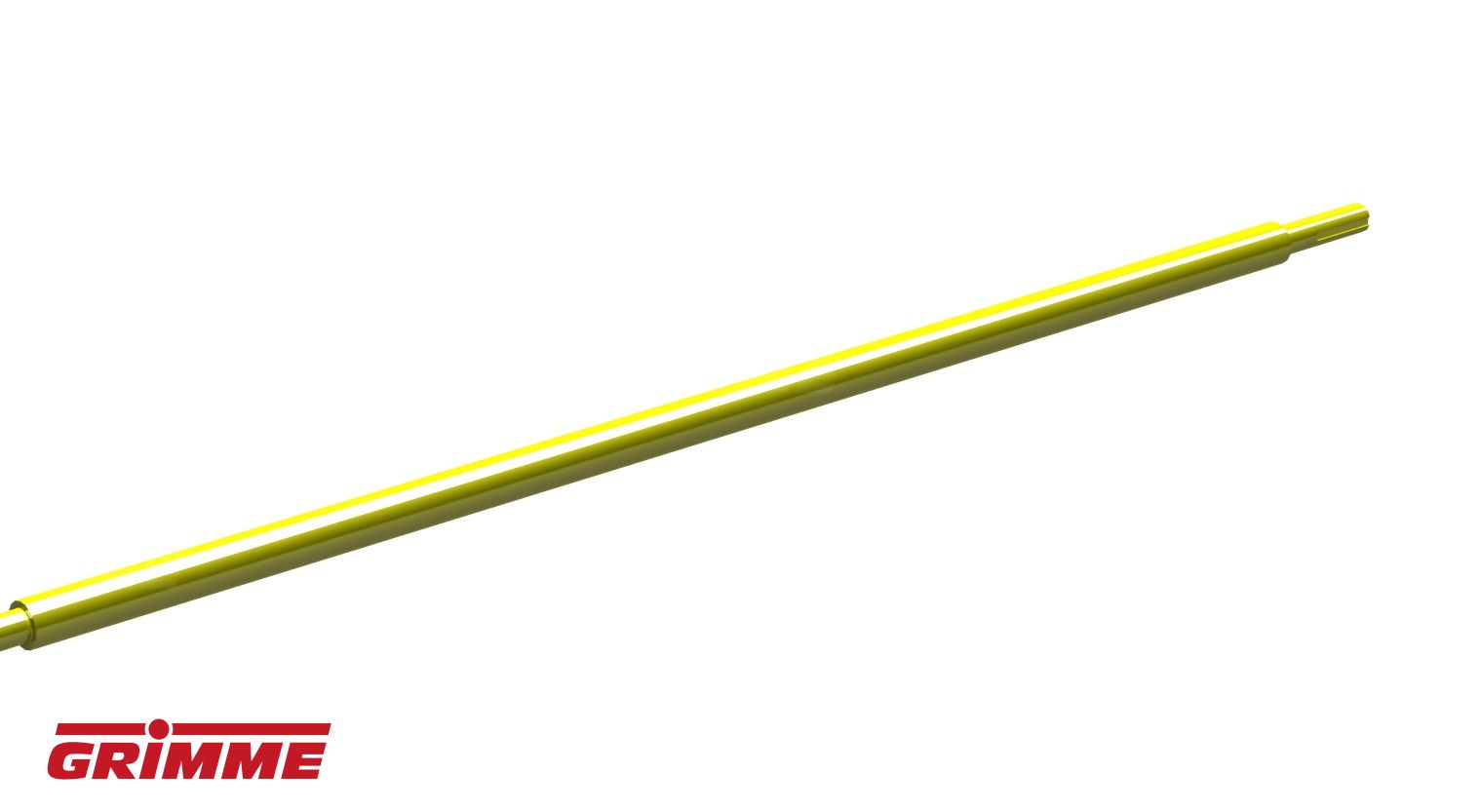

SHAFT
Quantity in assembly group: 4 Piece / Pos. 34
CHANNEL PLATE
Quantity in assembly group: 8 Piece / Pos. 35
SCRAPER
Quantity in assembly group: 4 Piece / Pos. 36
