Parts by subassemblies
Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

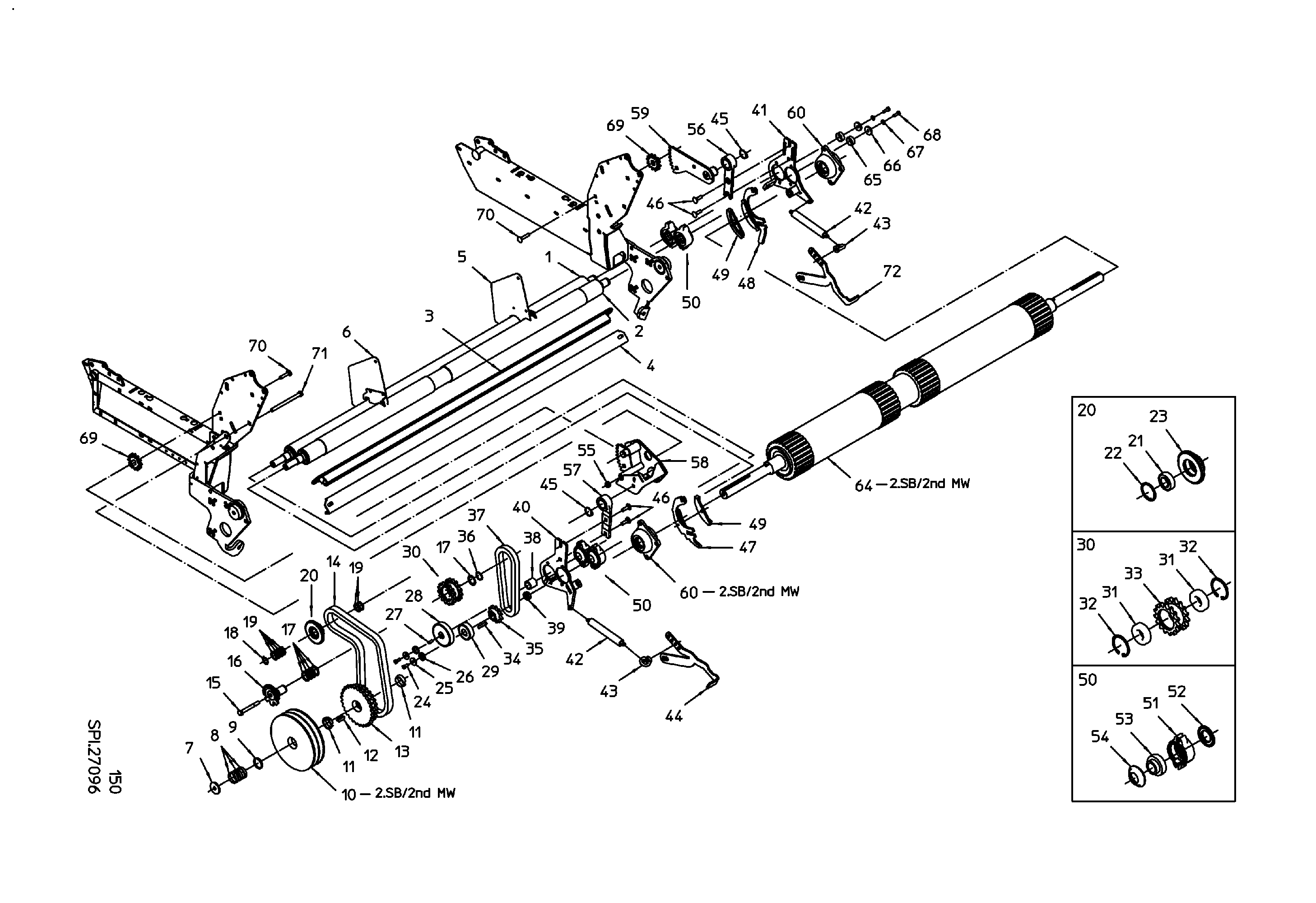

Subassembly drawing
▸ Selected assembly group:
GREASE NIPPLE H1-M6X1 DIN71412
HINGE BEARING R/H
PLAIN BEARING BUSH 353930
RETAINING WASHER
SPACER RING
SPACER TUBE
BALL BEARING 6205-2RS
RETAINING RING J 52X2 DIN472
SPROCKET 3/4"-T15
END DISC
SPACER RING
SPUR GEAR 3/4X1/2-Z14/14
RETAINING RING A 35X1,5 DIN471
BEARING HOUSING
SEALING RING 64-34,5-3
HINGE BEARING R/H

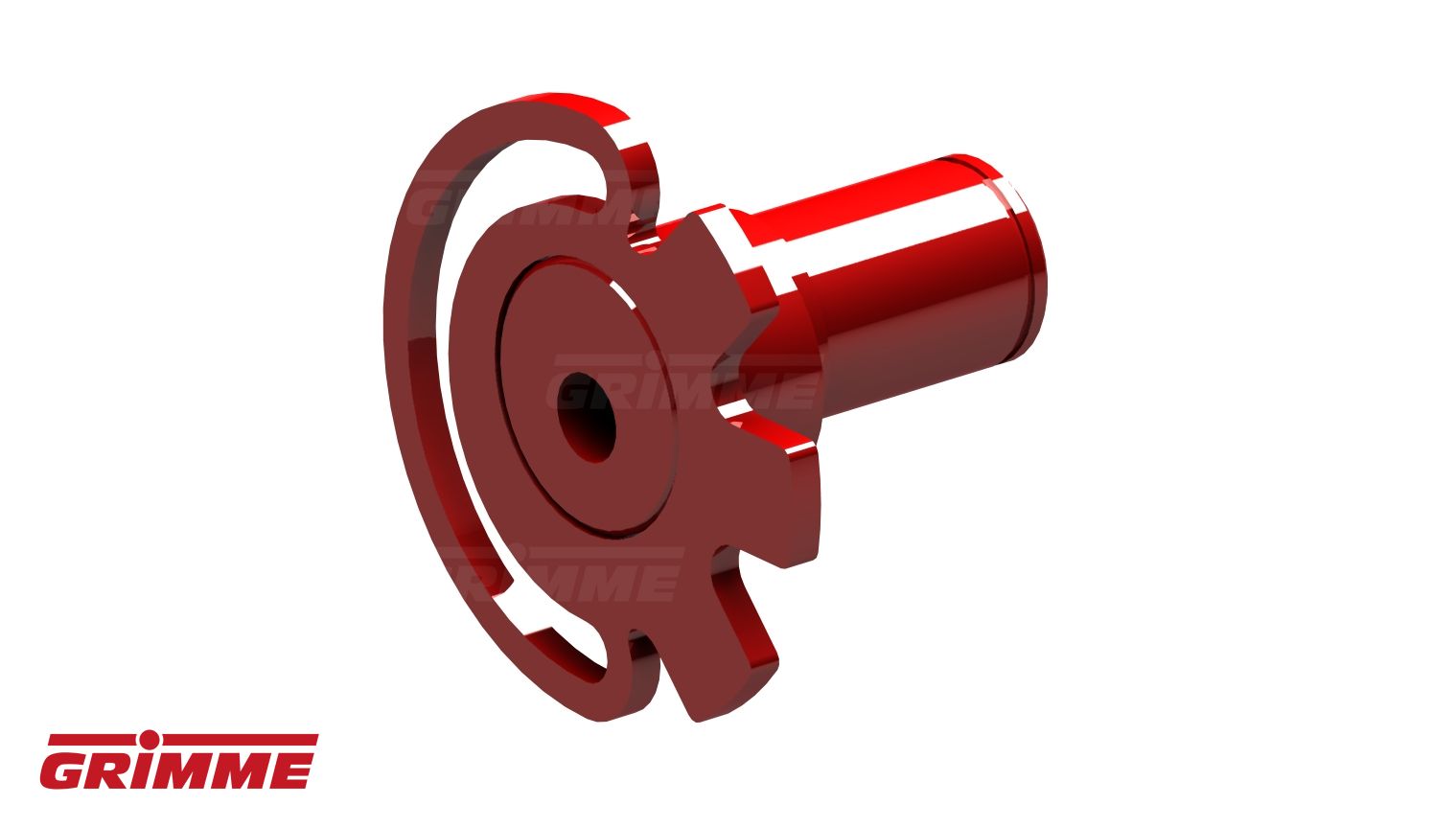

LOCKING GEAR
Selected subassembly
Subassembly parts
GREASE NIPPLE H1-M6X1 DIN71412
Quantity in assembly group:
1 Piece / Pos. 0
HINGE BEARING R/H
Quantity in assembly group:
1 Piece / Pos. 0
HINGE BEARING L/H
Quantity in assembly group:
1 Piece / Pos. 0
PLAIN BEARING BUSH 353930
Quantity in assembly group:
1 Piece / Pos. 0
ROLLER -VULC-
Quantity in assembly group:
1 Piece / Pos. 1
2ND. HAULM ROLLER - GZ1700RS
Quantity in assembly group:
1 Piece / Pos. 2

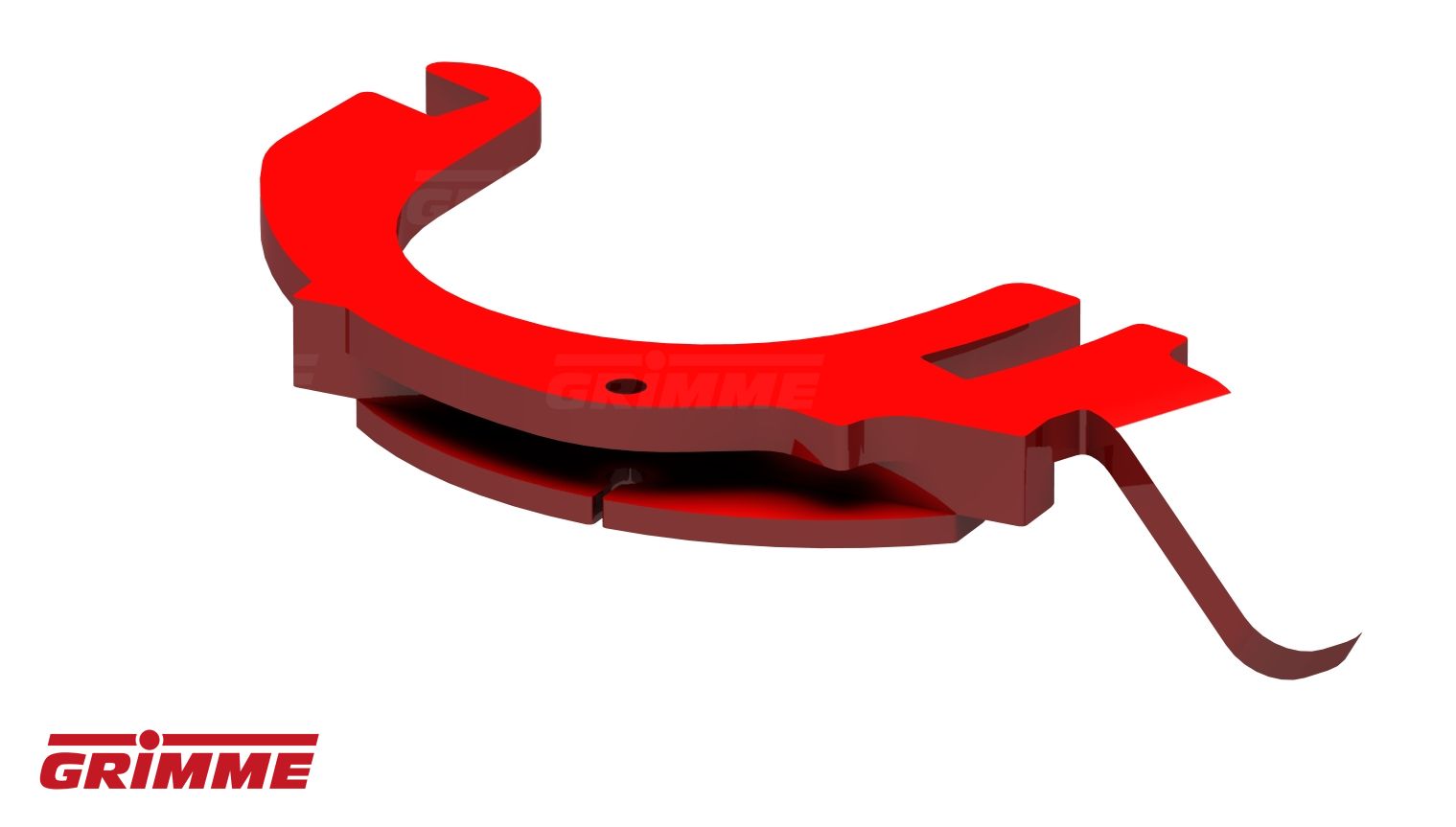

SCRAPER, REAR
Quantity in assembly group:
1 Piece / Pos. 3
SCRAPER, FRONT
Quantity in assembly group:
1 Piece / Pos. 4

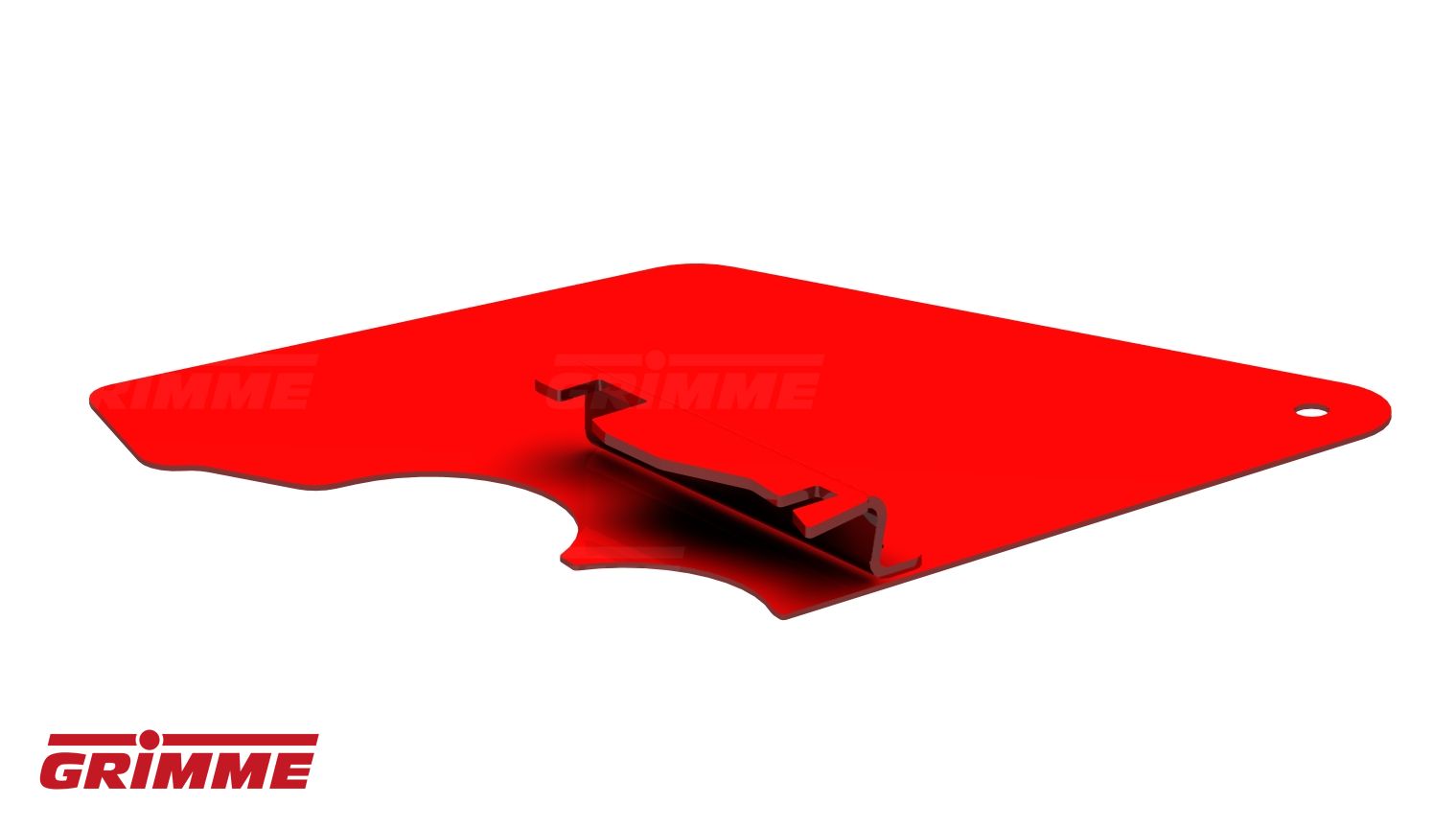

COVER PLATE L/H
Quantity in assembly group:
1 Piece / Pos. 5

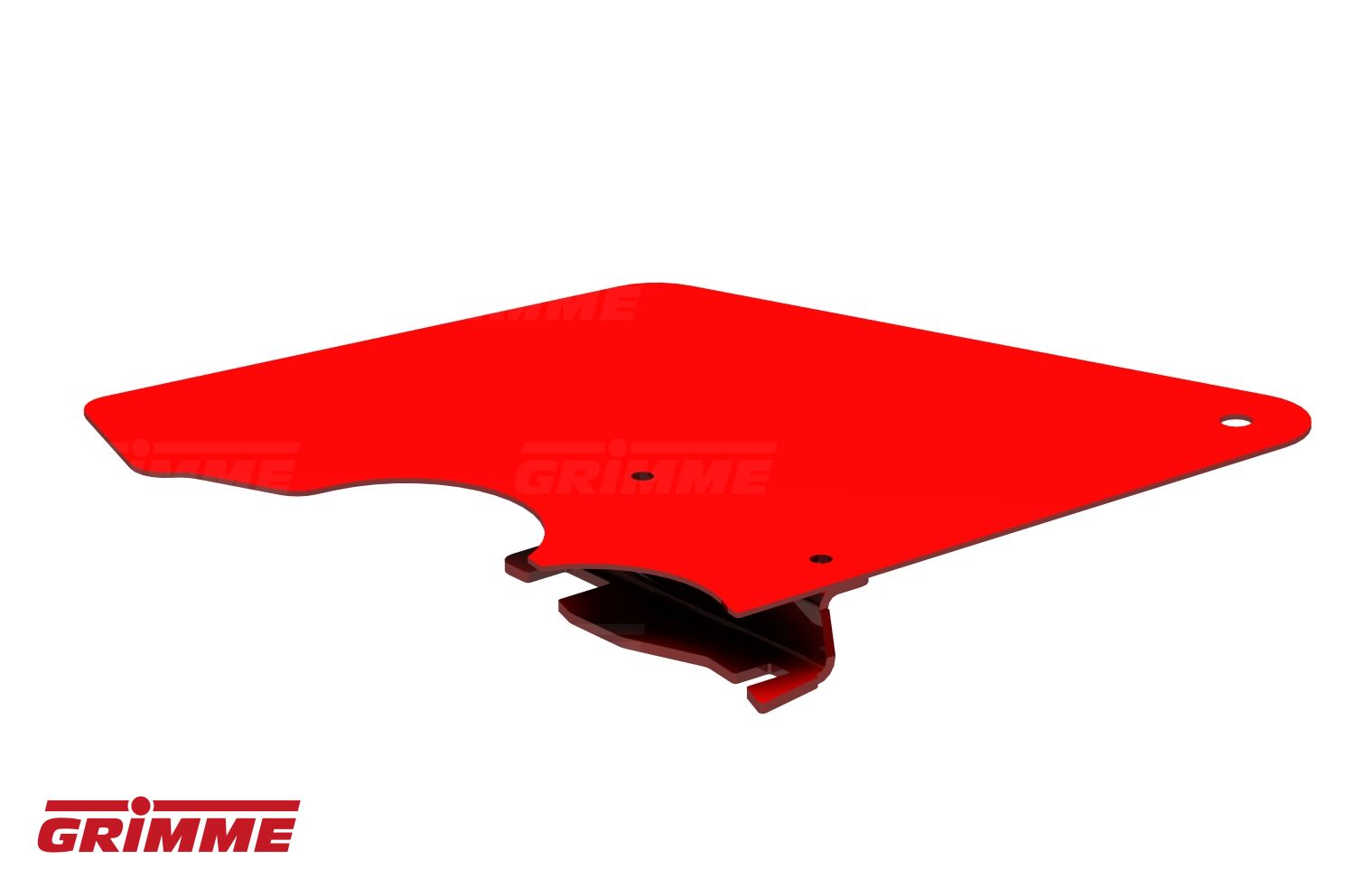

COVER PLATE R/H
Quantity in assembly group:
1 Piece / Pos. 6
RETAINING WASHER
Quantity in assembly group:
1 Piece / Pos. 7
SPACER RING
Quantity in assembly group:
6 Piece / Pos. 8
SPACER TUBE
Quantity in assembly group:
2 Piece / Pos. 9

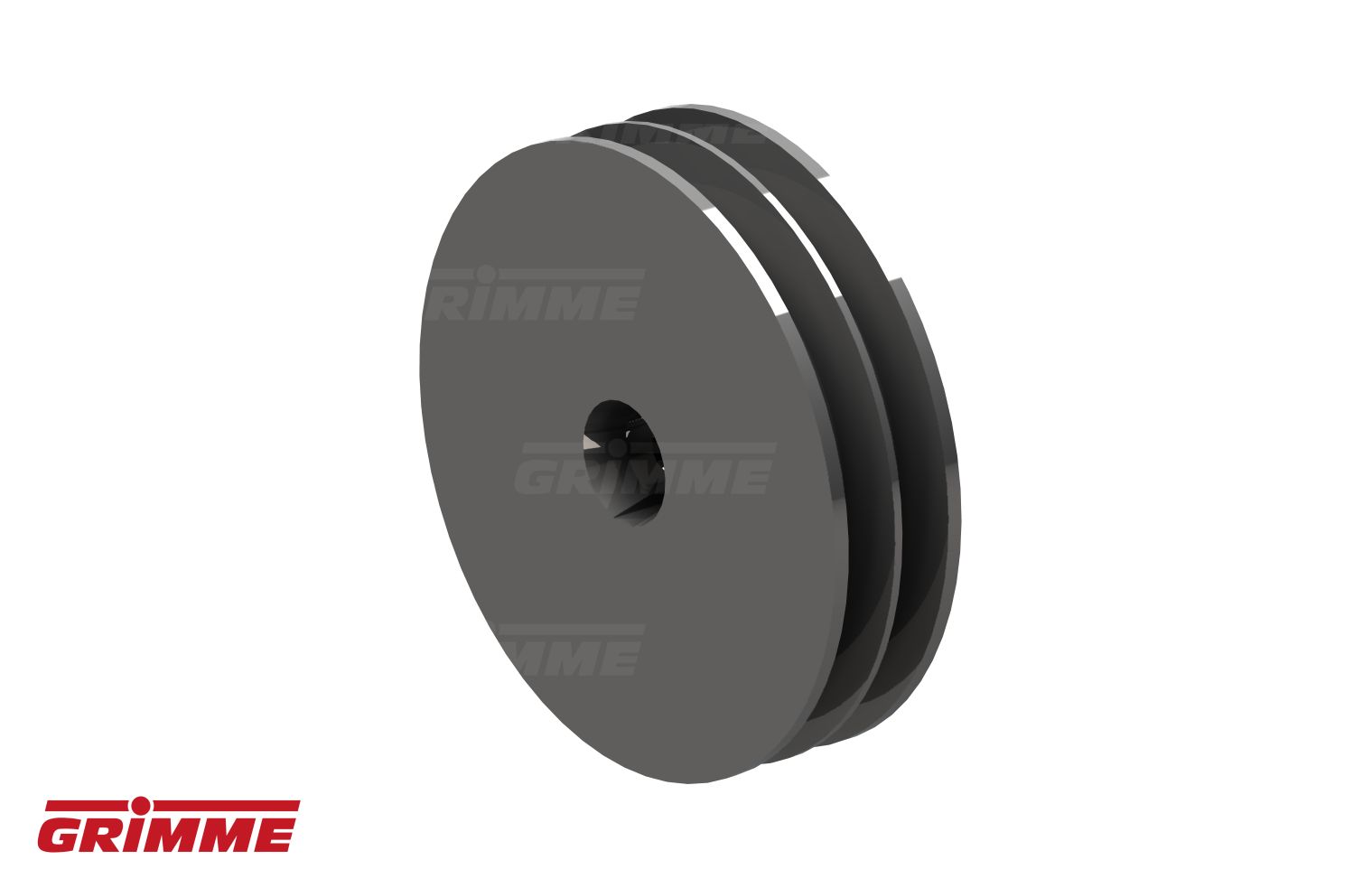

PULLEY D236
Quantity in assembly group:
1 Piece / Pos. 10

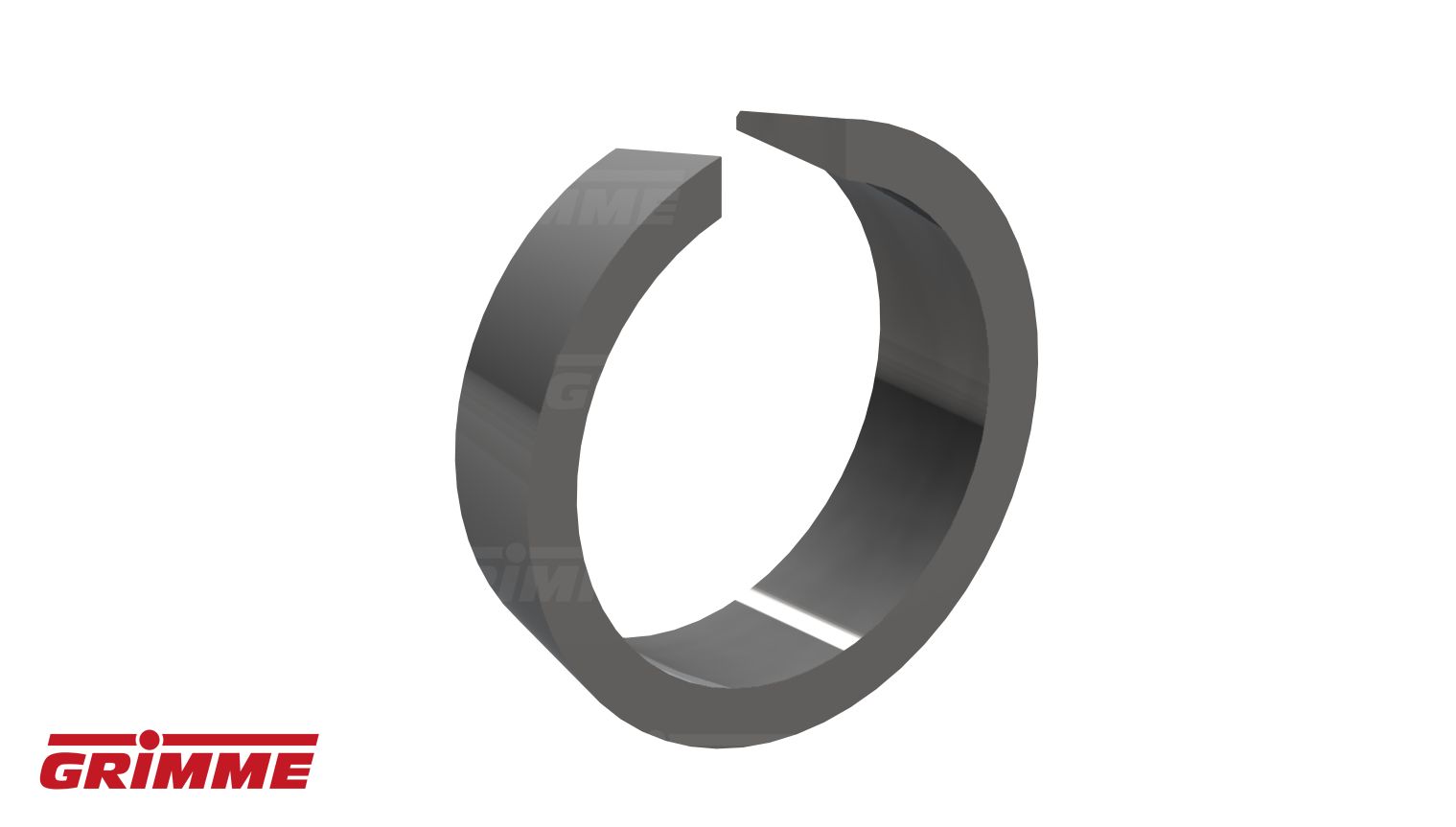

CLAMPING RING
Quantity in assembly group:
4 Piece / Pos. 11
FEATHER KEY A 12X8X35 DIN6885
Quantity in assembly group:
1 Piece / Pos. 12

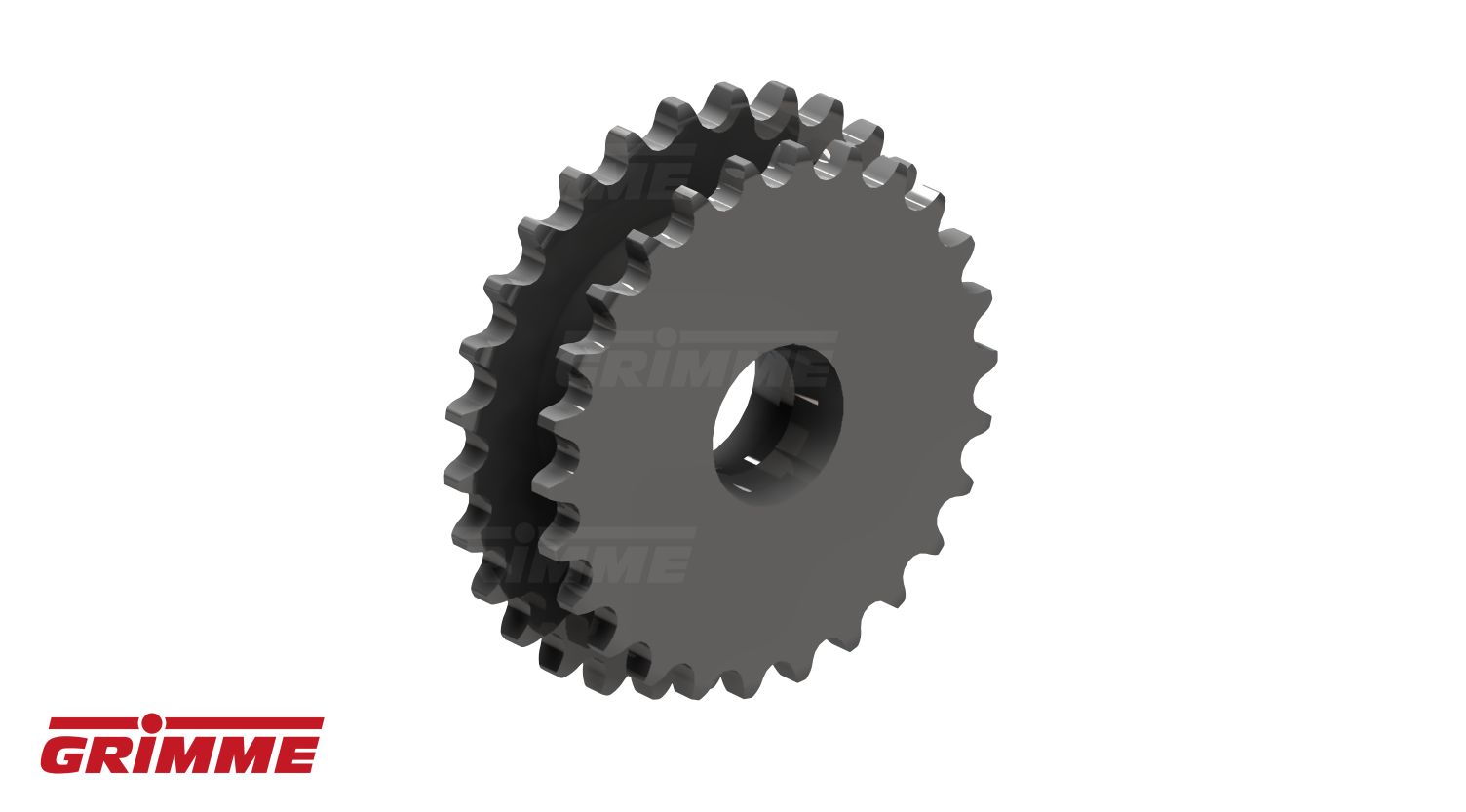

SPROCKET 3/4"-29/26T
Quantity in assembly group:
1 Piece / Pos. 13
CHAIN 3/4"X1/2"-ASA60-74R
Quantity in assembly group:
1 Piece / Pos. 14
HEX BOLT M12X100-DIN931-8.8-G
Quantity in assembly group:
1 Piece / Pos. 15
ECCENTRIC LOCK
Quantity in assembly group:
1 Piece / Pos. 16
SHIM WASHER PS 30X42X1 DIN988
Quantity in assembly group:
5 Piece / Pos. 17
RETAINING RING A 25X2 DIN471
Quantity in assembly group:
3 Piece / Pos. 18
SHIM WASHER PS 25X36X1 DIN988
Quantity in assembly group:
6 Piece / Pos. 19
SPROCKET DEW
Quantity in assembly group:
1 Piece / Pos. 20
BALL BEARING 6205-2RS
Quantity in assembly group:
1 Piece / Pos. 21
RETAINING RING J 52X2 DIN472
Quantity in assembly group:
1 Piece / Pos. 22
SPROCKET 3/4"-T15
Quantity in assembly group:
1 Piece / Pos. 23
SET SCREW M8X20-DIN933-8.8-G
Quantity in assembly group:
2 Piece / Pos. 24
END DISC
Quantity in assembly group:
2 Piece / Pos. 25
SPACER RING
Quantity in assembly group:
2 Piece / Pos. 26
FEATHER KEY A 8X8X20 DIN6885
Quantity in assembly group:
1 Piece / Pos. 27
SPUR WHEEL
Quantity in assembly group:
1 Piece / Pos. 28
SPUR GEAR 3/4X1/2-Z14/14
Quantity in assembly group:
1 Piece / Pos. 29
IDLER SPROCKET
Quantity in assembly group:
1 Piece / Pos. 30
BALL BEARING 6206-2RS
Quantity in assembly group:
2 Piece / Pos. 31
RETAINING RING J 62X2 DIN472
Quantity in assembly group:
2 Piece / Pos. 32
SPROCKET 3/4"-T15/15
Quantity in assembly group:
1 Piece / Pos. 33
FEATHER KEY A 8X8X45 DIN6885
Quantity in assembly group:
1 Piece / Pos. 34
SPROCKET 3/4"-T11
Quantity in assembly group:
1 Piece / Pos. 35
RETAINING RING A 30X1,5 DIN471
Quantity in assembly group:
1 Piece / Pos. 36
CHAIN 3/4"X1/2"-ASA60-37R
Quantity in assembly group:
1 Piece / Pos. 37
SPACER
Quantity in assembly group:
1 Piece / Pos. 38
SLEEVE
Quantity in assembly group:
1 Piece / Pos. 39
BEARING ARM, R/H
Quantity in assembly group:
1 Piece / Pos. 40
BEARING ARM, L/H
Quantity in assembly group:
1 Piece / Pos. 41
TENSION SPRING
Quantity in assembly group:
2 Piece / Pos. 42
RING NUT M10
Quantity in assembly group:
2 Piece / Pos. 43

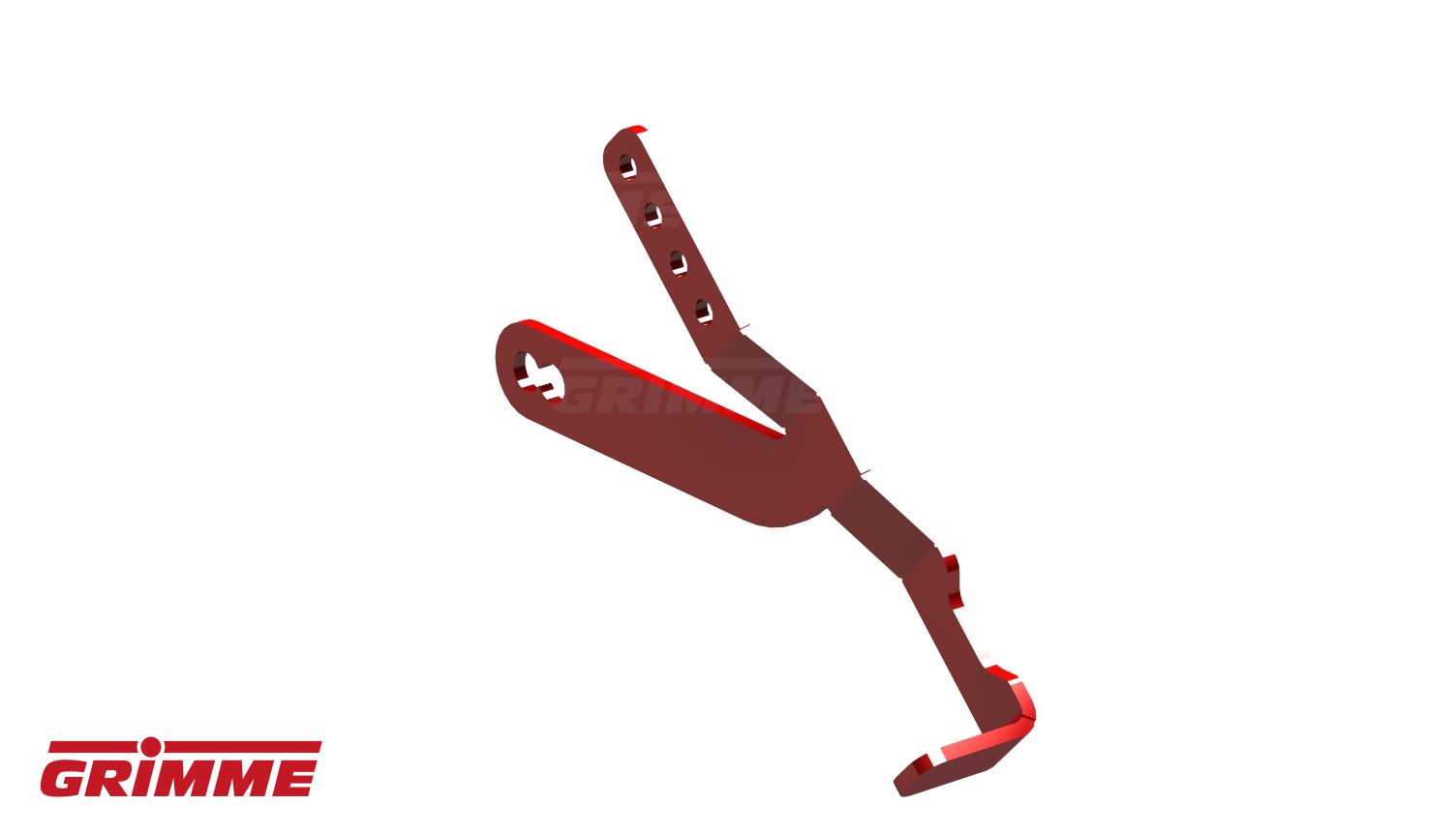

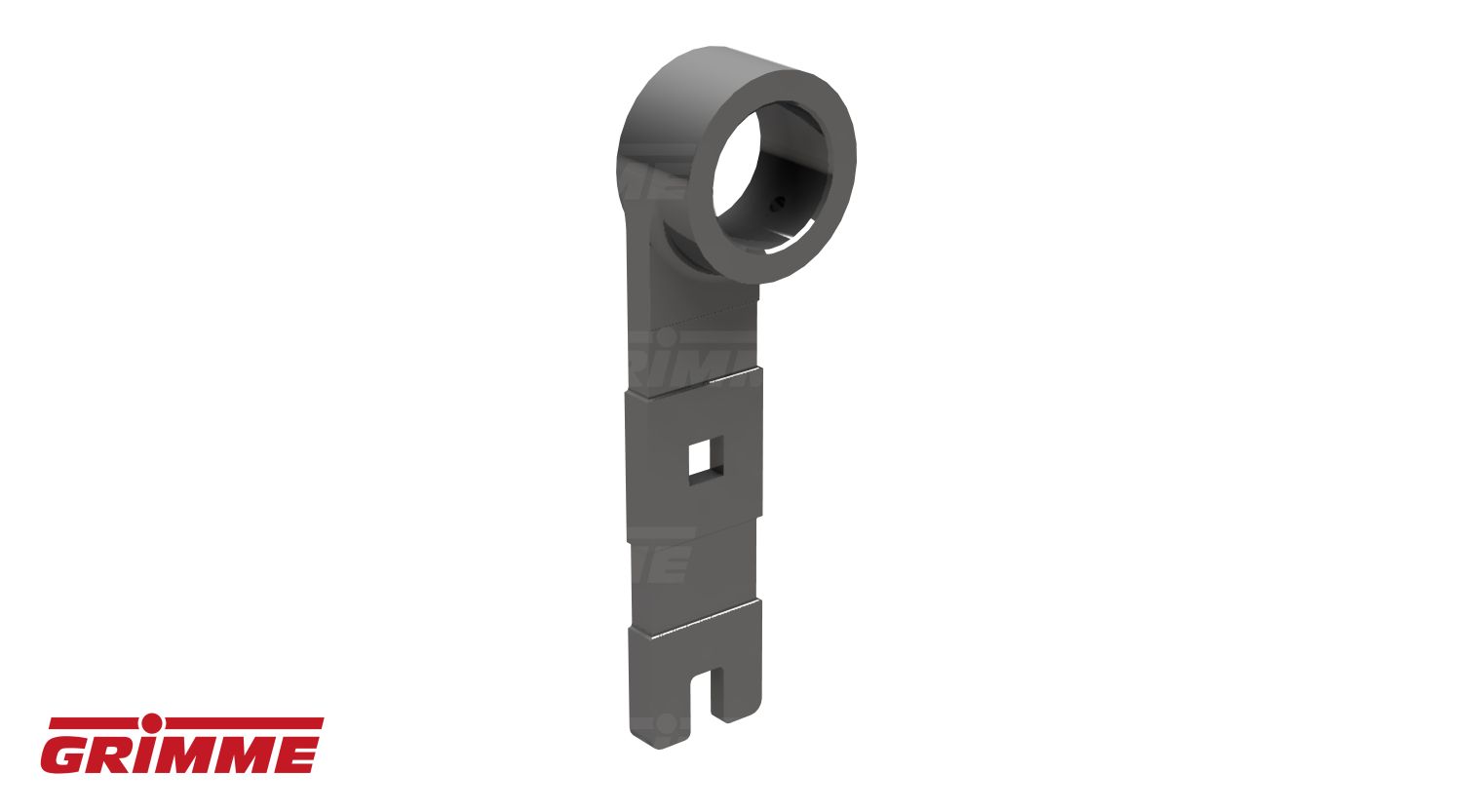

LEVER R/H
Quantity in assembly group:
1 Piece / Pos. 44
RETAINING RING A 35X1,5 DIN471
Quantity in assembly group:
2 Piece / Pos. 45
MH-SCREW M10X35-603-8.8-GAL
Quantity in assembly group:
8 Piece / Pos. 46
STOPPER R/H
Quantity in assembly group:
1 Piece / Pos. 47
STOPPER L/H
Quantity in assembly group:
1 Piece / Pos. 48
RUBBER BUFFER
Quantity in assembly group:
2 Piece / Pos. 49

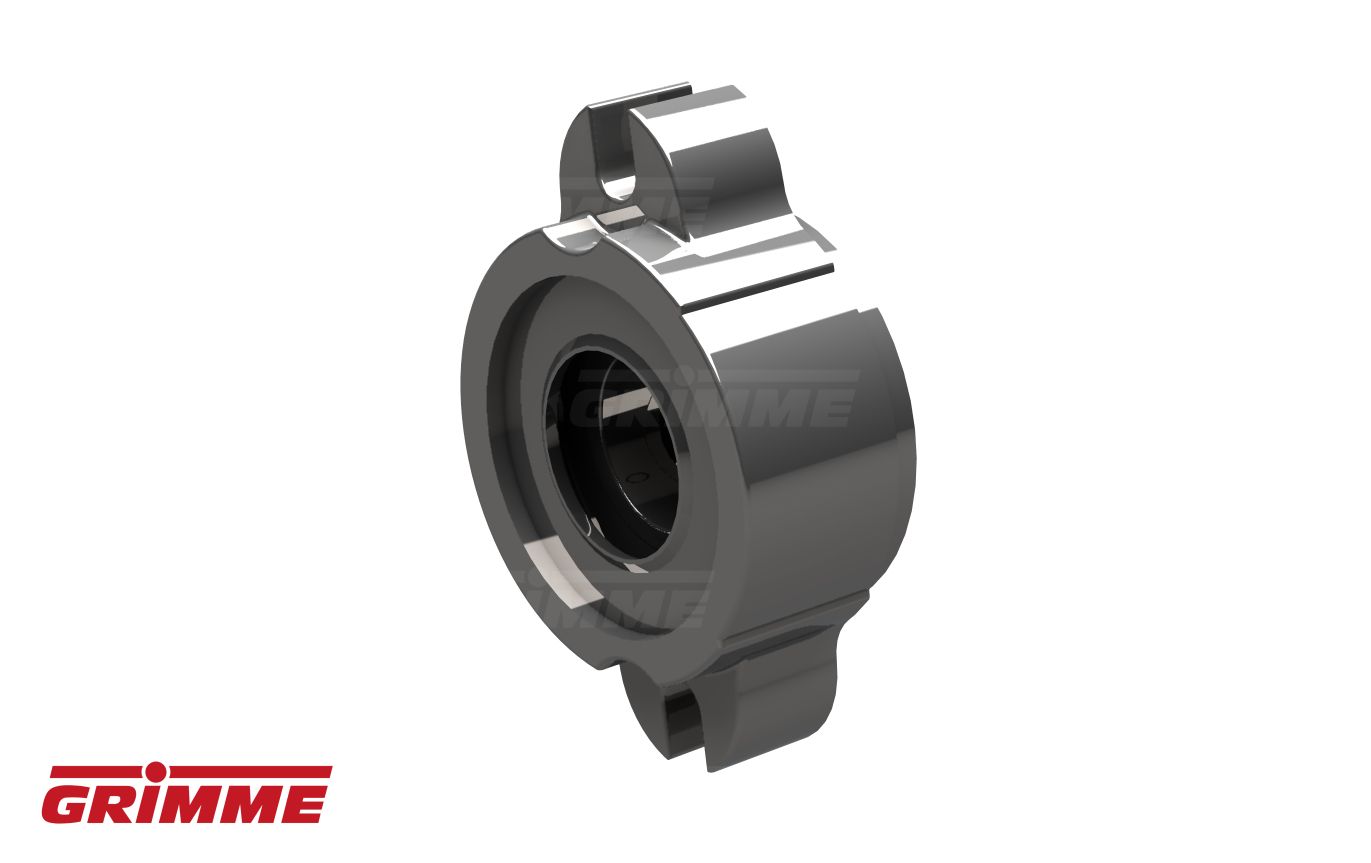

BEARING HOUSING CPTE.
Quantity in assembly group:
4 Piece / Pos. 50
BEARING HOUSING
Quantity in assembly group:
4 Piece / Pos. 51
SEALING RING 65-34,5-3
Quantity in assembly group:
4 Piece / Pos. 52
BALL BEARING AS 206
Quantity in assembly group:
4 Piece / Pos. 53
SEALING RING 64-34,5-3
Quantity in assembly group:
4 Piece / Pos. 54
HEXAGON NUT M12 934-10.9-flZn
Quantity in assembly group:
2 Piece / Pos. 55
HINGE BEARING L/H
Quantity in assembly group:
1 Piece / Pos. 56
HINGE BEARING R/H
Quantity in assembly group:
1 Piece / Pos. 57

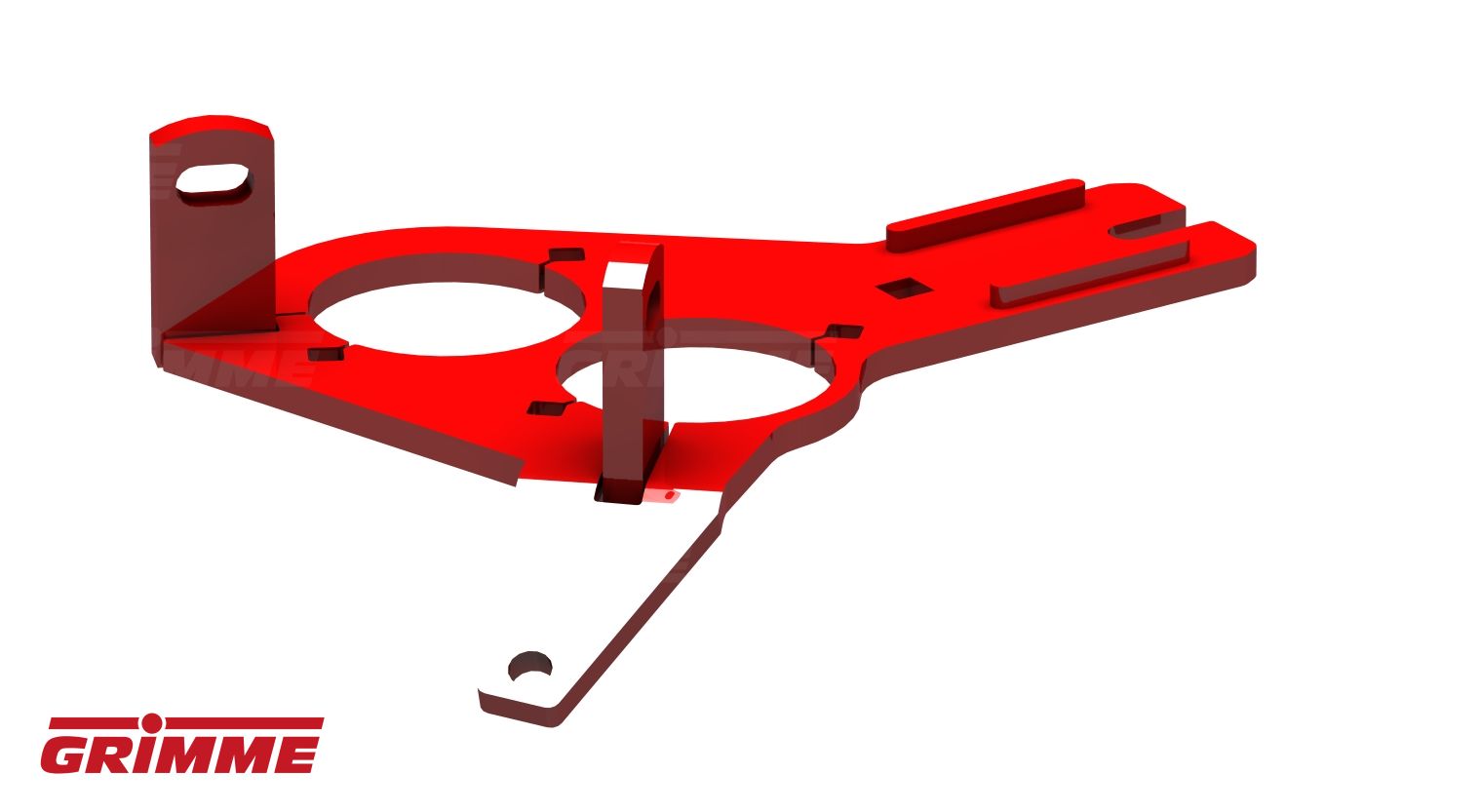

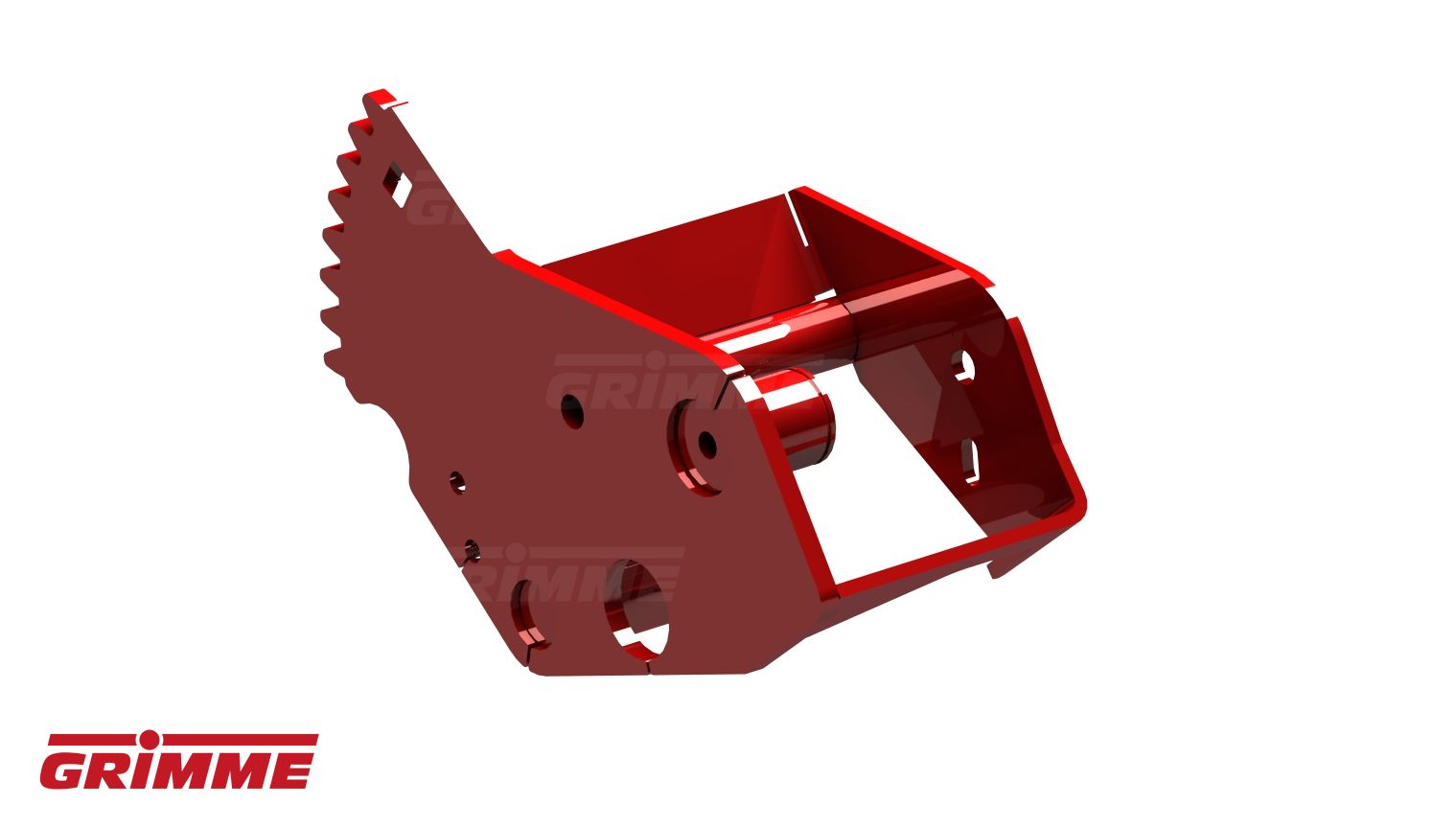

ADJUSTING PLATE R/H
Quantity in assembly group:
1 Piece / Pos. 58
ADJUSTING PLATE L/H
Quantity in assembly group:
1 Piece / Pos. 59
FLANGE BEARING S40
Quantity in assembly group:
2 Piece / Pos. 60

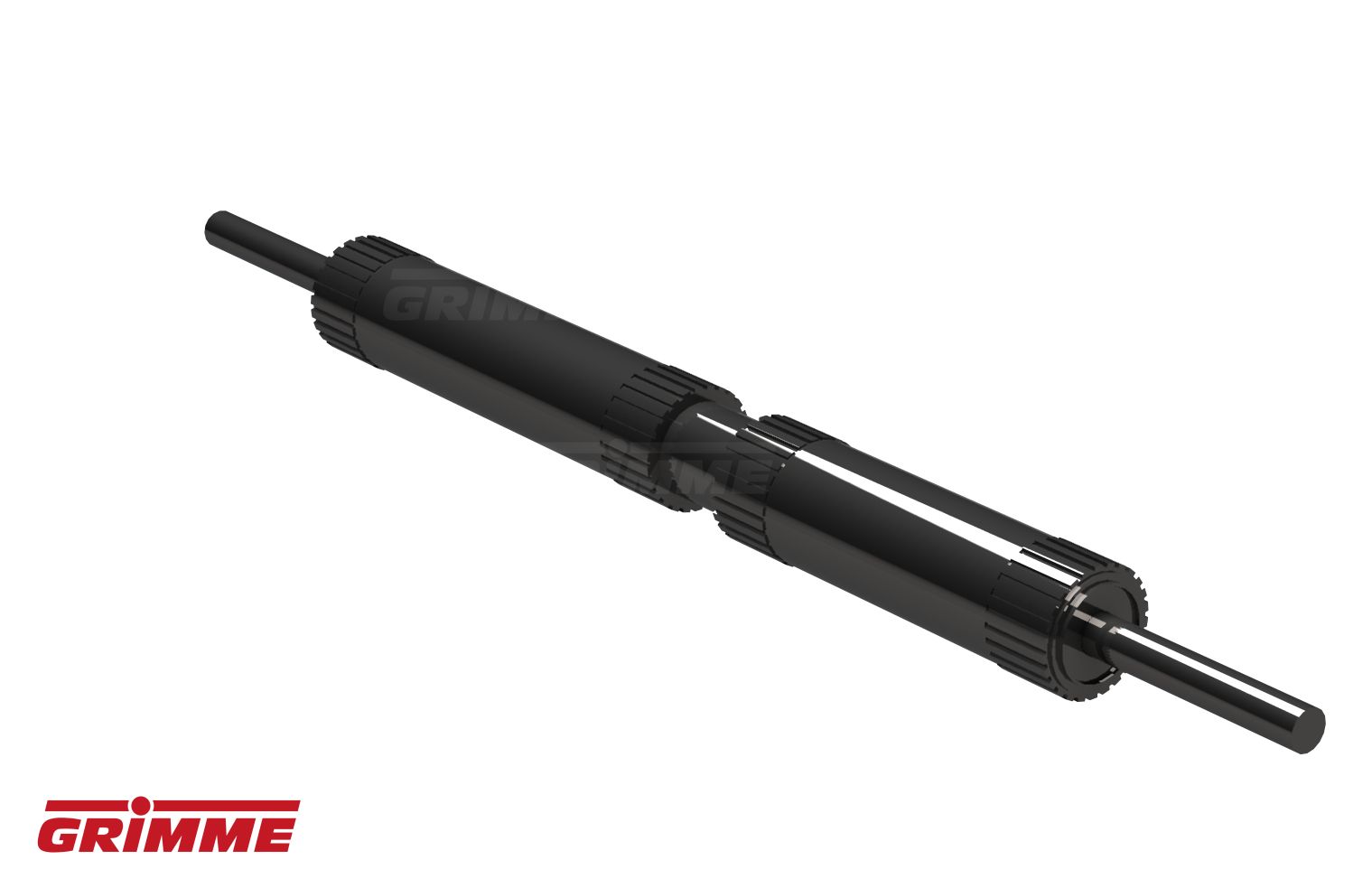

2ND WEB DRIVE DRUM
Quantity in assembly group:
1 Piece / Pos. 64
SPACER TUBE
Quantity in assembly group:
2 Piece / Pos. 65
PLATE
Quantity in assembly group:
2 Piece / Pos. 66
CONTACT WASHER FORM M 8-GAL
Quantity in assembly group:
4 Piece / Pos. 67
SET SCREW M8X25-DIN933-8.8-G
Quantity in assembly group:
2 Piece / Pos. 68
LOCKING GEAR
Quantity in assembly group:
2 Piece / Pos. 69
COACH BOLT M10X50-DIN603-8.8-G
Quantity in assembly group:
2 Piece / Pos. 70
HEX BOLT M12X160-DIN931-8.8-G
Quantity in assembly group:
1 Piece / Pos. 71
LEVER L/H
Quantity in assembly group:
1 Piece / Pos. 72
