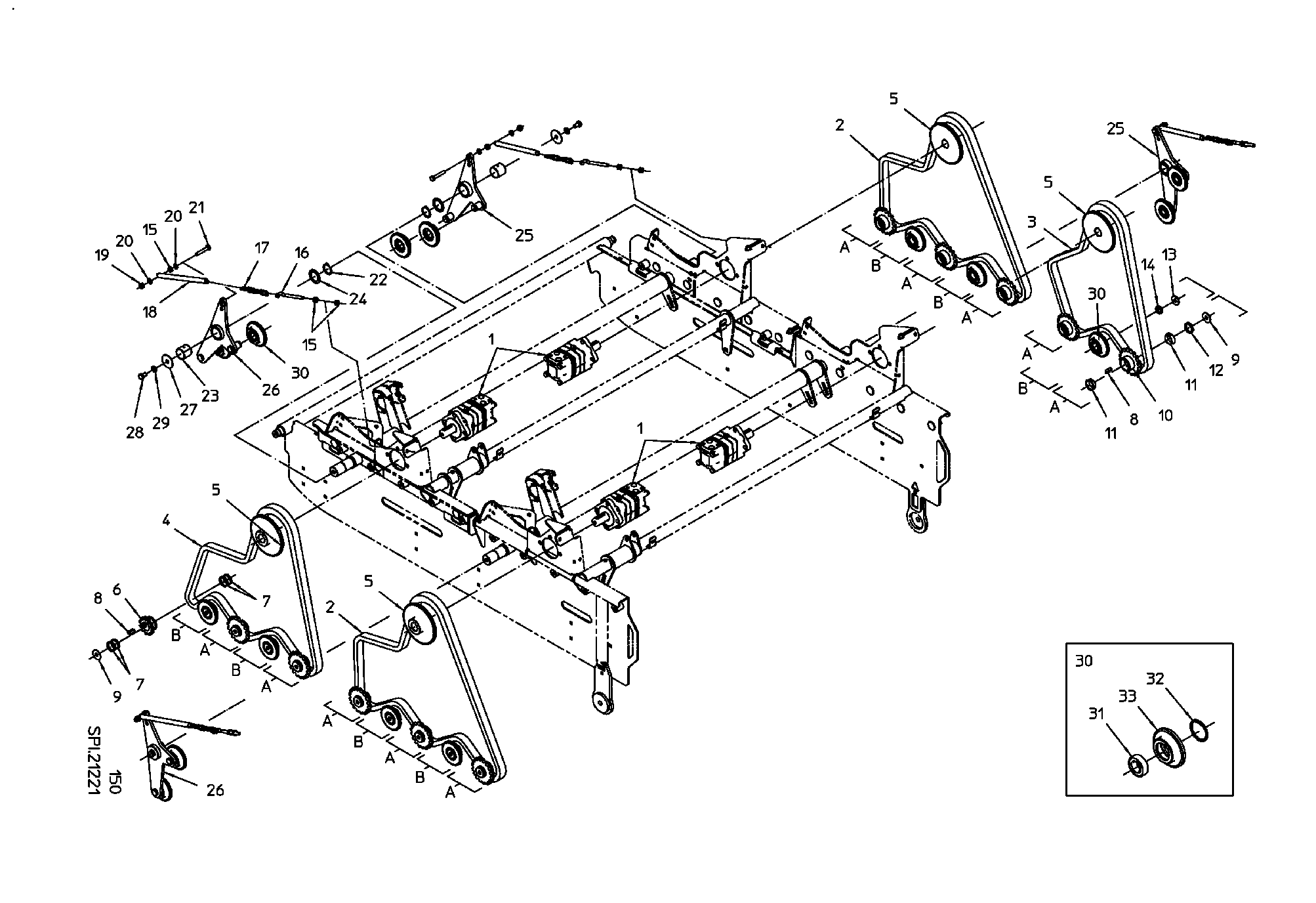

Parts by subassemblies

HYDRAULIC MOTOR OMS160

Quantity in assembly group: 4 Piece / Pos. 1

CHAIN 3/4"X1/2"-ASA60-130R

Quantity in assembly group: 2 Piece / Pos. 2

CHAIN 3/4"X1/2"-ASA60-102R

Quantity in assembly group: 1 Piece / Pos. 3

CHAIN 3/4"X1/2"-ASA60-127R

Quantity in assembly group: 1 Piece / Pos. 4

CHAIN GEAR 3/4"X1/2"-T26

Quantity in assembly group: 4 Piece / Pos. 5

SPROCKET 3/4"-T11

Quantity in assembly group: 1 Piece / Pos. 6

SPACER RING

Quantity in assembly group: 4 Piece / Pos. 7

FEATHER KEY A 10X8X30 DIN6885

Quantity in assembly group: 14 Piece / Pos. 8

SPACER RING 13X40X2

Quantity in assembly group: 11 Piece / Pos. 9

SPROCKET ASA60-1 Z17

Quantity in assembly group: 10 Piece / Pos. 10

CLAMPING RING

Quantity in assembly group: 20 Piece / Pos. 11

SPACER TUBE

Quantity in assembly group: 10 Piece / Pos. 12

DISC A 13 DIN9021-GAL

Quantity in assembly group: 7 Piece / Pos. 13

SPACER TUBE

Quantity in assembly group: 8 Piece / Pos. 14

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 12 Piece / Pos. 15

EYELET SCREW

Quantity in assembly group: 4 Piece / Pos. 16

LINK CHAIN-4 LINKS C5X36

Quantity in assembly group: 4 Piece / Pos. 17

TENSION SPRING

Quantity in assembly group: 4 Piece / Pos. 18

NYLOC NUT DIN985-M10-8-GAL

Quantity in assembly group: 4 Piece / Pos. 19

WASHER A10,5 DIN125-VERZ

Quantity in assembly group: 8 Piece / Pos. 20

HHC-SCREW M10X60 DIN933-8.8-GA

Quantity in assembly group: 4 Piece / Pos. 21

RETAINING RING A 40X1,75 DIN47

Quantity in assembly group: 4 Piece / Pos. 22

PLAIN BEARING BUSH 404440

Quantity in assembly group: 4 Piece / Pos. 23

DISC 41X55X3

Quantity in assembly group: 4 Piece / Pos. 24

TENSION ARM L/H

Quantity in assembly group: 2 Piece / Pos. 25

TENSION ARM R/H

Quantity in assembly group: 2 Piece / Pos. 26

WASHER

Quantity in assembly group: 4 Piece / Pos. 27

SET SCREW M12X20-DIN933-8.8-G

Quantity in assembly group: 4 Piece / Pos. 28

DISC A13 DIN125-GAL

Quantity in assembly group: 26 Piece / Pos. 29

SPROCKET DEW

Quantity in assembly group: 15 Piece / Pos. 30

BALL BEARING 6205-2RS

Quantity in assembly group: 1 Piece / Pos. 31

RETAINING RING J 52X2 DIN472

Quantity in assembly group: 1 Piece / Pos. 32

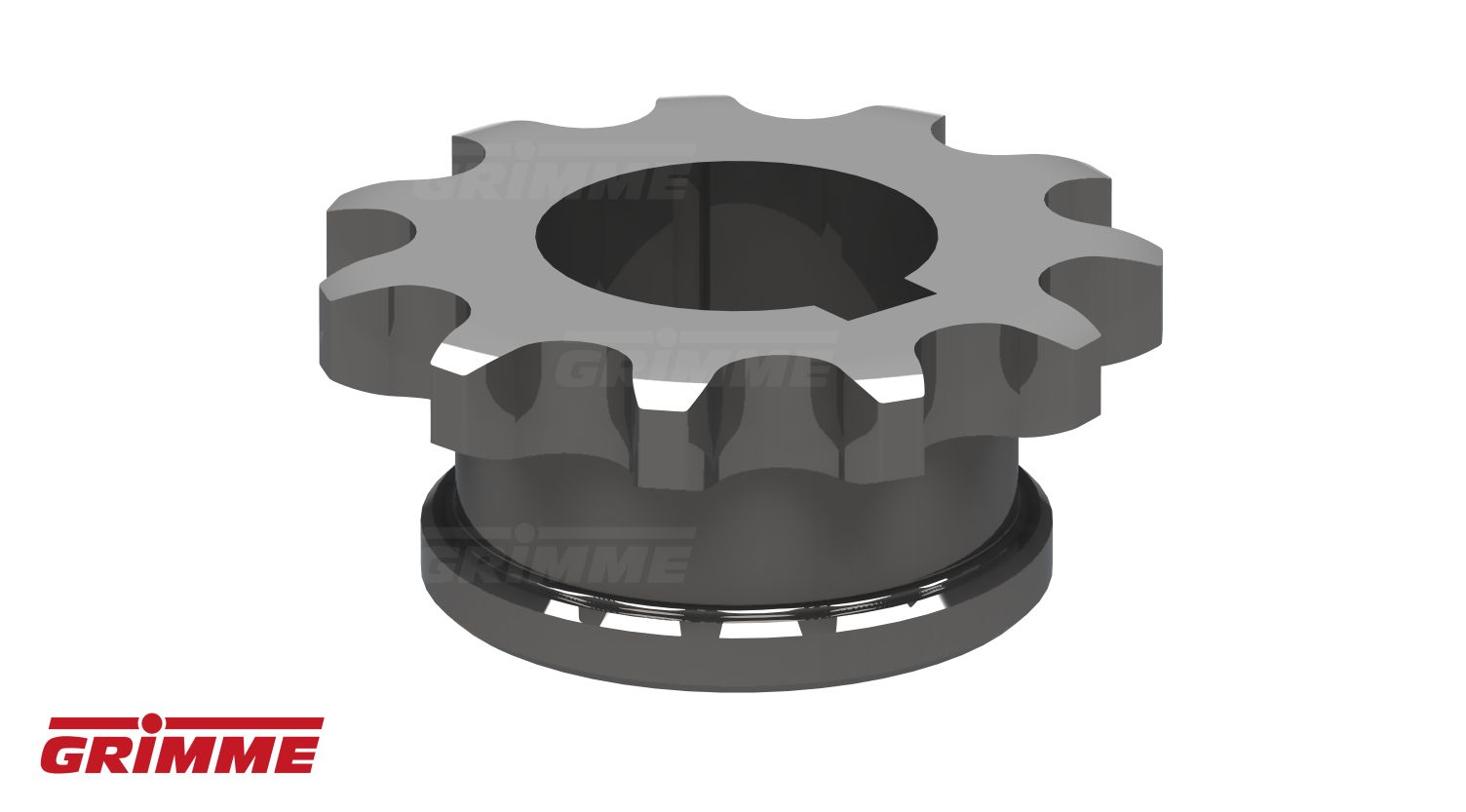

SPROCKET 3/4"-T15

Quantity in assembly group: 1 Piece / Pos. 33
