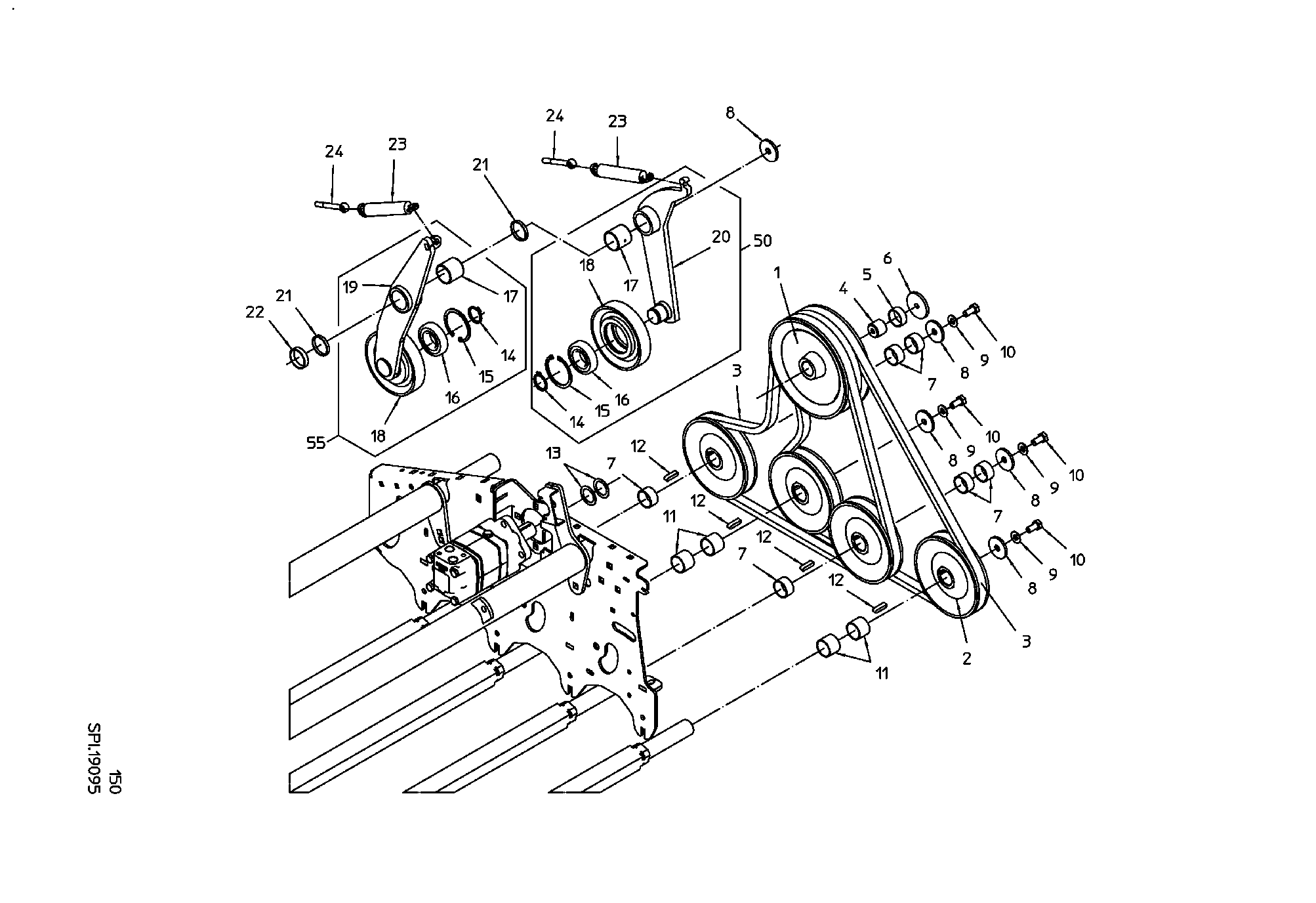

Parts by subassemblies

DOUBLE PULLEY

Quantity in assembly group: 1 Piece / Pos. 1

PULLEY C180

Quantity in assembly group: 4 Piece / Pos. 2

KRM 22X1940 LI AUSF KEVLAR

Quantity in assembly group: 2 Piece / Pos. 3

FITTING SLEEVE 32X28

Quantity in assembly group: 1 Piece / Pos. 4

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 5

WASHER

Quantity in assembly group: 1 Piece / Pos. 6

SPACER RING

Quantity in assembly group: 6 Piece / Pos. 7

RETAINING WASHER

Quantity in assembly group: 5 Piece / Pos. 8

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 4 Piece / Pos. 9

SET SCREW M12X25-DIN933-8.8-G

Quantity in assembly group: 4 Piece / Pos. 10

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 11

FEATHER KEY A 10X8X35 DIN6885

Quantity in assembly group: 4 Piece / Pos. 12

SHIM WASHER PS 32X4.5X1 DIN988

Quantity in assembly group: 2 Piece / Pos. 13

RETAINING RING AS 35X2,5 DIN47

Quantity in assembly group: 2 Piece / Pos. 14

RETAINING RING J 72X2,5 DIN472

Quantity in assembly group: 2 Piece / Pos. 15

BALL BEARING 6207-2RS

Quantity in assembly group: 2 Piece / Pos. 16

PLAIN BEARING BUSH 404440

Quantity in assembly group: 2 Piece / Pos. 17

BELT ROLLER

Quantity in assembly group: 2 Piece / Pos. 18

BRACKET

Quantity in assembly group: 1 Piece / Pos. 19

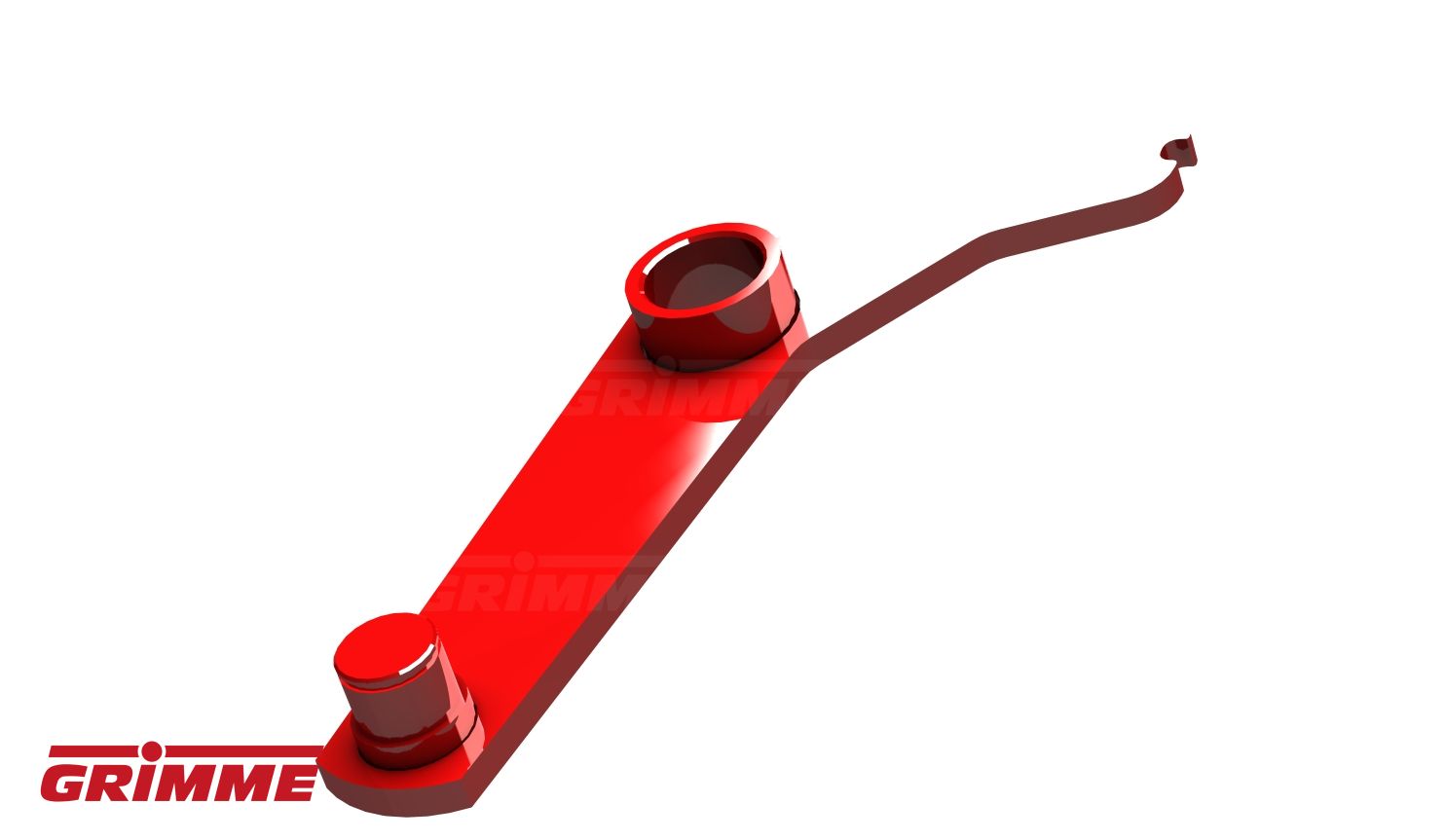

TENSIONER ARM

Quantity in assembly group: 1 Piece / Pos. 20

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 21

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 22

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 23

EB B M10X90 444-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 24

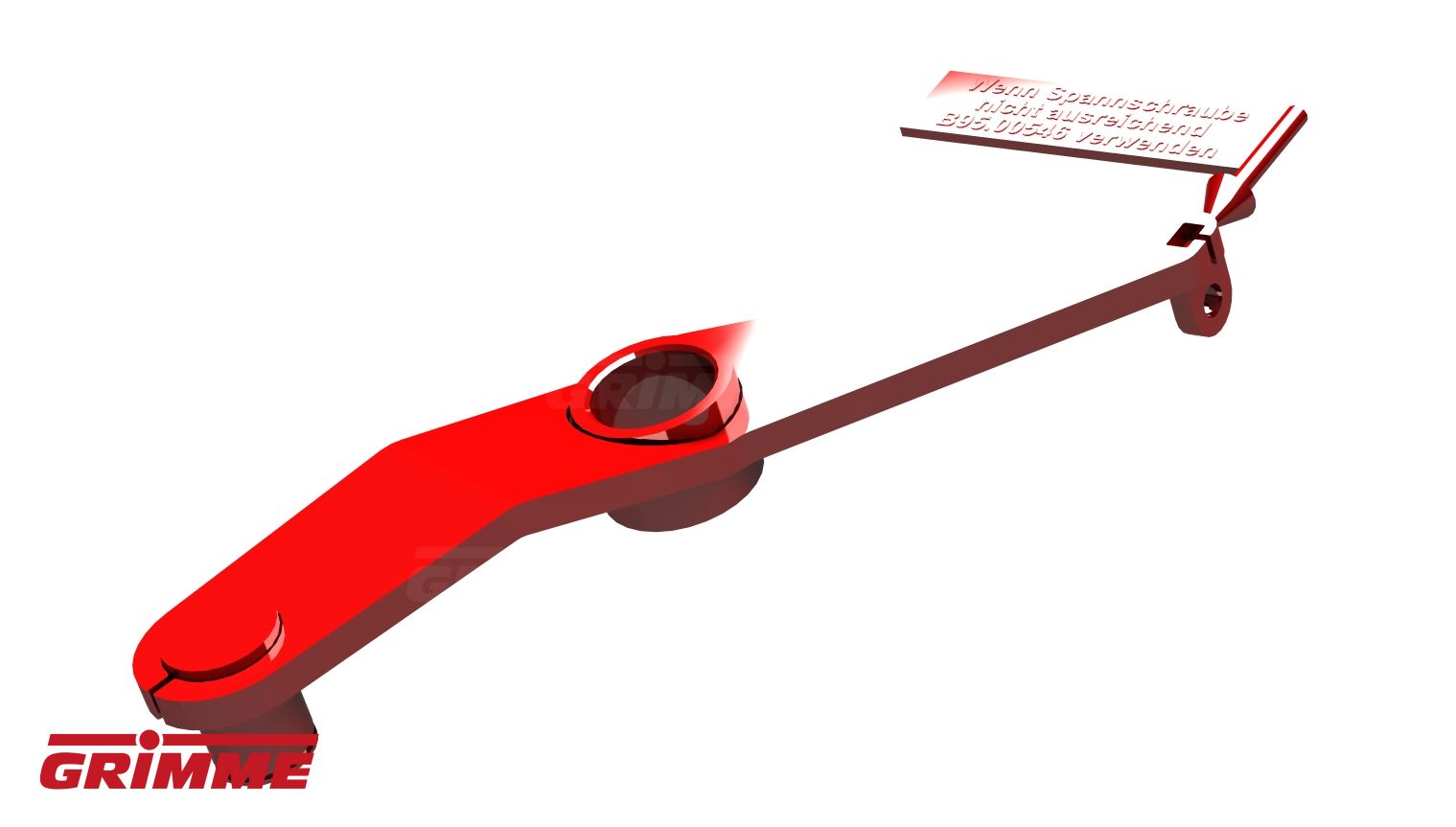

BELT TENSIONER ARM

Quantity in assembly group: 1 Piece / Pos. 50

SUPPORTING BRACKET

Quantity in assembly group: 1 Piece / Pos. 55
