Parts by subassemblies

Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

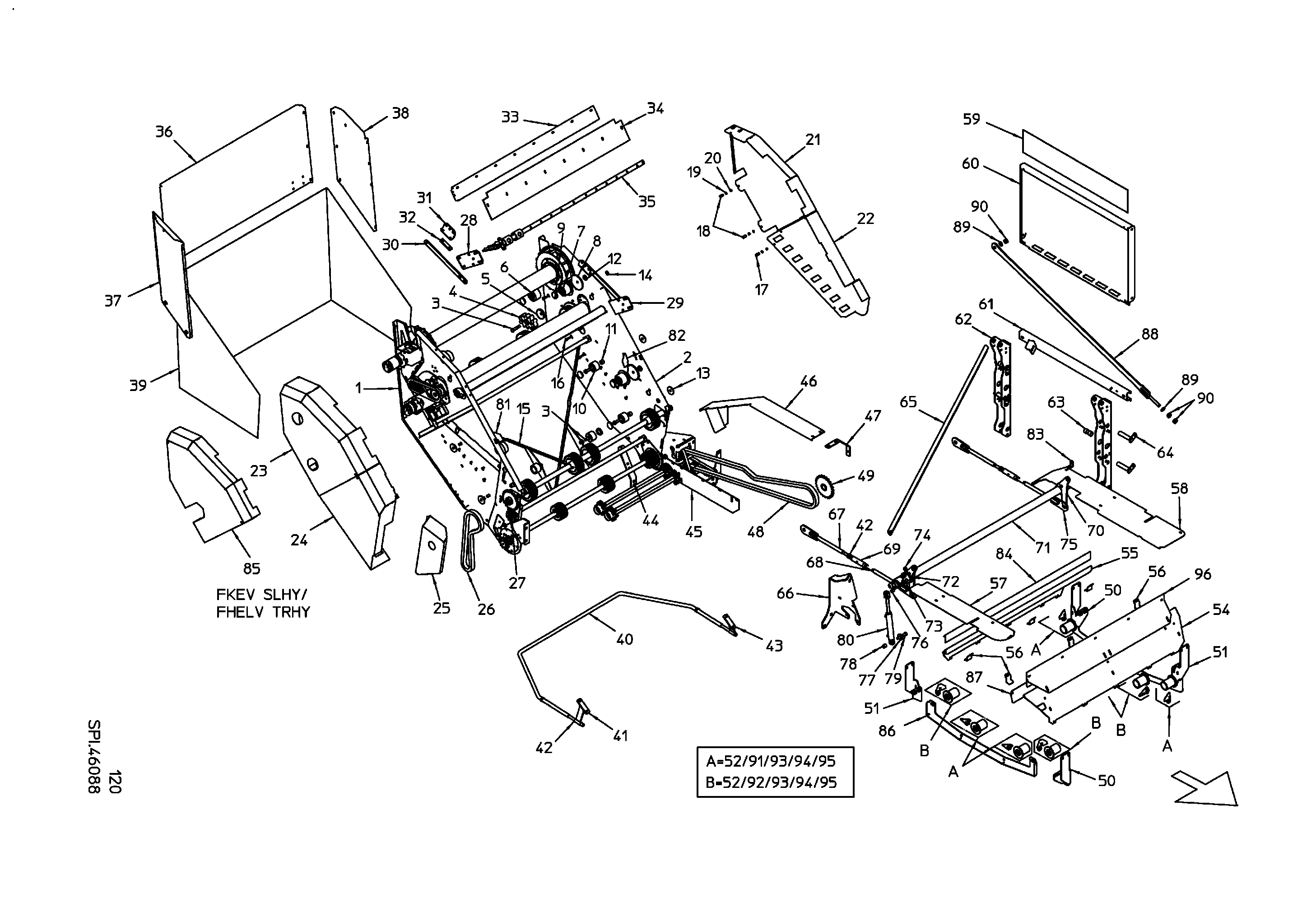

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
FHELV w DEW HY DRIVE FHELV (118 Parts)
▸

Subassembly parts

All items Equipment ex work ()
RETAINING RING A 25X1,2 DIN471
Quantity in assembly group: 1 Piece / Pos. 0
DISC 10,5 DIN7349-GAL
Quantity in assembly group: 13 Piece / Pos. 0
SPROCKET 1"-T12
Quantity in assembly group: 1 Piece / Pos. 0
RETAINING RING J 52X2 DIN472
Quantity in assembly group: 1 Piece / Pos. 0
NYLOC NUT DIN985-M10-8-GAL
Quantity in assembly group: 14 Piece / Pos. 0
HEX BOLT M10X60-DIN931-8.8-G
Quantity in assembly group: 14 Piece / Pos. 0
GRB 6205 ZZRST
Quantity in assembly group: 2 Piece / Pos. 0
BALL BEARING 6205-2RS
Quantity in assembly group: 1 Piece / Pos. 0
CYL-SEAL SET
Quantity in assembly group: 1 Piece / Pos. 0
ROLLER CAP
Quantity in assembly group: 1 Piece / Pos. 0
SEALING STRIP BLACK 20X12
Quantity in assembly group: 1 Piece / Pos. 0
CLAMPING BRACKET
Quantity in assembly group: 13 Piece / Pos. 0
BACK-HOLDER TUBE
Quantity in assembly group: 1 Piece / Pos. 0
SPROCKET BEARING NECK
Quantity in assembly group: 1 Piece / Pos. 0
COUNTER PIECE
Quantity in assembly group: 1 Piece / Pos. 0
BUSH
Quantity in assembly group: 1 Piece / Pos. 0
DISTANCE TUBE
Quantity in assembly group: 1 Piece / Pos. 0
SEALING RING 40-28-4
Quantity in assembly group: 1 Piece / Pos. 0
BACK-HOLDING PADDLE -VULC-
Quantity in assembly group: 10 Piece / Pos. 0
BACK-HOLDING PADDLE -VULC-
Quantity in assembly group: 1 Piece / Pos. 0
BACK-HOLDING PADDLE R/H -VULC
Quantity in assembly group: 1 Piece / Pos. 0
BACK-HOLDING PADDLE L/H -VULC
Quantity in assembly group: 1 Piece / Pos. 0
FLANGE ROLLER DM=75
Quantity in assembly group: 1 Piece / Pos. 0
SIDE PART R/H
Quantity in assembly group: 1 Piece / Pos. 1
SIDE PART L/H
Quantity in assembly group: 1 Piece / Pos. 2
HEX BOLT M16X80-DIN931-8.8-G
Quantity in assembly group: 8 Piece / Pos. 3
AGITATOR CAM
Quantity in assembly group: 2 Piece / Pos. 4
WINDING PROTECTION
Quantity in assembly group: 2 Piece / Pos. 5
SUPPORT ROLLER D95
Quantity in assembly group: 2 Piece / Pos. 6
FLANGE ROLLER D95
Quantity in assembly group: 4 Piece / Pos. 7
WINDING PROTECTION
Quantity in assembly group: 4 Piece / Pos. 8
ROLLER CAP
Quantity in assembly group: 12 Piece / Pos. 9
SUPPORT ROLLER DM75
Quantity in assembly group: 6 Piece / Pos. 10
SPACER 20MM
Quantity in assembly group: 6 Piece / Pos. 11
DISC 16,5X40X5
Quantity in assembly group: 4 Piece / Pos. 12
WASHER 17X70X5
Quantity in assembly group: 8 Piece / Pos. 13
RETAINING RING A 25X2 DIN471
Quantity in assembly group: 1 Piece / Pos. 14
SUPPORT FRAME
Quantity in assembly group: 1 Piece / Pos. 15
COACH BOLT M8X55-DIN603-8.8-G
Quantity in assembly group: 3 Piece / Pos. 16
SPACER TUBE
Quantity in assembly group: 1 Piece / Pos. 17
SPACER TUBE
Quantity in assembly group: 2 Piece / Pos. 18
CONTACT WASHER FORM M 8-GAL
Quantity in assembly group: 3 Piece / Pos. 19
HEXAGON NUT M8 DIN934-8-GAL
Quantity in assembly group: 3 Piece / Pos. 20
PROTECTION L/H
Quantity in assembly group: 1 Piece / Pos. 21
PROTECTION L/H
Quantity in assembly group: 1 Piece / Pos. 22
GUARD PLATE
Quantity in assembly group: 1 Piece / Pos. 23
GUARD PLATE R/H LOWER
Quantity in assembly group: 1 Piece / Pos. 24
PROTECTION R/H
Quantity in assembly group: 1 Piece / Pos. 25
CHAIN 1"X5/8"-ASA80-57R
Quantity in assembly group: 1 Piece / Pos. 26
IDLER SPROCKET 1"-Z12
Quantity in assembly group: 1 Piece / Pos. 27
BRACKET L/H
Quantity in assembly group: 1 Piece / Pos. 28
BRACKET R/H
Quantity in assembly group: 1 Piece / Pos. 29
BRACE
Quantity in assembly group: 2 Piece / Pos. 30
BRACKET
Quantity in assembly group: 2 Piece / Pos. 31
RUBBER DAMPER
Quantity in assembly group: 2 Piece / Pos. 32
CHUTE PLATE
Quantity in assembly group: 1 Piece / Pos. 33
PLATE
Quantity in assembly group: 1 Piece / Pos. 34
BACK HOLDER UPPER
Quantity in assembly group: 1 Piece / Pos. 35
HOOD PLATE REAR
Quantity in assembly group: 1 Piece / Pos. 36
HOOD PLATE R/H
Quantity in assembly group: 1 Piece / Pos. 37
HOOD PLATE L/H
Quantity in assembly group: 1 Piece / Pos. 38
SHEET
Quantity in assembly group: 1 Piece / Pos. 39
TUBE STRAP
Quantity in assembly group: 1 Piece / Pos. 40
PIPE CLAMP R/H
Quantity in assembly group: 1 Piece / Pos. 41
HEXAGON NUT M20 DIN934-8-GAL
Quantity in assembly group: 4 Piece / Pos. 42
PIPE CLAMP L/H
Quantity in assembly group: 1 Piece / Pos. 43
BRACKET
Quantity in assembly group: 1 Piece / Pos. 44
PLATE L/H
Quantity in assembly group: 1 Piece / Pos. 45
PROTECTION L/H
Quantity in assembly group: 1 Piece / Pos. 46
PANEL
Quantity in assembly group: 1 Piece / Pos. 47
RO-CHAIN-E-ASA-1X5/8"-158-1-2
Quantity in assembly group: 1 Piece / Pos. 48
SPROCKET 1"-T24
Quantity in assembly group: 1 Piece / Pos. 49
BRACKET L/H
Quantity in assembly group: 2 Piece / Pos. 50
BRACKET R/H
Quantity in assembly group: 2 Piece / Pos. 51
ROLLER 75
Quantity in assembly group: 8 Piece / Pos. 52
COVER PLATE FRONT
Quantity in assembly group: 1 Piece / Pos. 54
COVER PLATE REAR
Quantity in assembly group: 1 Piece / Pos. 55
BRACKET
Quantity in assembly group: 6 Piece / Pos. 56
COVER PLATE
Quantity in assembly group: 1 Piece / Pos. 57
COVER PLATE
Quantity in assembly group: 1 Piece / Pos. 58
STICKER L/H REAR
Quantity in assembly group: 1 Piece / Pos. 59
PROTECTION
Quantity in assembly group: 1 Piece / Pos. 60
PROFILE
Quantity in assembly group: 1 Piece / Pos. 61
PROFILE
Quantity in assembly group: 2 Piece / Pos. 62
SPACER TUBE
Quantity in assembly group: 4 Piece / Pos. 63
BOLT
Quantity in assembly group: 4 Piece / Pos. 64
STAY
Quantity in assembly group: 1 Piece / Pos. 65
BRACKET
Quantity in assembly group: 1 Piece / Pos. 66
STAY R/H
Quantity in assembly group: 2 Piece / Pos. 67
STAY L/H
Quantity in assembly group: 2 Piece / Pos. 68
TENSION LOCK NUT ZINC M20
Quantity in assembly group: 2 Piece / Pos. 69
LEVER
Quantity in assembly group: 2 Piece / Pos. 70
CONTROL LEVER
Quantity in assembly group: 1 Piece / Pos. 71
CYLINDER BRACKET
Quantity in assembly group: 1 Piece / Pos. 72
HEX BOLT M16X60-DIN931-8.8-G
Quantity in assembly group: 2 Piece / Pos. 73
SPACER PIECE 16,5X30X10
Quantity in assembly group: 1 Piece / Pos. 74
SPACER 24X3.5X9
Quantity in assembly group: 2 Piece / Pos. 75
BUSHING
Quantity in assembly group: 1 Piece / Pos. 76
RETAINING WASHER
Quantity in assembly group: 1 Piece / Pos. 77
BUSH
Quantity in assembly group: 1 Piece / Pos. 78
HEX BOLT M16X90-DIN931-8.8-G
Quantity in assembly group: 1 Piece / Pos. 79
DOUBLE ACTING HYD RAM
Quantity in assembly group: 1 Piece / Pos. 80
SCRAPER R/H
Quantity in assembly group: 1 Piece / Pos. 81
SCRAPER L/H
Quantity in assembly group: 1 Piece / Pos. 82

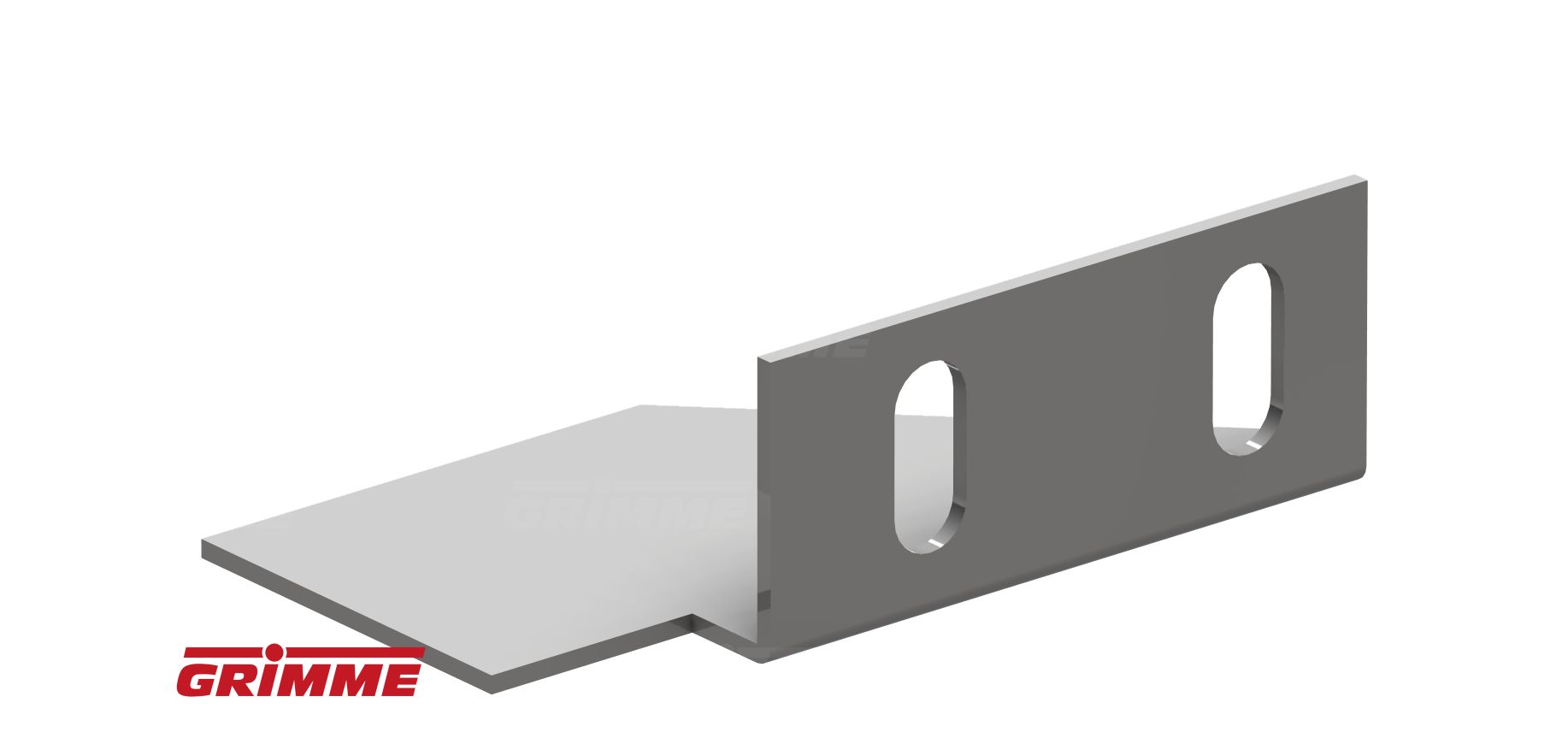

MOUNTING ANGLE
Quantity in assembly group: 1 Piece / Pos. 83
COVER PLATE
Quantity in assembly group: 2 Piece / Pos. 84
PROTECTION
Quantity in assembly group: 1 Piece / Pos. 85
ROLLER HOLDER
Quantity in assembly group: 2 Piece / Pos. 86
PROTECTION FHELV FRONT
Quantity in assembly group: 1 Piece / Pos. 87
BRACE BAR
Quantity in assembly group: 1 Piece / Pos. 88
FLAT WASHER M20-FORM A
Quantity in assembly group: 2 Piece / Pos. 89
HEXAGON NUT M20 DIN934-10 flZn
Quantity in assembly group: 3 Piece / Pos. 90
SCRAPER R/H
Quantity in assembly group: 4 Piece / Pos. 91
SCRAPER L/H
Quantity in assembly group: 4 Piece / Pos. 92
WINDING PROTECTION
Quantity in assembly group: 8 Piece / Pos. 93
HEX BOLT M16X120-DIN931-8.8-G
Quantity in assembly group: 8 Piece / Pos. 94
SCREW PLUG M16X1,5 DIN90
Quantity in assembly group: 8 Piece / Pos. 95
COVER PLATE
Quantity in assembly group: 1 Piece / Pos. 96
