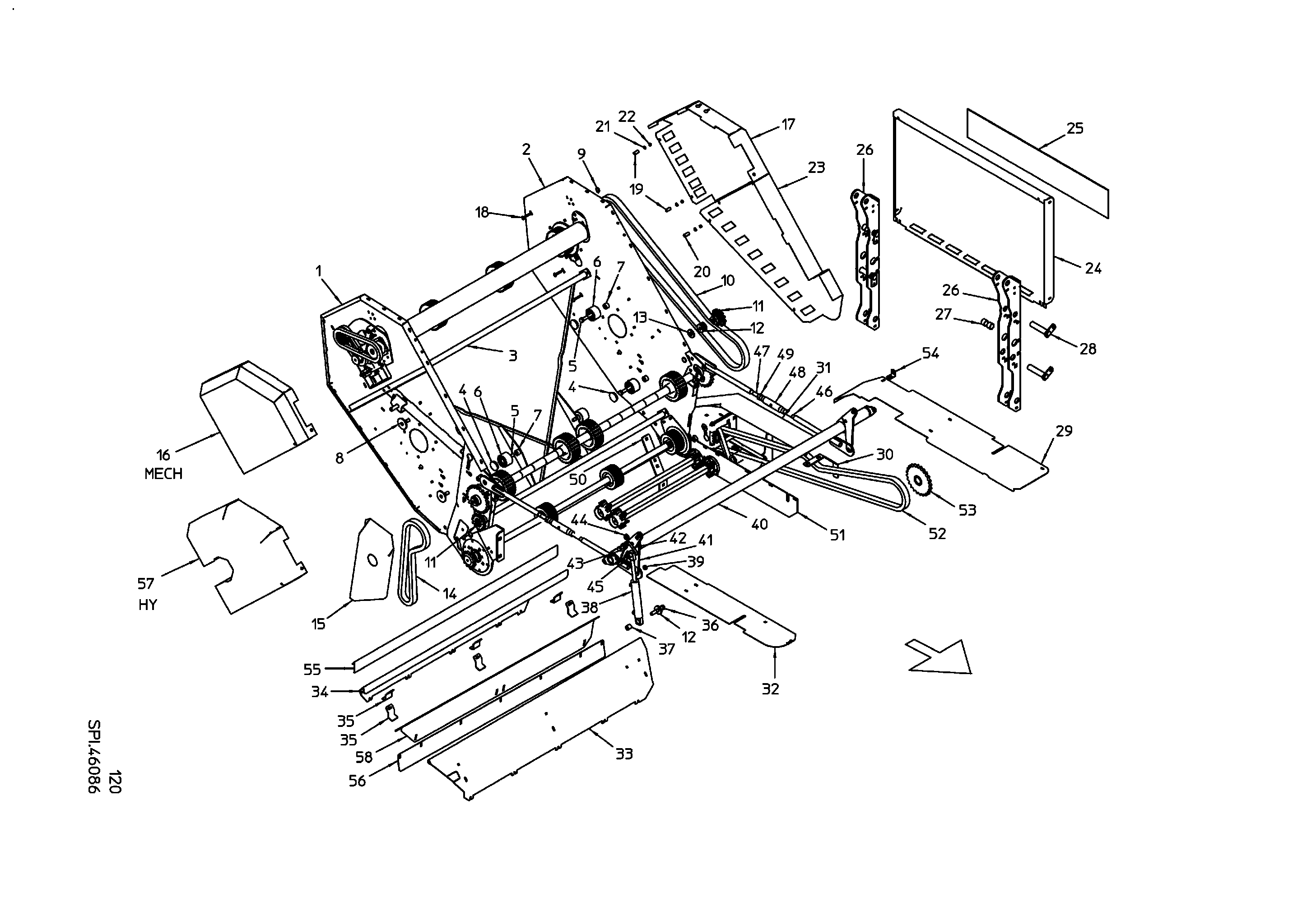

Parts by subassemblies

RETAINING RING J 52X2 DIN472

Quantity in assembly group: 1 Piece / Pos. 0

SPROCKET 1"-T12

Quantity in assembly group: 1 Piece / Pos. 0

SPROCKET BEARING NECK

Quantity in assembly group: 1 Piece / Pos. 0

RETAINING RING A 25X1,2 DIN471

Quantity in assembly group: 1 Piece / Pos. 0

CYL-SEAL SET

Quantity in assembly group: 1 Piece / Pos. 0

BALL BEARING 6205-2RS

Quantity in assembly group: 1 Piece / Pos. 0

SIDE PART R/H

Quantity in assembly group: 1 Piece / Pos. 1

SIDE PART L/H

Quantity in assembly group: 1 Piece / Pos. 2

SUPPORT FRAME

Quantity in assembly group: 1 Piece / Pos. 3

ROLLER CAP

Quantity in assembly group: 6 Piece / Pos. 4

HEX BOLT M16X80-DIN931-8.8-G

Quantity in assembly group: 6 Piece / Pos. 5

SUPPORT ROLLER DM75

Quantity in assembly group: 6 Piece / Pos. 6

SPACER 20MM

Quantity in assembly group: 6 Piece / Pos. 7

WASHER 17X70X5

Quantity in assembly group: 6 Piece / Pos. 8

RETAINING RING A 25X2 DIN471

Quantity in assembly group: 1 Piece / Pos. 9

CHAIN 1"X5/8"-ASA80-111R

Quantity in assembly group: 1 Piece / Pos. 10

IDLER SPROCKET 1"-Z12

Quantity in assembly group: 2 Piece / Pos. 11

RETAINING WASHER

Quantity in assembly group: 5 Piece / Pos. 12

WASHER 20,5X50X6

Quantity in assembly group: 1 Piece / Pos. 13

CHAIN 1"X5/8"-ASA80-57R

Quantity in assembly group: 1 Piece / Pos. 14

PROTECTION R/H

Quantity in assembly group: 1 Piece / Pos. 15

GUARD PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 16

PROTECTION L/H

Quantity in assembly group: 1 Piece / Pos. 17

COACH BOLT M8X55-DIN603-8.8-G

Quantity in assembly group: 3 Piece / Pos. 18

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 19

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 20

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 3 Piece / Pos. 21

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 3 Piece / Pos. 22

PROTECTION L/H

Quantity in assembly group: 1 Piece / Pos. 23

PROTECTION

Quantity in assembly group: 1 Piece / Pos. 24

STICKER L/H REAR

Quantity in assembly group: 1 Piece / Pos. 25

PROFILE

Quantity in assembly group: 2 Piece / Pos. 26

SPACER TUBE

Quantity in assembly group: 3 Piece / Pos. 27

BOLT

Quantity in assembly group: 4 Piece / Pos. 28

COVER PLATE

Quantity in assembly group: 1 Piece / Pos. 29

PANEL

Quantity in assembly group: 1 Piece / Pos. 30

PROTECTION L/H

Quantity in assembly group: 1 Piece / Pos. 31

COVER PLATE

Quantity in assembly group: 1 Piece / Pos. 32

COVER PLATE FRONT

Quantity in assembly group: 1 Piece / Pos. 33

COVER PLATE REAR

Quantity in assembly group: 1 Piece / Pos. 34

BRACKET

Quantity in assembly group: 6 Piece / Pos. 35

HEX BOLT M16X90-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 36

BUSH

Quantity in assembly group: 1 Piece / Pos. 37

DOUBLE ACTING HYD RAM

Quantity in assembly group: 1 Piece / Pos. 38

SPACER 24X3.5X9

Quantity in assembly group: 2 Piece / Pos. 39

CONTROL LEVER

Quantity in assembly group: 1 Piece / Pos. 40

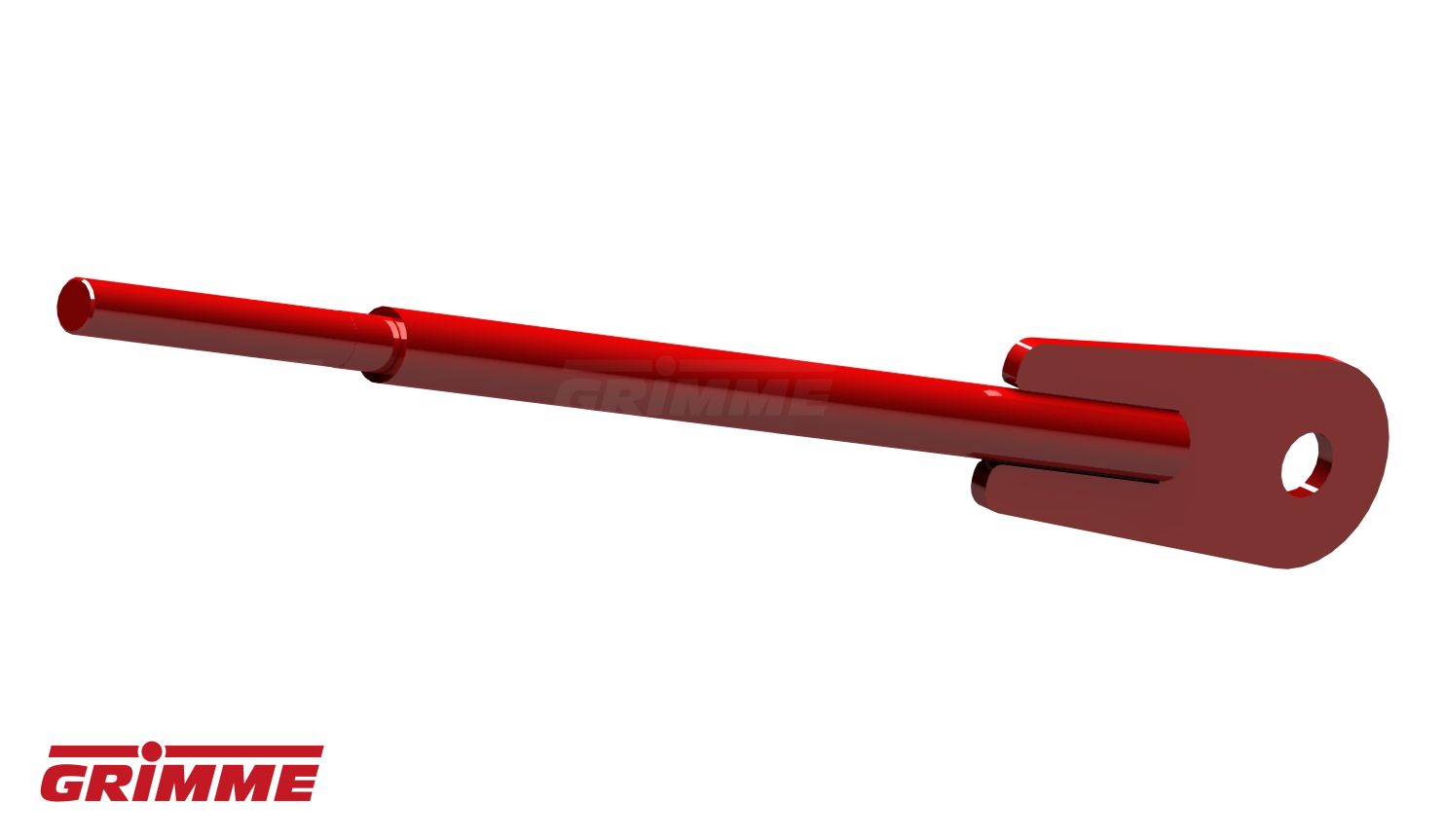

LEVER

Quantity in assembly group: 2 Piece / Pos. 41

CYLINDER BRACKET

Quantity in assembly group: 1 Piece / Pos. 42

HEX BOLT M16X60-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 43

SPACER PIECE 16,5X30X10

Quantity in assembly group: 1 Piece / Pos. 44

BUSHING

Quantity in assembly group: 1 Piece / Pos. 45

STAY L/H

Quantity in assembly group: 2 Piece / Pos. 46

STAY R/H

Quantity in assembly group: 2 Piece / Pos. 47

TENSION LOCK NUT ZINC M20

Quantity in assembly group: 2 Piece / Pos. 48

HEXAGON NUT M20 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 49

BRACKET

Quantity in assembly group: 1 Piece / Pos. 50

PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 51

RO-CHAIN-E-ASA-1X5/8"-158-1-2

Quantity in assembly group: 1 Piece / Pos. 52

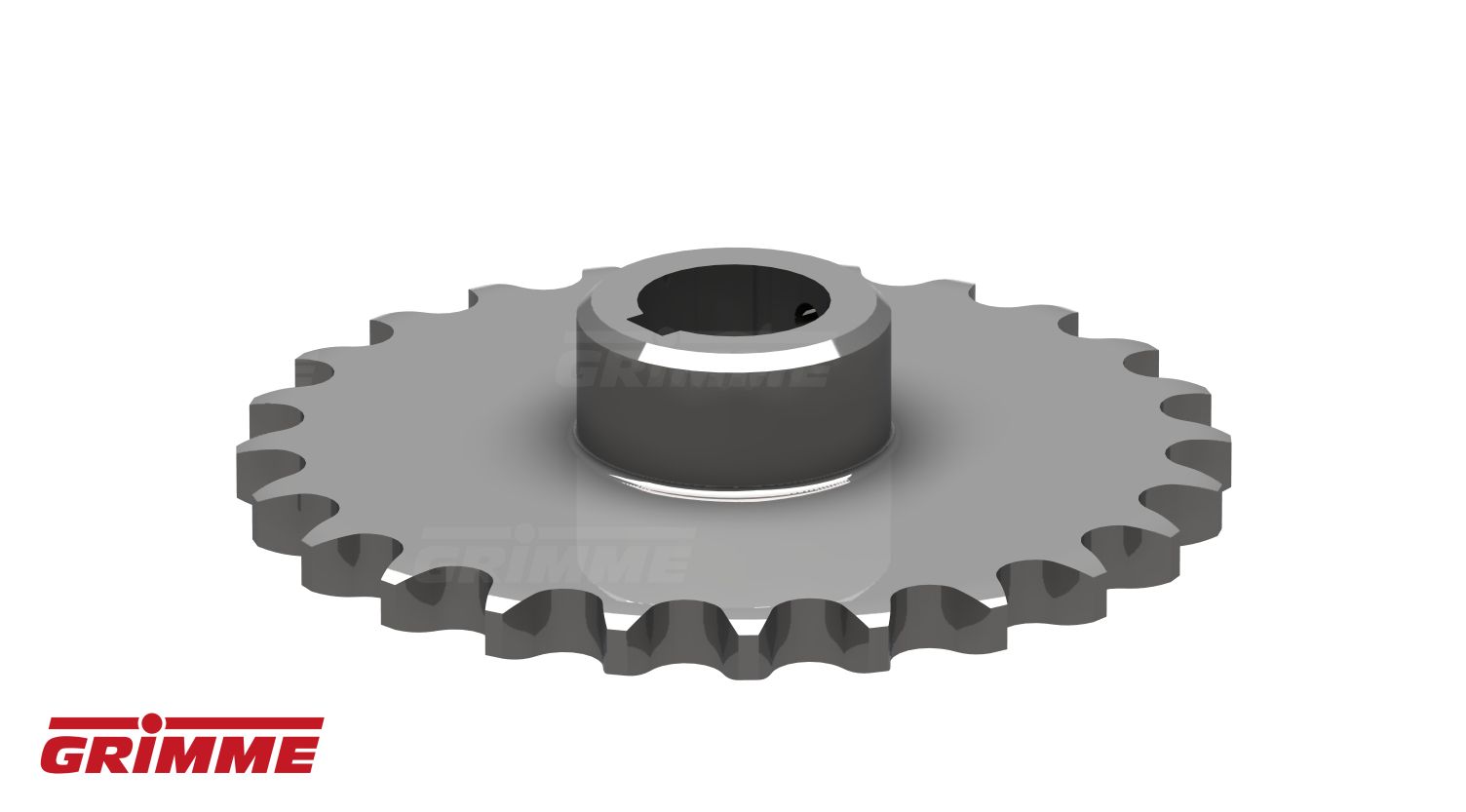

SPROCKET 1"-T24

Quantity in assembly group: 1 Piece / Pos. 53

MOUNTING ANGLE

Quantity in assembly group: 1 Piece / Pos. 54

COVER PLATE

Quantity in assembly group: 1 Piece / Pos. 55

PROTECTION FHELV FRONT

Quantity in assembly group: 1 Piece / Pos. 56

PROTECTION R/H

Quantity in assembly group: 1 Piece / Pos. 57

COVER PLATE

Quantity in assembly group: 1 Piece / Pos. 58
