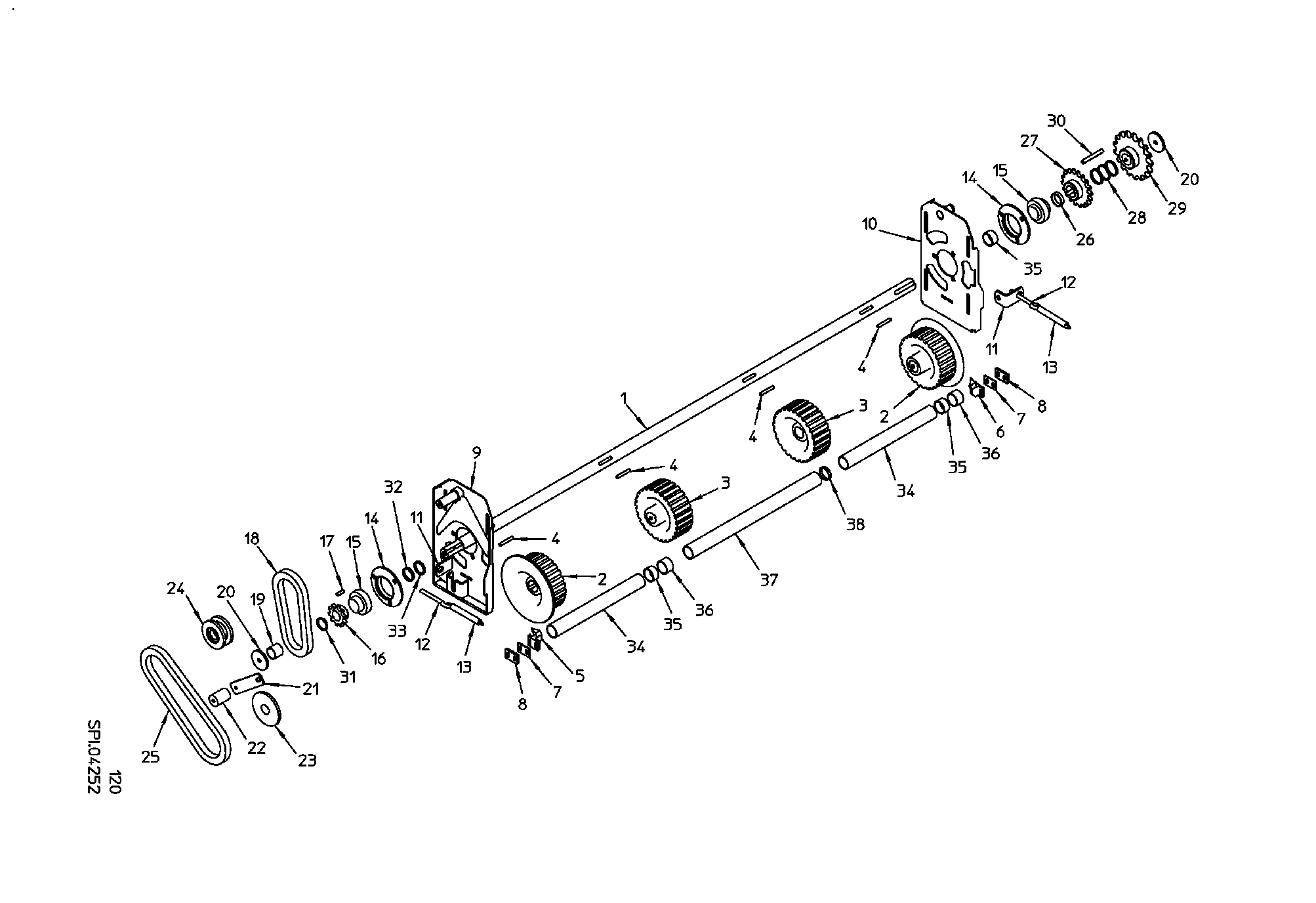

Parts by subassemblies

BALL BEARING 6005-ZZRST

Quantity in assembly group: 2 Piece / Pos. 0

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 0

RETAINING RING J 47X1,75 DIN47

Quantity in assembly group: 2 Piece / Pos. 0

SPROCKET 3/4"/7/16"T13/13

Quantity in assembly group: 1 Piece / Pos. 0

DRIVE SHAFT

Quantity in assembly group: 1 Piece / Pos. 1

DRIVE ROLLER -VULC-

Quantity in assembly group: 2 Piece / Pos. 2

DRIVE ROLLER -VULC-

Quantity in assembly group: 2 Piece / Pos. 3

FEATHER KEY A 8X8X50 DIN6885

Quantity in assembly group: 4 Piece / Pos. 4

SCRAPER L/H

Quantity in assembly group: 1 Piece / Pos. 5

SCRAPER R/H

Quantity in assembly group: 1 Piece / Pos. 6

SPACER PLATE

Quantity in assembly group: 2 Piece / Pos. 7

SPACING PIECE

Quantity in assembly group: 2 Piece / Pos. 8

TENSION PROFILE R/H

Quantity in assembly group: 1 Piece / Pos. 9

TENSION PROFILE L/H

Quantity in assembly group: 1 Piece / Pos. 10

ANGLE

Quantity in assembly group: 2 Piece / Pos. 11

EYELET SCREW

Quantity in assembly group: 2 Piece / Pos. 12

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 13

FLANGE PLATE (PR) PF72/PF207

Quantity in assembly group: 2 Piece / Pos. 14

BEARING YAR 207-2RF/UC207

Quantity in assembly group: 2 Piece / Pos. 15

SPROCKET 3/4"-T10

Quantity in assembly group: 1 Piece / Pos. 16

FEATHER KEY A 8X8X25 DIN6885

Quantity in assembly group: 1 Piece / Pos. 17

CHAIN 3/4"X1/2"-ASA60-28R

Quantity in assembly group: 1 Piece / Pos. 18

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 19

WASHER

Quantity in assembly group: 2 Piece / Pos. 20

TENSION ROLLER BRACKET

Quantity in assembly group: 1 Piece / Pos. 21

TENSION BLOCK 50LONG

Quantity in assembly group: 1 Piece / Pos. 22

SPROCKET ASA60-1 T16

Quantity in assembly group: 1 Piece / Pos. 23

DOUBLE SPROCKET T13

Quantity in assembly group: 1 Piece / Pos. 24

CHAIN 3/4"X1/2"-ASA60-42R

Quantity in assembly group: 1 Piece / Pos. 25

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 26

SPROCKET ASA60-1 T18

Quantity in assembly group: 1 Piece / Pos. 27

SPACER TUBE

Quantity in assembly group: 3 Piece / Pos. 28

SPROCKET 1"-T17

Quantity in assembly group: 1 Piece / Pos. 29

FEATHER KEY A 10X8X80 DIN6885

Quantity in assembly group: 1 Piece / Pos. 30

RETAINING RING AS 35X2,5 DIN47

Quantity in assembly group: 1 Piece / Pos. 31

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 32

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 33

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 34

SPACER RING

Quantity in assembly group: 3 Piece / Pos. 35

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 36

TUBE

Quantity in assembly group: 1 Piece / Pos. 37

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 38
