Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

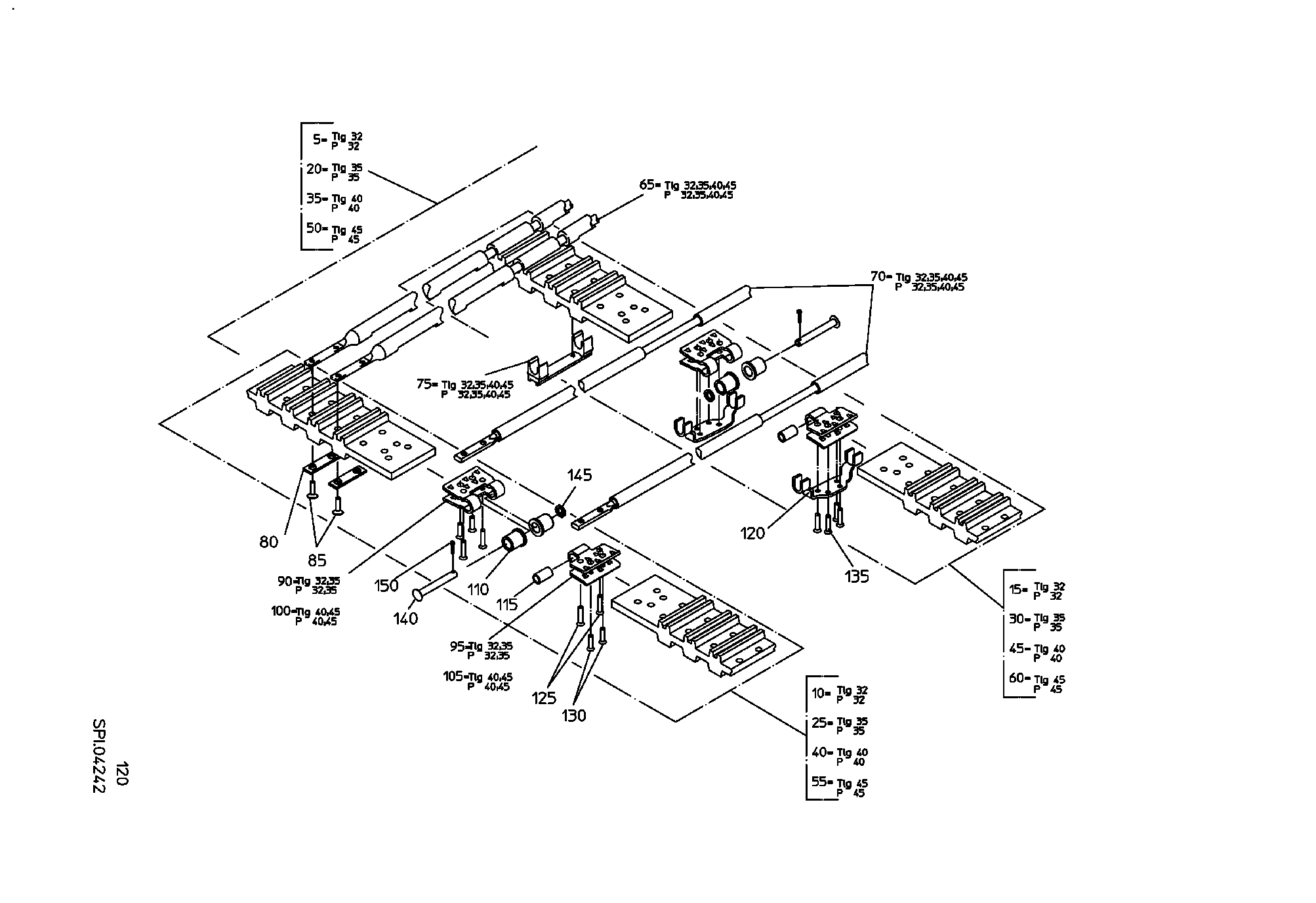

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
3.MW FHELV+DEW VULC P32-45 (30 Parts)
▸

Subassembly parts

All items Equipment ex work ()
3.MW FHELV VULC 1631-125-32
Quantity in assembly group: 1 Piece / Pos. 5
OUTER BELT 124DCA-60/32
Quantity in assembly group: 2 Piece / Pos. 10
CENTRE BELT 124DCA-60/32
Quantity in assembly group: 1 Piece / Pos. 15
3.MW FHELV VULC 1631-115-35
Quantity in assembly group: 1 Piece / Pos. 20
OUTER BELT 114DCA-ONO-60/35
Quantity in assembly group: 2 Piece / Pos. 25
WEB BELT 114DCA-ONO-60/35
Quantity in assembly group: 1 Piece / Pos. 30
3.MW FHELV VULC 1631-100-40
Quantity in assembly group: 1 Piece / Pos. 35
OUTER BELT 99DCA-ONO-60/40
Quantity in assembly group: 2 Piece / Pos. 40
CB 99DCA-ONO-60/40
Quantity in assembly group: 1 Piece / Pos. 45
3.MW FHELV VULC 1631-89-45
Quantity in assembly group: 1 Piece / Pos. 50
OUTER BELT 88DCA-ONO-60/45
Quantity in assembly group: 2 Piece / Pos. 55
CENTRE BELT 88DCA-ONO-60/45
Quantity in assembly group: 1 Piece / Pos. 60
BAR COATED 1623
Quantity in assembly group: 1 Piece / Pos. 65
BAR 10X1624 W FTU
Quantity in assembly group: 1 Piece / Pos. 70
CLAMP DM9 BT60
Quantity in assembly group: 1 Piece / Pos. 75
RIVET PLATE 32/5
Quantity in assembly group: 1 Piece / Pos. 80
COUNTER-SUNK RIVET 5X19
Quantity in assembly group: 1 Piece / Pos. 85
JOINER OUTER 35MM
Quantity in assembly group: 3 Piece / Pos. 90
JOINER INNER 35MM
Quantity in assembly group: 3 Piece / Pos. 95
WEB JOINER OUTER 40MM
Quantity in assembly group: 3 Piece / Pos. 100
WEB JOINER INNER 40MM
Quantity in assembly group: 3 Piece / Pos. 105
THREADED BUSH 12X8,2X16,5
Quantity in assembly group: 6 Piece / Pos. 110
BUSHING 12X8,2X21
Quantity in assembly group: 3 Piece / Pos. 115
CENTRE CLIP
Quantity in assembly group: 2 Piece / Pos. 120
COUNTER-SUNK RIVET 5X24
Quantity in assembly group: 8 Piece / Pos. 125
COUNTER-SUNK RIVET 5X20
Quantity in assembly group: 8 Piece / Pos. 130
COUNTER-SUNK RIVET 5X23
Quantity in assembly group: 8 Piece / Pos. 135
COLLAR STUD 7,8X66
Quantity in assembly group: 3 Piece / Pos. 140
FLAT WASHER B8,4 DIN125 -GAL
Quantity in assembly group: 3 Piece / Pos. 145
COTTER PIN 3,2X14 DIN94-GAL
Quantity in assembly group: 3 Piece / Pos. 150
