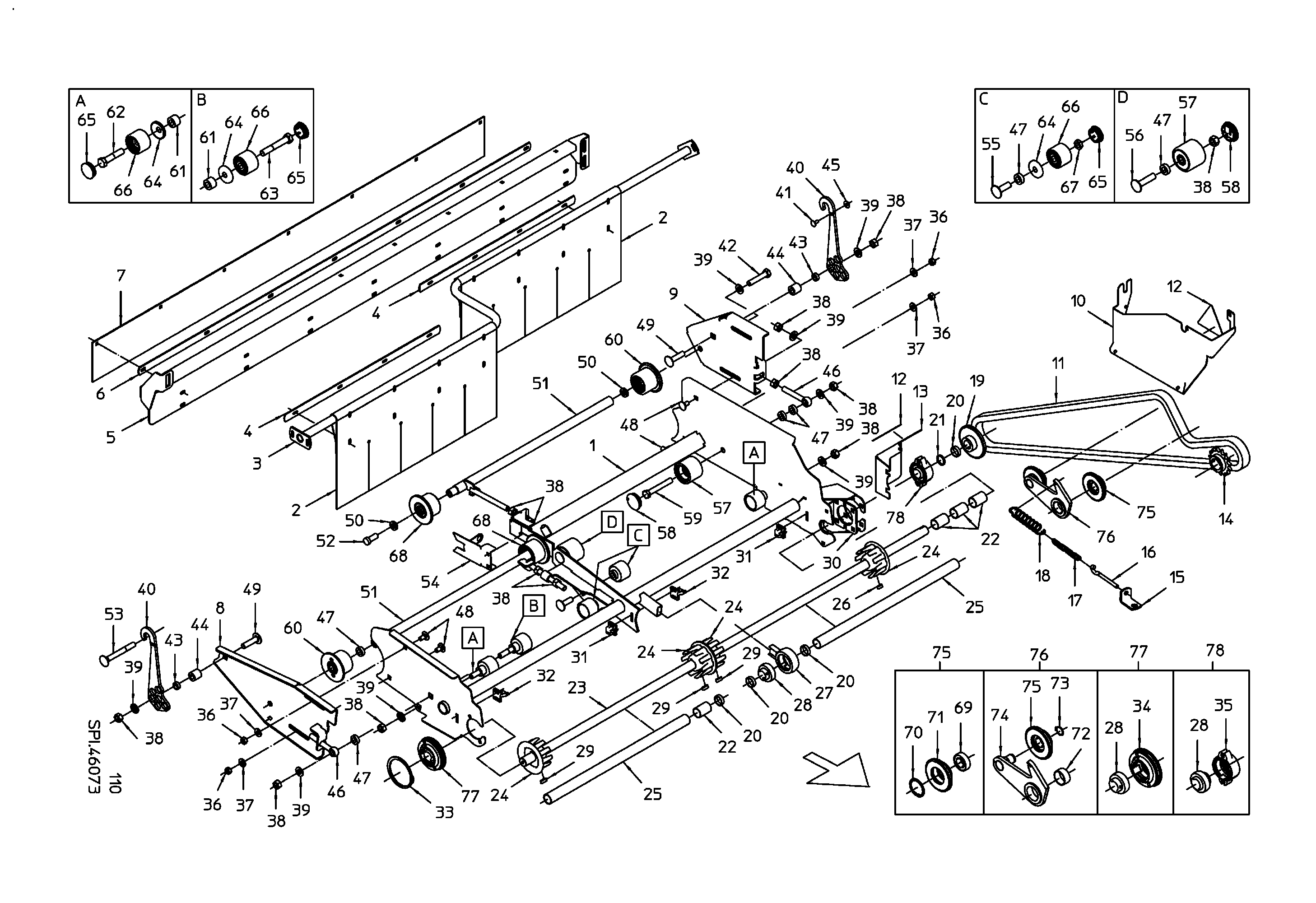

Parts by subassemblies

FRAME

Quantity in assembly group: 1 Piece / Pos. 1

RUBBER

Quantity in assembly group: 2 Piece / Pos. 2

MOUNTING BAR

Quantity in assembly group: 1 Piece / Pos. 3

CLAMPING STRIP

Quantity in assembly group: 2 Piece / Pos. 4

BRACE FRAME

Quantity in assembly group: 1 Piece / Pos. 5

CLAMP STRIP

Quantity in assembly group: 1 Piece / Pos. 6

IMPACT RUBBER

Quantity in assembly group: 1 Piece / Pos. 7

CLAMPING PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 8

MOUNTING PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 9

PROTECTION

Quantity in assembly group: 1 Piece / Pos. 10

CHAIN 3/4"X1/2"-ASA60-156R

Quantity in assembly group: 1 Piece / Pos. 11

WARNING SYMBOL

Quantity in assembly group: 2 Piece / Pos. 12

GUARD PLATE

Quantity in assembly group: 1 Piece / Pos. 13

SPROCKET ASA60-1 T15

Quantity in assembly group: 1 Piece / Pos. 14

ANGLE

Quantity in assembly group: 1 Piece / Pos. 15

EYELET SCREW

Quantity in assembly group: 1 Piece / Pos. 16

LINK CHAIN-4 LINKS C5X36

Quantity in assembly group: 1 Piece / Pos. 17

TENSION SPRING

Quantity in assembly group: 1 Piece / Pos. 18

SPROCKET ASA60-1 T18

Quantity in assembly group: 1 Piece / Pos. 19

SPACER RING

Quantity in assembly group: 4 Piece / Pos. 20

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 21

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 22

DRIVE SHAFT

Quantity in assembly group: 1 Piece / Pos. 23

FINGER ROLLER

Quantity in assembly group: 4 Piece / Pos. 24

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 25

FEATHER KEY A 8X8X20 DIN6885

Quantity in assembly group: 1 Piece / Pos. 26

BEARING HOUSING

Quantity in assembly group: 1 Piece / Pos. 27

BEARING YAR 206-2RF/UC206

Quantity in assembly group: 3 Piece / Pos. 28

FEATHER KEY A 8X8X25 DIN6885

Quantity in assembly group: 3 Piece / Pos. 29

PLATE

Quantity in assembly group: 1 Piece / Pos. 30

SCRAPER R/H

Quantity in assembly group: 2 Piece / Pos. 31

SCRAPER L/H

Quantity in assembly group: 2 Piece / Pos. 32

RETAINING RING A 108X4 DIN471

Quantity in assembly group: 1 Piece / Pos. 33

BEARING HOUSING S30

Quantity in assembly group: 1 Piece / Pos. 34

BEARING HOUSING

Quantity in assembly group: 1 Piece / Pos. 35

HEXAGON NUT M12 DIN934-8-GAL

Quantity in assembly group: 4 Piece / Pos. 36

PLAIN WASHER 13X28X3-GALV

Quantity in assembly group: 4 Piece / Pos. 37

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 13 Piece / Pos. 38

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 8 Piece / Pos. 39

STAY

Quantity in assembly group: 2 Piece / Pos. 40

COACH BOLT M8X20-603-8.8-GAL

Quantity in assembly group: 1 Piece / Pos. 41

HHC-SCREW M16X80 931-10.9-flZn

Quantity in assembly group: 1 Piece / Pos. 42

SPACER 24X3.5X9

Quantity in assembly group: 2 Piece / Pos. 43

SPACER 16,5X30X30

Quantity in assembly group: 2 Piece / Pos. 44

DISC A 8,4 DIN9021-GAL

Quantity in assembly group: 1 Piece / Pos. 45

EYE BOLT M16X110

Quantity in assembly group: 2 Piece / Pos. 46

SPACER PIECE 16,5X30X10

Quantity in assembly group: 7 Piece / Pos. 47

COACH BOLT M12X25-DIN603-8.8-G

Quantity in assembly group: 4 Piece / Pos. 48

COACH BOLT/SS M16X65-603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 49

SPACER 6MM

Quantity in assembly group: 3 Piece / Pos. 50

TENSIONER SHAFT R/H

Quantity in assembly group: 2 Piece / Pos. 51

CS-SCREW M16X40 DIN7984

Quantity in assembly group: 2 Piece / Pos. 52

COACH BOLT M16X140-DIN603-8.8G

Quantity in assembly group: 1 Piece / Pos. 53

GUARD

Quantity in assembly group: 1 Piece / Pos. 54

COACH BOLT/SS M16X50-603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 55

COACH BOLT/SS M16X70-603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 56

SUPPORT ROLLER D75

Quantity in assembly group: 2 Piece / Pos. 57

ROLLER CAP

Quantity in assembly group: 2 Piece / Pos. 58

HEX BOLT M16X110-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 59

FLANGED SUPPORT ROLLER D75

Quantity in assembly group: 2 Piece / Pos. 60

SPACER 20MM

Quantity in assembly group: 3 Piece / Pos. 61

HEX BOLT M16X75-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 62

HEX BOLT M16X100 DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 63

WINDING PROTECTION

Quantity in assembly group: 5 Piece / Pos. 64

LOCKING DISK

Quantity in assembly group: 5 Piece / Pos. 65

SUPPORT ROLLER 60/42 WIDE

Quantity in assembly group: 5 Piece / Pos. 66

HALF NUT M16 DIN936-17H-GAL

Quantity in assembly group: 2 Piece / Pos. 67

SUPPORT ROLLER 75

Quantity in assembly group: 2 Piece / Pos. 68

BALL BEARING 6205-2RS

Quantity in assembly group: 2 Piece / Pos. 69

RETAINING RING J 52X2 DIN472

Quantity in assembly group: 4 Piece / Pos. 70

SPROCKET 3/4"-T15

Quantity in assembly group: 2 Piece / Pos. 71

BEARING

Quantity in assembly group: 1 Piece / Pos. 72

RETAINING RING A 25X1,2 DIN471

Quantity in assembly group: 1 Piece / Pos. 73

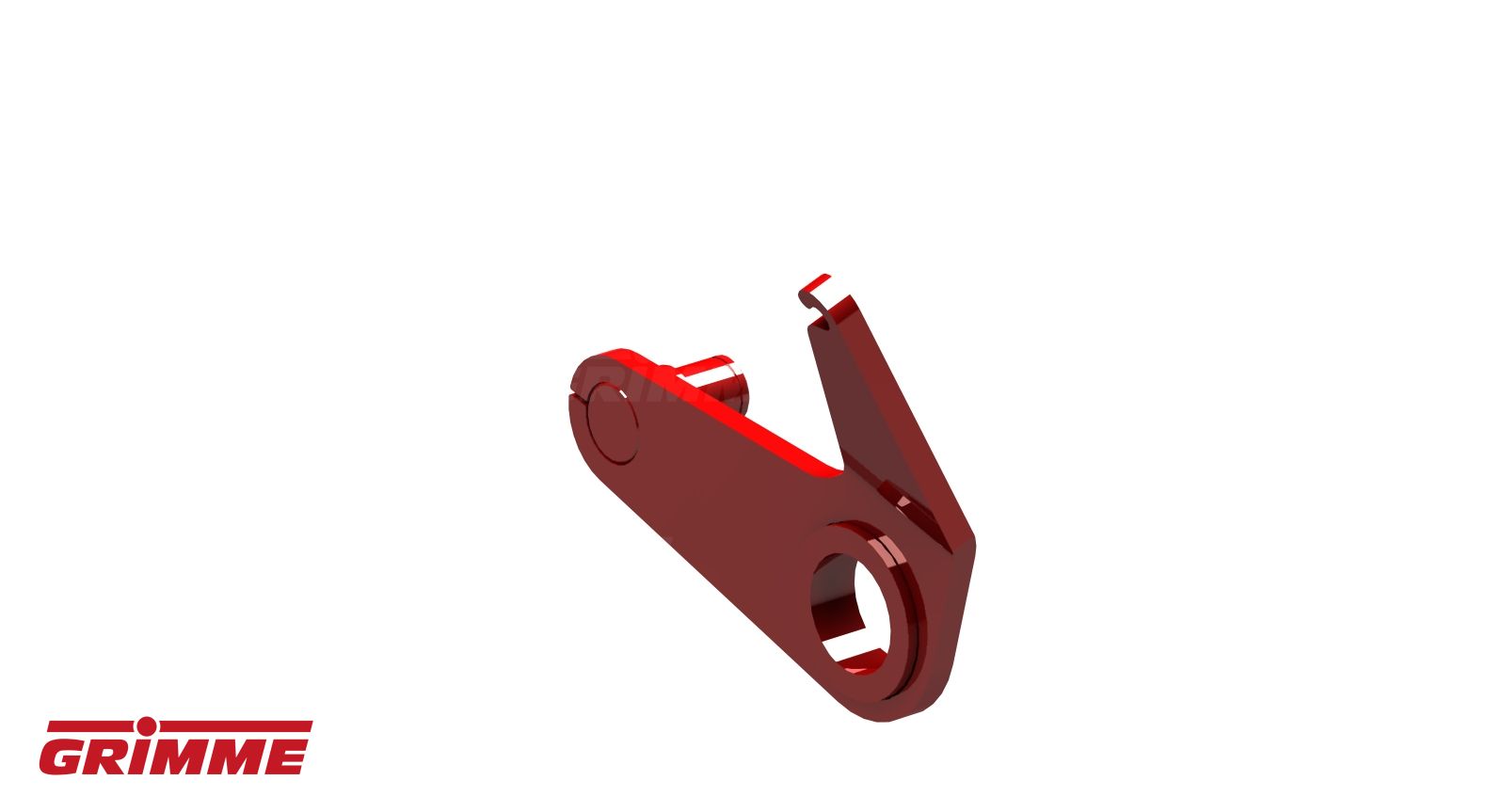

TENSION ARM

Quantity in assembly group: 1 Piece / Pos. 74

SPROCKET DEW

Quantity in assembly group: 2 Piece / Pos. 75

CHAIN TENSIONER

Quantity in assembly group: 1 Piece / Pos. 76

HINGE BEARING

Quantity in assembly group: 1 Piece / Pos. 77

FLANGE BEARING

Quantity in assembly group: 1 Piece / Pos. 78
