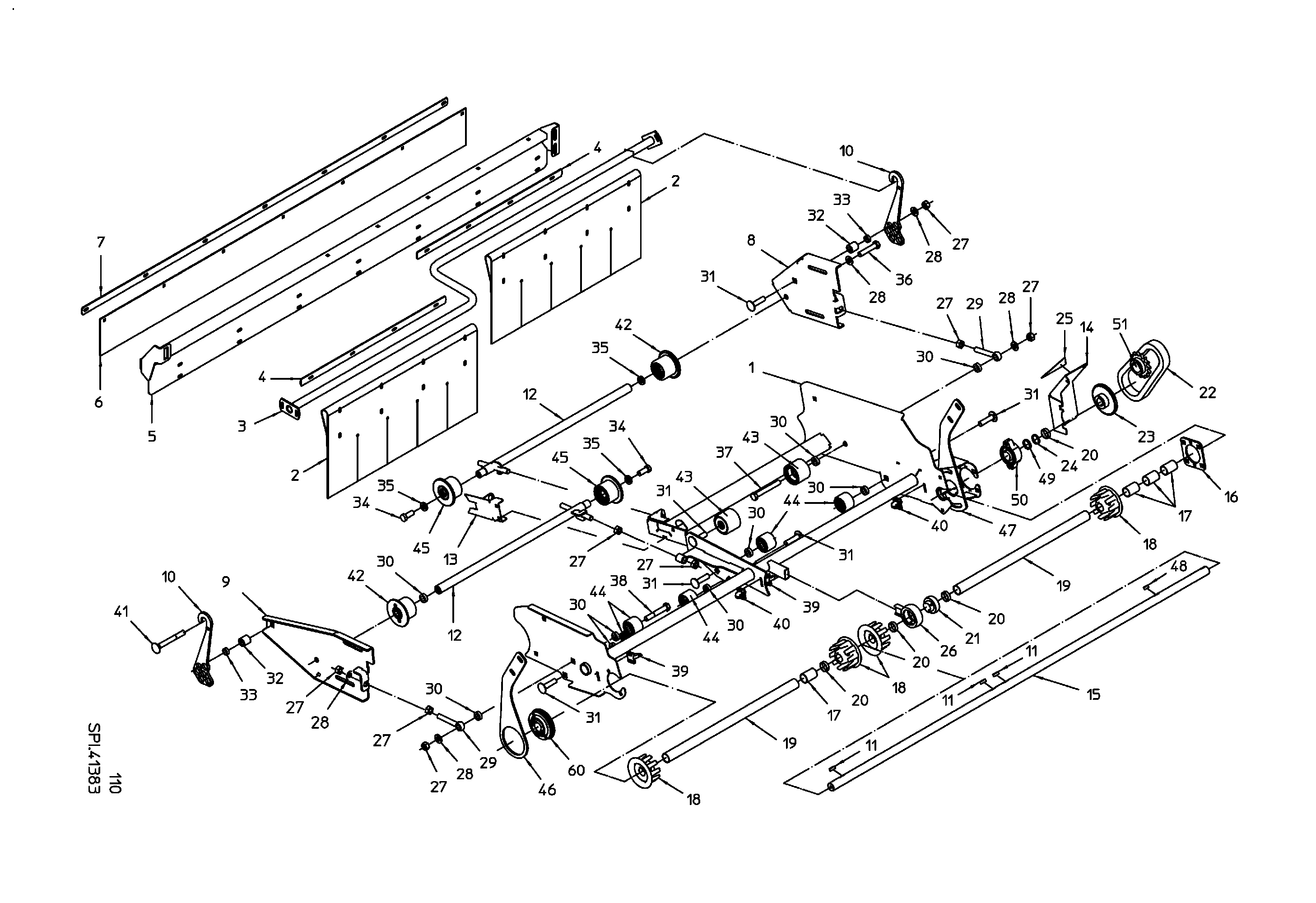

Parts by subassemblies

BEARING HOUSING

Quantity in assembly group: 1 Piece / Pos. 0

BEARING HOUSING S30

Quantity in assembly group: 1 Piece / Pos. 0

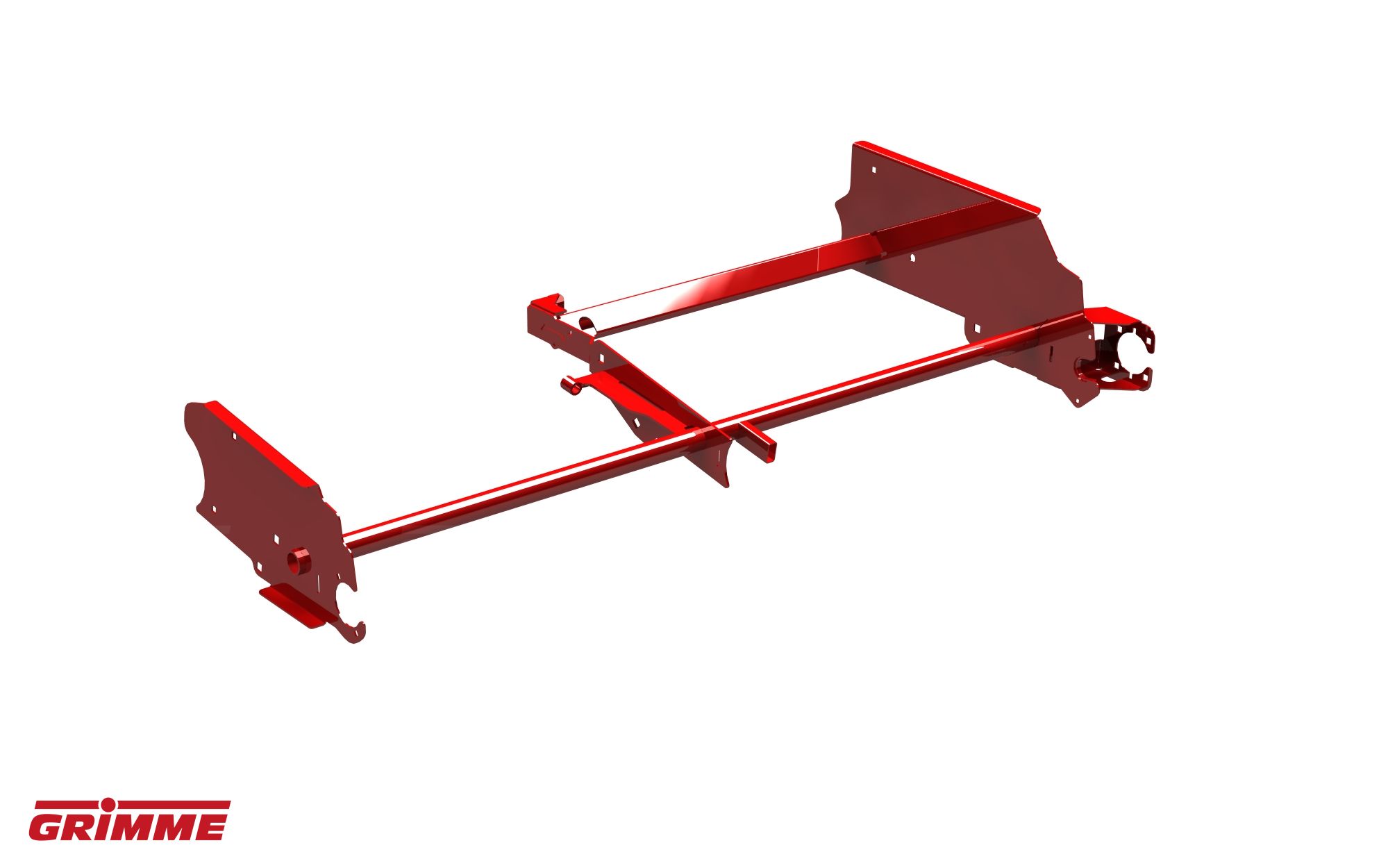

FRAME

Quantity in assembly group: 1 Piece / Pos. 1

RUBBER

Quantity in assembly group: 2 Piece / Pos. 2

MOUNTING BAR

Quantity in assembly group: 1 Piece / Pos. 3

CLAMPING STRIP

Quantity in assembly group: 2 Piece / Pos. 4

BRACE FRAME

Quantity in assembly group: 1 Piece / Pos. 5

IMPACT RUBBER

Quantity in assembly group: 1 Piece / Pos. 6

CLAMP STRIP

Quantity in assembly group: 1 Piece / Pos. 7

MOUNTING PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 8

CLAMPING PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 9

STAY

Quantity in assembly group: 2 Piece / Pos. 10

FEATHER KEY A 8X8X25 DIN6885

Quantity in assembly group: 3 Piece / Pos. 11

TENSIONER SHAFT R/H

Quantity in assembly group: 2 Piece / Pos. 12

GUARD

Quantity in assembly group: 1 Piece / Pos. 13

GUARD PLATE

Quantity in assembly group: 1 Piece / Pos. 14

DRIVE SHAFT

Quantity in assembly group: 1 Piece / Pos. 15

PLATE

Quantity in assembly group: 1 Piece / Pos. 16

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 17

FINGER ROLLER

Quantity in assembly group: 4 Piece / Pos. 18

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 19

SPACER RING

Quantity in assembly group: 4 Piece / Pos. 20

BEARING YAR 206-2RF/UC206

Quantity in assembly group: 3 Piece / Pos. 21

CHAIN 3/4"X1/2"-ASA60-39R

Quantity in assembly group: 1 Piece / Pos. 22

SPROCKET ASA60-1 T18

Quantity in assembly group: 1 Piece / Pos. 23

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 24

WARNING SYMBOL

Quantity in assembly group: 1 Piece / Pos. 25

BEARING HOUSING

Quantity in assembly group: 1 Piece / Pos. 26

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 9 Piece / Pos. 27

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 6 Piece / Pos. 28

EYE BOLT M16X110

Quantity in assembly group: 2 Piece / Pos. 29

SPACER PIECE 16,5X30X10

Quantity in assembly group: 10 Piece / Pos. 30

COACH BOLT/SS M16X65-603-8.8-G

Quantity in assembly group: 6 Piece / Pos. 31

SPACER 16,5X30X30

Quantity in assembly group: 2 Piece / Pos. 32

SPACER 24X3.5X9

Quantity in assembly group: 2 Piece / Pos. 33

CS-SCREW M16X40 DIN7984

Quantity in assembly group: 2 Piece / Pos. 34

SPACER 6MM

Quantity in assembly group: 3 Piece / Pos. 35

HHC-SCREW M16X80 931-10.9-flZn

Quantity in assembly group: 1 Piece / Pos. 36

HEX BOLT M16X120-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 37

HEX BOLT M16X100 DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 38

SCRAPER L/H

Quantity in assembly group: 2 Piece / Pos. 39

SCRAPER R/H

Quantity in assembly group: 2 Piece / Pos. 40

COACH BOLT M16X140-DIN603-8.8G

Quantity in assembly group: 1 Piece / Pos. 41

FLANGED SUPPORT ROLLER D75

Quantity in assembly group: 2 Piece / Pos. 42

SUPPORT ROLLER D75

Quantity in assembly group: 2 Piece / Pos. 43

SUPPORT ROLLER 60/42 WIDE

Quantity in assembly group: 5 Piece / Pos. 44

SUPPORT ROLLER 75

Quantity in assembly group: 2 Piece / Pos. 45

MOUNTING BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 46

BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 47

FEATHER KEY A 8X8X20 DIN6885

Quantity in assembly group: 1 Piece / Pos. 48

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 49

FLANGE BEARING

Quantity in assembly group: 1 Piece / Pos. 50

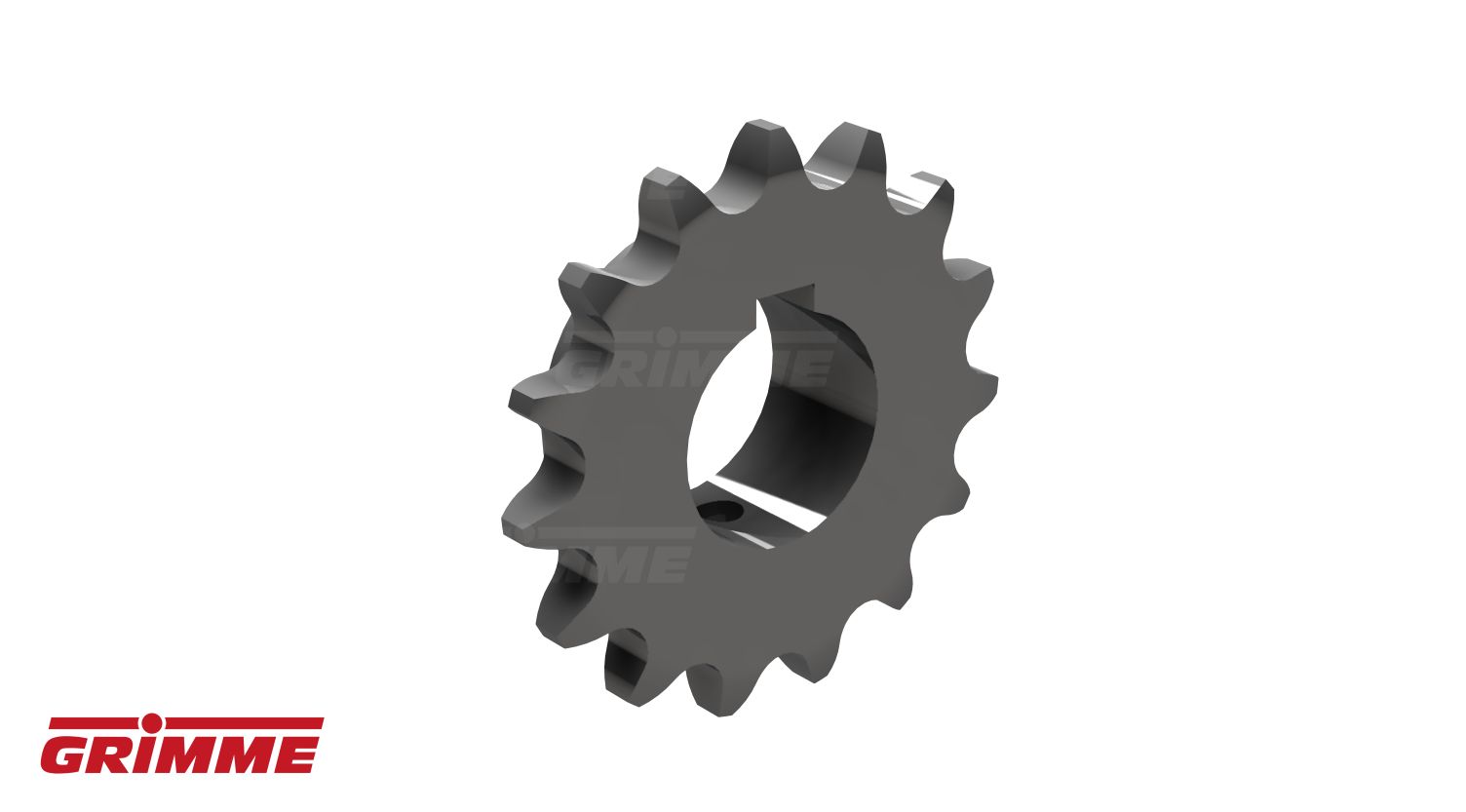

SPROCKET ASA60-1 T15

Quantity in assembly group: 1 Piece / Pos. 51

HINGE BEARING

Quantity in assembly group: 1 Piece / Pos. 60
