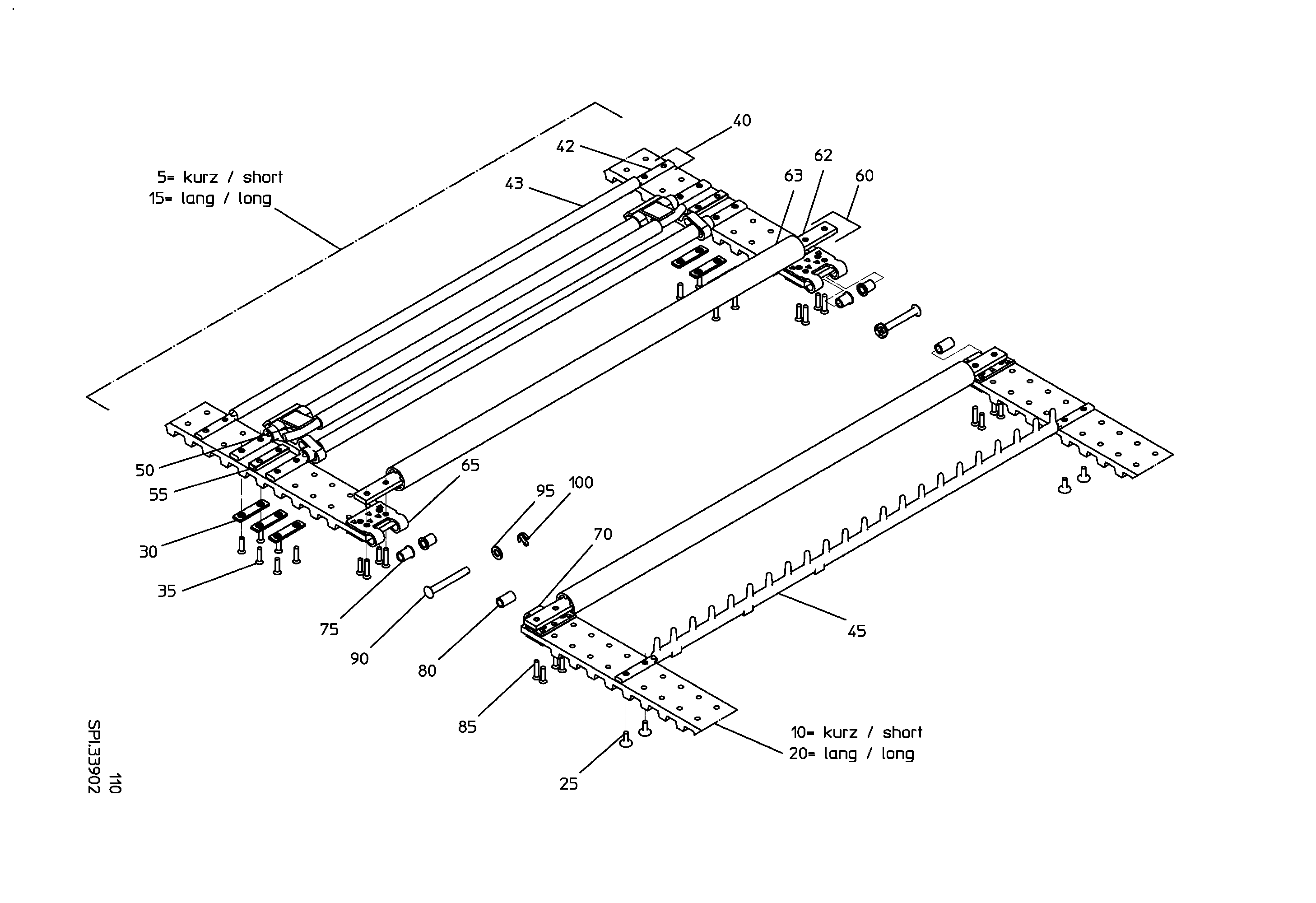

Parts by subassemblies

TRANSFER WEB SHO RUC 800-47-30

Quantity in assembly group: 1 Piece / Pos. 5

OUTER BELT 46SCA-HIGH 60/30

Quantity in assembly group: 2 Piece / Pos. 10

TRANSFER WEB LG RUC 800-65-30

Quantity in assembly group: 1 Piece / Pos. 15

OUTER BELT 64SCA-HIGH 60/30

Quantity in assembly group: 2 Piece / Pos. 20

WIDE HEADED RIVET 5X14

Quantity in assembly group: 1 Piece / Pos. 25

RIVET PLATE 32/5

Quantity in assembly group: 1 Piece / Pos. 30

COUNTER-SUNK RIVET 5X20

Quantity in assembly group: 1 Piece / Pos. 35

BAR W COVER TUBE

Quantity in assembly group: 1 Piece / Pos. 40

BAR 8X793

Quantity in assembly group: 1 Piece / Pos. 42

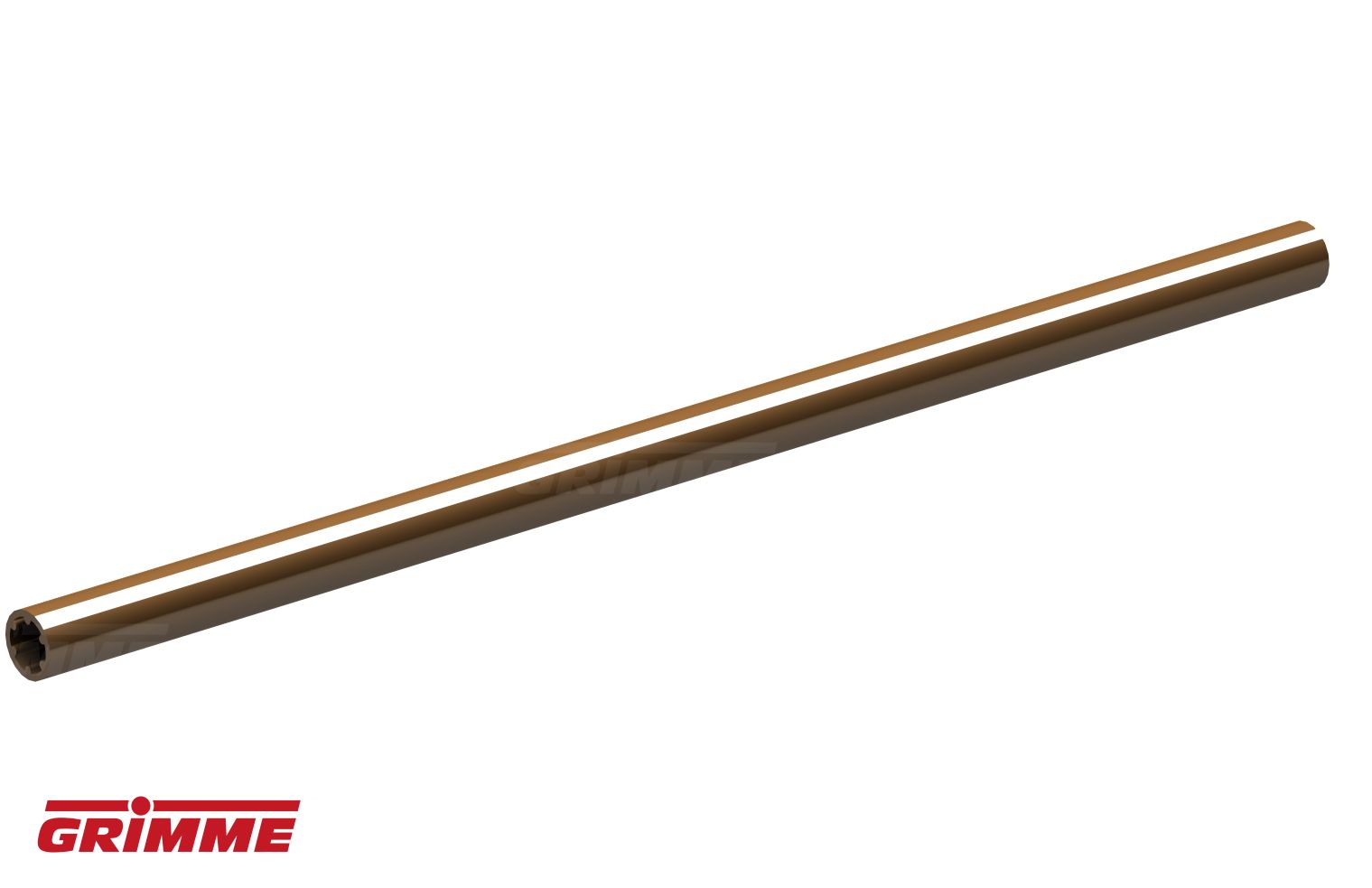

COVER TUBE 14X9,3X675

Quantity in assembly group: 1 Piece / Pos. 43

I-PB 793

Quantity in assembly group: 1 Piece / Pos. 45

DROP FLAP 793

Quantity in assembly group: 1 Piece / Pos. 50

BAR END 32/5,1

Quantity in assembly group: 2 Piece / Pos. 55

WEB LINK C/W COVER

Quantity in assembly group: 2 Piece / Pos. 60

FLAT STEEL 20X6X790

Quantity in assembly group: 1 Piece / Pos. 62

COVER TUBE 30X18X681

Quantity in assembly group: 1 Piece / Pos. 63

BT-BIN TYPE2 P35 DBH32 OU

Quantity in assembly group: 2 Piece / Pos. 65

BT-BIN TYPE2 P35 DBH32 IN

Quantity in assembly group: 2 Piece / Pos. 70

THREADED BUSH 12X8,2X16,5

Quantity in assembly group: 4 Piece / Pos. 75

BUSHING 12X8,2X21

Quantity in assembly group: 2 Piece / Pos. 80

COUNTER-SUNK RIVET 5X24

Quantity in assembly group: 8 Piece / Pos. 85

COLLAR STUD 7,8X66

Quantity in assembly group: 2 Piece / Pos. 90

FLAT WASHER B8,4 DIN125 -GAL

Quantity in assembly group: 2 Piece / Pos. 95

COTTER PIN 3,2X14 DIN94-GAL

Quantity in assembly group: 2 Piece / Pos. 100
