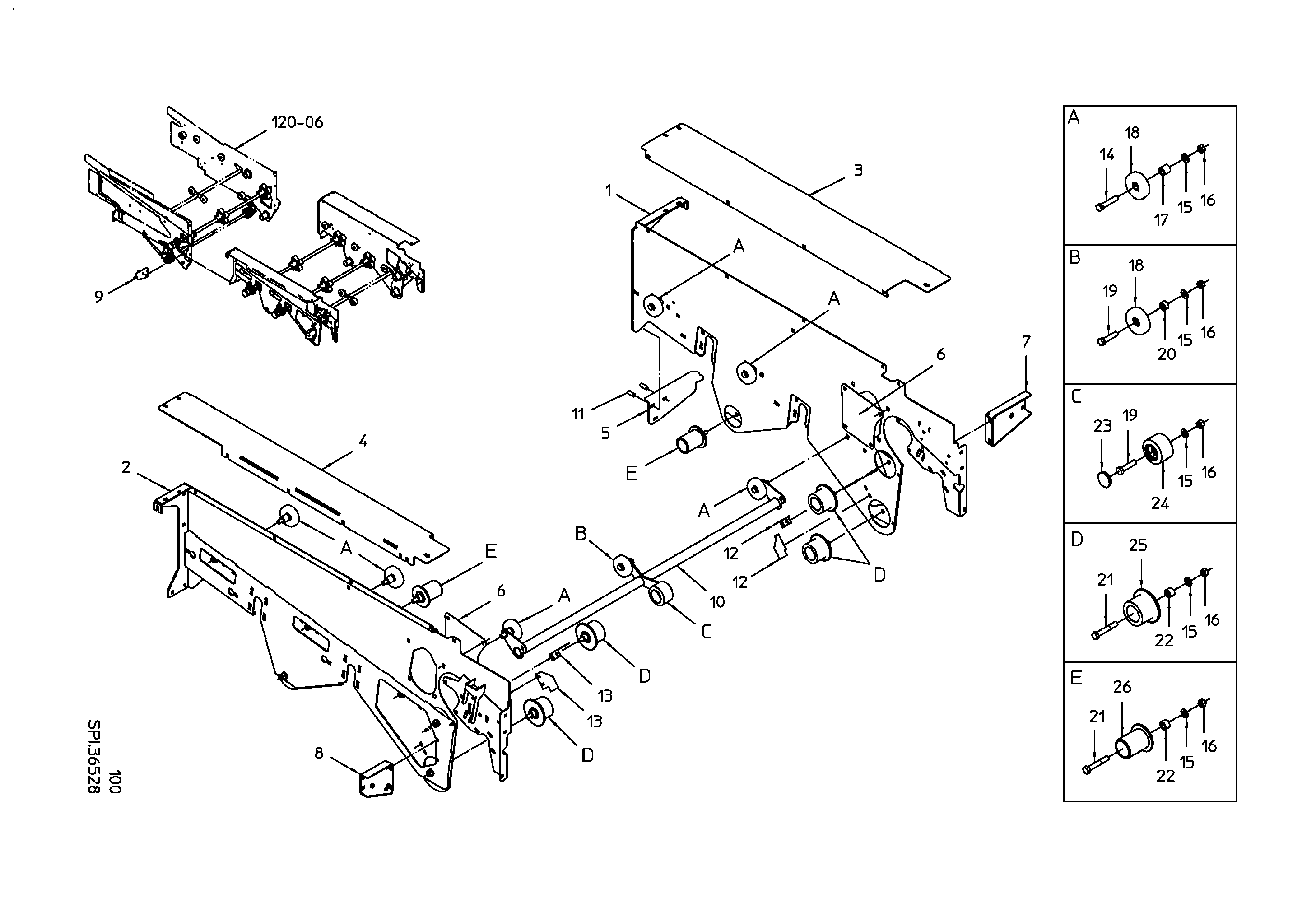

Parts by subassemblies

SIDE PART L/H

Quantity in assembly group: 1 Piece / Pos. 1

SIDE PART R/H

Quantity in assembly group: 1 Piece / Pos. 2

PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 3

PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 4

CONSOLE L/H

Quantity in assembly group: 1 Piece / Pos. 5

COVER

Quantity in assembly group: 2 Piece / Pos. 6

BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 7

BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 8

MOUNTING R/H

Quantity in assembly group: 1 Piece / Pos. 9

ROLLER FRAME

Quantity in assembly group: 1 Piece / Pos. 10

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 11

SCRAPER L/H

Quantity in assembly group: 2 Piece / Pos. 12

SCRAPER R/H

Quantity in assembly group: 2 Piece / Pos. 13

HEX BOLT M16X80-DIN931-8.8-G

Quantity in assembly group: 6 Piece / Pos. 14

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 14 Piece / Pos. 15

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 14 Piece / Pos. 16

SPACER 16,5X30X30

Quantity in assembly group: 6 Piece / Pos. 17

ROLLER D100

Quantity in assembly group: 7 Piece / Pos. 18

HEX BOLT M16X70-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 19

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 20

HEX BOLT M16X100 DIN931-8.8-G

Quantity in assembly group: 6 Piece / Pos. 21

SPACER 20MM

Quantity in assembly group: 6 Piece / Pos. 22

ROLLER CAP

Quantity in assembly group: 1 Piece / Pos. 23

SUPPORT ROLLER D95

Quantity in assembly group: 1 Piece / Pos. 24

STEEL ROLLER CPTE. D=95

Quantity in assembly group: 4 Piece / Pos. 25

ROLLER 75

Quantity in assembly group: 2 Piece / Pos. 26
