Parts by subassemblies
Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

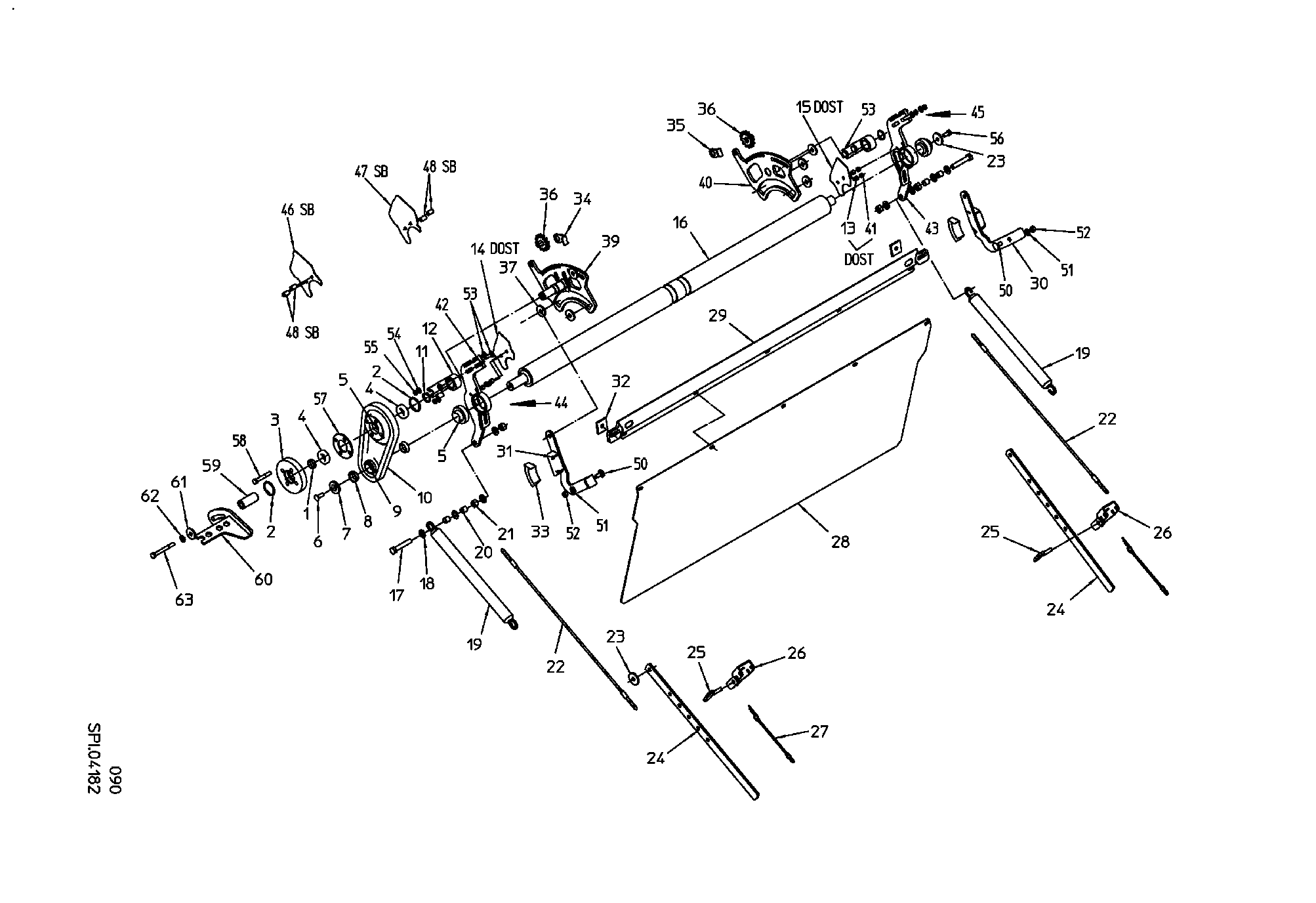

Subassembly drawing
▸ Selected assembly group:
HINGE BEARING R/H
PLAIN BEARING BUSH 353930
GREASE NIPPLE H1-M6X1 DIN71412
SPACER RING
GEAR 27T M5
BALL BEARING 6006-2RS
BEARING YAR 207-2RF/UC207
CSK WASHER M12
CLAMPING RING
HINGE BEARING R/H
SPACER
SPRING
SPACER TUBE
WIRE ROPE
RETAINING WASHER
LEVER
PIN
BRACKET
SAFETY CHAIN -PLASTIC
RUBBER CHUTE
HAULM ROLLER SCRAPER
RUBBER PLATE
STOPPER R/H
STOPPER L/H
LOCKING GEAR
REINFORCING DISC
ADJUSTER LEVER R/H
ADJUSTER LEVER L/H
SPACER TUBE
SET SCREW M12X25-DIN933-8.8-G
WASHER
BRACKET
Selected subassembly
Subassembly parts
HINGE BEARING R/H
Quantity in assembly group:
1 Piece / Pos. 0
PLAIN BEARING BUSH 353930
Quantity in assembly group:
1 Piece / Pos. 0
GREASE NIPPLE H1-M6X1 DIN71412
Quantity in assembly group:
1 Piece / Pos. 0
SPACER RING
Quantity in assembly group:
1 Piece / Pos. 1
RETAINING RING J 55X2 DIN472
Quantity in assembly group:
2 Piece / Pos. 2
GEAR 27T M5
Quantity in assembly group:
1 Piece / Pos. 3
BALL BEARING 6006-2RS
Quantity in assembly group:
2 Piece / Pos. 4
SPROCKET 3/4"-T26
Quantity in assembly group:
1 Piece / Pos. 5
BEARING YAR 207-2RF/UC207
Quantity in assembly group:
1 Piece / Pos. 5
CSK ALLEN SCREW M12X35-DIN7991
Quantity in assembly group:
1 Piece / Pos. 6
CSK WASHER M12
Quantity in assembly group:
1 Piece / Pos. 7
CLAMPING RING
Quantity in assembly group:
2 Piece / Pos. 8
SPROCKET ASA60-1 Z17
Quantity in assembly group:
1 Piece / Pos. 9
RO CHAIN E-3/4"X1/2"-47-1-2
Quantity in assembly group:
1 Piece / Pos. 10
RETAINING RING AS 35X2,5 DIN47
Quantity in assembly group:
2 Piece / Pos. 11
HINGE BEARING R/H
Quantity in assembly group:
2 Piece / Pos. 12
SPACER
Quantity in assembly group:
6 Piece / Pos. 13
SIDE PLATE R/H
Quantity in assembly group:
1 Piece / Pos. 14
SIDE PLATE L/H
Quantity in assembly group:
1 Piece / Pos. 15
HAULM ROLLER
Quantity in assembly group:
1 Piece / Pos. 16
HHC-SCREW M16X90 DIN933-8.8-GA
Quantity in assembly group:
2 Piece / Pos. 17
FLAT WASHER M16
Quantity in assembly group:
8 Piece / Pos. 18
SPRING
Quantity in assembly group:
2 Piece / Pos. 19
SPACER TUBE
Quantity in assembly group:
4 Piece / Pos. 20
HEXAGON NUT M16 DIN934-8-GAL
Quantity in assembly group:
4 Piece / Pos. 21
WIRE ROPE
Quantity in assembly group:
2 Piece / Pos. 22
RETAINING WASHER
Quantity in assembly group:
2 Piece / Pos. 23
LEVER
Quantity in assembly group:
2 Piece / Pos. 24
PIN
Quantity in assembly group:
2 Piece / Pos. 25
BRACKET
Quantity in assembly group:
2 Piece / Pos. 26
SAFETY CHAIN -PLASTIC
Quantity in assembly group:
2 Piece / Pos. 27
RUBBER CHUTE
Quantity in assembly group:
1 Piece / Pos. 28
HAULM ROLLER SCRAPER
Quantity in assembly group:
1 Piece / Pos. 29
STOPPER L/H
Quantity in assembly group:
1 Piece / Pos. 30
STOPPER R/H
Quantity in assembly group:
1 Piece / Pos. 31
RUBBER PLATE
Quantity in assembly group:
2 Piece / Pos. 32
BUFFER BLOCK
Quantity in assembly group:
2 Piece / Pos. 33
STOPPER R/H
Quantity in assembly group:
1 Piece / Pos. 34
STOPPER L/H
Quantity in assembly group:
1 Piece / Pos. 35
LOCKING GEAR
Quantity in assembly group:
2 Piece / Pos. 36
REINFORCING DISC
Quantity in assembly group:
6 Piece / Pos. 37

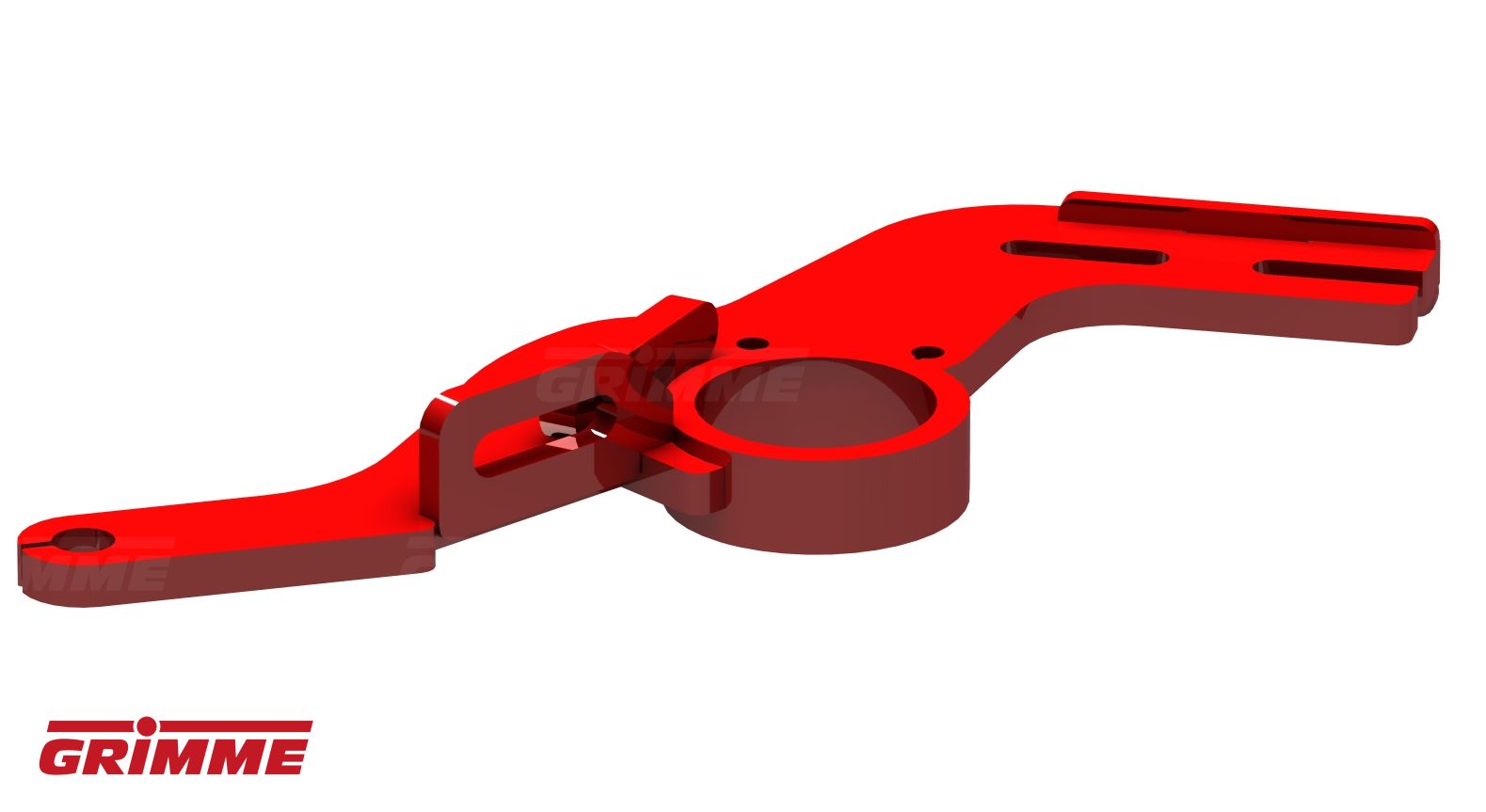

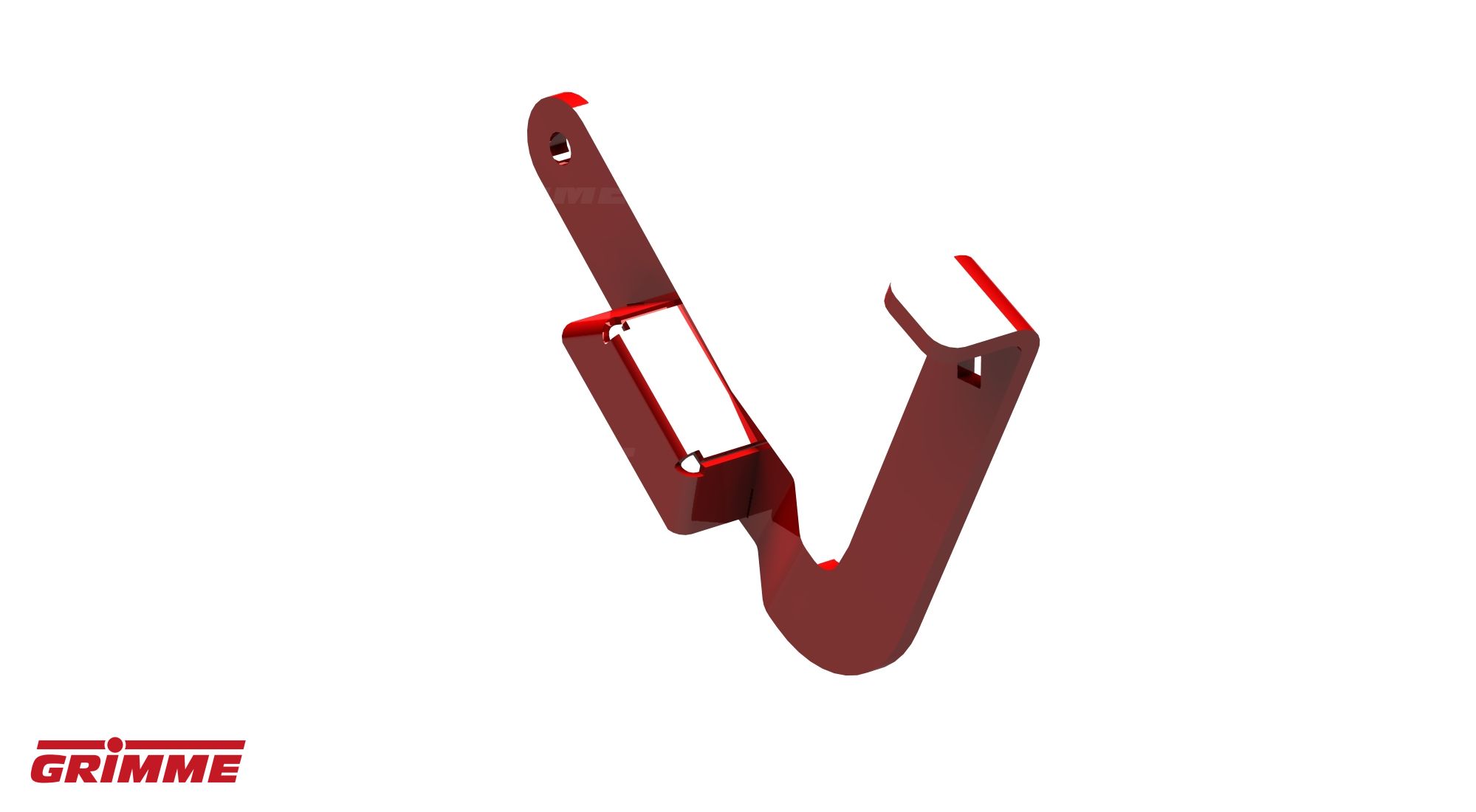

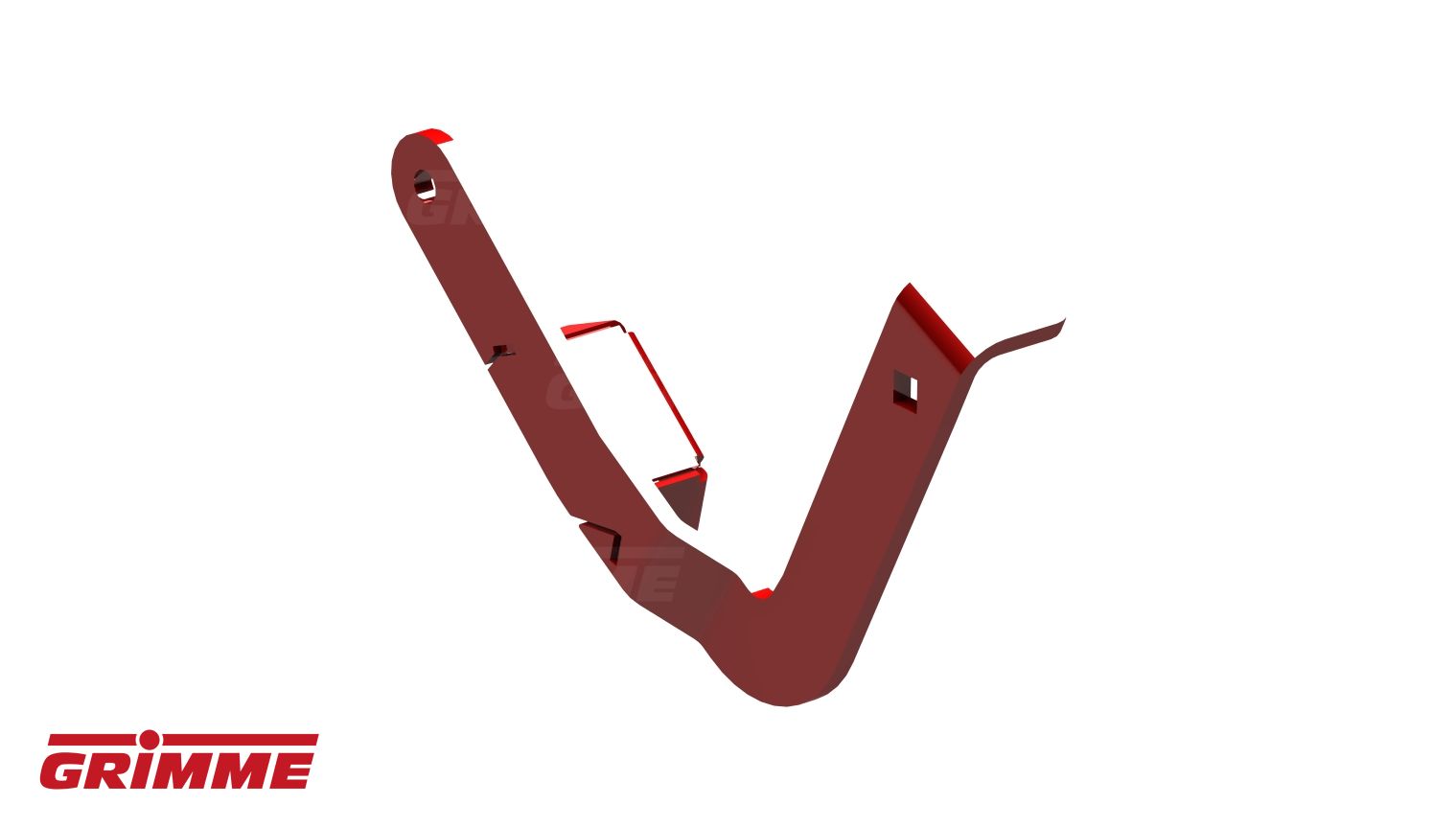

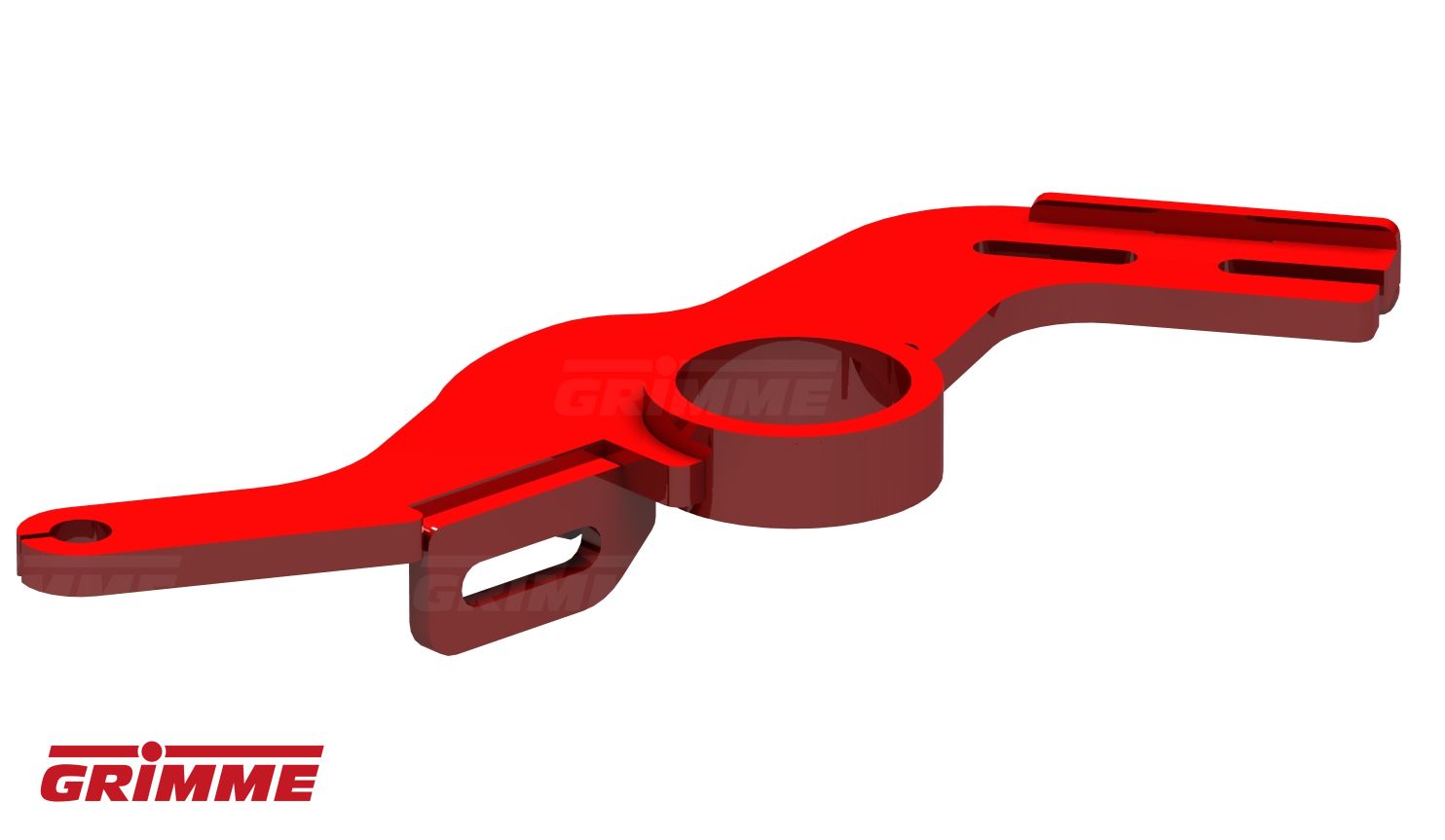

ADJUSTER LEVER R/H
Quantity in assembly group:
1 Piece / Pos. 39
ADJUSTER LEVER L/H
Quantity in assembly group:
1 Piece / Pos. 40
SPACER TUBE
Quantity in assembly group:
4 Piece / Pos. 41

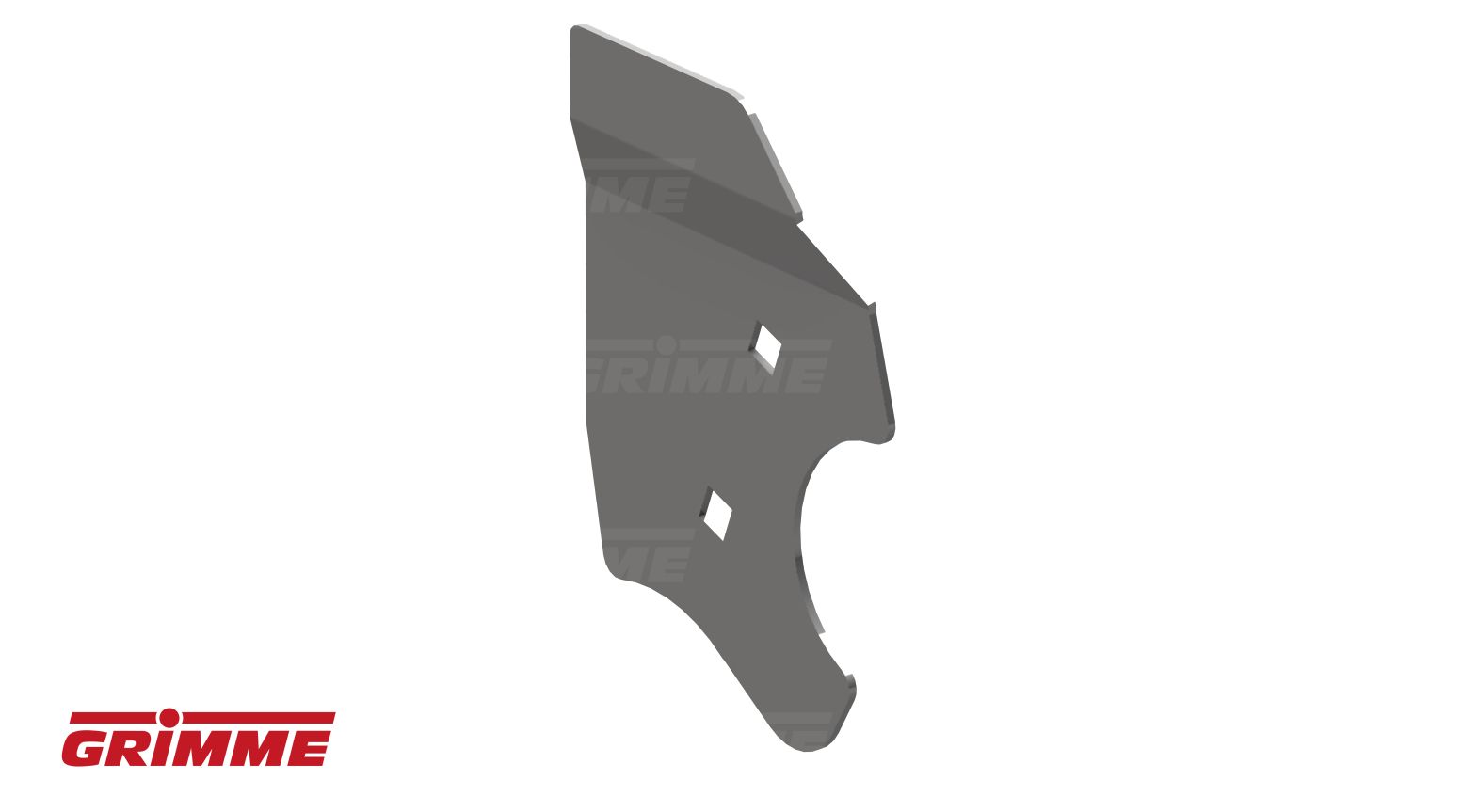

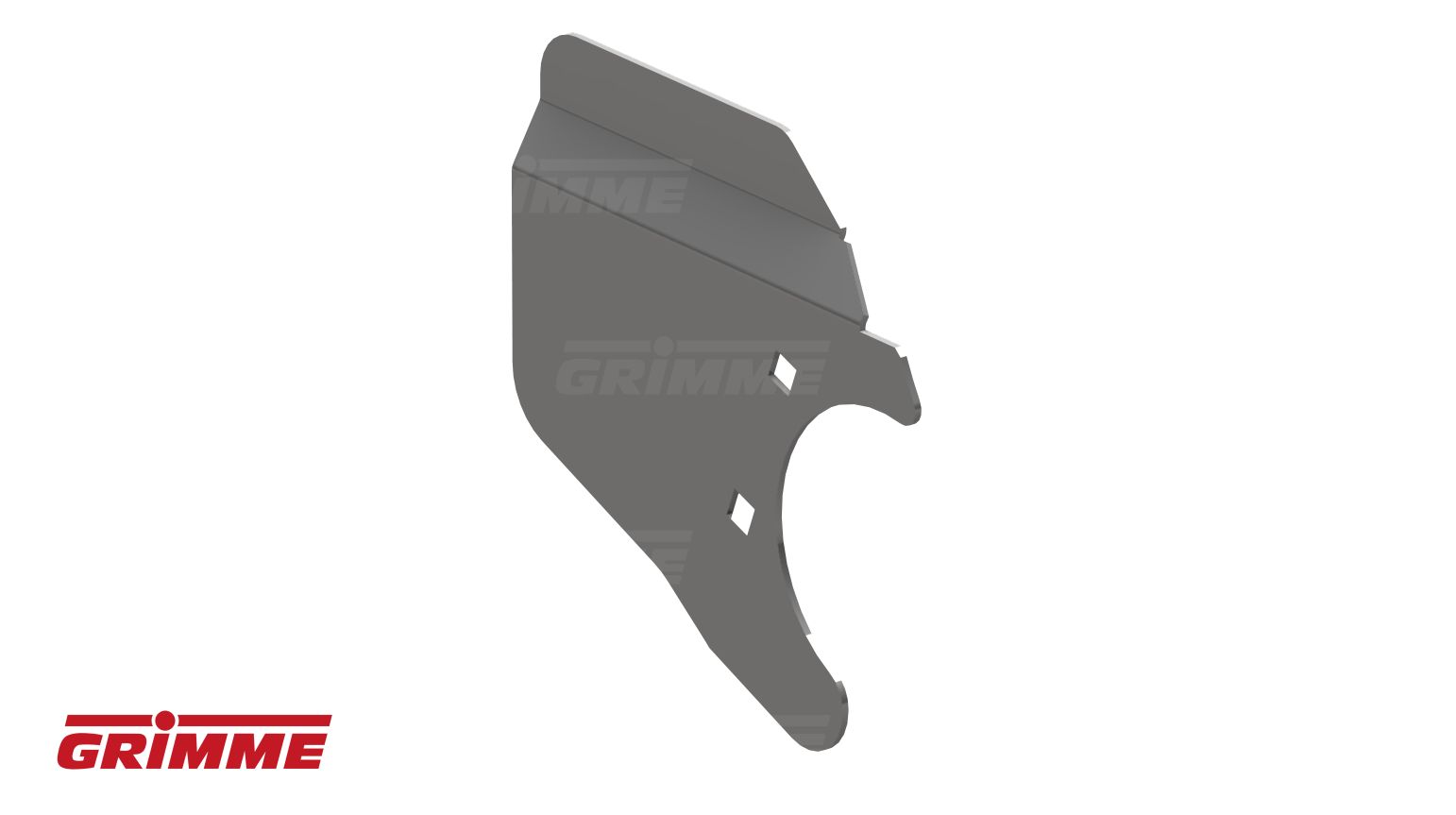

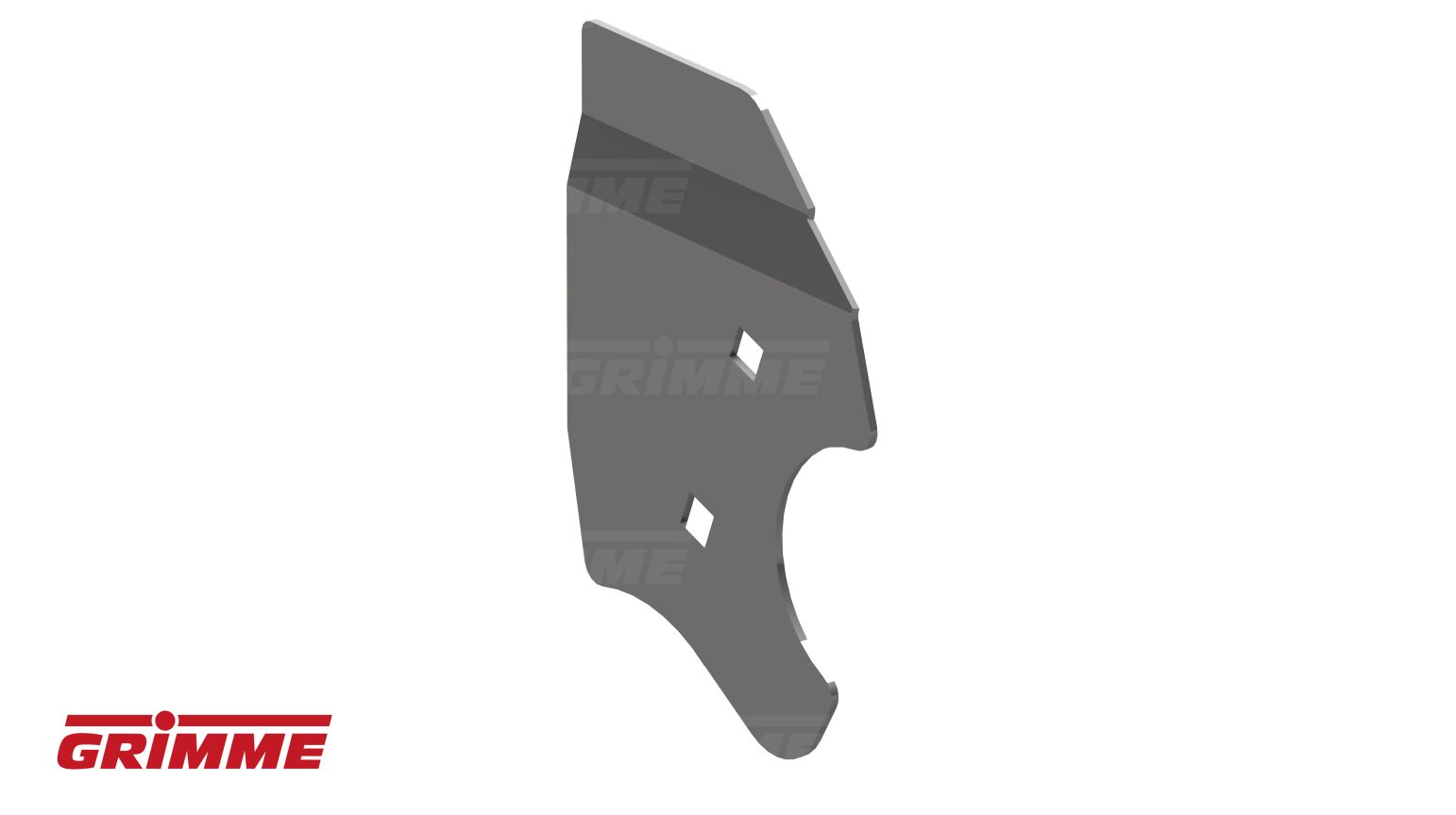

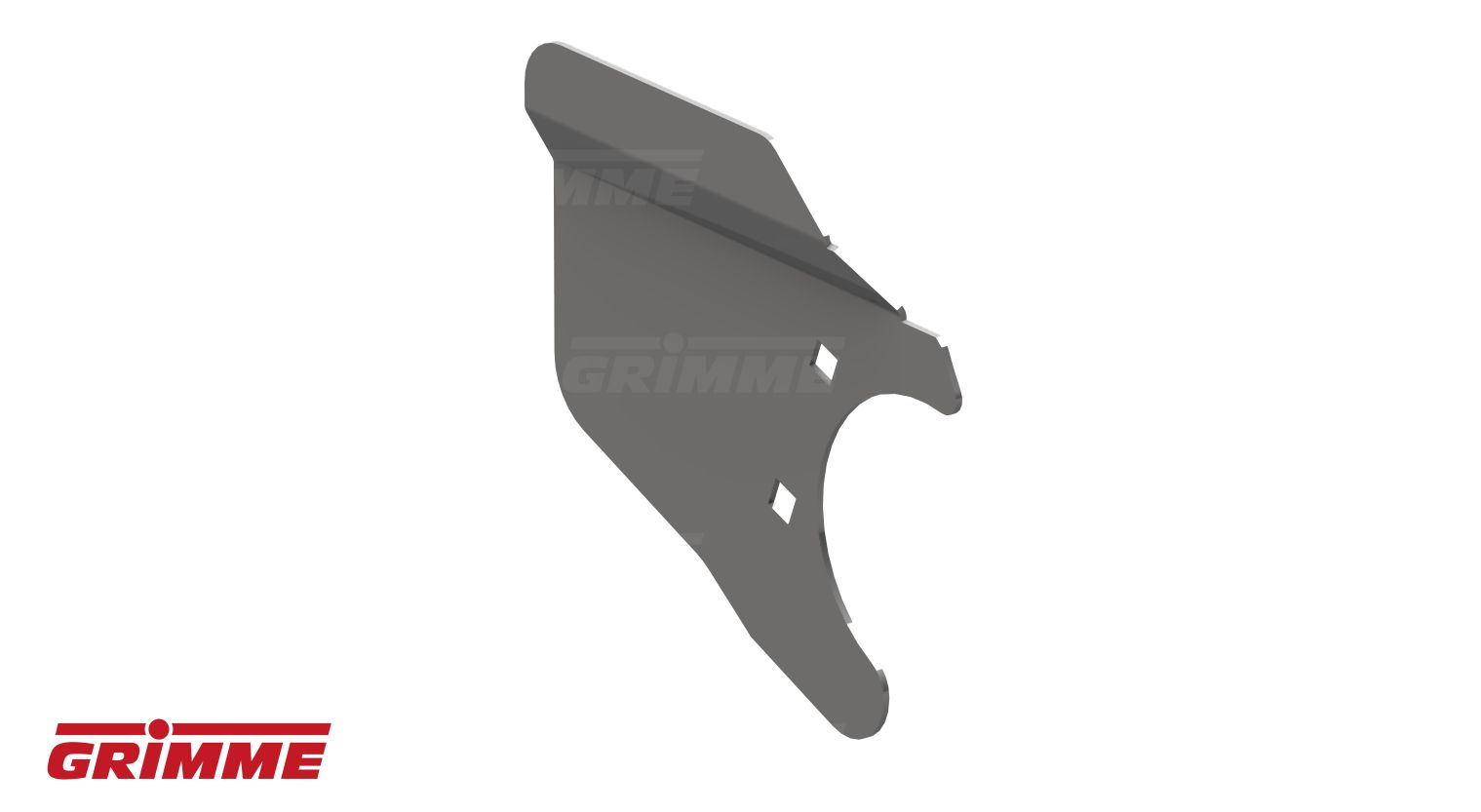

BEARING ARM R/H
Quantity in assembly group:
1 Piece / Pos. 42
BEARING ARM L/H
Quantity in assembly group:
1 Piece / Pos. 43
BEARING ARM CPTE R/H
Quantity in assembly group:
1 Piece / Pos. 44
BEARING ARM CPTE L/H
Quantity in assembly group:
1 Piece / Pos. 45
SIDE PLATE R/H
Quantity in assembly group:
1 Piece / Pos. 46
SIDE PLATE L/H
Quantity in assembly group:
1 Piece / Pos. 47
SPACER TUBE
Quantity in assembly group:
4 Piece / Pos. 48
COACH BOLT M12X30-DIN603-8.8-G
Quantity in assembly group:
2 Piece / Pos. 50
CONTACT DISC FORM M 12-GAL
Quantity in assembly group:
2 Piece / Pos. 51
HEXAGON NUT M12 934-10.9-flZn
Quantity in assembly group:
2 Piece / Pos. 52
MH-SCREW M10X35-603-8.8-GAL
Quantity in assembly group:
4 Piece / Pos. 53
CONTACT WASHER FORM M 10-GAL
Quantity in assembly group:
4 Piece / Pos. 54
HALF NUT M10 DIN936-17H-GAL
Quantity in assembly group:
4 Piece / Pos. 55
SET SCREW M12X25-DIN933-8.8-G
Quantity in assembly group:
1 Piece / Pos. 56
WASHER
Quantity in assembly group:
1 Piece / Pos. 57
HEX BOLT M12X80-931-10.9 flZn
Quantity in assembly group:
4 Piece / Pos. 58
SHAFT
Quantity in assembly group:
1 Piece / Pos. 59
BRACKET
Quantity in assembly group:
1 Piece / Pos. 60
HHC-SCREW M12X110 931-12.9flZn
Quantity in assembly group:
1 Piece / Pos. 63
