Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

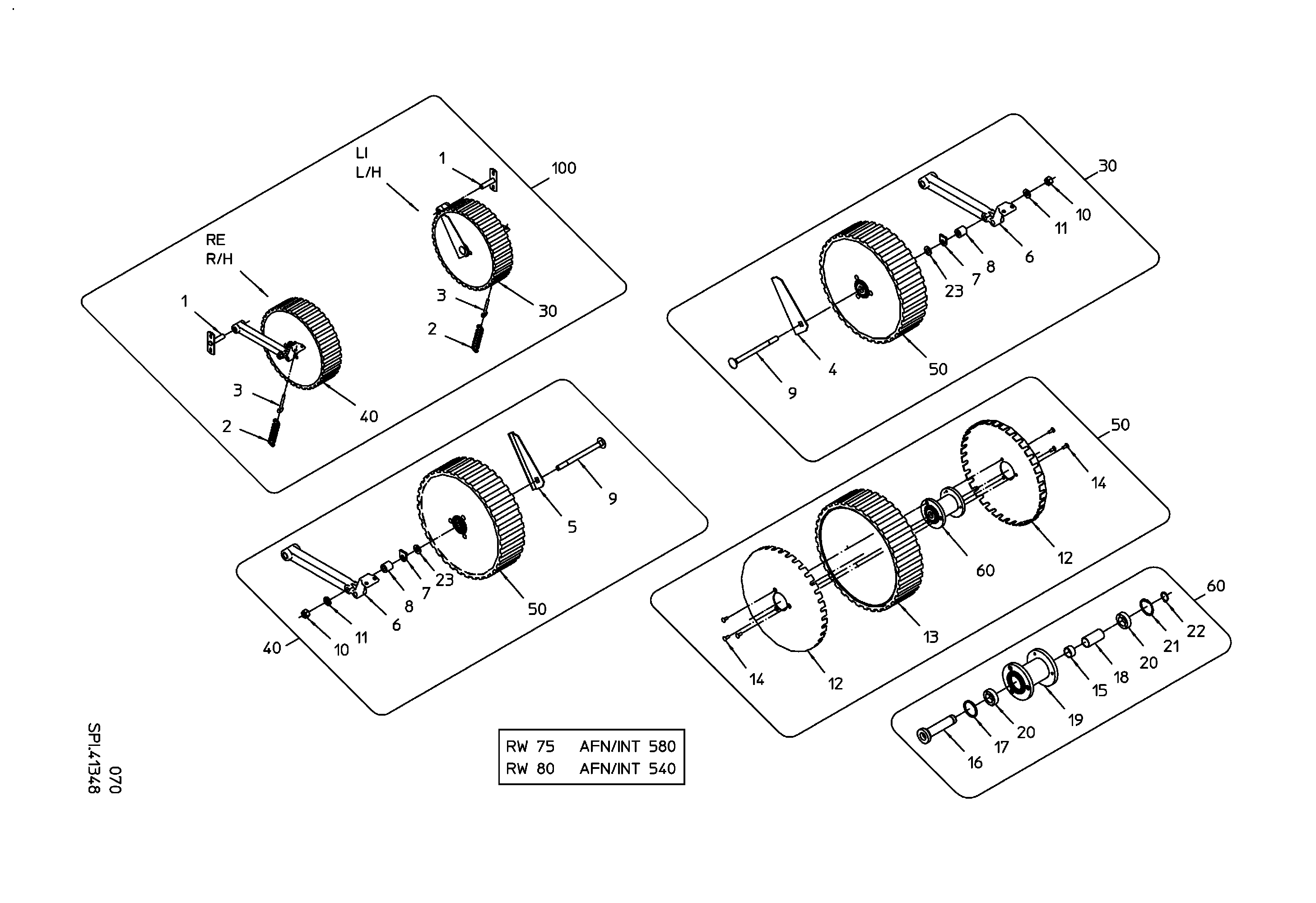

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
HAULM FEED-IN ROLLER 115 WIDE (30 Parts)

Subassembly parts

All items Equipment ex work ()
PLAIN BEARING BUSH 202320
Quantity in assembly group: 2 Piece / Pos. 0
MOUNTING ARM
Quantity in assembly group: 1 Piece / Pos. 0
BOLT
Quantity in assembly group: 2 Piece / Pos. 1
TENSION SPRING
Quantity in assembly group: 2 Piece / Pos. 2
EYELET SCREW
Quantity in assembly group: 2 Piece / Pos. 3
SCRAPER L/H
Quantity in assembly group: 1 Piece / Pos. 4
SCRAPER R/H
Quantity in assembly group: 1 Piece / Pos. 5
MOUNTING ARM
Quantity in assembly group: 2 Piece / Pos. 6
ADJUSTING DISC
Quantity in assembly group: 2 Piece / Pos. 7
SPACER 16,5X30X30
Quantity in assembly group: 2 Piece / Pos. 8
COACH BOLT M16X220-DIN603-4.6G
Quantity in assembly group: 2 Piece / Pos. 9
HEXAGON NUT M16 DIN934-8-GAL
Quantity in assembly group: 2 Piece / Pos. 10
CONTACT WASHER FORM M 16-GAL
Quantity in assembly group: 2 Piece / Pos. 11
TOOTHED DRUM
Quantity in assembly group: 4 Piece / Pos. 12
PUR RING TEETHED 115 WIDE 35T
Quantity in assembly group: 2 Piece / Pos. 13
CSK. ALLEN SCREW M8X20-DIN7991
Quantity in assembly group: 12 Piece / Pos. 14
SPACER TUBE
Quantity in assembly group: 2 Piece / Pos. 15
BUSHING
Quantity in assembly group: 2 Piece / Pos. 16
SEALING RING 50-44-3
Quantity in assembly group: 2 Piece / Pos. 17
SPACER TUBE
Quantity in assembly group: 2 Piece / Pos. 18
BEARING HOUSING 112X122 WELDED
Quantity in assembly group: 2 Piece / Pos. 19
BALL BEARING 6005-ZZRST
Quantity in assembly group: 4 Piece / Pos. 20
RETAINING RING J 47X1,75 DIN47
Quantity in assembly group: 2 Piece / Pos. 21
RETAINING RING A 25X1,2 DIN471
Quantity in assembly group: 2 Piece / Pos. 22
FLAT WASHER M16
Quantity in assembly group: 2 Piece / Pos. 23
HAULM FEED-IN RO L/H 115 WIDE
Quantity in assembly group: 1 Piece / Pos. 30
HAULM FEED-IN RO R/H 115 WIDE
Quantity in assembly group: 1 Piece / Pos. 40
HAULM FEED ROLLER 115MM-HD
Quantity in assembly group: 2 Piece / Pos. 50
HUB COMPLETE
Quantity in assembly group: 2 Piece / Pos. 60
HFR OUTSIDE 115 WIDE
Quantity in assembly group: 1 Piece / Pos. 100
