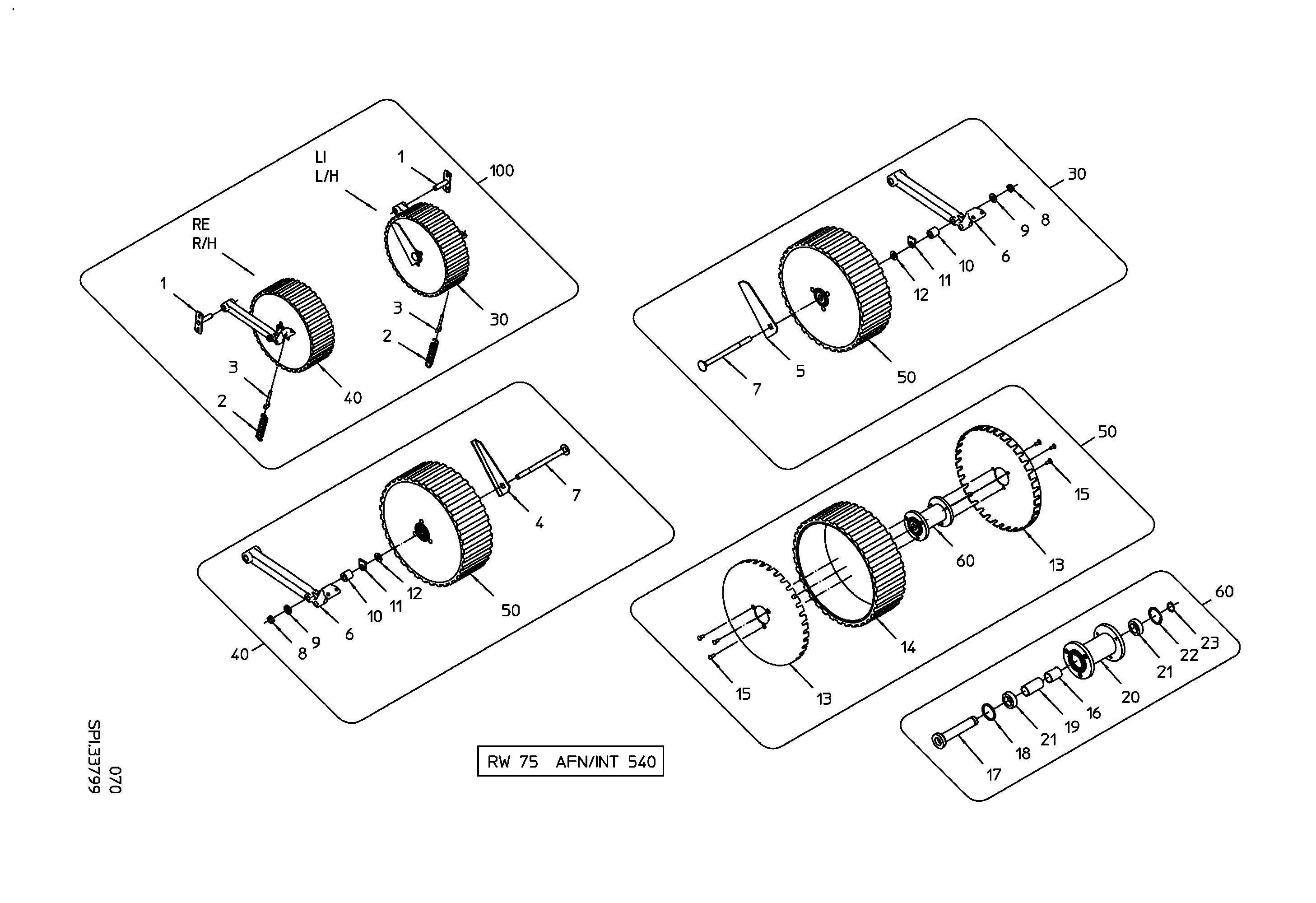

Parts by subassemblies

BOLT

Quantity in assembly group: 2 Piece / Pos. 1

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 2

EYELET SCREW

Quantity in assembly group: 2 Piece / Pos. 3

SCRAPER R/H

Quantity in assembly group: 1 Piece / Pos. 4

SCRAPER L/H

Quantity in assembly group: 1 Piece / Pos. 5

MOUNTING ARM

Quantity in assembly group: 2 Piece / Pos. 6

COACH BOLT M16X240-DIN603-4.6

Quantity in assembly group: 2 Piece / Pos. 7

HALF NUT M16 DIN936-17H-GAL

Quantity in assembly group: 2 Piece / Pos. 8

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 2 Piece / Pos. 9

SPACER 16,5X30X30

Quantity in assembly group: 2 Piece / Pos. 10

ADJUSTING DISC

Quantity in assembly group: 2 Piece / Pos. 11

FLAT WASHER M16

Quantity in assembly group: 2 Piece / Pos. 12

TOOTHED DRUM

Quantity in assembly group: 4 Piece / Pos. 13

PU-RING TEETHED 140WIDE 35T

Quantity in assembly group: 2 Piece / Pos. 14

CSK. ALLEN SCREW M8X20-DIN7991

Quantity in assembly group: 12 Piece / Pos. 15

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 16

BUSH 44X148

Quantity in assembly group: 2 Piece / Pos. 17

SEALING RING 50-44-3

Quantity in assembly group: 2 Piece / Pos. 18

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 19

BE HOUSING DM112X147 WELDED

Quantity in assembly group: 2 Piece / Pos. 20

BALL BEARING 6005-ZZRST

Quantity in assembly group: 4 Piece / Pos. 21

RETAINING RING J 47X1,75 DIN47

Quantity in assembly group: 2 Piece / Pos. 22

RETAINING RING A 25X1,2 DIN471

Quantity in assembly group: 2 Piece / Pos. 23

HAULM FEED-IN RO L/H 140 WIDE

Quantity in assembly group: 1 Piece / Pos. 30

HAULM FEED-IN RO R/H 140 WIDE

Quantity in assembly group: 1 Piece / Pos. 40

HFR 140 WIDE WITH CAMS

Quantity in assembly group: 2 Piece / Pos. 50

BEARING HOUSING 114X148 ASM

Quantity in assembly group: 2 Piece / Pos. 60

HFR OUTSIDE 140 WIDE

Quantity in assembly group: 1 Piece / Pos. 100
