Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

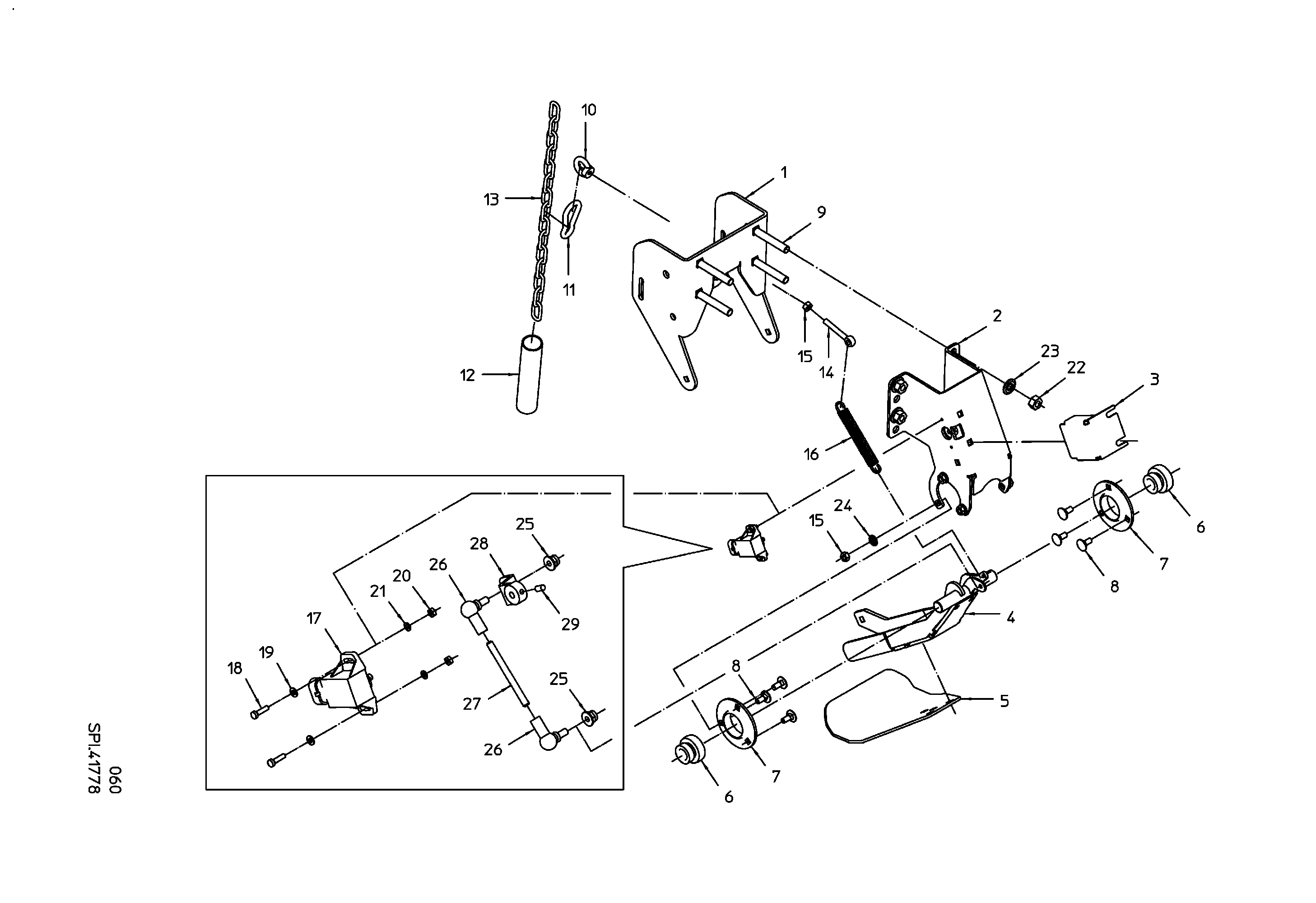

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
DEPTH FEELER (29 Parts)
▸

Subassembly parts

All items Equipment ex work ()
STAINLESS STEEL
Quantity in assembly group: 1 Piece / Pos. 1
BRACKET
Quantity in assembly group: 1 Piece / Pos. 2
PROTECTION
Quantity in assembly group: 1 Piece / Pos. 3
DETECTOR
Quantity in assembly group: 1 Piece / Pos. 4
WEAR+TEAR PANEL
Quantity in assembly group: 1 Piece / Pos. 5
Y-BEARING YET 204 DM=20
Quantity in assembly group: 2 Piece / Pos. 6
FLANGE PLATE (PR) PF47/PF204
Quantity in assembly group: 2 Piece / Pos. 7
COACH BOLT M8X20-603-8.8-GAL
Quantity in assembly group: 6 Piece / Pos. 8
COACH BOLT M12X80-DIN603-8.8-G
Quantity in assembly group: 4 Piece / Pos. 9
RING NUT M8
Quantity in assembly group: 1 Piece / Pos. 10
SNAP HOOK 8X80 DIN5299-BR
Quantity in assembly group: 1 Piece / Pos. 11
COVER TUBE 34X30X164
Quantity in assembly group: 1 Piece / Pos. 12
LINK CHAIN 15LI C5X36 DIN763-G
Quantity in assembly group: 1 Piece / Pos. 13
EYE BOLT M M8X60 444-8.8-GAL
Quantity in assembly group: 1 Piece / Pos. 14
HEXAGON NUT M8 DIN934-8-GAL
Quantity in assembly group: 7 Piece / Pos. 15
TENSION SPRING
Quantity in assembly group: 1 Piece / Pos. 16
A-SENSOR,060°,10-30V,1-5V
Quantity in assembly group: 1 Piece / Pos. 17
CYLINDER SCREW M4X16 DIN84-GAL
Quantity in assembly group: 2 Piece / Pos. 18
WASHER B4,3 DIN125-GAL
Quantity in assembly group: 2 Piece / Pos. 19
HEX NUT M4 DIN934-8-GAL
Quantity in assembly group: 2 Piece / Pos. 20
FAN WASHER A 4.3 DIN6798-GAL
Quantity in assembly group: 2 Piece / Pos. 21
HEXAGON NUT M12 DIN934-8-GAL
Quantity in assembly group: 4 Piece / Pos. 22
CONTACT DISC FORM M 12-GAL
Quantity in assembly group: 4 Piece / Pos. 23
CONTACT WASHER FORM M 8-GAL
Quantity in assembly group: 6 Piece / Pos. 24
HEX-FLANGE NUT 6926-M6-8
Quantity in assembly group: 2 Piece / Pos. 25
ANGLE JOINT 1750 001 2
Quantity in assembly group: 2 Piece / Pos. 26
THREADED ROD
Quantity in assembly group: 1 Piece / Pos. 27
LEVER
Quantity in assembly group: 1 Piece / Pos. 28
GRUB BOLT M5X12 914 wIH+H flZn
Quantity in assembly group: 1 Piece / Pos. 29
