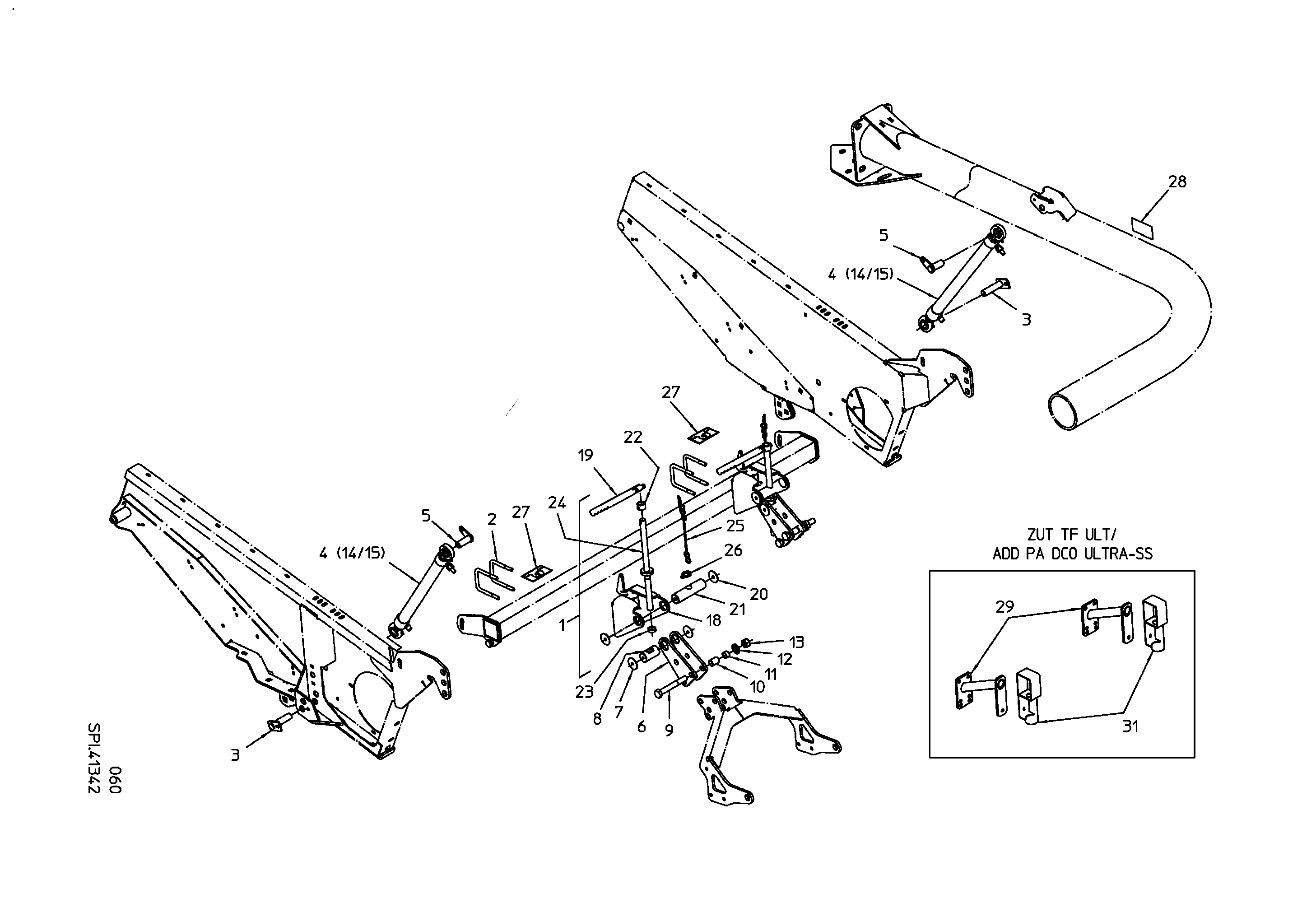

Parts by subassemblies

DEPTH GUIDE STANDARD

Quantity in assembly group: 2 Piece / Pos. 1

U-BOLT M12X81X115-8.8

Quantity in assembly group: 4 Piece / Pos. 2

CYLINDER BOLT

Quantity in assembly group: 2 Piece / Pos. 3

DRAW-IN CYLINDRE

Quantity in assembly group: 2 Piece / Pos. 4

PIN

Quantity in assembly group: 2 Piece / Pos. 5

MOUNTING PLATE

Quantity in assembly group: 4 Piece / Pos. 6

NUT PIECE

Quantity in assembly group: 2 Piece / Pos. 8

HHC-SCREW M20X120 931-10.9flZn

Quantity in assembly group: 4 Piece / Pos. 9

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 10

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 11

CONTACT WASHER FORM M 20-GAL

Quantity in assembly group: 4 Piece / Pos. 12

HEXAGON NUT M20 DIN934-8-GAL

Quantity in assembly group: 4 Piece / Pos. 13

CYL SEAL SET

Quantity in assembly group: 1 Piece / Pos. 14

BREATHER VALVE 12L

Quantity in assembly group: 1 Piece / Pos. 15

BRACKET

Quantity in assembly group: 1 Piece / Pos. 18

LEVER

Quantity in assembly group: 1 Piece / Pos. 19

WASHER

Quantity in assembly group: 2 Piece / Pos. 20

HINGE PIECE

Quantity in assembly group: 1 Piece / Pos. 21

LOCKING BUSH

Quantity in assembly group: 1 Piece / Pos. 22

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 23

SPINDEL

Quantity in assembly group: 1 Piece / Pos. 24

SAFETY CHAIN -PLASTIC

Quantity in assembly group: 1 Piece / Pos. 25

CABLE TIE w SOCKET,B7,t7

Quantity in assembly group: 1 Piece / Pos. 26

INFORMATION SIGN

Quantity in assembly group: 2 Piece / Pos. 27

089.00808 WARNING SYM

Quantity in assembly group: 1 Piece / Pos. 28

BRACKET

Quantity in assembly group: 2 Piece / Pos. 29

SENSOR HOLDER

Quantity in assembly group: 2 Piece / Pos. 31
