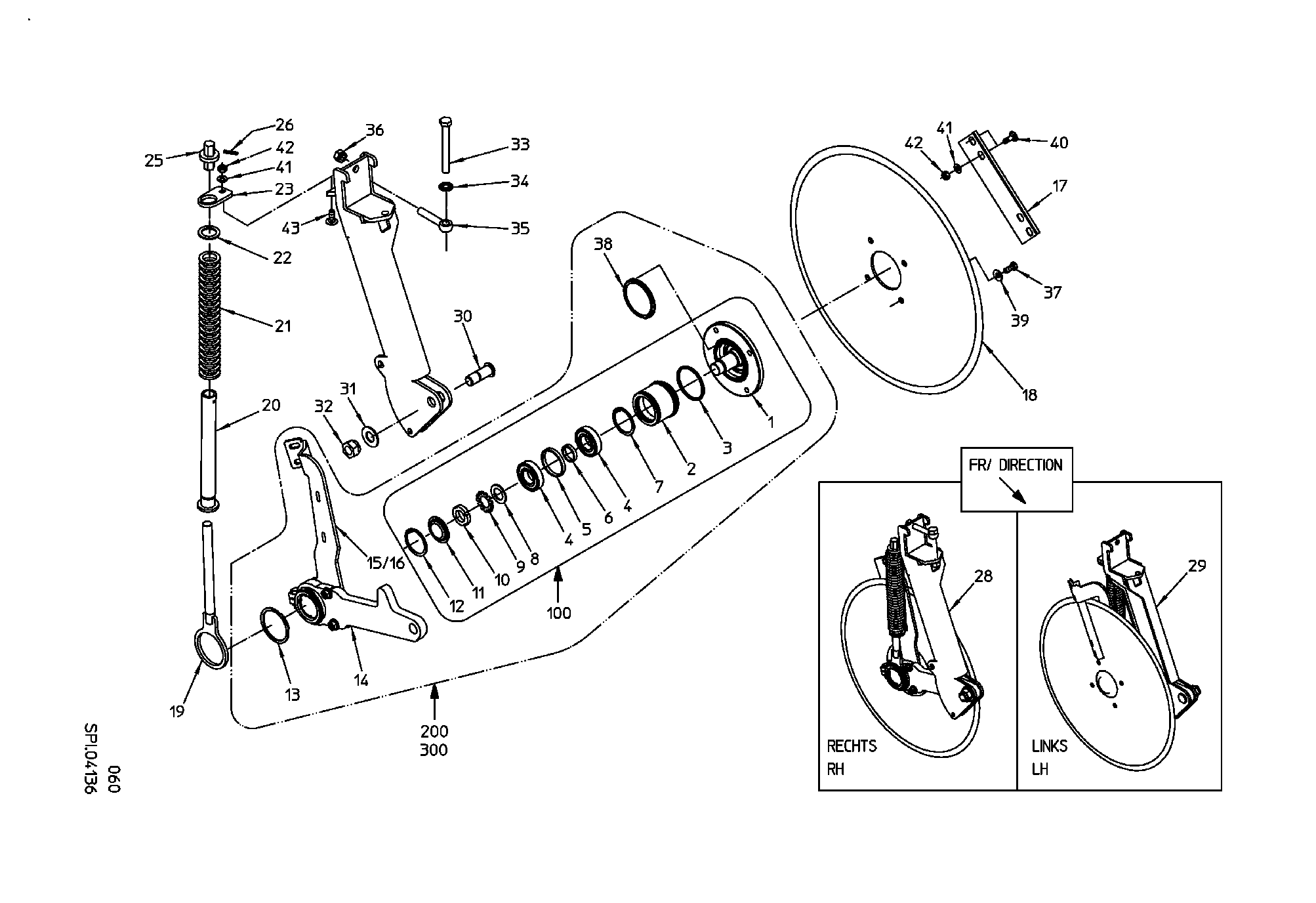

Parts by subassemblies

FLANGE MODEL GBB

Quantity in assembly group: 1 Piece / Pos. 1

BEARING BUSH

Quantity in assembly group: 1 Piece / Pos. 2

SEALING RING 88-80-4

Quantity in assembly group: 1 Piece / Pos. 3

BALL BEARING 6207-2RS

Quantity in assembly group: 2 Piece / Pos. 4

SPACER

Quantity in assembly group: 1 Piece / Pos. 5

SPACER

Quantity in assembly group: 1 Piece / Pos. 6

RETAINING RING J 72X2,5 DIN472

Quantity in assembly group: 1 Piece / Pos. 7

DISC

Quantity in assembly group: 1 Piece / Pos. 8

LOCKING PLATE

Quantity in assembly group: 1 Piece / Pos. 9

NUT WITH GROOVE M30X1,5 DIN180

Quantity in assembly group: 1 Piece / Pos. 10

CAP

Quantity in assembly group: 1 Piece / Pos. 11

RETAINING RING J 68X2,5 DIN472

Quantity in assembly group: 1 Piece / Pos. 12

RETAINING RING A 85X3 DIN471

Quantity in assembly group: 2 Piece / Pos. 13

DISC COULTER SHANK

Quantity in assembly group: 2 Piece / Pos. 14

MOUNTING ARM R/H

Quantity in assembly group: 1 Piece / Pos. 15

MOUNTING ARM L/H

Quantity in assembly group: 1 Piece / Pos. 16

SCRAPER F DIC

Quantity in assembly group: 2 Piece / Pos. 17

DISC COULTER 645

Quantity in assembly group: 2 Piece / Pos. 18

DEPTH SPINDLE

Quantity in assembly group: 2 Piece / Pos. 19

GUIDE TUBE

Quantity in assembly group: 2 Piece / Pos. 20

PRESSURE SPRING

Quantity in assembly group: 2 Piece / Pos. 21

DISC 35X51X3

Quantity in assembly group: 2 Piece / Pos. 22

BRACKET

Quantity in assembly group: 2 Piece / Pos. 23

PIVOT

Quantity in assembly group: 2 Piece / Pos. 25

ROLL PIN 6X32-DIN1481

Quantity in assembly group: 1 Piece / Pos. 26

MOUNTING ARM R/H

Quantity in assembly group: 1 Piece / Pos. 28

MOUNTING ARM L/H

Quantity in assembly group: 1 Piece / Pos. 29

BOLT

Quantity in assembly group: 2 Piece / Pos. 30

PLAIN WASHER 26X52X3 GAL (ART

Quantity in assembly group: 2 Piece / Pos. 31

NYLOC NUT DIN985-M24-8-GAL

Quantity in assembly group: 2 Piece / Pos. 32

HEX BOLT M16X130-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 33

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 2 Piece / Pos. 34

EYE BOLT B M16X120 DIN444-8.8-

Quantity in assembly group: 2 Piece / Pos. 35

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 4 Piece / Pos. 36

SET SCREW M12X20-DIN933-8.8-G

Quantity in assembly group: 4 Piece / Pos. 37

SEALING DISC

Quantity in assembly group: 1 Piece / Pos. 38

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 4 Piece / Pos. 39

MH-SCREW M10X30-603-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 40

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 3 Piece / Pos. 41

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 3 Piece / Pos. 42

MH-SCREW M10X35-603-8.8-GAL

Quantity in assembly group: 1 Piece / Pos. 43

DISC HUB COMPLETE

Quantity in assembly group: 2 Piece / Pos. 100

DISC ARM R/H

Quantity in assembly group: 1 Piece / Pos. 200

DISC ARM L/H

Quantity in assembly group: 1 Piece / Pos. 300
