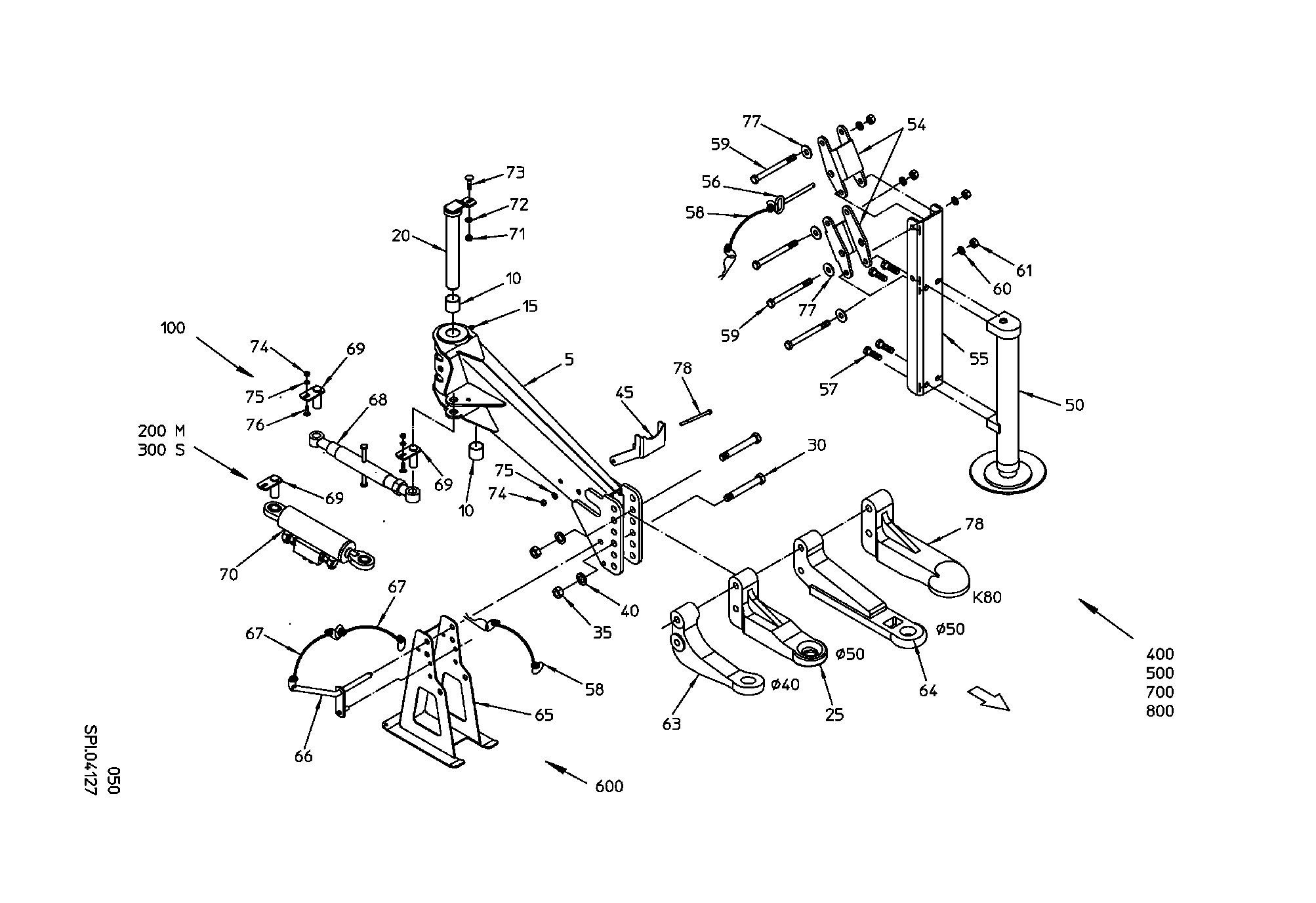

Parts by subassemblies

EGE12LMEDCF

Quantity in assembly group: 1 Piece / Pos. 0

P-EWS 12L-SV

Quantity in assembly group: 1 Piece / Pos. 0

P-REDS 12/8L-SV

Quantity in assembly group: 1 Piece / Pos. 0

CYL SEAL SET

Quantity in assembly group: 1 Piece / Pos. 0

CYL-SEAL SET

Quantity in assembly group: 1 Piece / Pos. 0

HYD PLUG-IN COU PLUG M14X1,5

Quantity in assembly group: 1 Piece / Pos. 0

HOSE-1000-NW12-2SC-325BAR

Quantity in assembly group: 1 Piece / Pos. 0

BLOCK UP BALL VAL BKH-12L DN8

Quantity in assembly group: 1 Piece / Pos. 0

DRAWBAR

Quantity in assembly group: 1 Piece / Pos. 5

PLAIN BEARING BUSH 404440

Quantity in assembly group: 2 Piece / Pos. 10

GREASE NIPPLE H2/S-M6X1 DIN714

Quantity in assembly group: 1 Piece / Pos. 15

BOLT

Quantity in assembly group: 1 Piece / Pos. 20

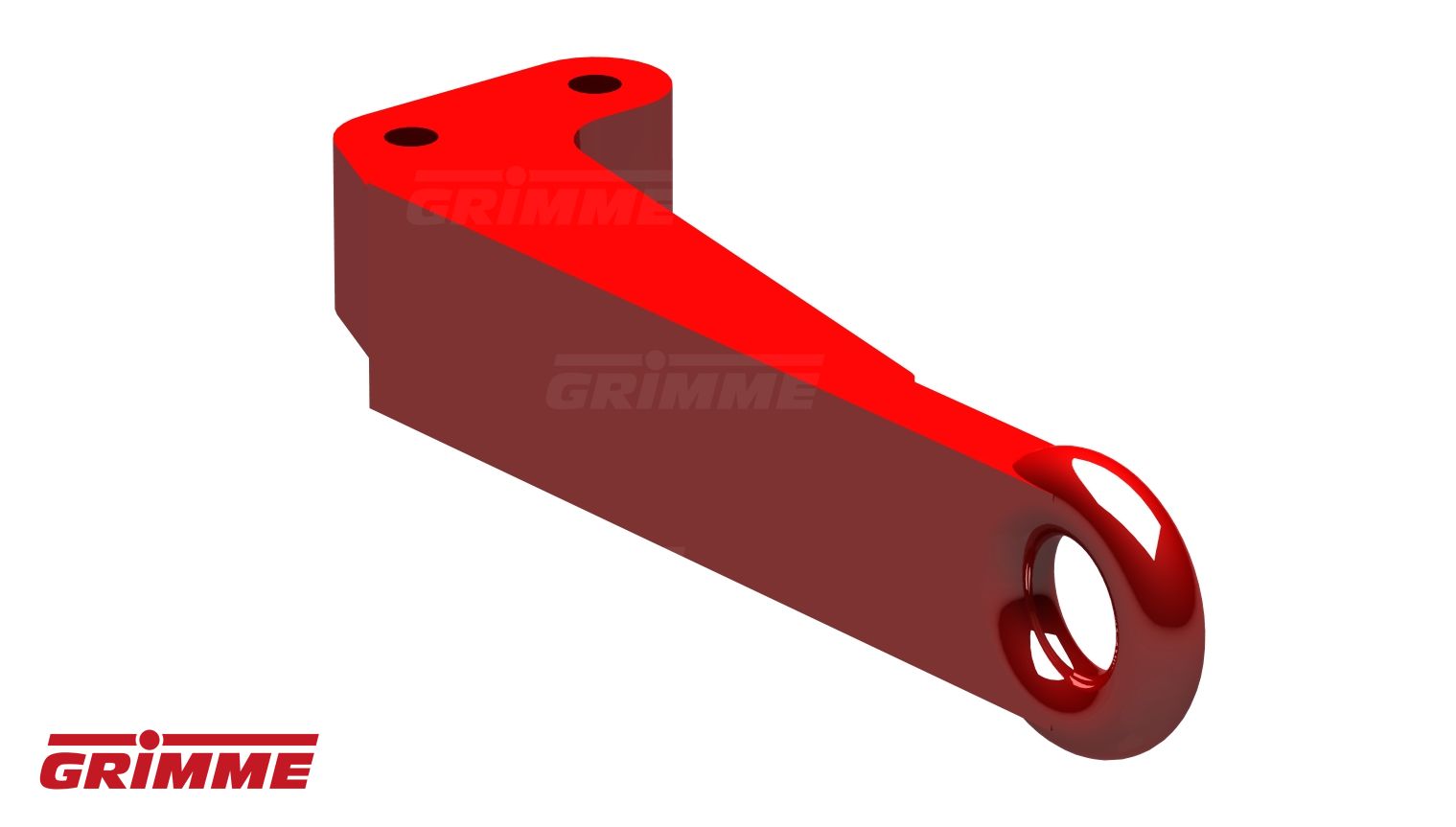

DRAWBAR EYE

Quantity in assembly group: 1 Piece / Pos. 25

HEX BOLT M20X130-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 30

HEXAGON NUT M20 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 35

CONTACT WASHER FORM M 20-GAL

Quantity in assembly group: 2 Piece / Pos. 40

RESTING BRACKET

Quantity in assembly group: 1 Piece / Pos. 45

PRESSURE CYLINDER

Quantity in assembly group: 1 Piece / Pos. 50

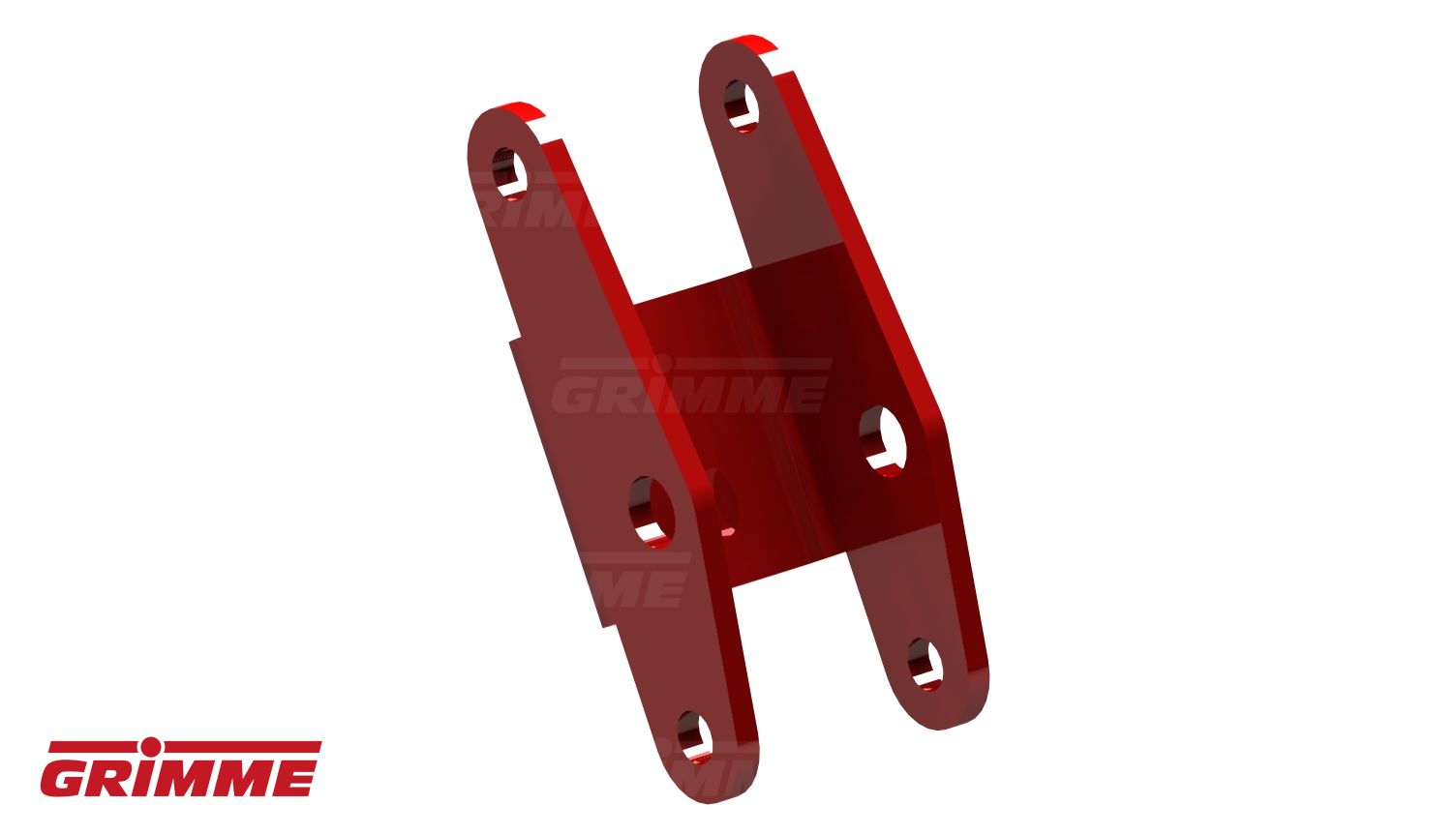

BRACKET

Quantity in assembly group: 2 Piece / Pos. 54

BRACKET

Quantity in assembly group: 1 Piece / Pos. 55

PIN

Quantity in assembly group: 1 Piece / Pos. 56

SET SCREW M16X30-DIN933-8.8-G

Quantity in assembly group: 4 Piece / Pos. 57

SAFETY CHAIN -PLASTIC

Quantity in assembly group: 1 Piece / Pos. 58

HEX BOLT M16X140-DIN931-8.8-G

Quantity in assembly group: 4 Piece / Pos. 59

NYLOC NUT DIN985-M16-8-GAL

Quantity in assembly group: 4 Piece / Pos. 61

DRAWBAR EYE

Quantity in assembly group: 1 Piece / Pos. 63

DRAWBAR EYE GZ1700 1998

Quantity in assembly group: 1 Piece / Pos. 64

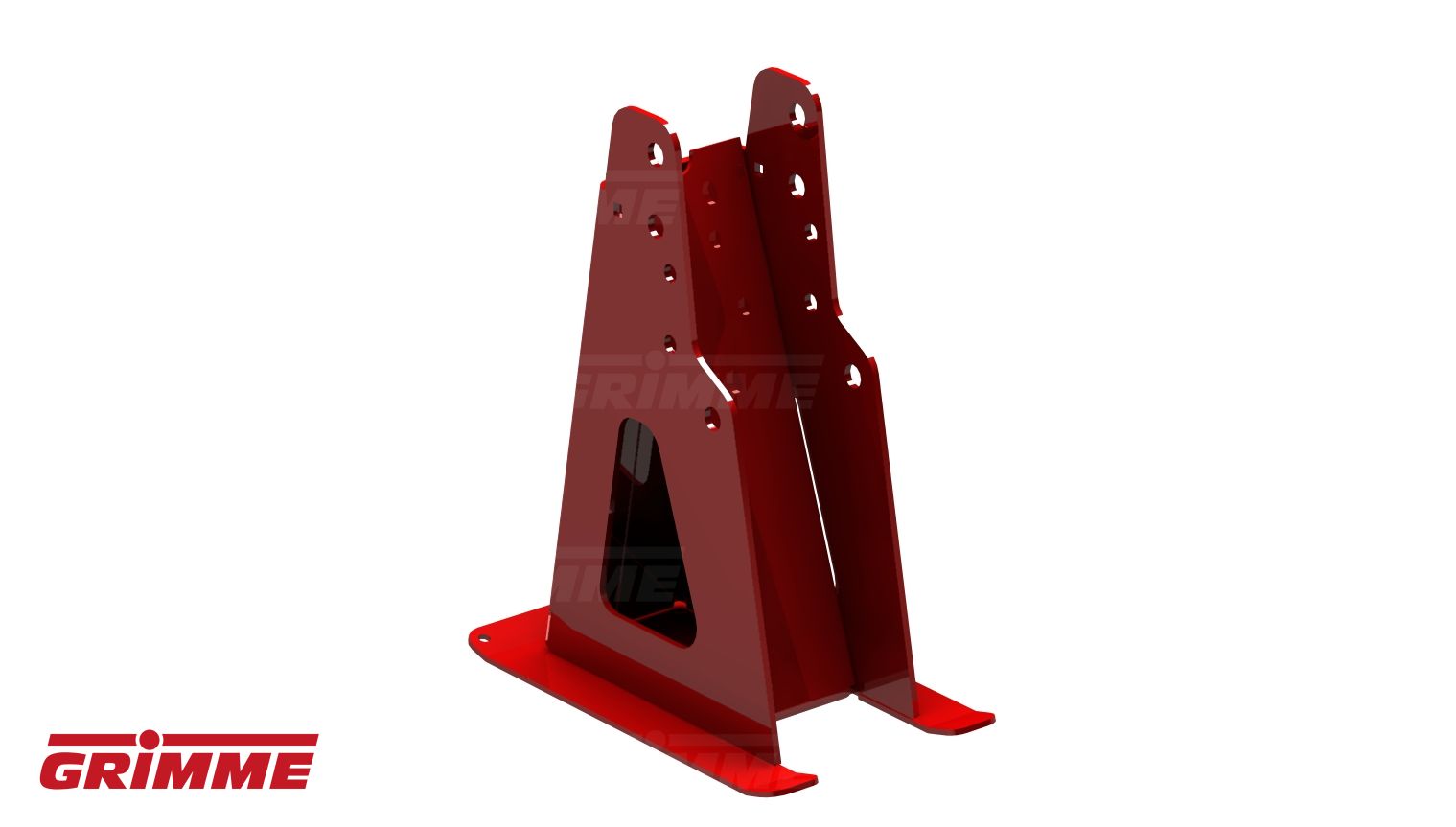

JACKSTAND GZ1700

Quantity in assembly group: 1 Piece / Pos. 65

PIN GZ1700

Quantity in assembly group: 1 Piece / Pos. 66

SAFETY CHAIN -PLASTIC-

Quantity in assembly group: 2 Piece / Pos. 67

TURNBUCKLE RD30X6

Quantity in assembly group: 1 Piece / Pos. 68

PIN

Quantity in assembly group: 2 Piece / Pos. 69

DOUBLE ACTING HYD RAM w RVB

Quantity in assembly group: 1 Piece / Pos. 70

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 1 Piece / Pos. 71

DISC 11 DIN126-GAL

Quantity in assembly group: 1 Piece / Pos. 72

MH-SCREW M10X30-603-8.8-GAL

Quantity in assembly group: 1 Piece / Pos. 73

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 74

FLAT WASHER B8,4 DIN125 -GAL

Quantity in assembly group: 2 Piece / Pos. 75

COACH BOLT M8X25-603-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 76

PLAIN WASHER 17X44X3 GAL

Quantity in assembly group: 4 Piece / Pos. 77

BALL HITCH DRAWBAR EYE

Quantity in assembly group: 1 Piece / Pos. 78

LATERAL ADJUSTMENT MECH

Quantity in assembly group: 1 Piece / Pos. 100

LATERAL ADJUSTMENT HYD M

Quantity in assembly group: 1 Piece / Pos. 200

LATERAL ADJUSTMENT HYD S

Quantity in assembly group: 1 Piece / Pos. 300

DR IN HITCH (DM50) HY BRACKET

Quantity in assembly group: 1 Piece / Pos. 400

DR IN DR-EYE UNDER HY BRACKET

Quantity in assembly group: 1 Piece / Pos. 500

DRAWBAR IN HITCH HOOK (UK)

Quantity in assembly group: 1 Piece / Pos. 600

DR HITCH HOOK HYDRAULIC STAY

Quantity in assembly group: 1 Piece / Pos. 700

DR DR BALL COUPLING HY BRACKET

Quantity in assembly group: 1 Piece / Pos. 800
