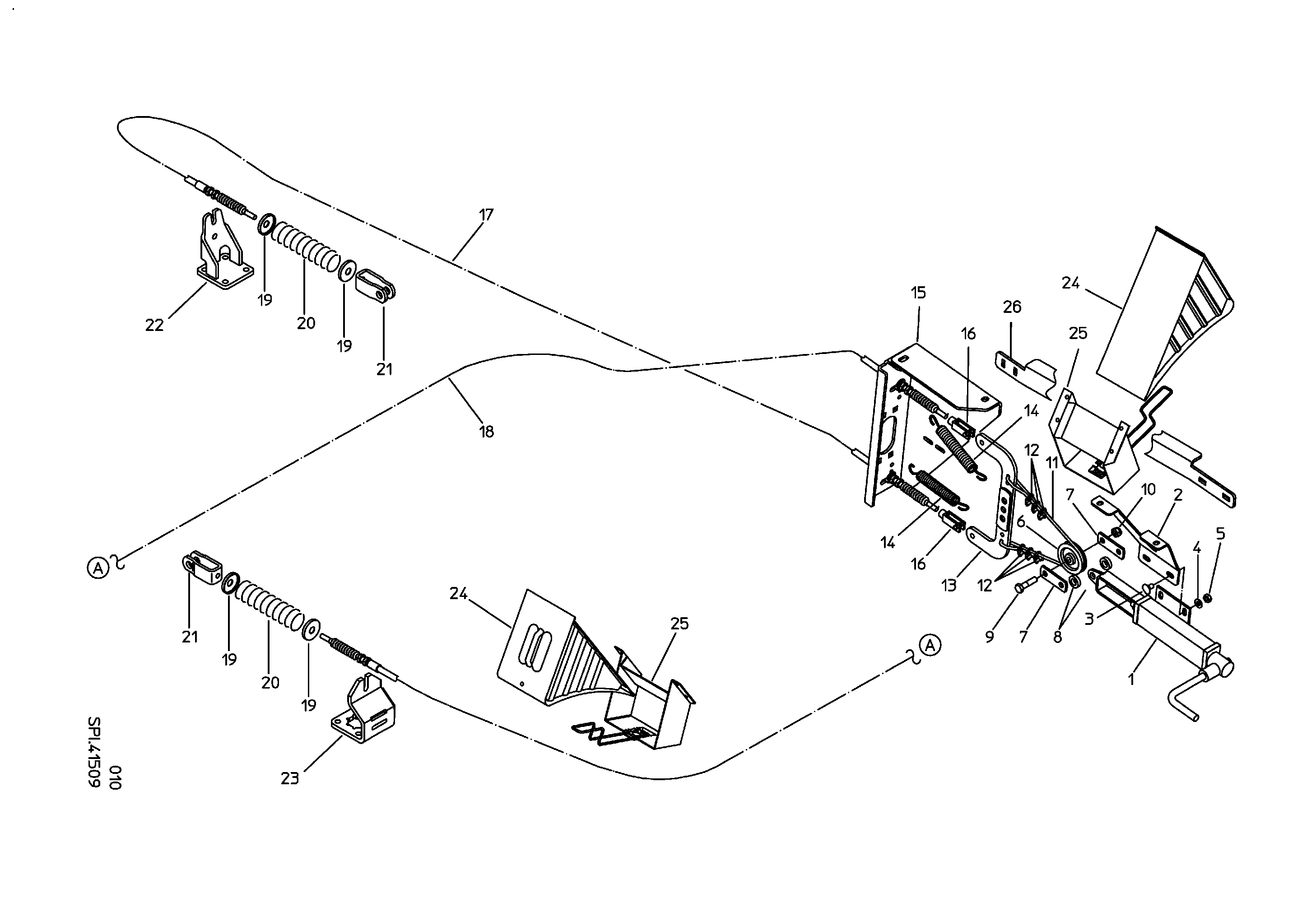

Parts by subassemblies

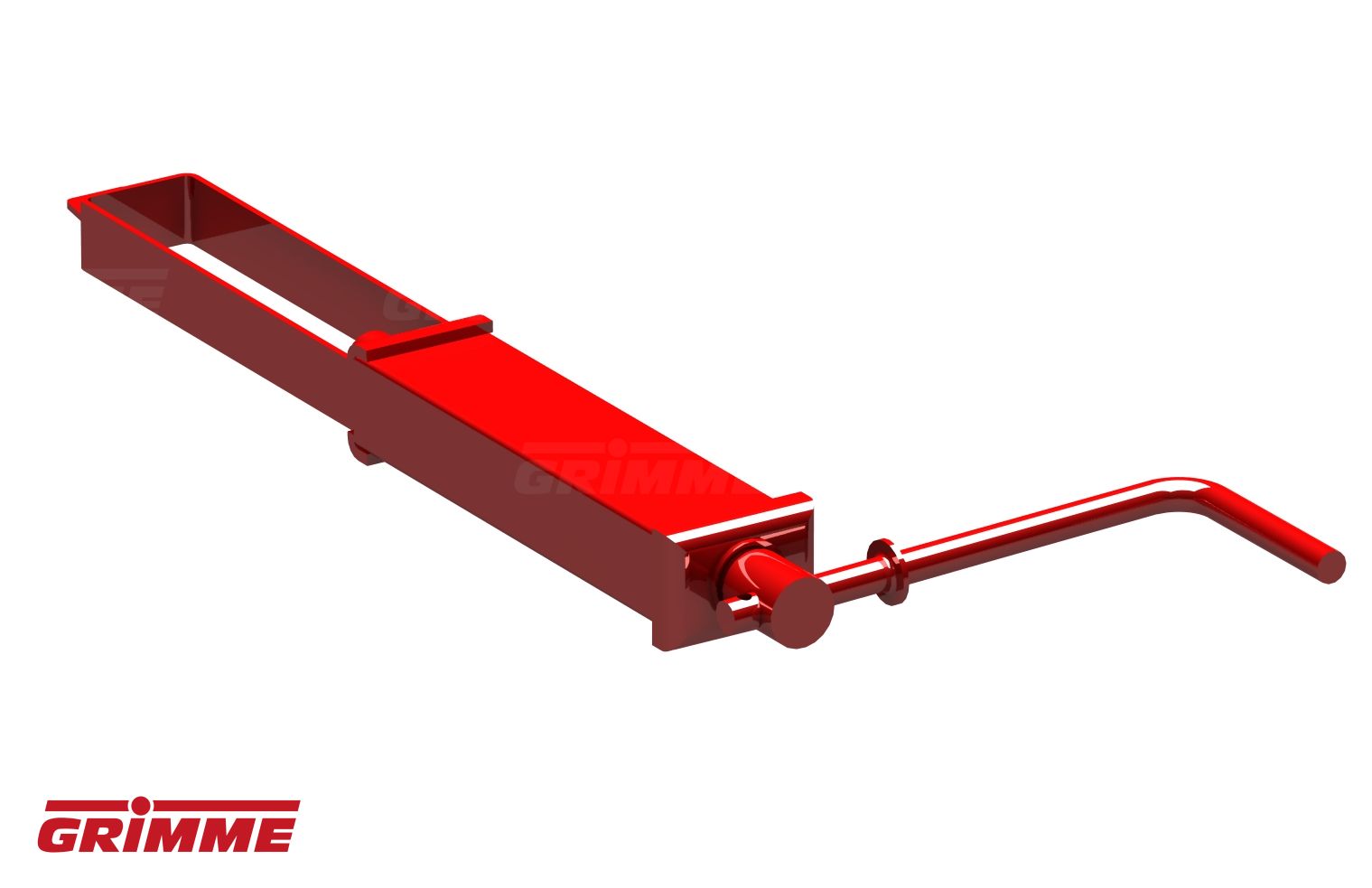

PARKING BRAKE w REVERSING HAND

Quantity in assembly group: 1 Piece / Pos. 1

BRACKET

Quantity in assembly group: 1 Piece / Pos. 2

COACH BOLT M10X20-DIN603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 3

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 2 Piece / Pos. 4

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 5

CABLE ROLLER

Quantity in assembly group: 1 Piece / Pos. 6

PULL BRACKET

Quantity in assembly group: 2 Piece / Pos. 7

DISC

Quantity in assembly group: 2 Piece / Pos. 8

HEX BOLT M12X50-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 9

NYLOC NUT DIN985-M12-8-GAL

Quantity in assembly group: 2 Piece / Pos. 10

WIRE STRAND 850LONG

Quantity in assembly group: 1 Piece / Pos. 11

CABLE CLAMP 6mm

Quantity in assembly group: 6 Piece / Pos. 12

PLATE

Quantity in assembly group: 1 Piece / Pos. 13

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 14

PLATE

Quantity in assembly group: 1 Piece / Pos. 15

FORK JOINT A 10X40 DIN71751

Quantity in assembly group: 2 Piece / Pos. 16

BOWDENZUG 3500 LG

Quantity in assembly group: 1 Piece / Pos. 17

STEERING CABLE 4900LG

Quantity in assembly group: 1 Piece / Pos. 18

WINDING PROTECTION

Quantity in assembly group: 4 Piece / Pos. 19

PRESSURE SPRING

Quantity in assembly group: 2 Piece / Pos. 20

CLAW

Quantity in assembly group: 2 Piece / Pos. 21

ABUTMENT L/H

Quantity in assembly group: 1 Piece / Pos. 22

ABUTMENT R/H

Quantity in assembly group: 1 Piece / Pos. 23

STOP-BLOCK DIN76051 184804(BIG

Quantity in assembly group: 2 Piece / Pos. 24

BRACKET F STOP BLOCK

Quantity in assembly group: 2 Piece / Pos. 25

BRACKET

Quantity in assembly group: 1 Piece / Pos. 26
